NODESTACK - BASE PACK

NODESTACK - ORGANIZER SYSTEM

the system will evolve over time.

Interested to see more of my projects?
https://linktr.ee/smackmax

Part of my own lab, iterating versions as i go along.

NODESTACK - BASE PACK

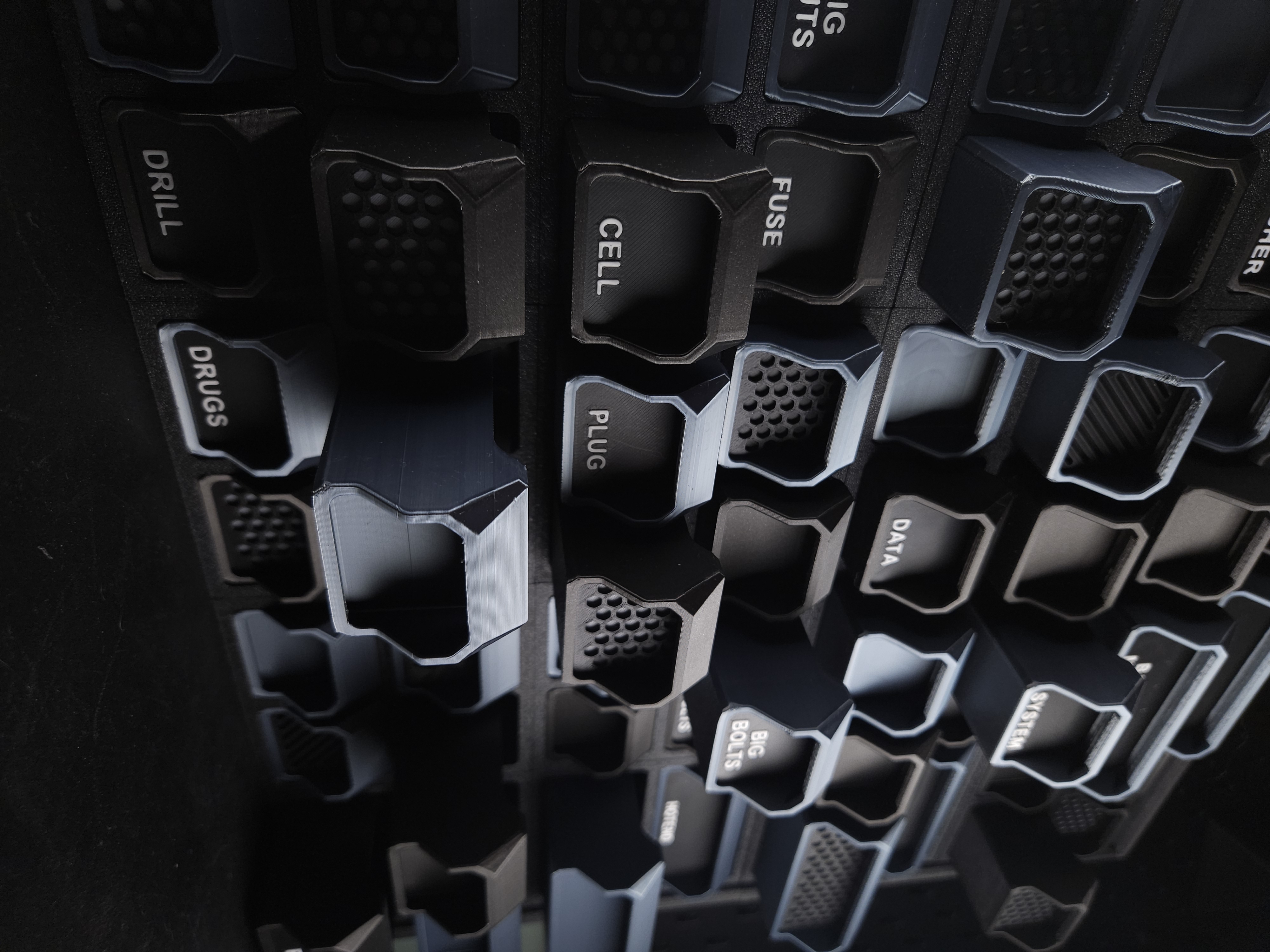

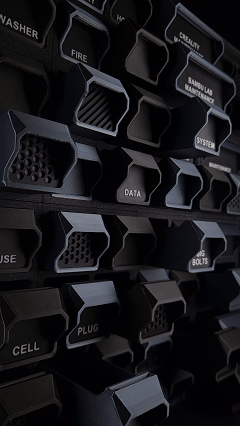

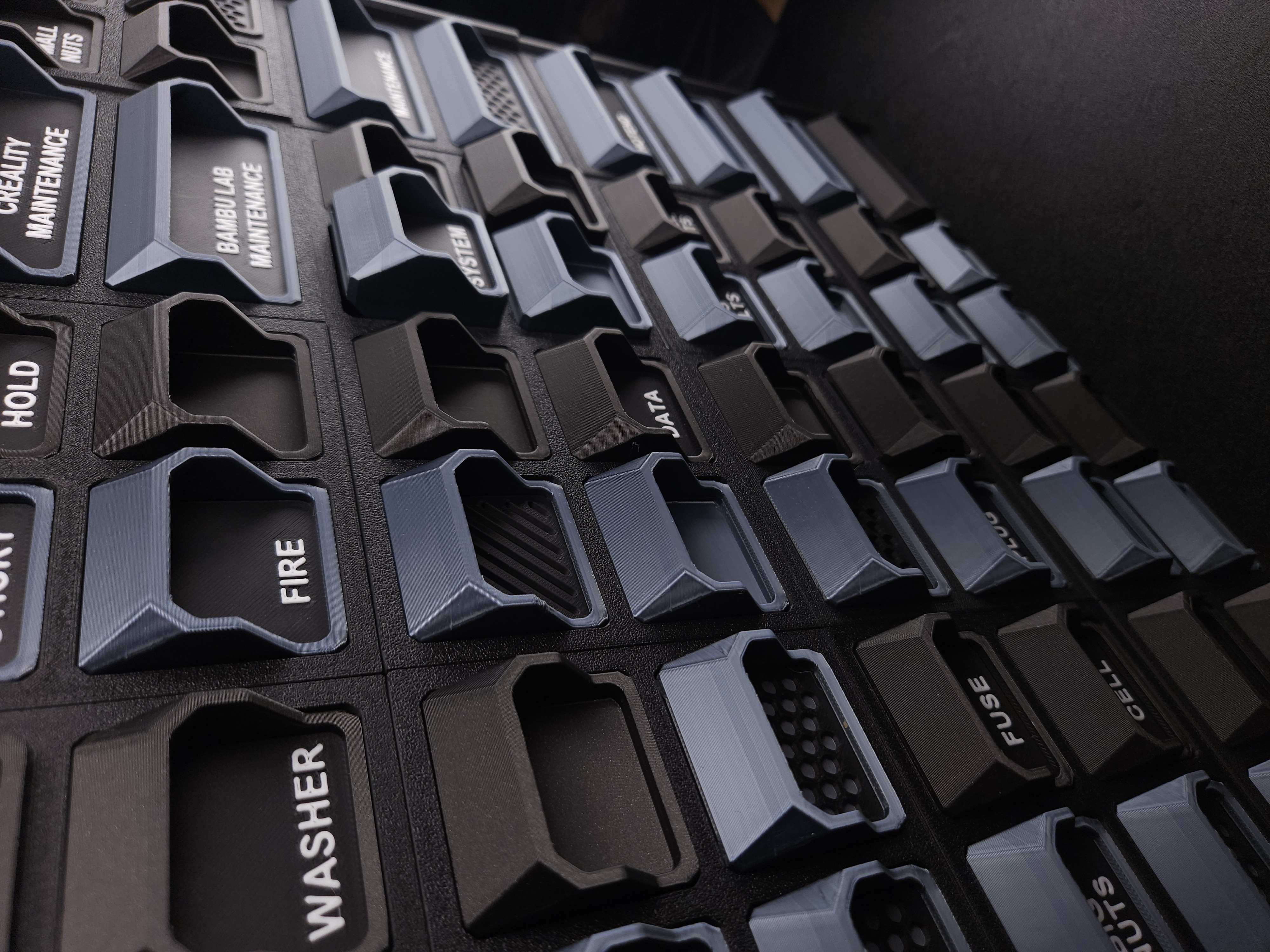

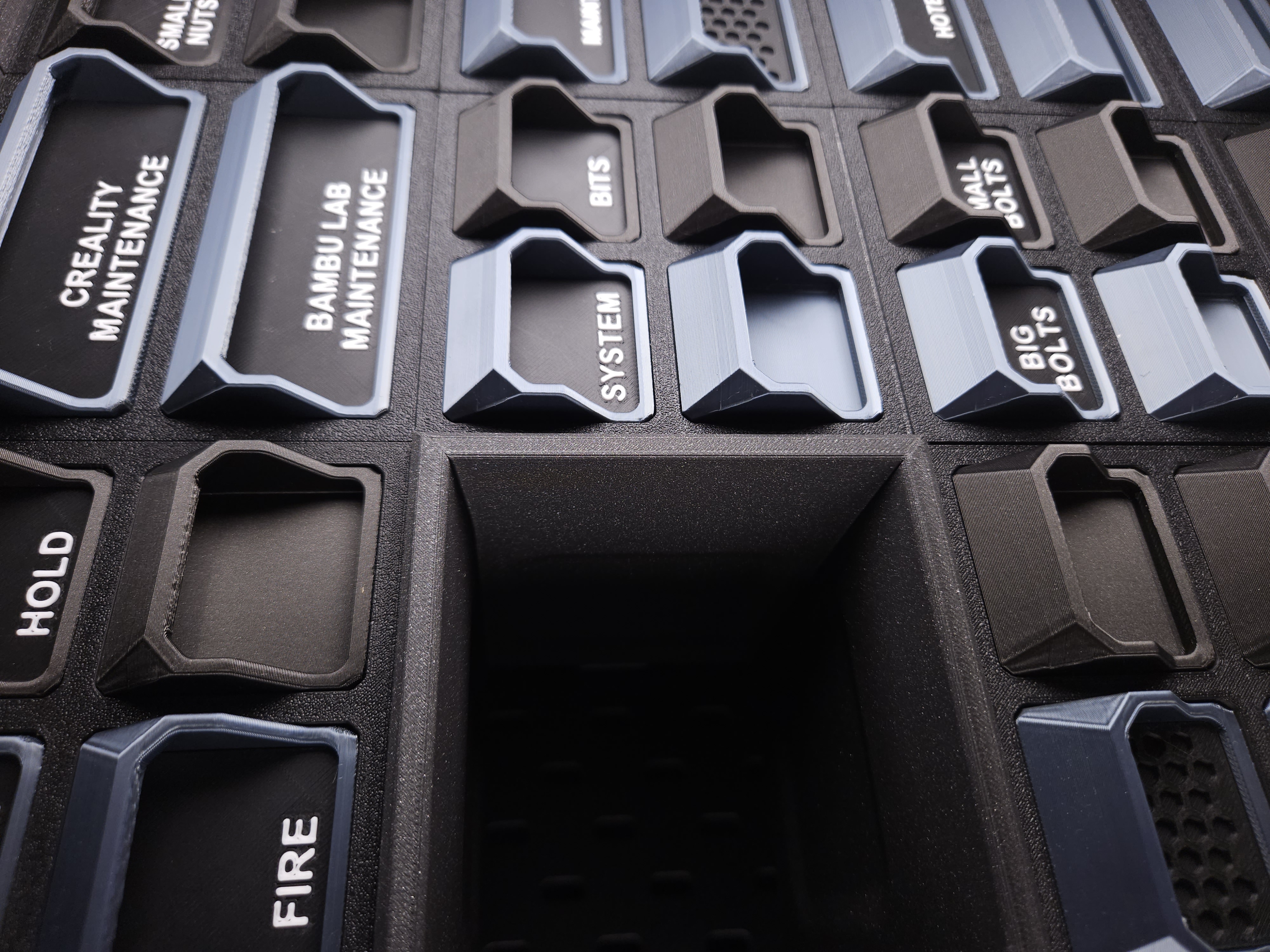

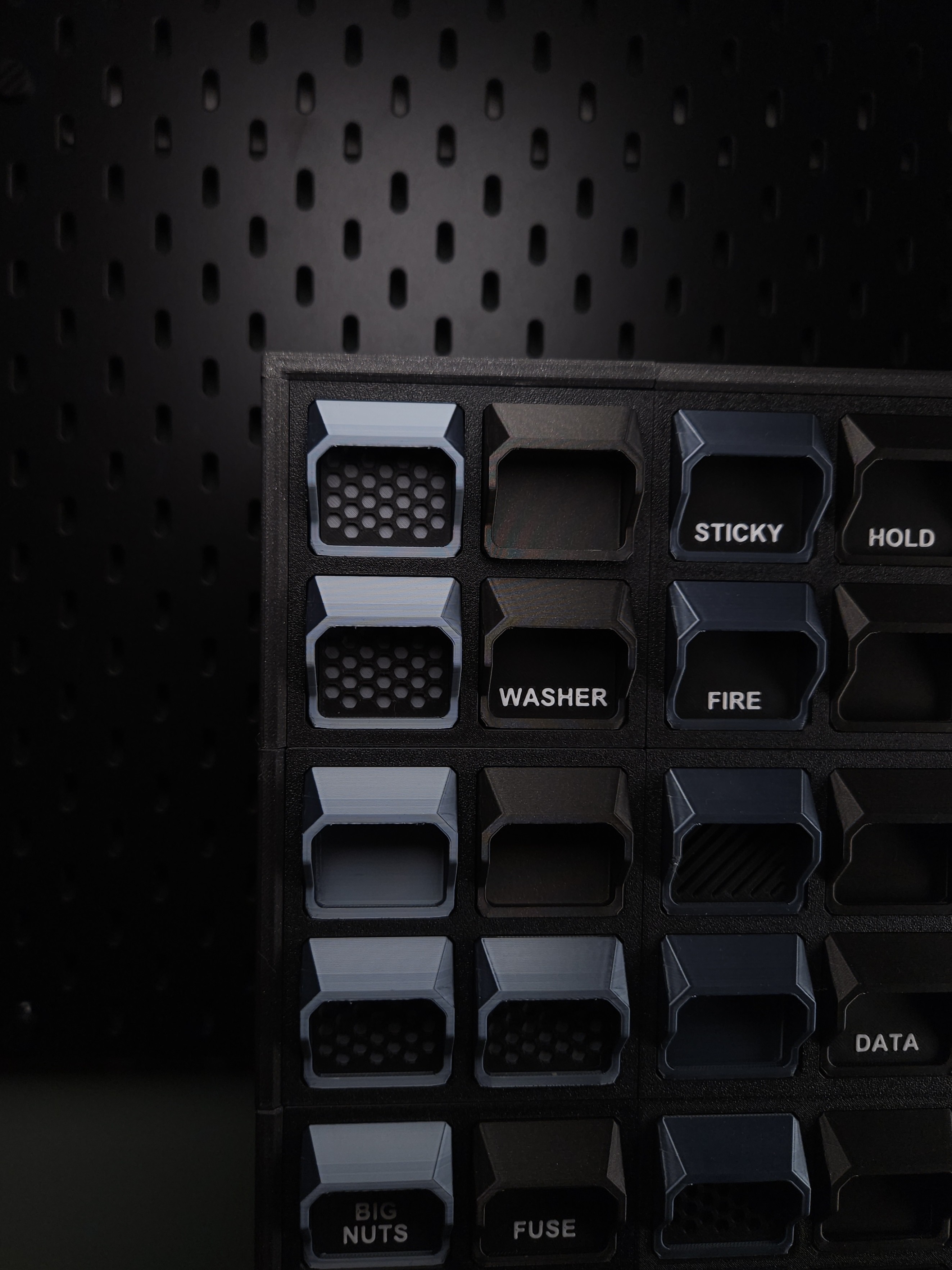

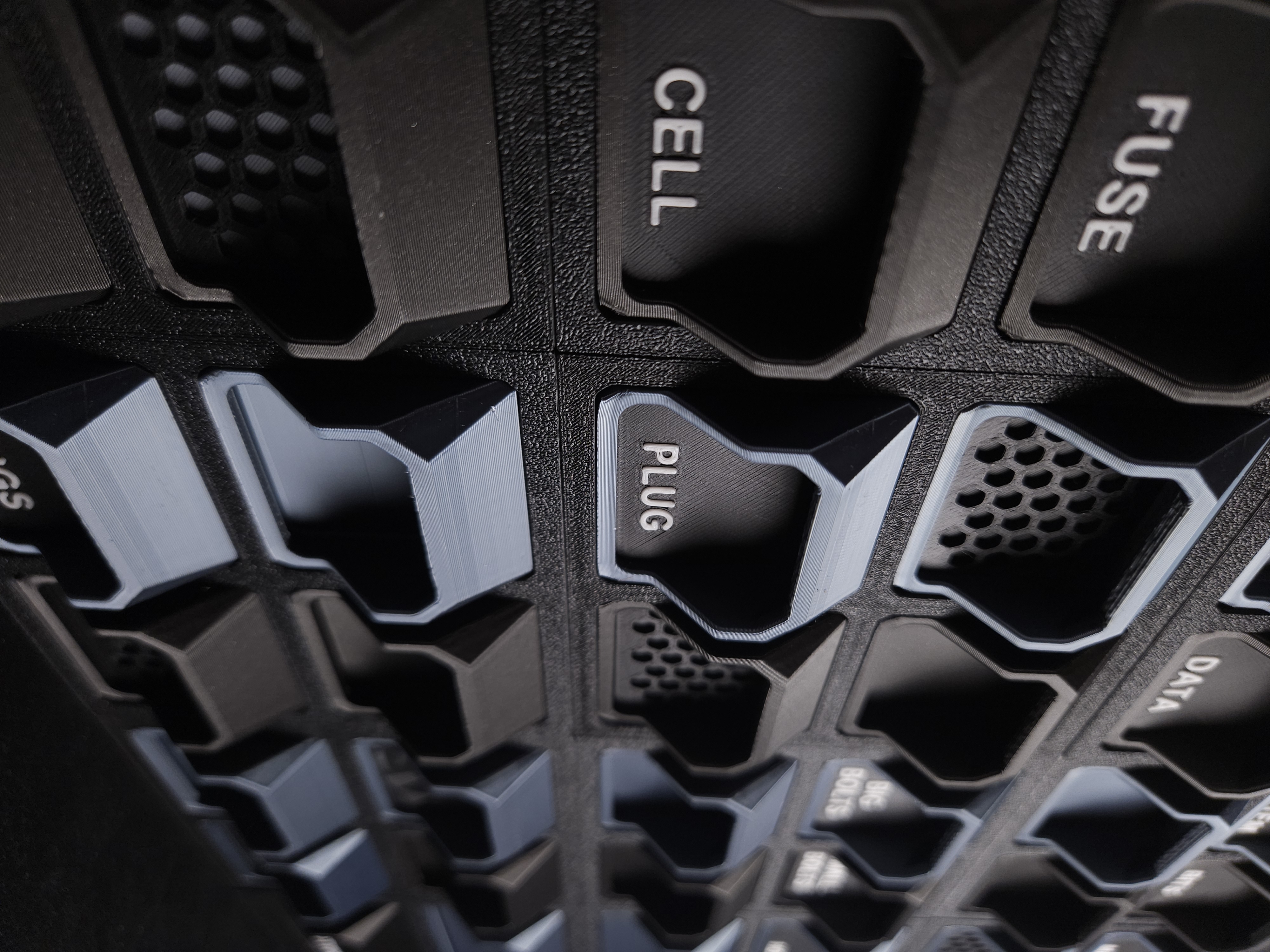

First element of the NODESTACK system - Small parts drawers with styled front cards

BASE PACK:
- 1010 CUBE D4

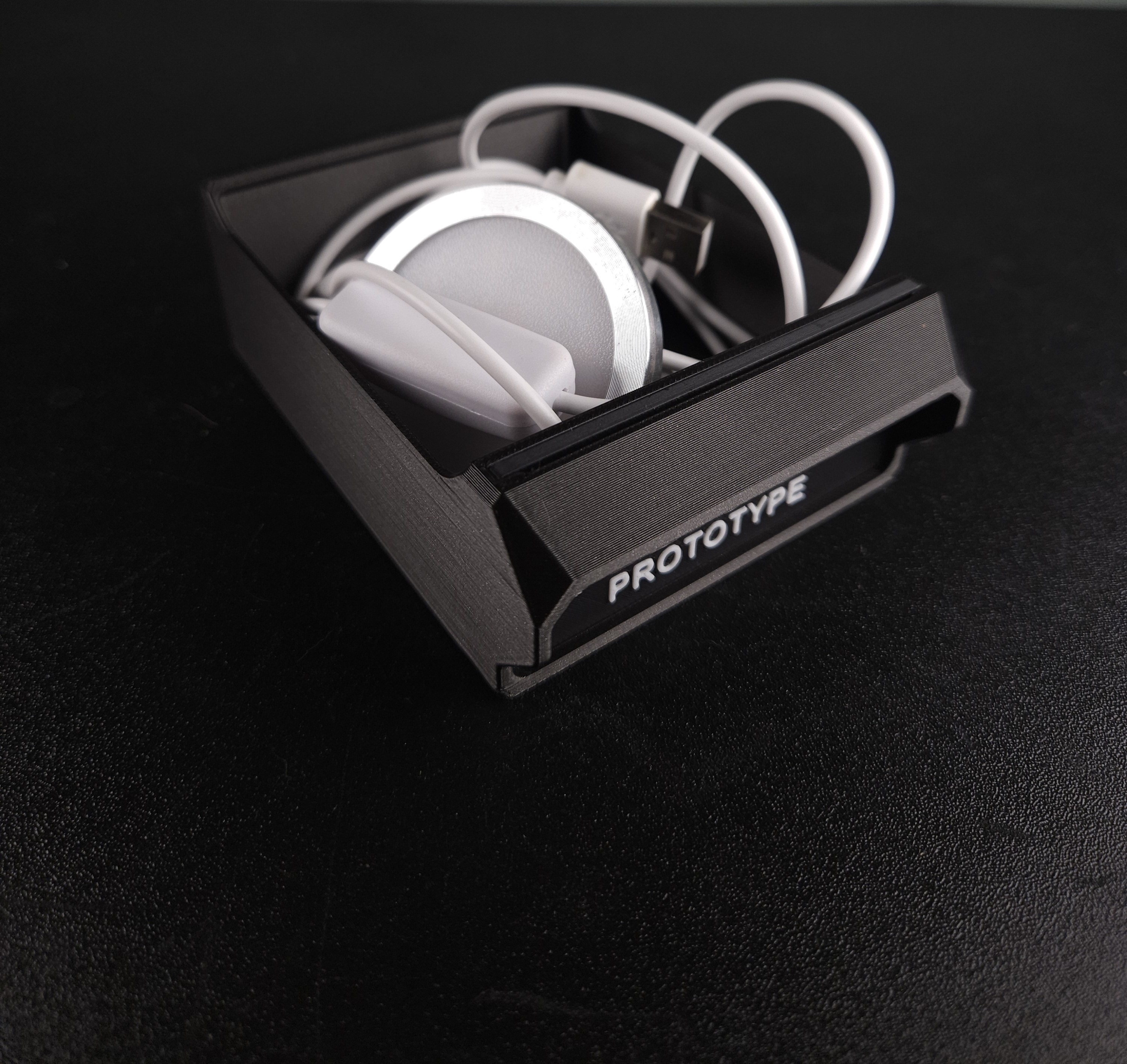

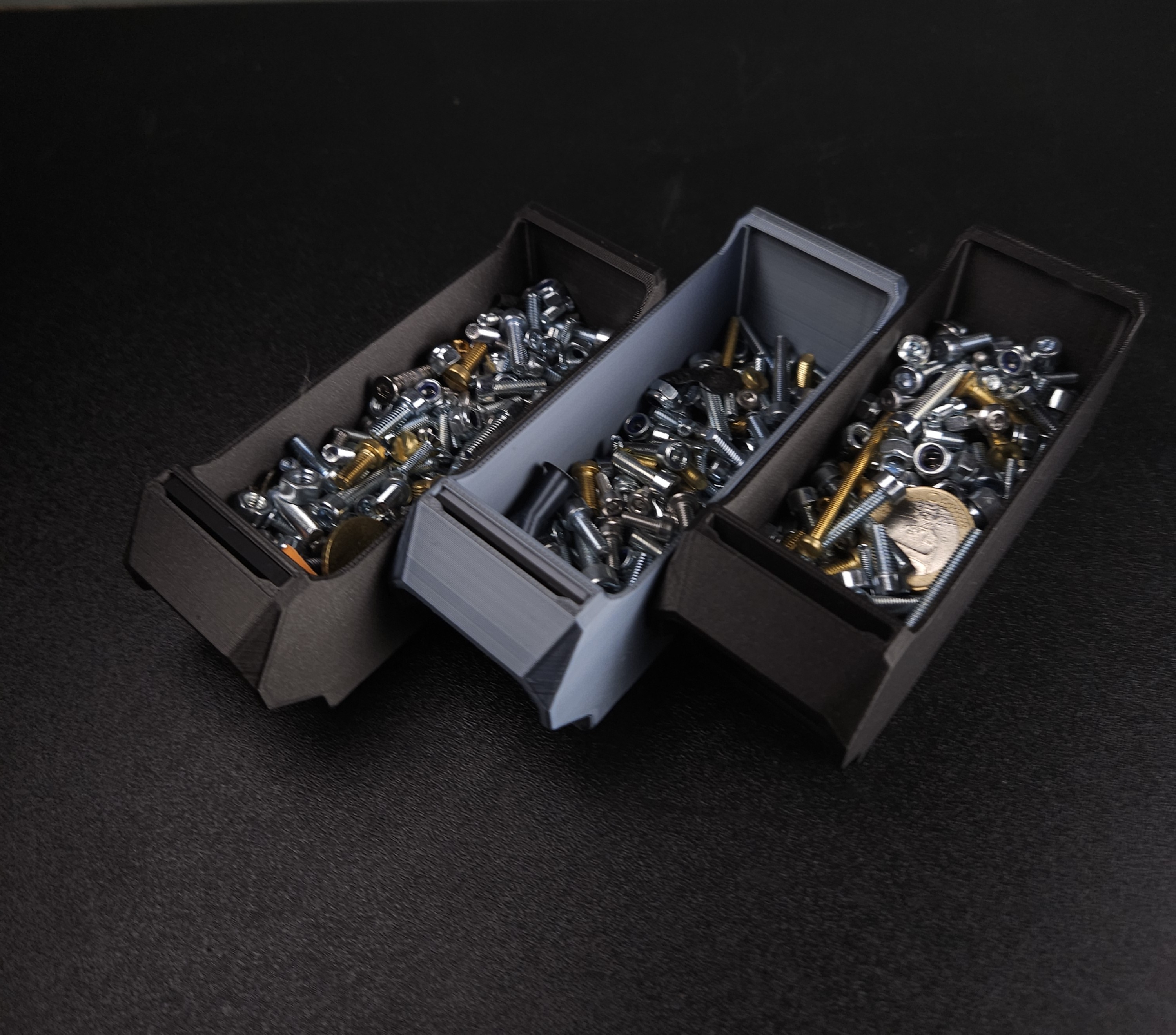

- 1010 DRAWER D4
- 1010 DRAWER D4 CARD (in various styles)

SYSTEM PACK
- PEG (various tolerances - presure fit connector)
- JANKER (for pulling out PEG)

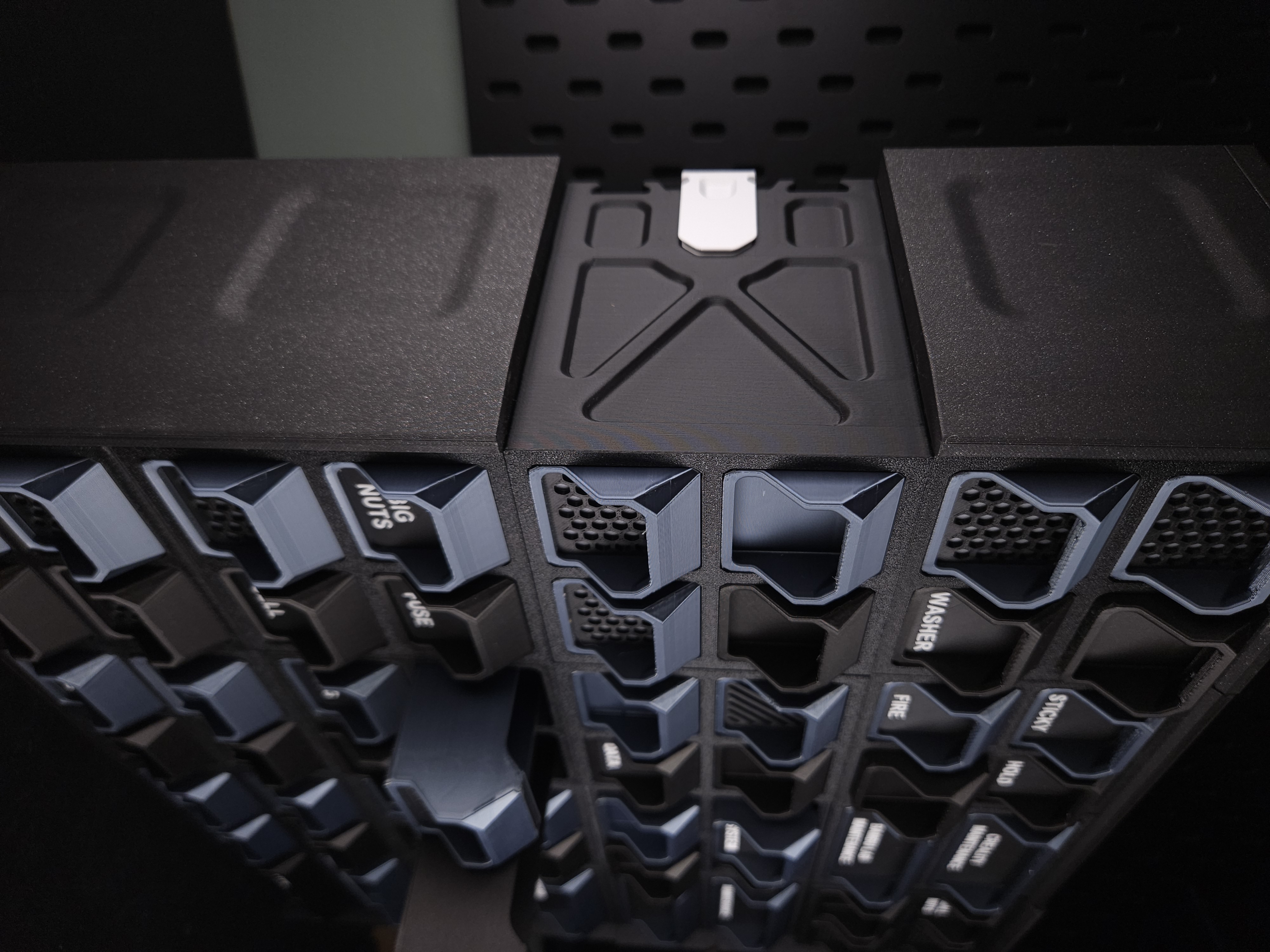

- BASE PANEL (variants for every orientation)

ADDY ONE:
- 1010 CUBE D2
- 1010 DRAWER D2

Assembly: Slide CARD in DRAWER, slide DRAWER in CUBE file, position next to PANEL or CUBE and insert PEG file.

*DRAWER files need support
*DRAWER files have room for a 0.4 mm text on the CARD file

SYSTEM NOTES:
*Builds in 100 x 100 mm grid
*Make sure to test fit your pegs before printing all of them (different filament might need different tolerances - multiple files includes to test fit - switching orientation can help)
*JANKER file is avaible to give more grip when pulling (squeeze & pull)

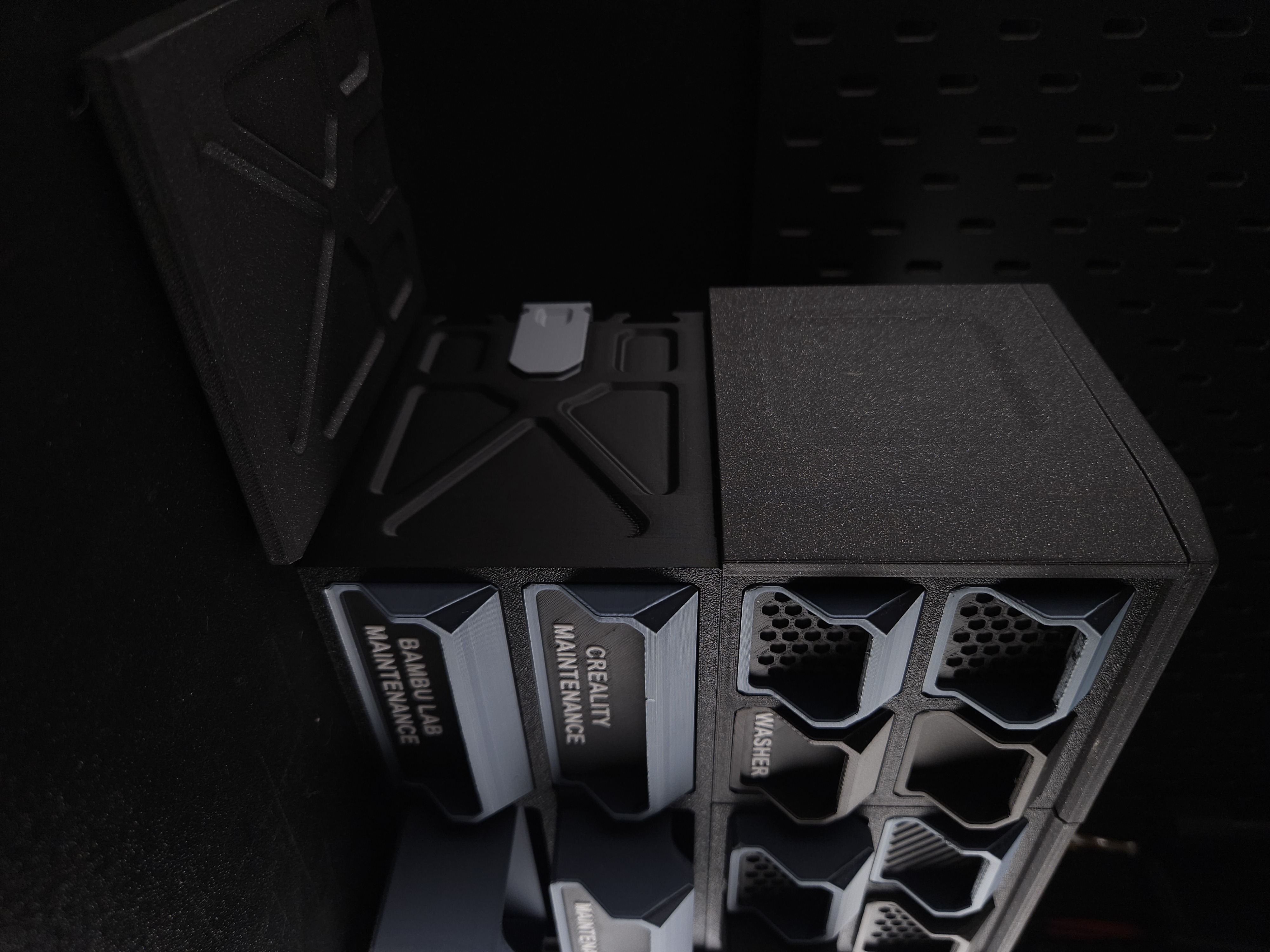

*The hooks on the back are there incase i need them in the future
*Glue can be used to permanently lock them in place
*Uses a bunch of filament
*Test fitment on components is recommended
*I might improve the connection system
