Ram TYC OEM replica Projector Headlights - Morimoto M-LED 2.0 adapter

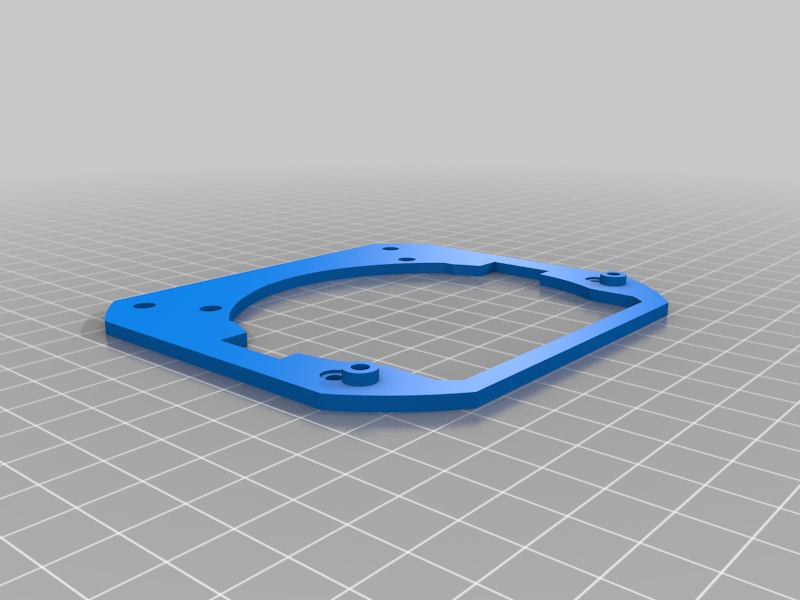

this is an adapter bracket you need to make the awesome morimoto M-LED 2.0 to fit inside your TYC brand projector headlights for 2013-2018 ram and 2019-2020 ram classic

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

Supports:

Resolution:

Infill:

Filament: Inland ABS Black

Notes:

Custom Section ==============

you will need M3 screws with socket heads various lengths m3 nuts nylon-locking and standard m3 12mm standoffs x4 (2 for each light) m4 screws with your preference of heads various lengths m4 12mm standoffs x4 (2 for each light)

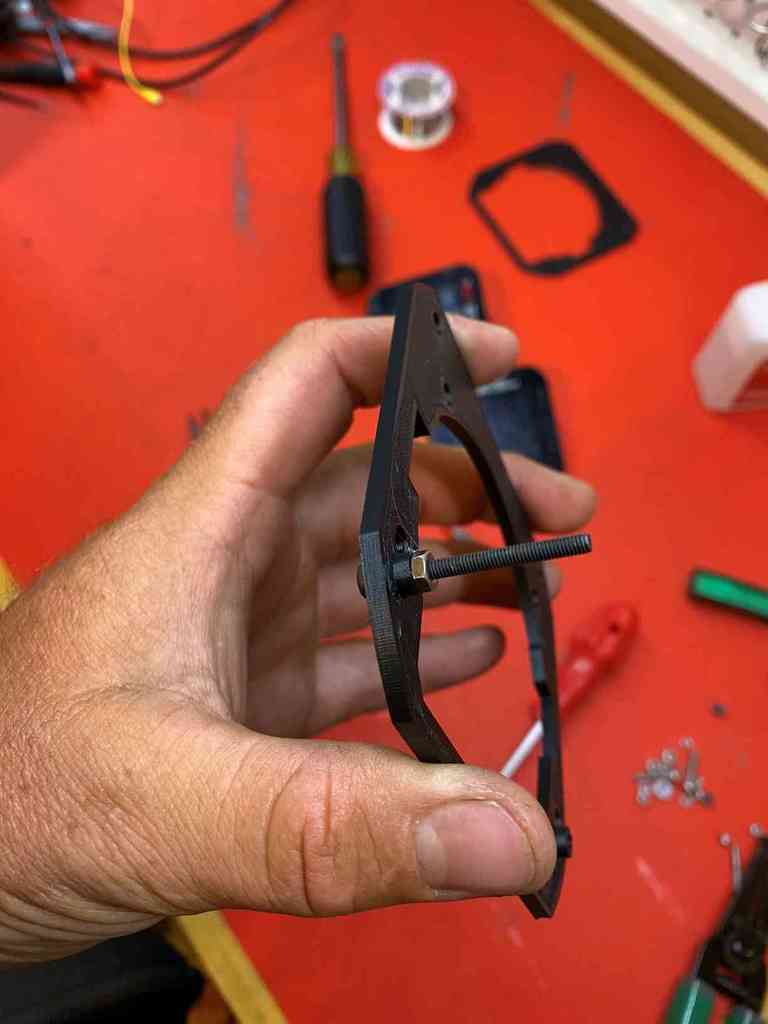

after they are printed insert 2 m3 screws and nuts into the raised holes and secure insert the m4 screws and stanfoffs into the top of the projector inserts the m3 screws and standoffs into the second from bottom of the projector

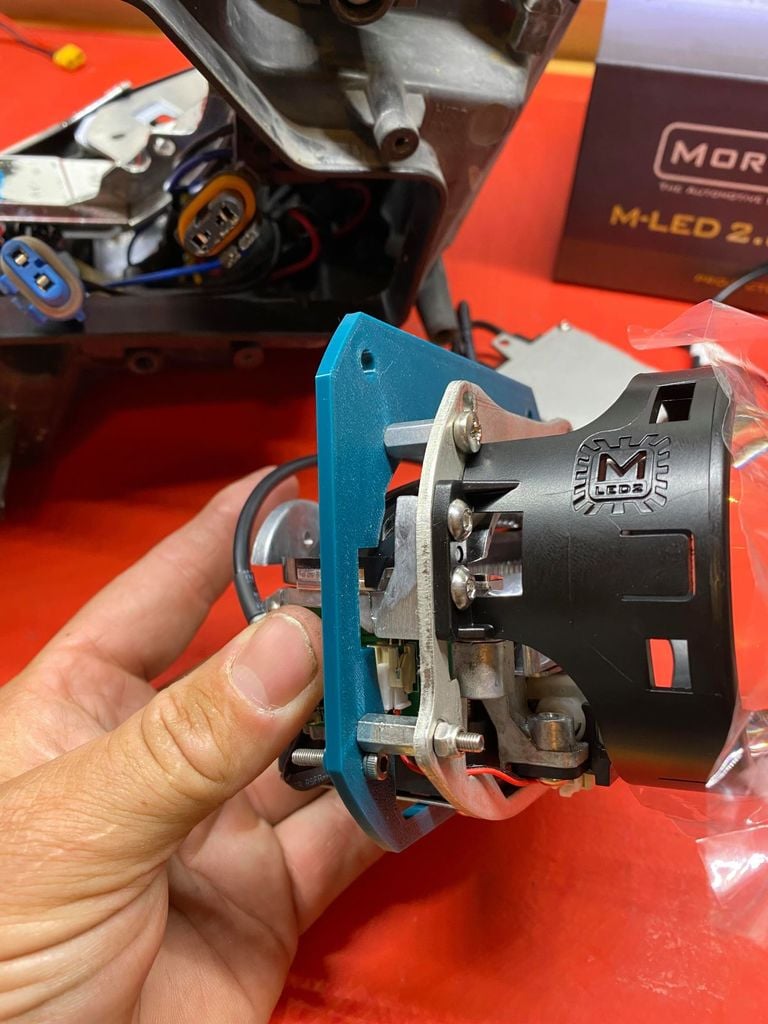

see the pictures for screw orientation it matters.

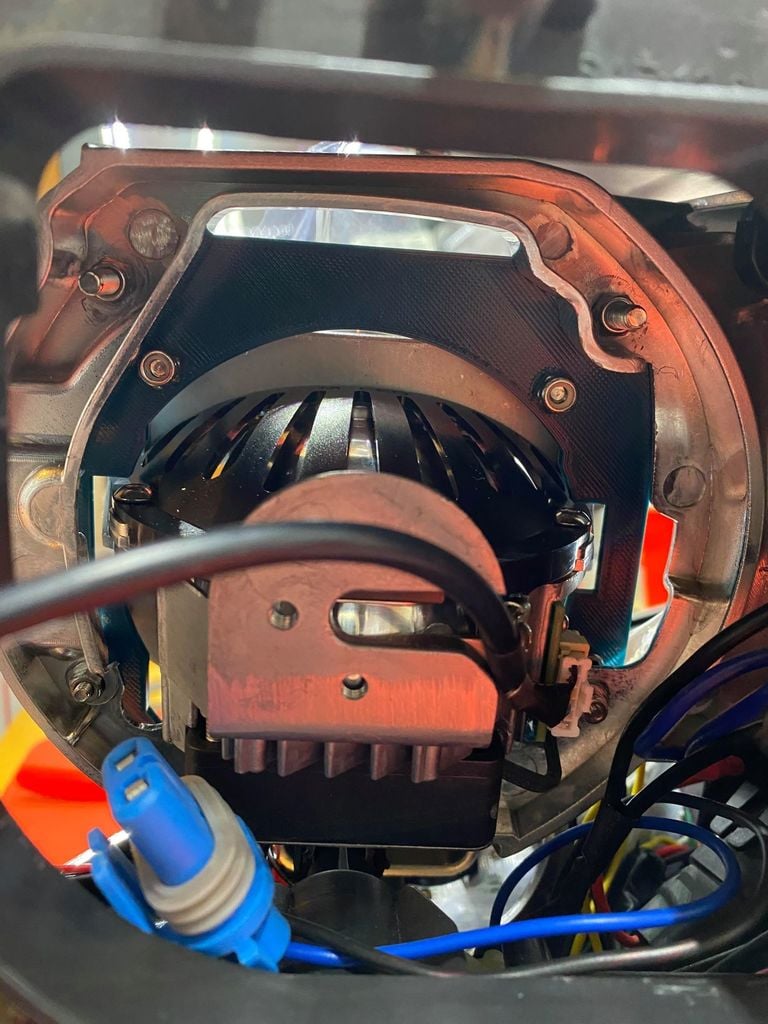

refer to the retrofit source install guide its very similar except for the lower hole selection and instead of 4.7mm spacers i included those in the print and you add a m3 standard nut to the screw to hold it in place/create the rest of the 4.7mm. this will come in handy when you finish install as getting a allen driver to the screw is difficult after the projector is installed and the projector needs to be installed first.

https://www.theretrofitsource.com/core/media/media.nl?id=1718642&c=5129608&h=9c83824599b72785e9ee

Category: Automotive
