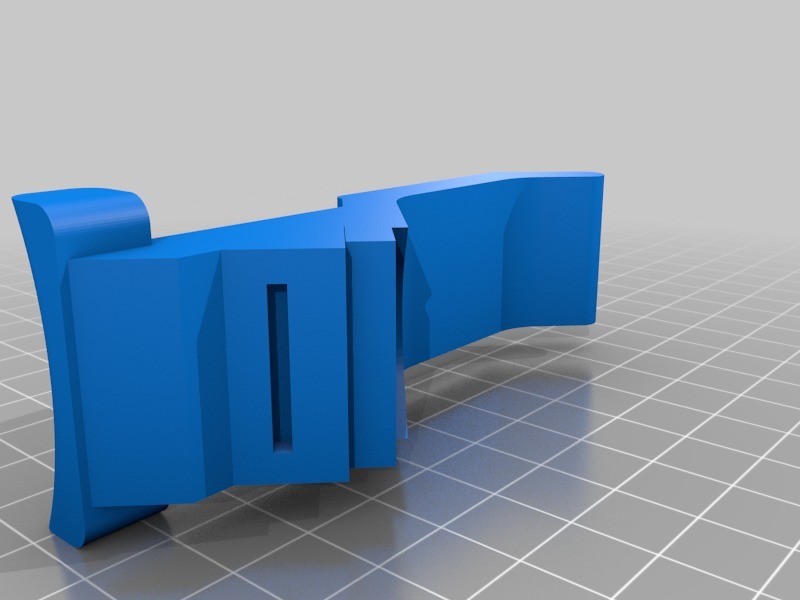

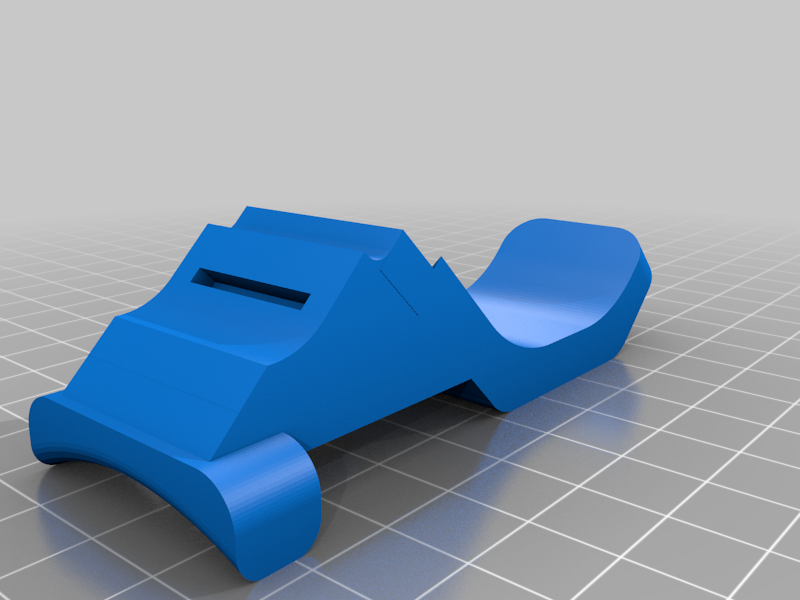

This is a 3D sketch of a Rottefella binding heel throw.
It is designed from a "Cobra binding" but it is apparently the same for any N75 binding from Rottefella: Cobra, Riva, Chili, ... It may be adapted for different brand. Check out on Thingiverse, there are functional designs for Black-Diamond bindings as well: https://www.thingiverse.com/thing:3340176
The first prototype was printed from PLA, and since it was doing it's job,
a second version was printed in PET-G and which lasted a couple of seasons.
Print Settings
Printer Brand:
Prusa
Printer:
i3 MK2S
Rafts:
Yes
Supports:
Yes
Resolution:
0.2
Infill:
30%
Filament: DailyFil PET-G Dark-blue
Notes:
Printed in black PLA for the prototype and in PET-G for actual use. ABS or other hardened material are possible alternatives.
From the second heel throw which was not broken
The one I designed looks a bit larger once printed, but it works.rnDesigned using FreeCAD
