Handheld BBQ blower
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Outdoor & Garden
- Licencja
- Commercial Use
ADDITIONAL PARTS NEEDED FOR ASSEMBLY:
BEARINGS:
- 608 (16)
- 6808 (1)
SCREWS (I used dome head):
- M5 X 30-60 (1)
- M4 X 20 (4)
- M3 X 4-8 (4)
- M3 X 24 (3)
- M3 X 30 (7)
- M3 X 30-40 (1)
NUTS:
- M3 (10)
- M4 (4)

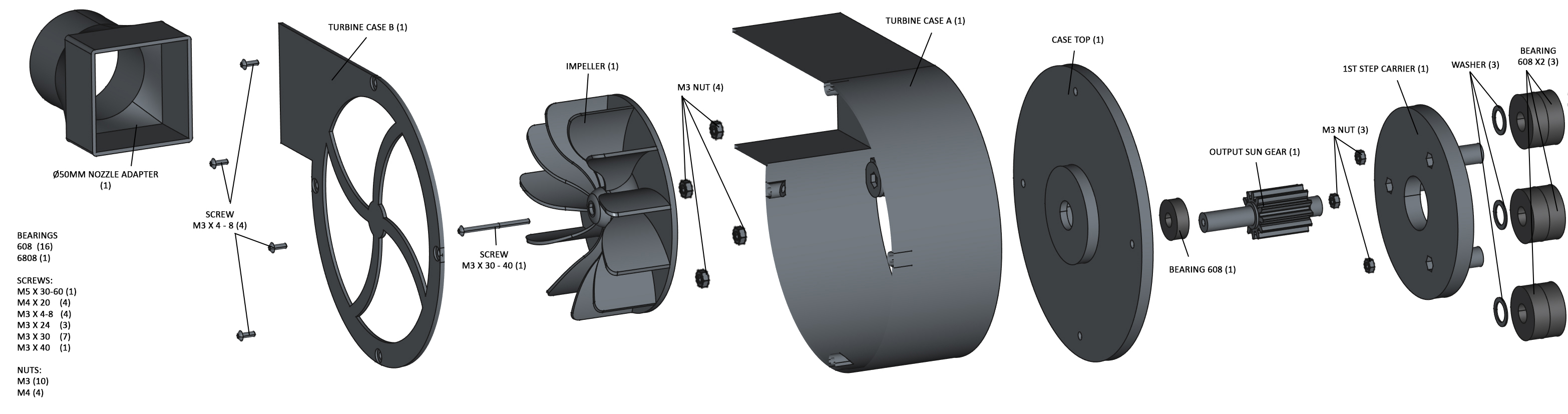

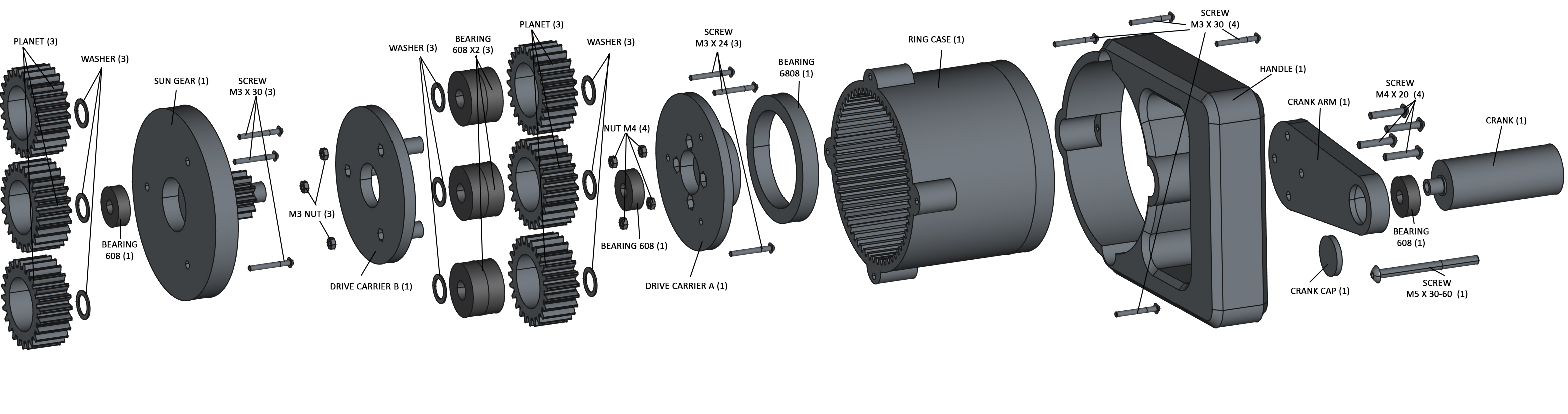

ASSEMBLY SET
| PRINTING SETTINGS | |
|---|---|
| Infill | 40 - 100 (more = stronger) |
| Outlines | 3 - 4 |
| Layer height | 0.2 (for smother look), or higher for faster prints |
| Brimm | Only if needed (012, 017) |
| Supports | Only if needed (004, 005, 006, 007, 010, 011, 012, 016, 017) |
3mf files are saved with print settings such as orientation, supports and brimms.
I recommend lubricating the moving parts where they come into contact, especially the gears.

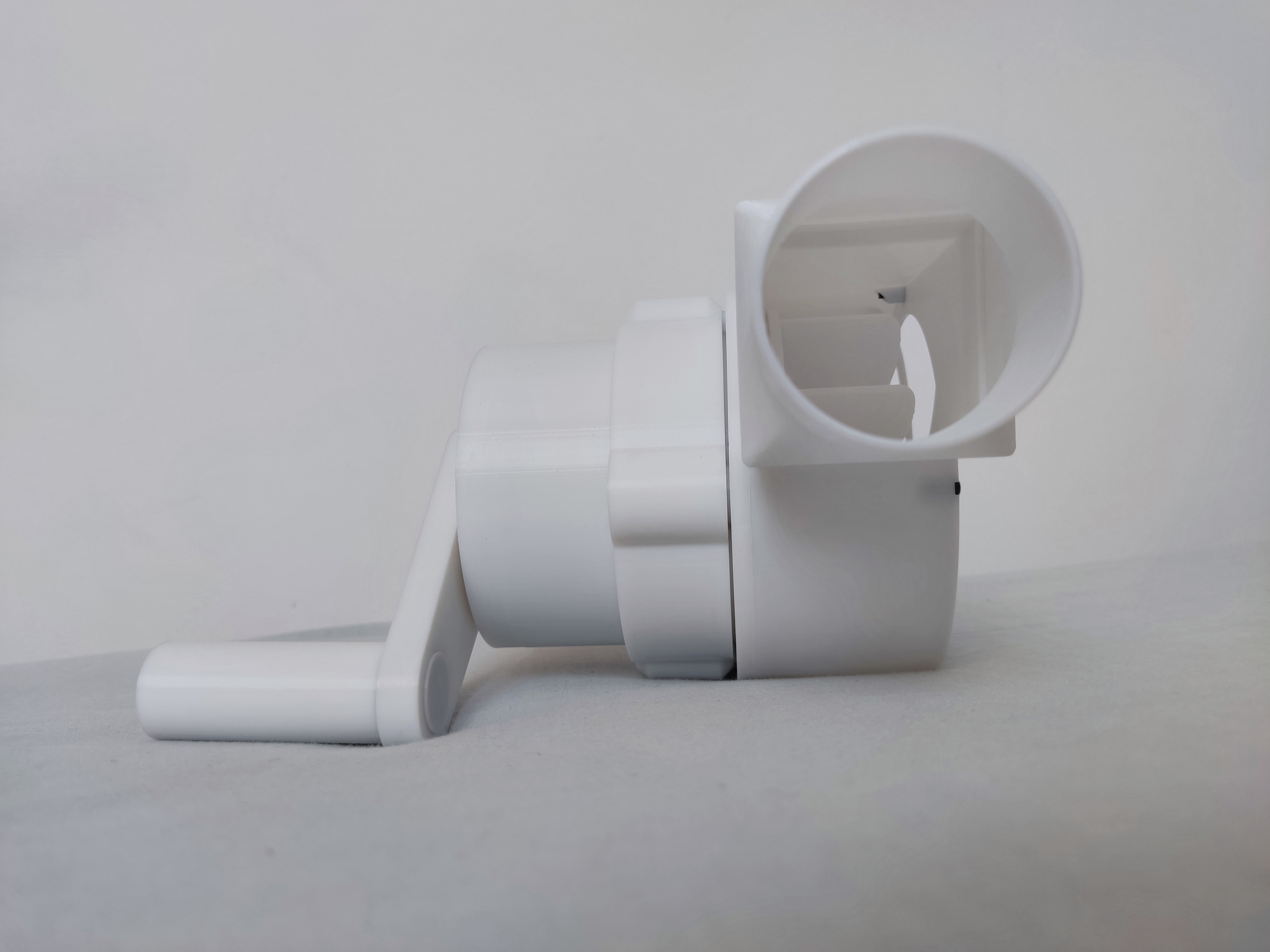

Nozzle adapter allows the insertion of a 50mm diameter pipe and at the same time fastens the turbine housing.
M5 screw must be screwed into the crank with force.

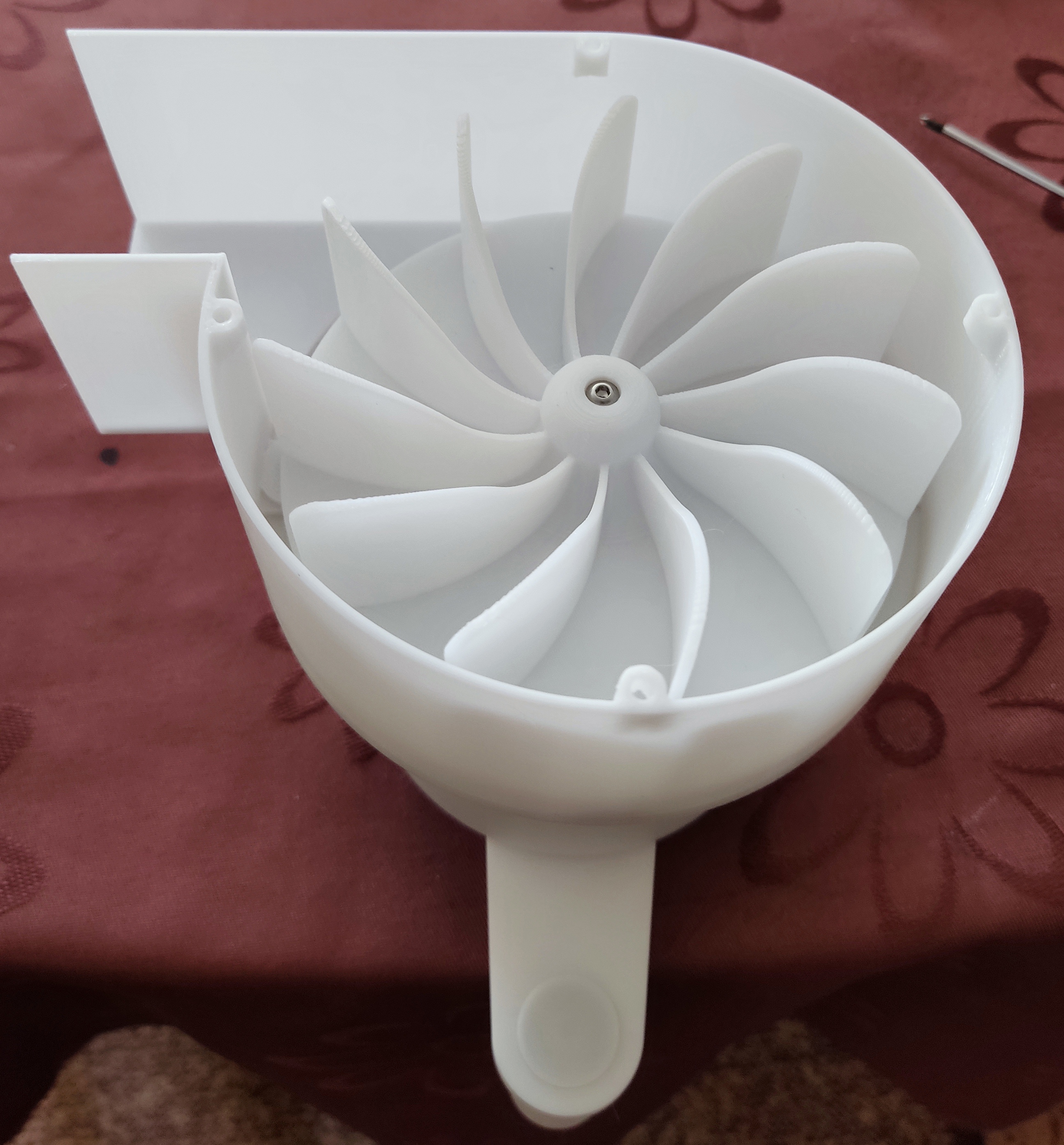

M3x30-40 screw must be screwed in with force through the impeller into output_sun_gear after the top of the case with 608 bearing and turbine case (part A) is fitted.
The clearances are designed to be fitted with a tight fit to ensure durability and accuracy, so putting parts in place will often require some force, especially the placement of bearings.
