this is a preliminary description

(i will update the pictures as soon as possible)

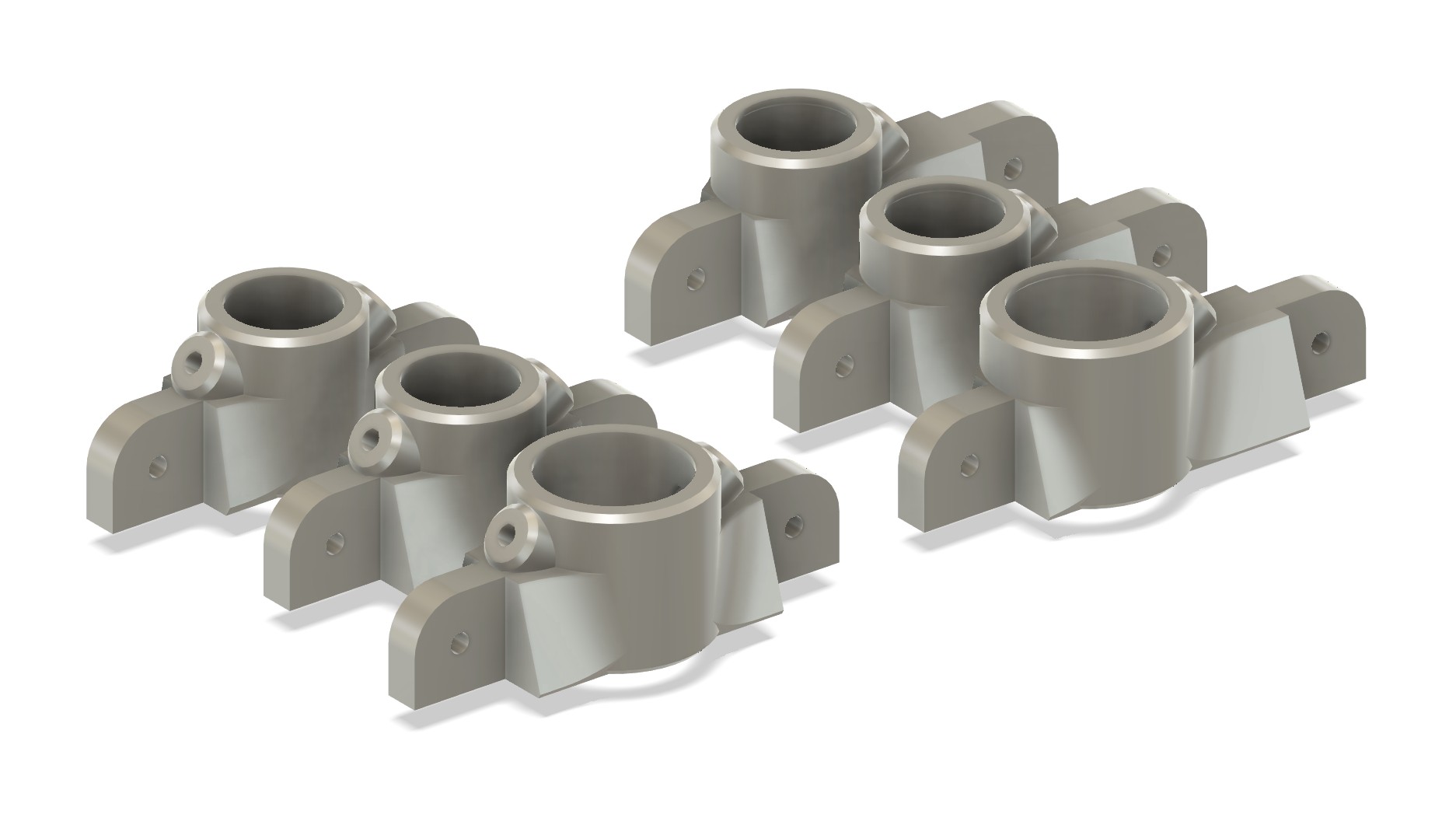

THE_LAST_FIXER (universal pole attachment)


- L version is for building a simple but strong scrog-frame
- standard version is for heavy horizontal and vertical load
- both versions have locking-screws to prevent poles from rotating
- both version are made for combining 15/16 and 22mm poles


this model requires my v3 clip !!! they can be found here:

 - SPECIAL_CLIPS_x16_v3_FOR_LAMP_CLAMP (use L+R)

 - SPECIAL_CLIPS_x22_v3_FOR_LAMP_CLAMP or STANDARD_CLIP_x22_v3 (use L+R)

^^sry, lost a model... u can use clips from

u need:

m3x16mm screws and nuts (for clip_v3)
m3x12(+)mm screws and nuts (for pole locking)


assembly:

- place nuts in the inside

- place inlay

- insert pole

- fix the pole with m3 screw
