This is the Internet. It may look like an ordinary, perfectly rectangular, black box with a small flashing light on it, but don’t be fooled. Within this box lies the sum total of all human knowledge. Emails, shopping, banking, films of cats playing the piano all of it. Very few people have ever seen it in person. In fact, the elders at the highest levels of government loaned it to us only because they trust we wouldn’t, you know, drop it. If you did drop it, there would be widespread panic. Possibly the collapse of society. But otherwise, very safe. Very reliable. And also, completely wireless.

The internet is featured in season 3 Episode 4 of the show IT Crowd:

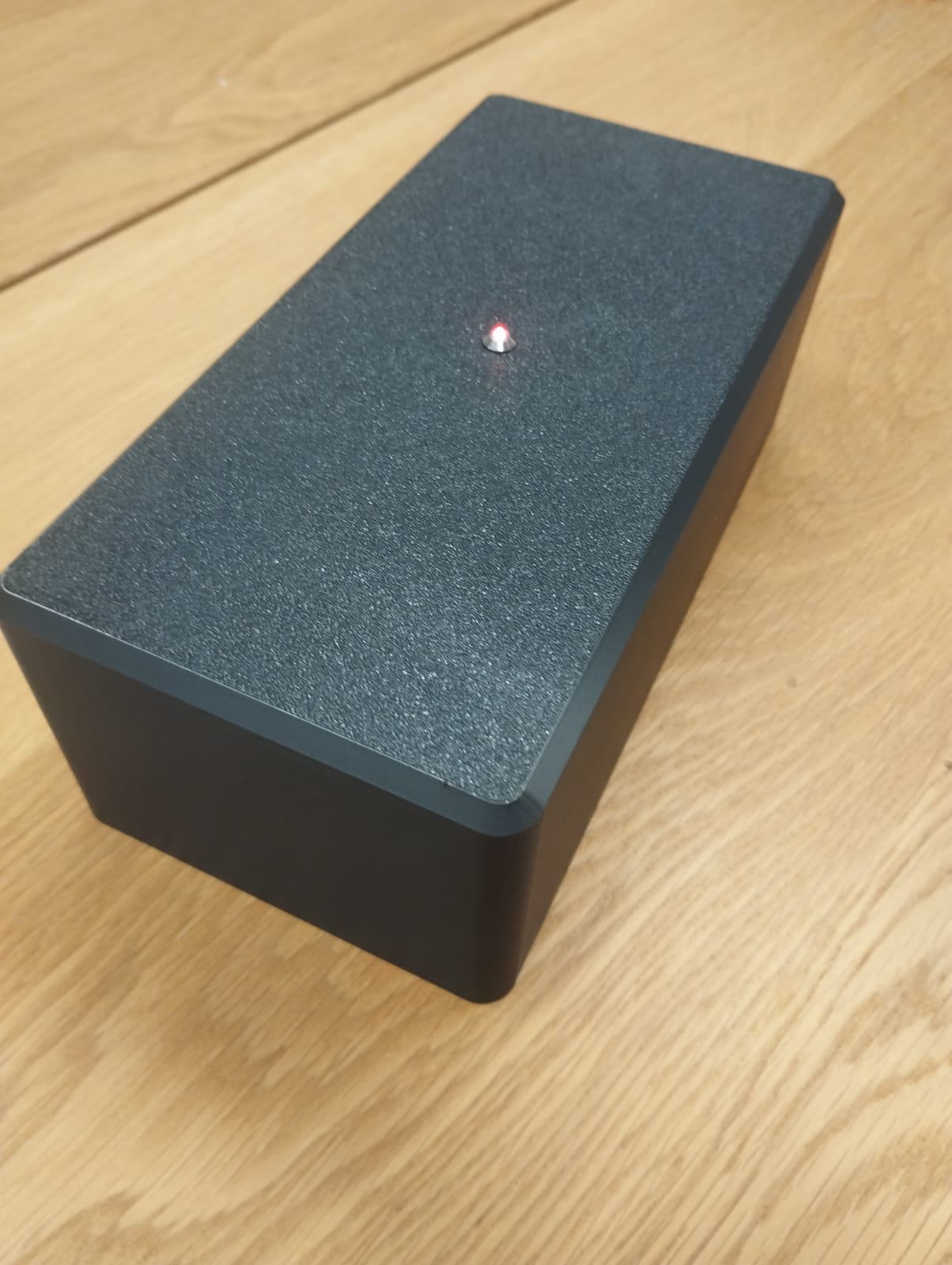

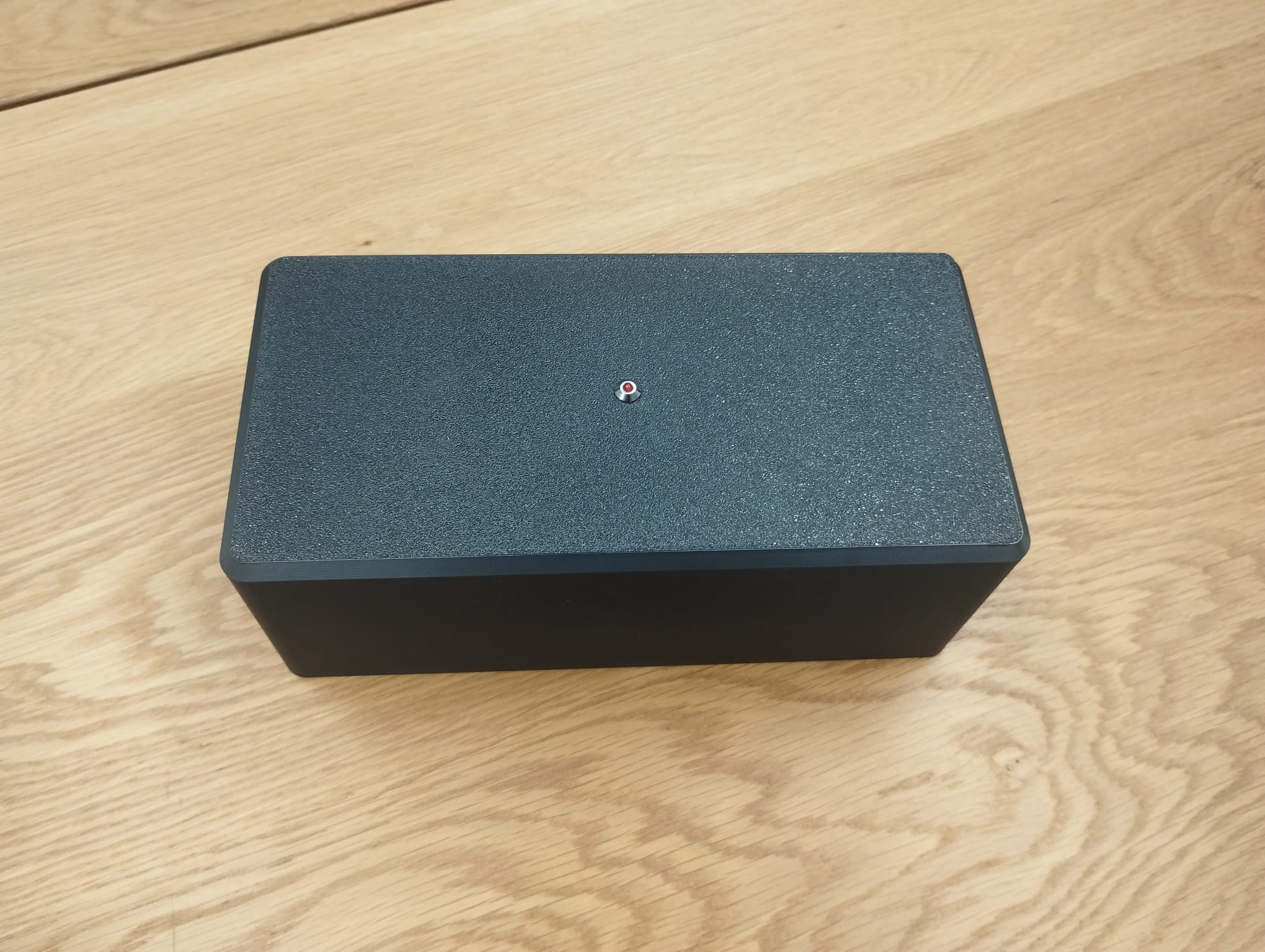

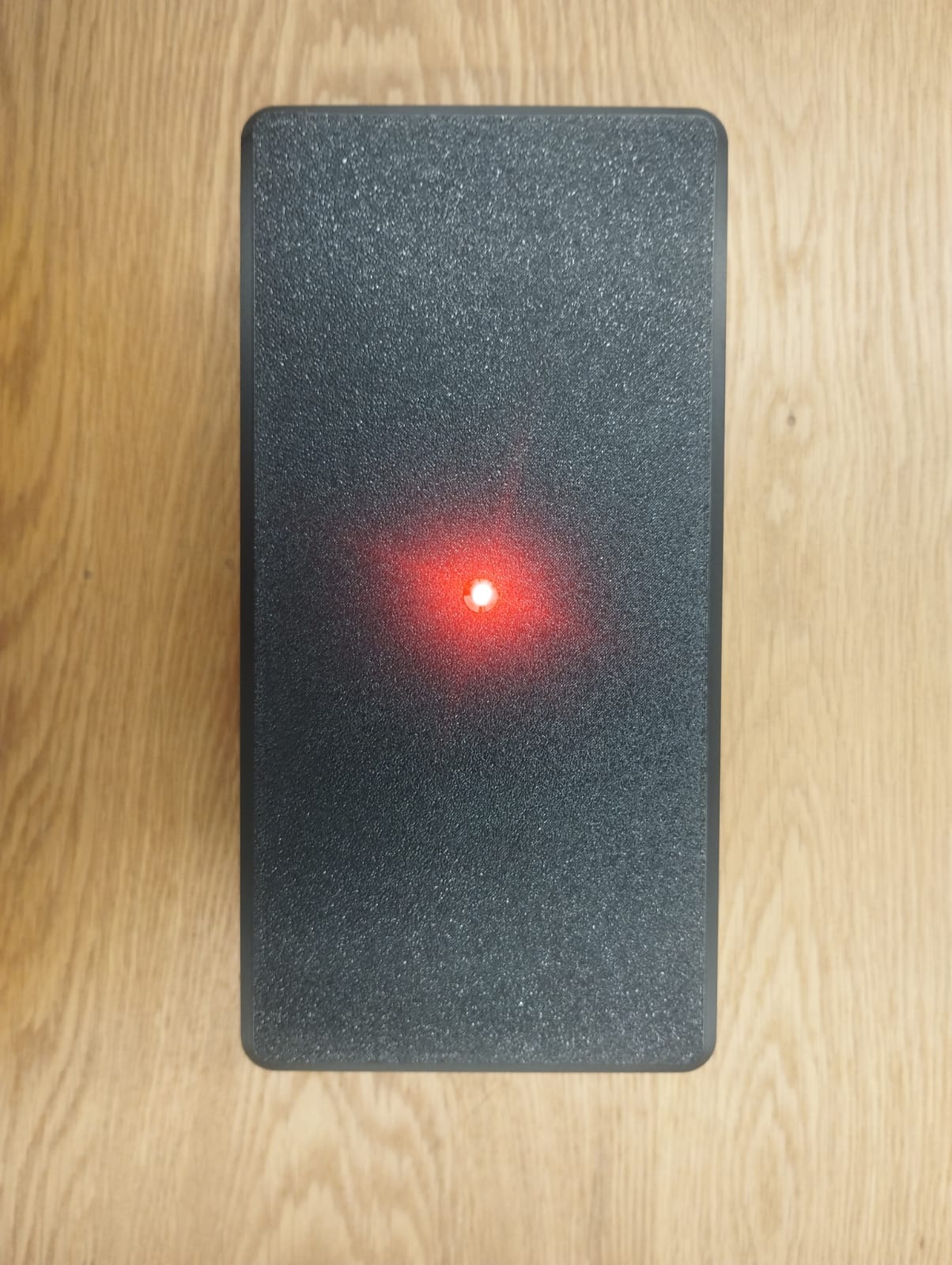

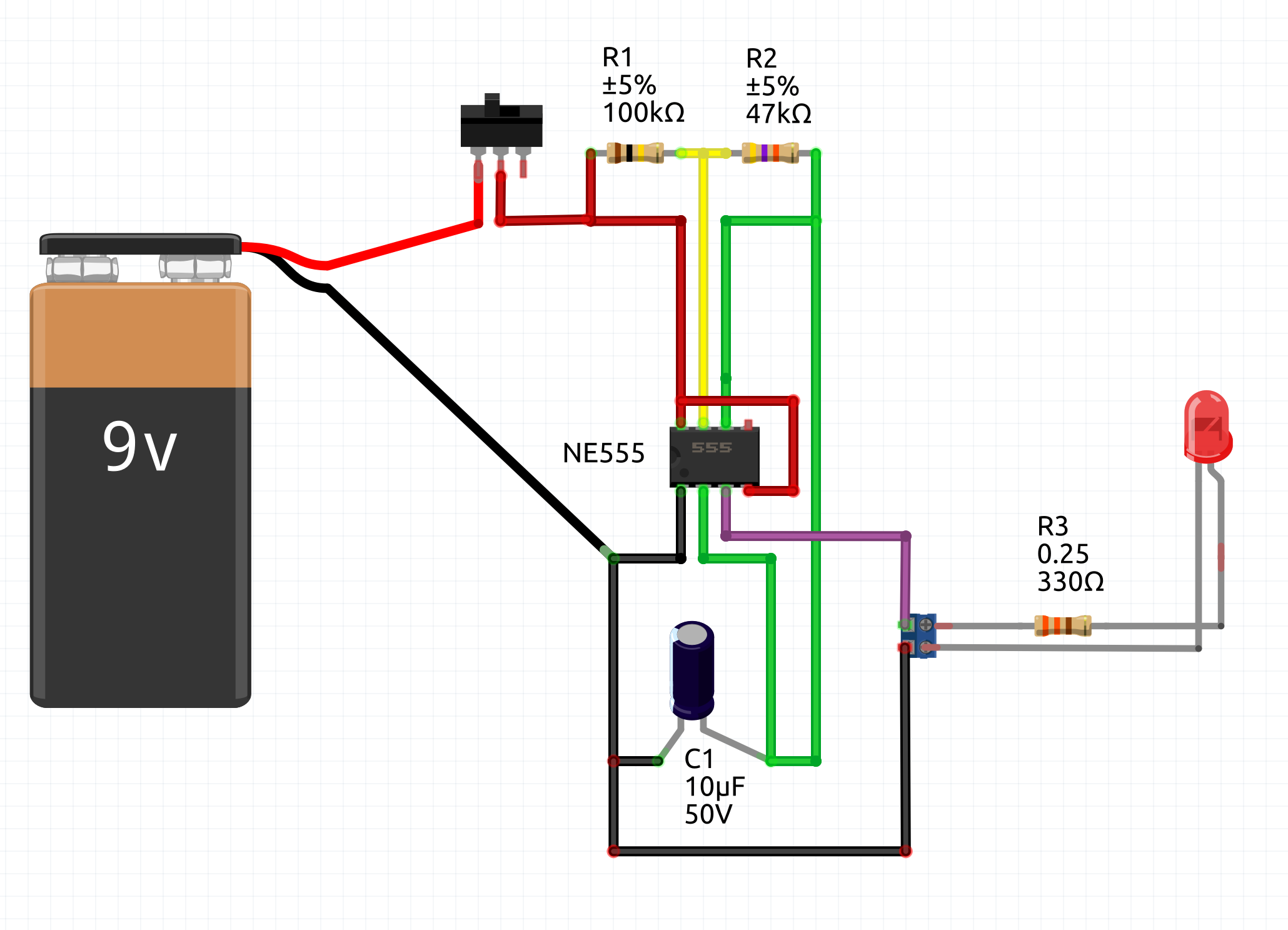

This prop is basically a simple black box with a red flashing LED-light. Using a microcontroller for such a simple task seemed to be overkill so I opted for a NE555 timer blinking circuit:

The blinking speed of this circuit can be modified by for example change the resistance value of R1. Feel free to use different componets this website calculates the behavior of your the circuit: LINK

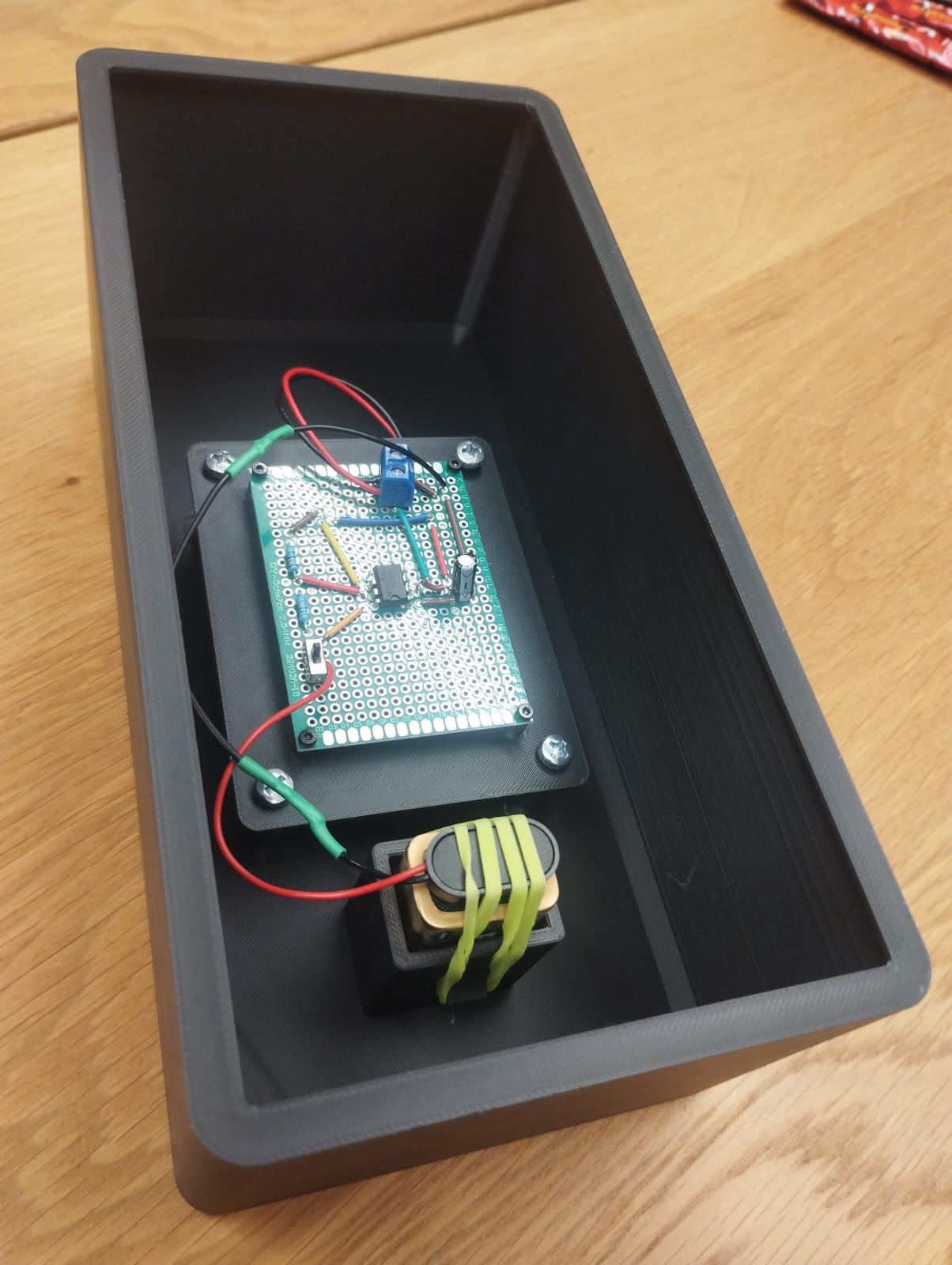

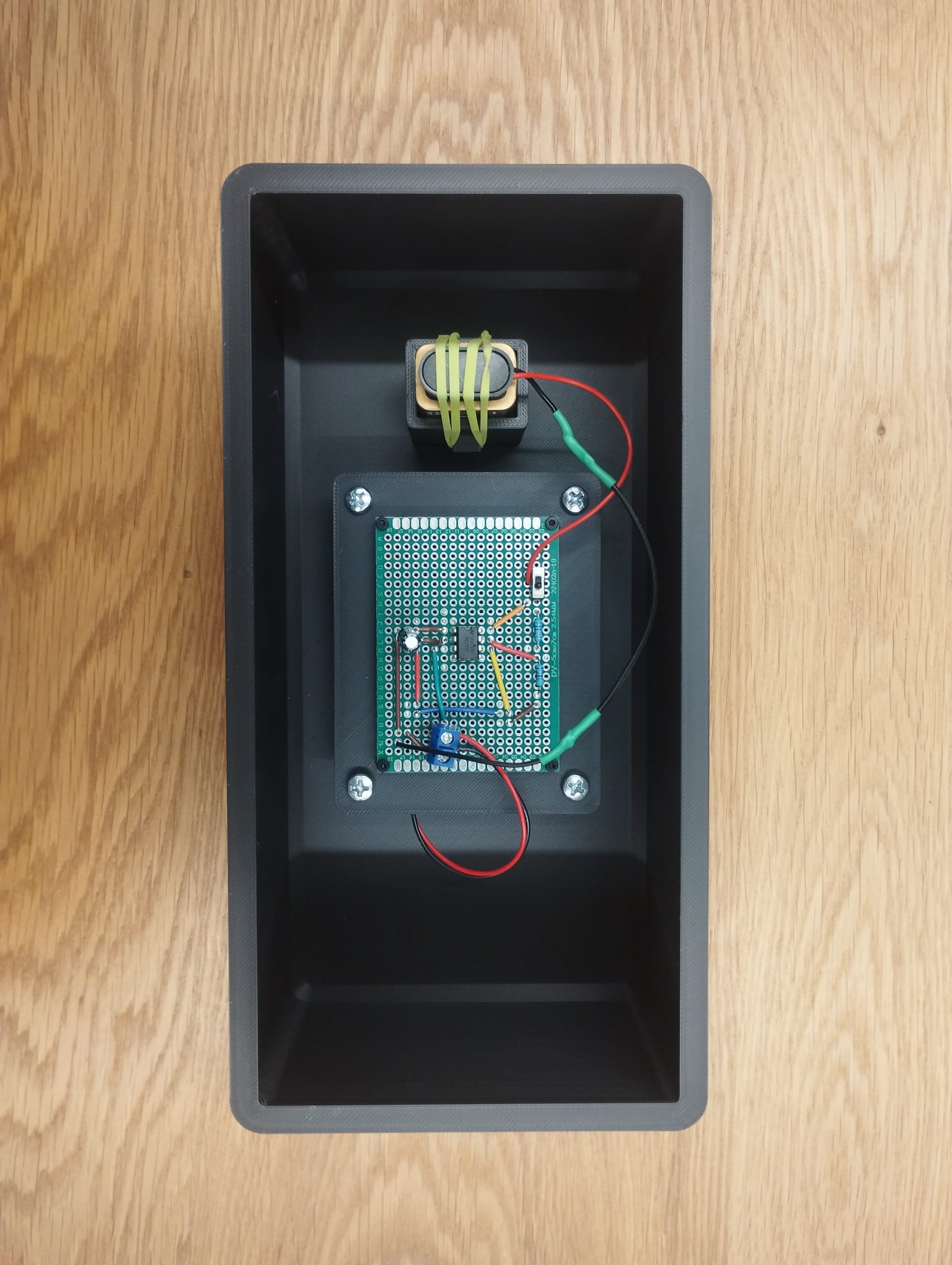

The battery is held in place by a rubber band.

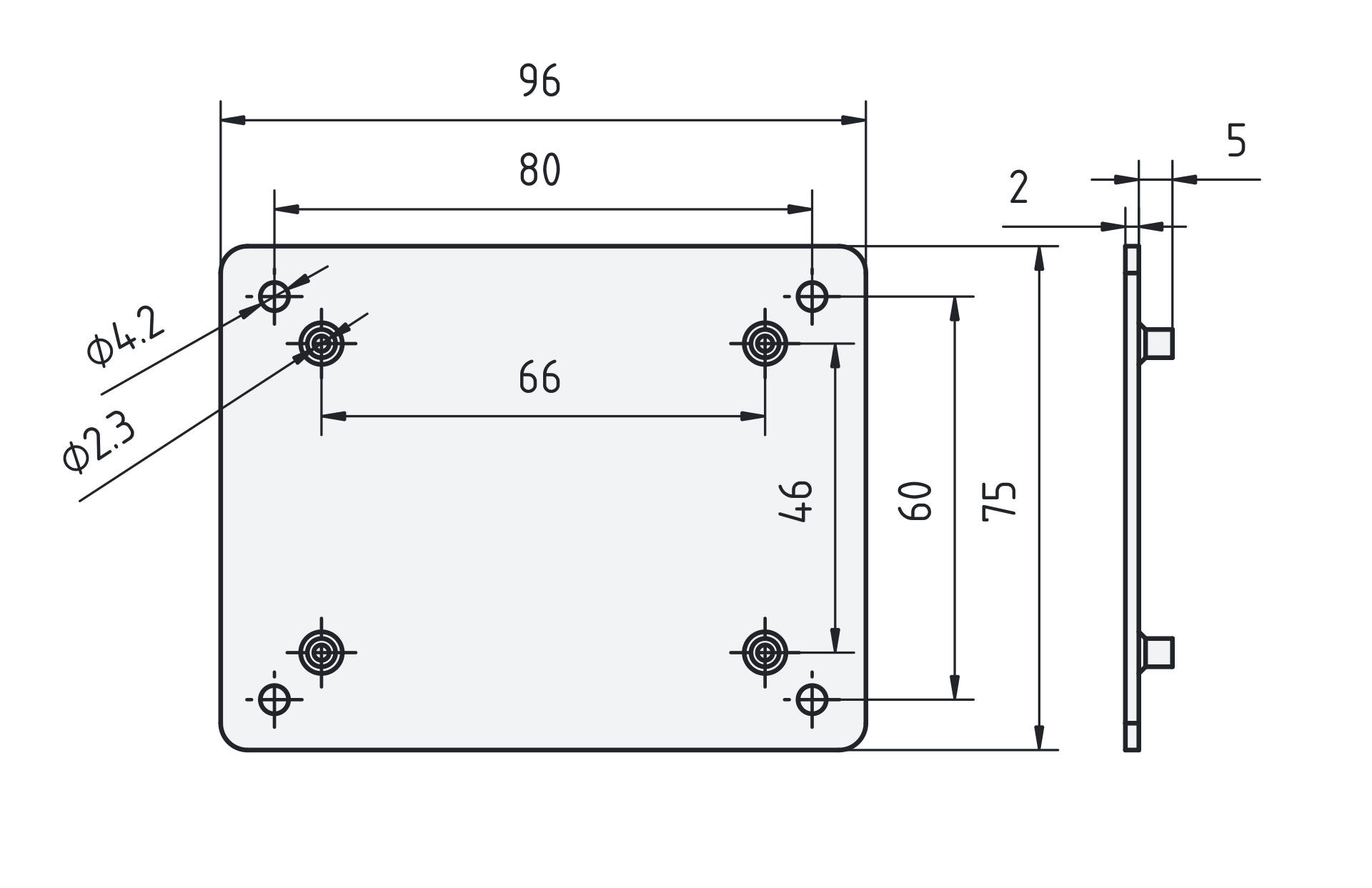

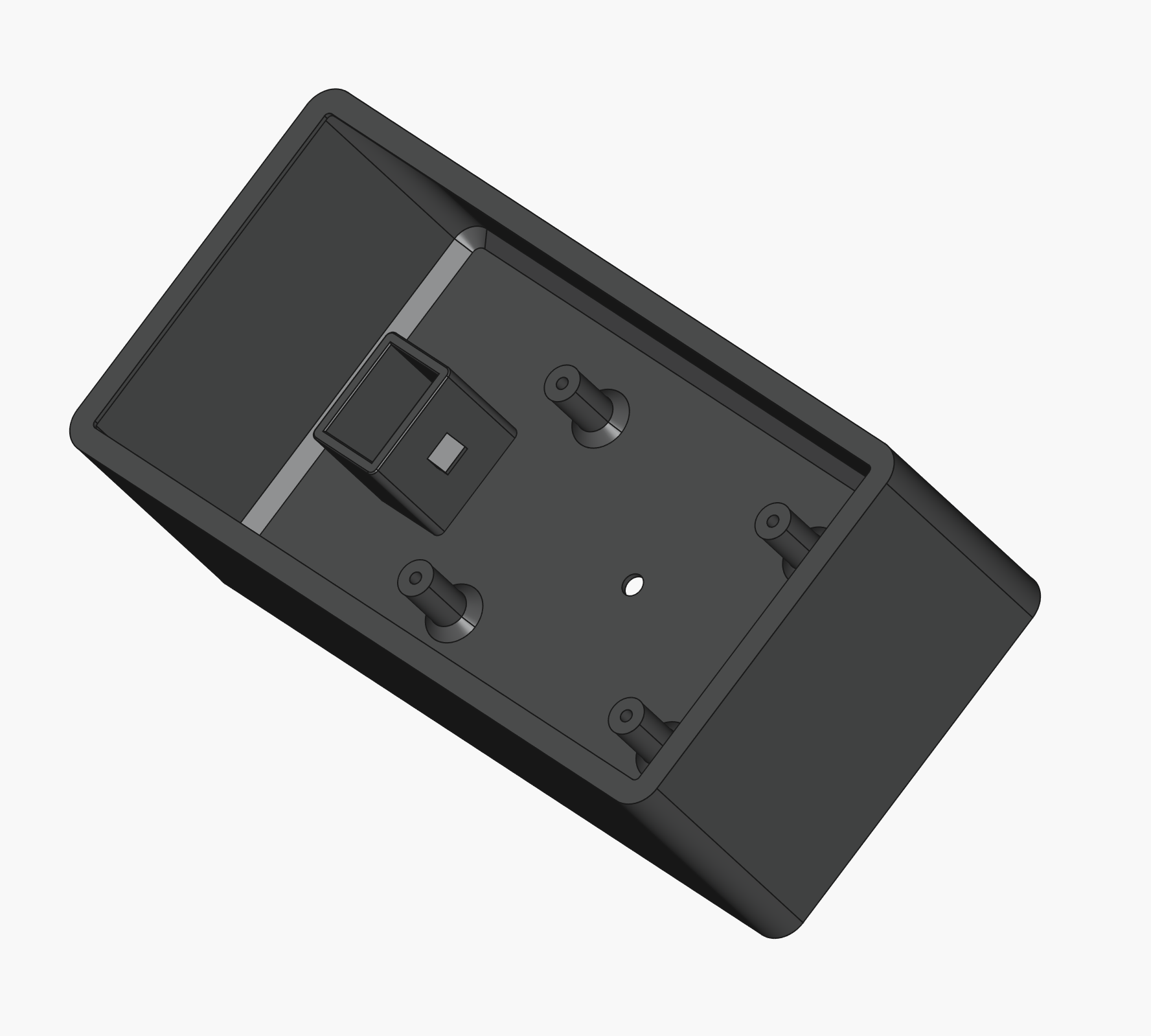

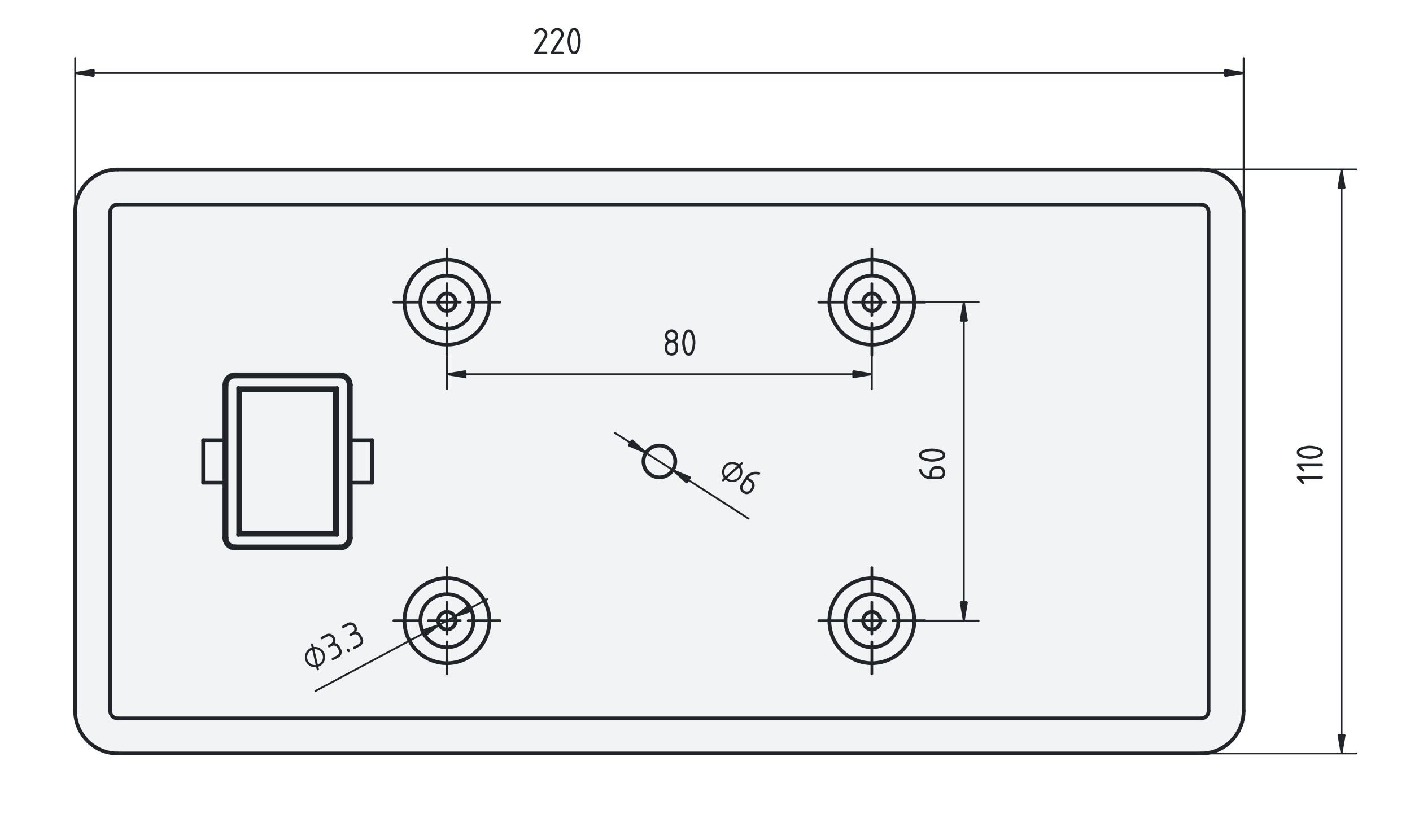

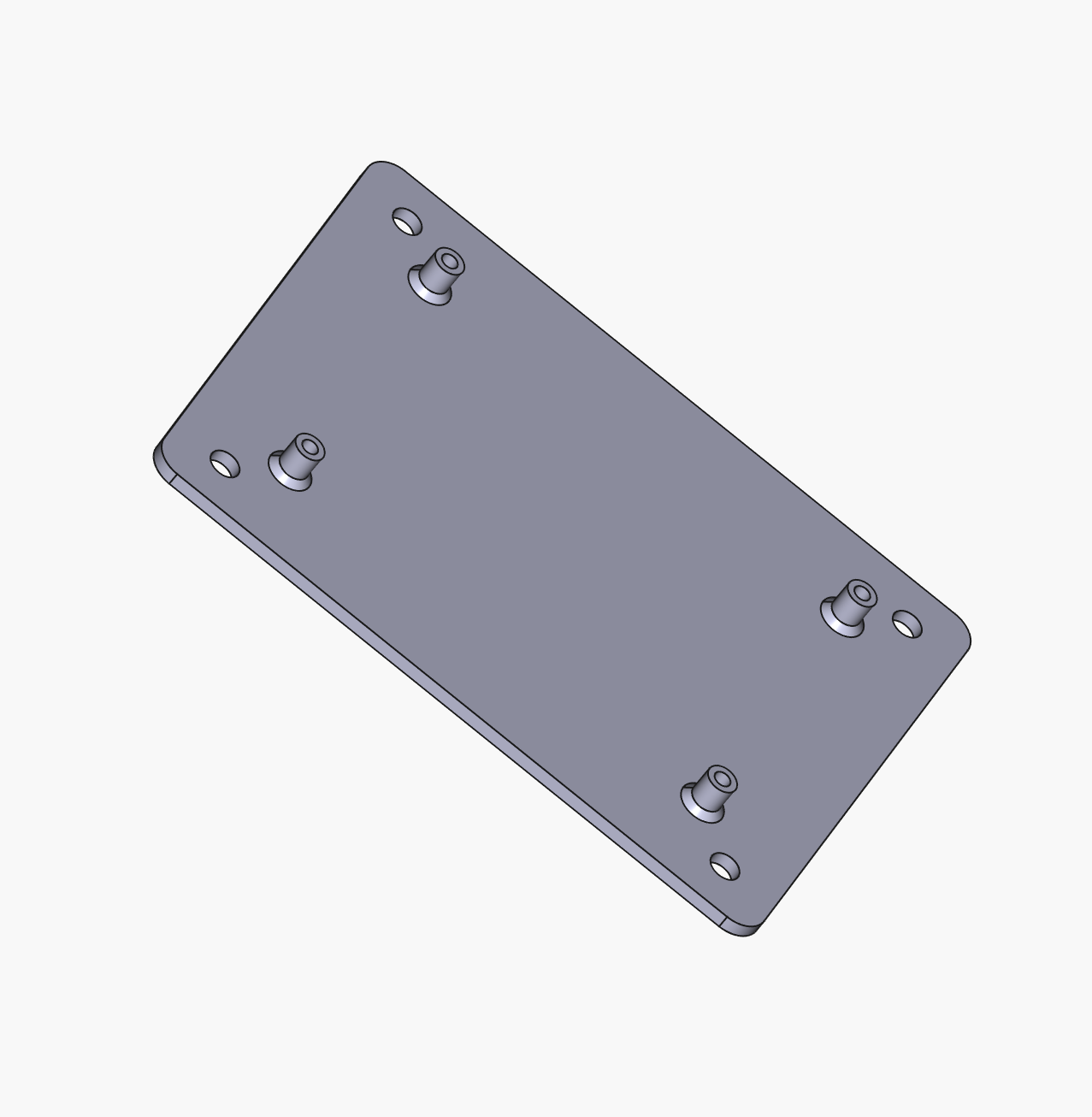

Feel free to use a different approach here are some measurements if you want to switch out the PCB-plate.



I used the following parts:

DESCRIPTIONQTYLINK
9v battery1link
battery clip1link
NE555 timer IC1link
Red Indicator Light (6mm)1link
100kΩ resistor1link
47kΩ resistor1link
Slide Switch1link
PCB 5x71link
M4x16 screw4link
M2x 12 screw4link
M2 nut4link
