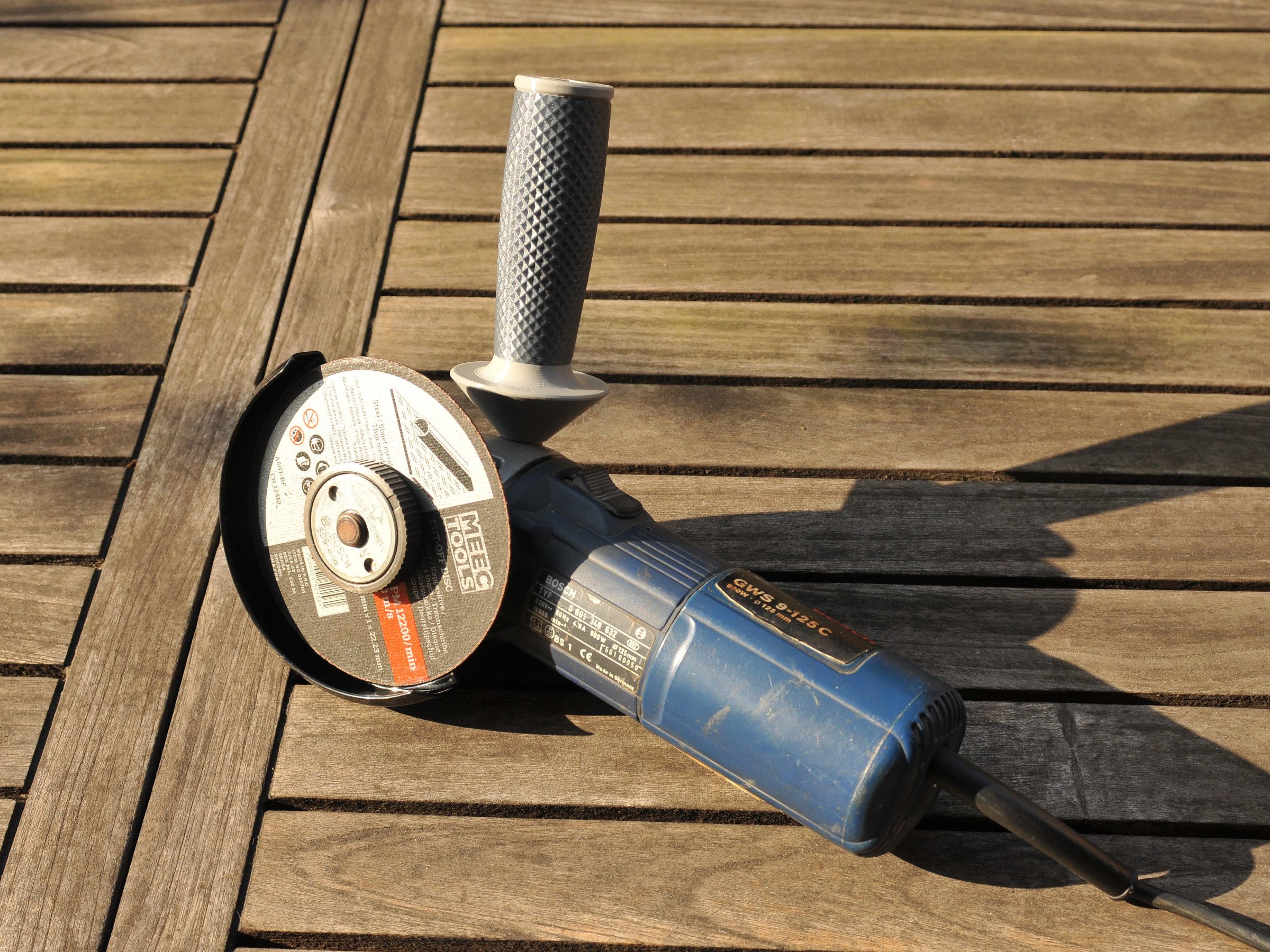

Grinder handle

Features

• Modular design: Easily adjust dimensions, textures, and bolt compatibility.
• Finger guard: Protects fingers from the grinding surface or bolt.
• Custom textures: Choose from diamond or pyramid patterns (convex/concave).
• Parameterized: All dimensions are adjustable via variables at the top of the script.
• BOSL2-powered: Uses advanced OpenSCAD features for smooth curves and textures.
• Support-free printing: Designed to print successfully without support material (a brim is recomended).


Safety and Print Quality Disclaimer

• This design is provided as-is. The user is solely responsible for ensuring the print quality, material strength, and safe assembly of the grinder handle.
• A poorly printed or weak handle can break during use, posing a safety risk. Always use adequate infill, material, and print settings for functional parts.
• For increased strength, consider using a long bolt that spans the entire length of the handle. This reinforces the structure and reduces the risk of failure.
• Test the handle with your grinder before regular use. Ensure it is securely attached and can withstand the forces involved.
• Wear appropriate safety gear (gloves, goggles, wheel guard) when operating any grinder. Always ensure the grinder's wheel guard is properly installed and used.


STL files and script

The STL files provided here are just a few examples of what this OpenSCAD script can generate. They are intended as a starting point and may not fit all use cases or grinder models.

For full customization, such as adjusting handle diameter, length, textures, or bolt size, download the OpenSCAD script from the repository. With the script, you can:

• Generate a handle tailored to your specific grinder or bolt.
• Experiment with different textures and ergonomic shapes.
• Adjust dimensions for comfort or material constraints.
• Preview and iterate designs before printing.
