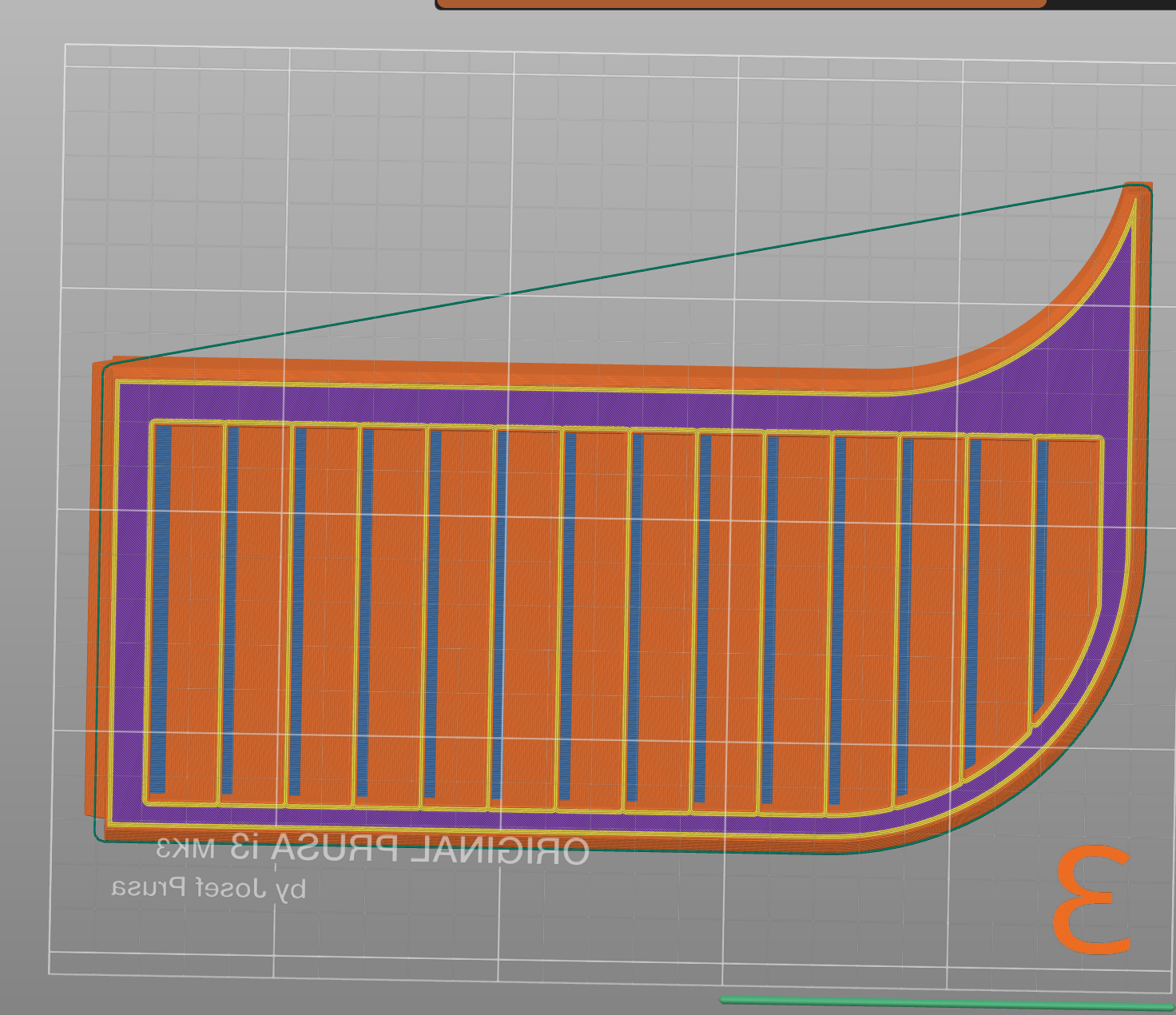

IMPORTANT: Before printing, check with the laminator preview that the grid is correct.
2026-05-20 For the BAMBU ecosystem, click on the link:
https://makerworld.com/en/models/2764301-vw-t5-ventilation-remixed#profileId-3069451
2026-06-12 Corrected a design error in the piece to prevent a slight overhang
See explanation here:
https://makerworld.com/en/models/2764301-vw-t5-ventilation-remixed#profileId-3069451
Many thanks: @Duplobelt_4835973I’ve added a 3MF file with the PrusaSlicer settings to make it easier to adjust the parameters correctly.
If you’re using other slicers, the changes are:
Set top and bottom solid layers to 0
Add a height modifier from 0–2 mm where bottom solid layers are set to 2 (or more)
Add a height modifier from 4.5–6 mm where infill is set to 100%
Add a height modifier from 10–17 mm where top solid layers are set to 2
For the size of the mosquito net, you need to adjust it under Infill → Fill density.
In the 3MF file, it’s set to 30 by default—use the preview to adjust it.
