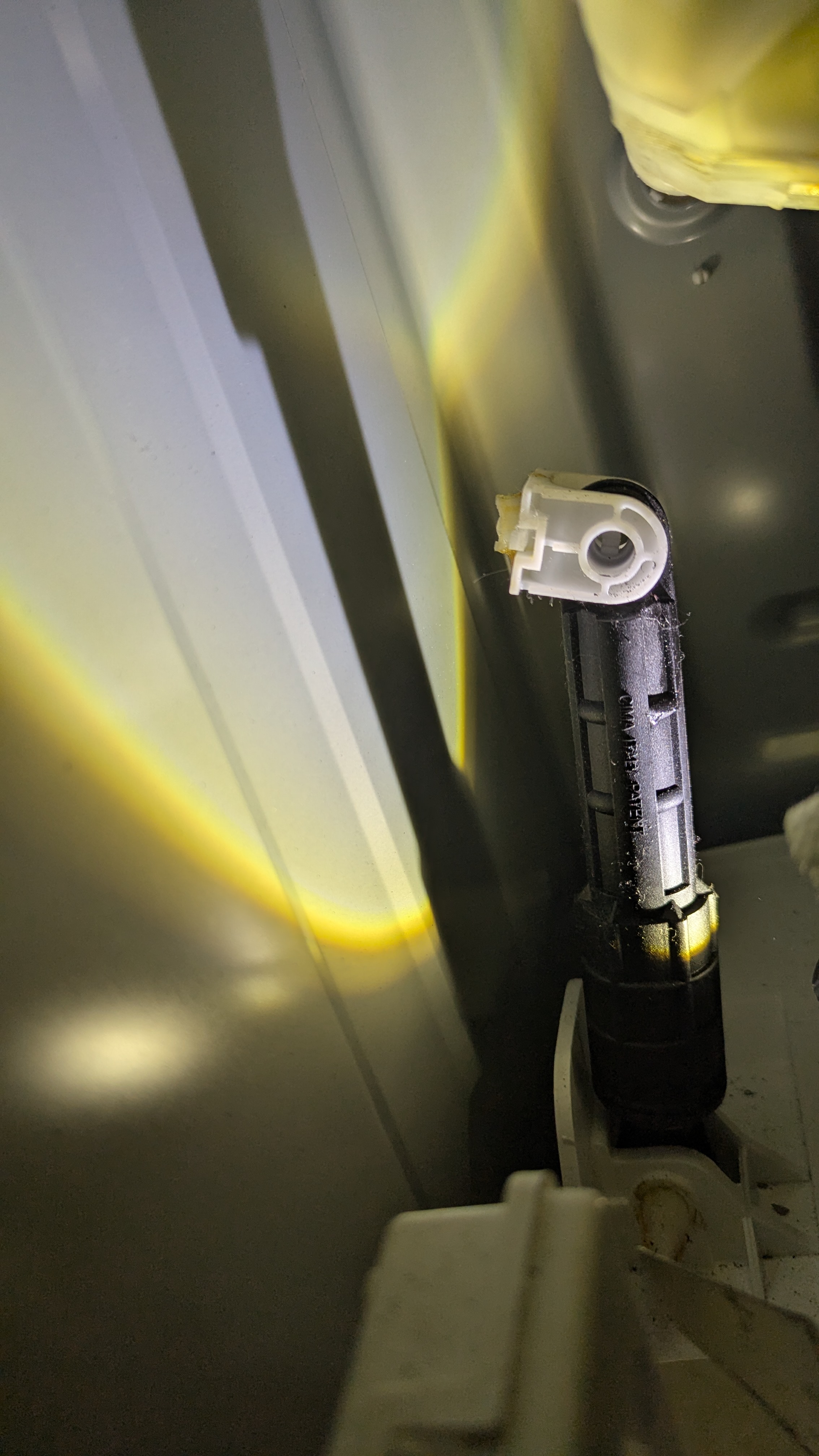

The original connectors for the shock absorbers all broke causing the drum to bang against the side of the washing machine. I modeled new connectors based on what was left of the old ones. The original connectors were made in 2 pieces and snap together through the hole of the shock absorber. My print uses a bushing and a ¼" hex bolt and lock nut to secure it to the shock.
Tools & additional hardware
- 7/16" wrench
- 7/16" socket wrench
- ¼" x 2 ½" bolt
- ¼" lock nut
This is my first version. I've provided the cad file from Fusion 360 for anyone who wants to modify for a better fit. I will update this model if I make any changes or improvements after seeing how the current design performs.
