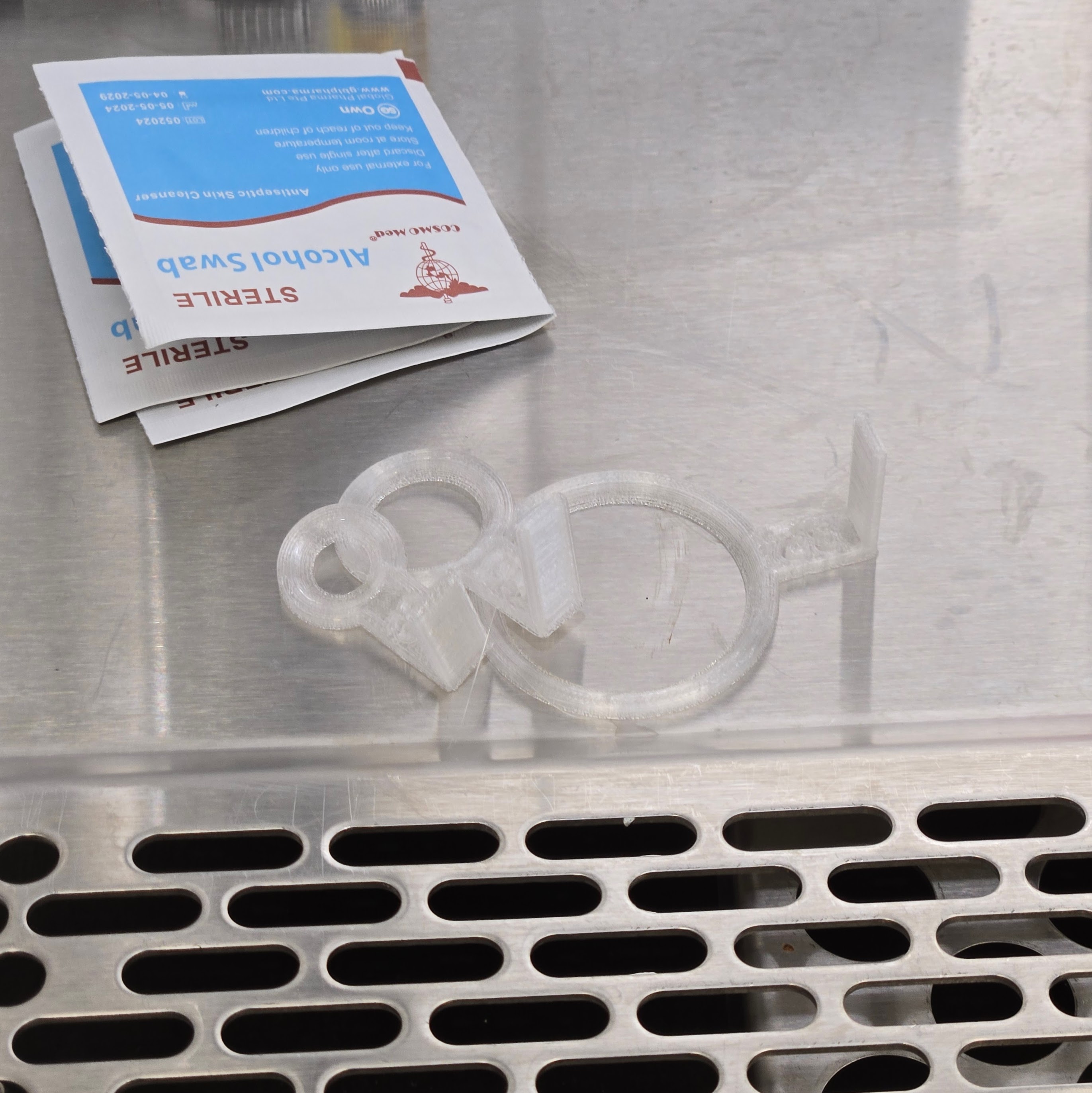

Circular stencils, fixed radius/diameter, labelled, parameterized
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Math
- Licencja
- Creative Commons — Public Domain
If accuracy is important, you must calibrate the size by physical measurement followed by scaling the model in your slicer. The actual size of the stencil will be affected not only by the dimensional accuracy of your printer, but also the z-offset (elephant's foot) and over-extrusion.

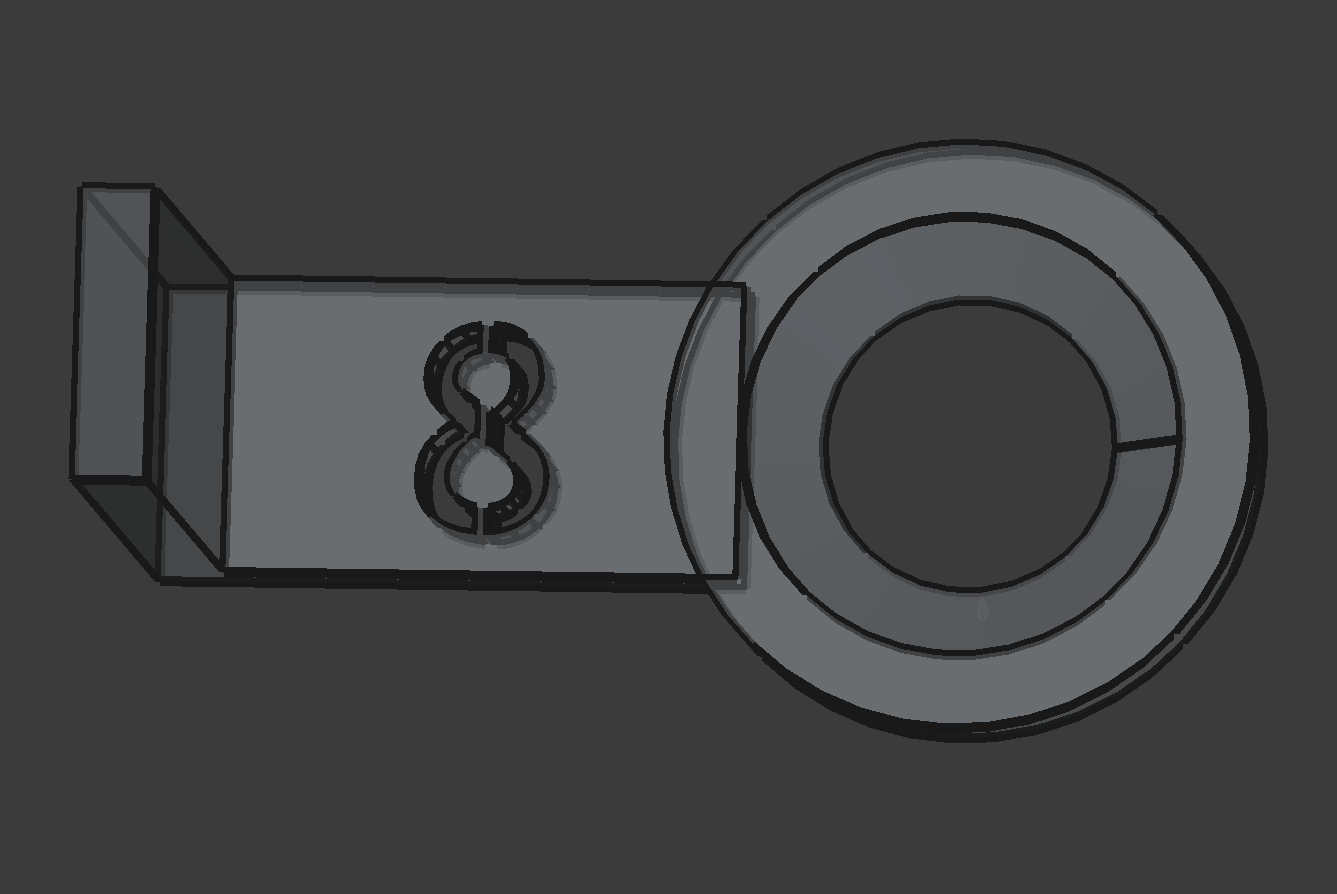

Parameterization:
- Download the FreeCAD model file (extension: FCStd) and zipped font file (extension after unzipped: tff)
- Link the font file to the ShapeString object (the ShapeString is at Fusion > Cut001 > Label negatives > Array > ShapeString, the font file property is under “Draft”)
- Set the value of diameter (cell B1) in the Spreadsheet
- If the model does not update, right click on the “Fusion” object and click “Recompute object”
Or, leave a comment and I'll do it for you.
License: The font used herein, Allerta Stencil, is licensed under the SIL Open Font License, Version 1.1. Everything else is public domain.
