Scheppach DC100 Cyclone/Adapter
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Tools
- Licencja
- Creative Commons — Attribution — Share Alike

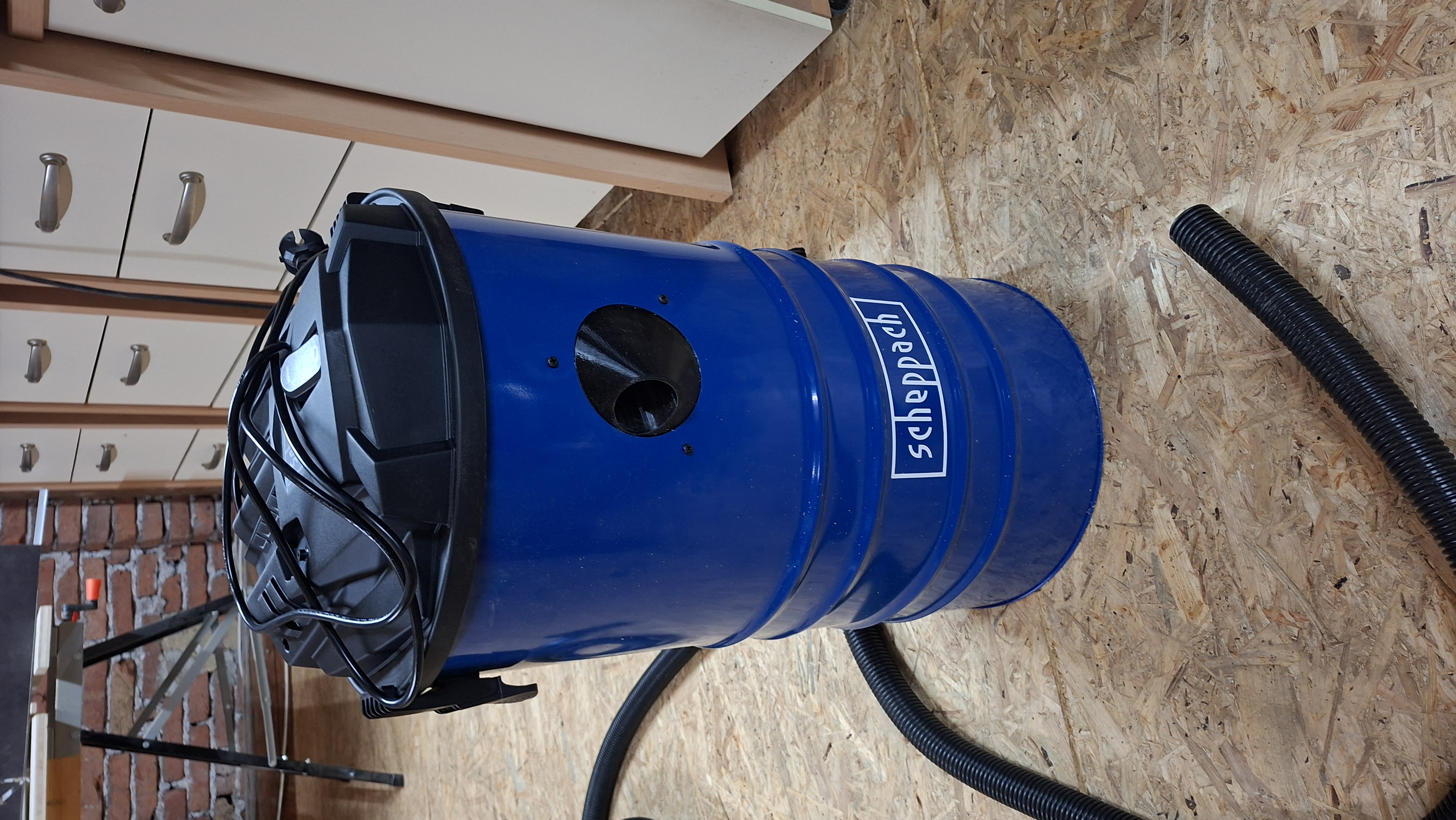

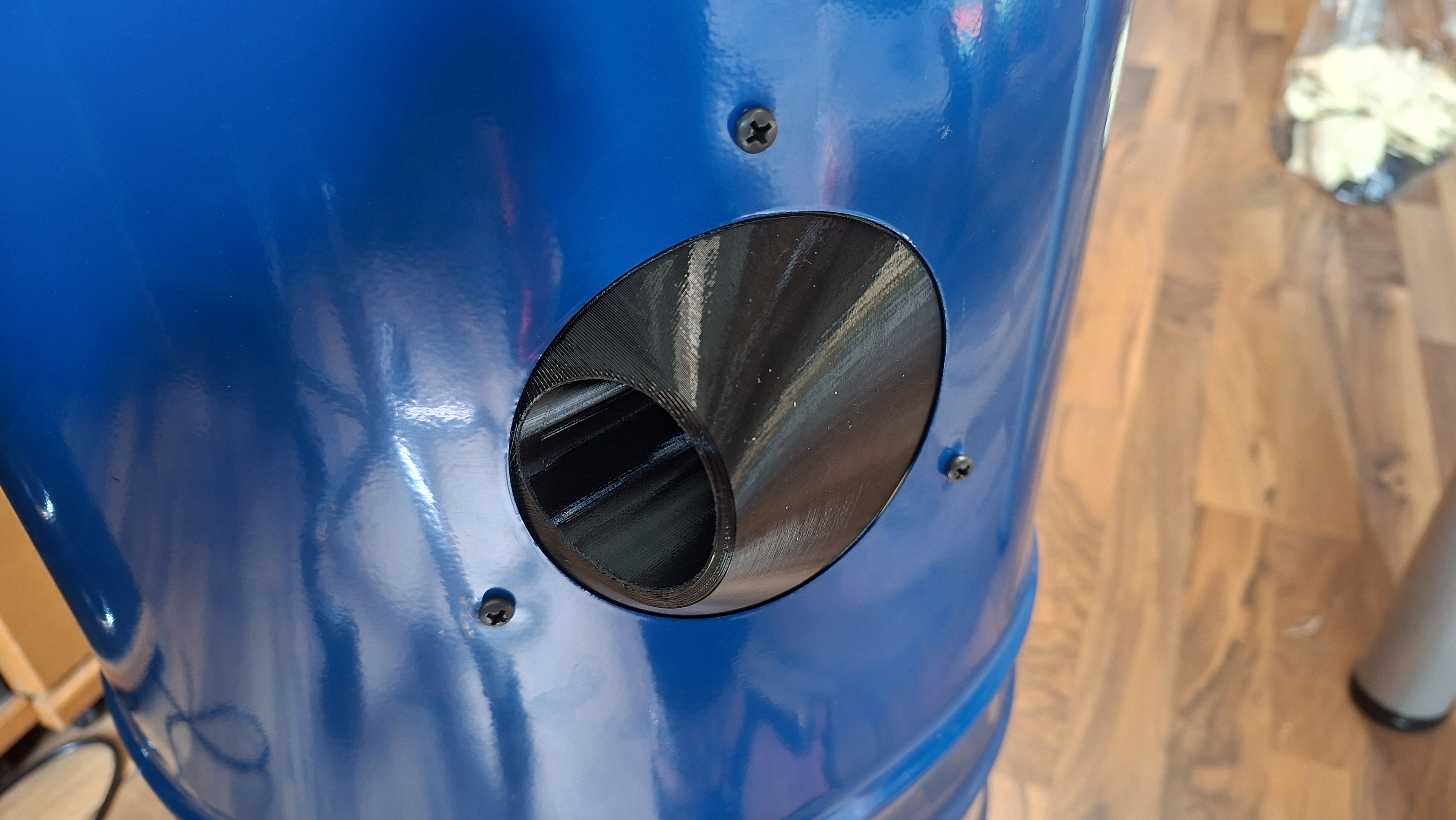

This Adapter screws in place of the original inlet with the original screws and without any other modifications necessary.

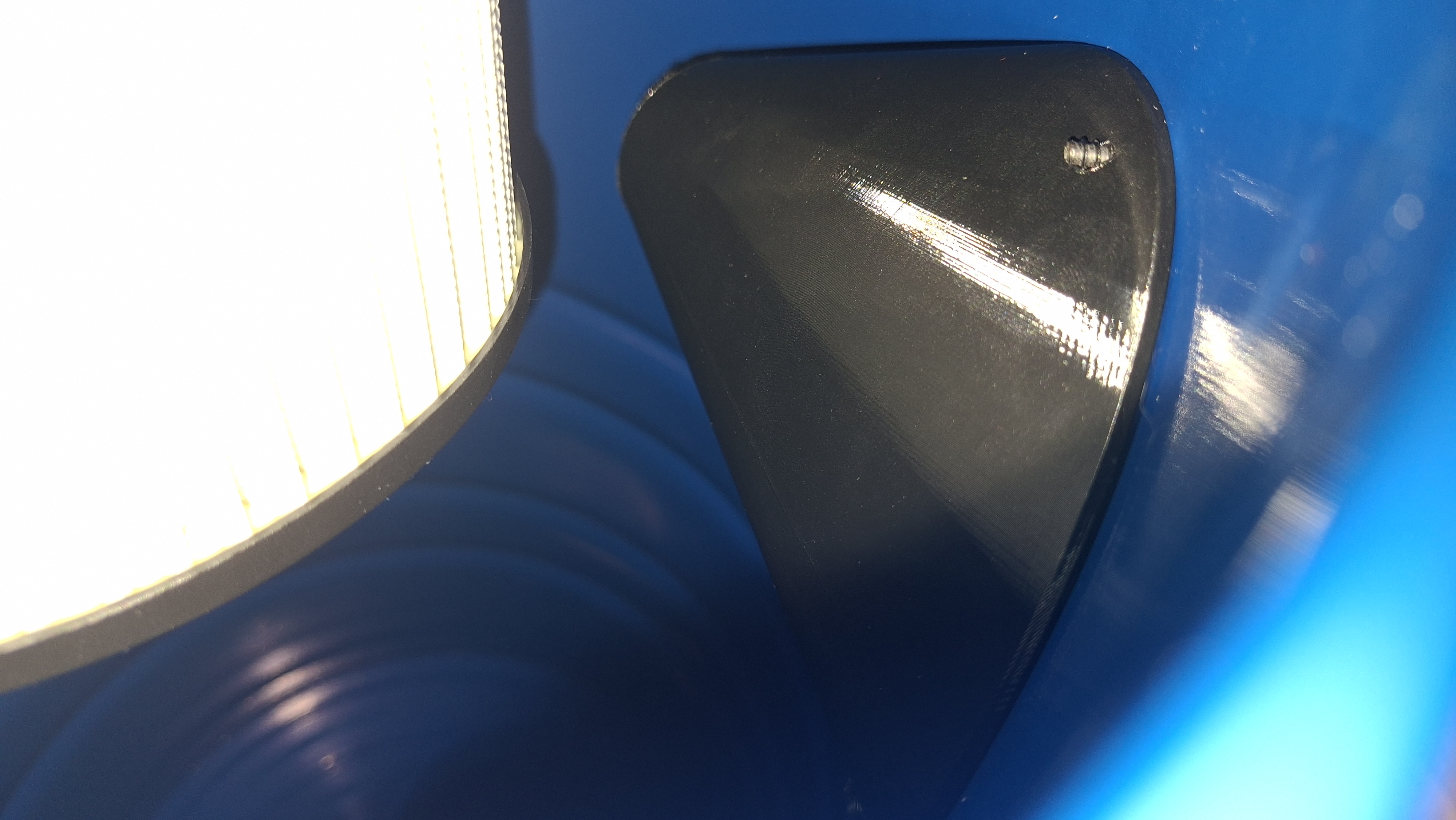

It provides a decent cyclone effect to reduce clogging of the filter.
Additionally it reduces the inlet to fit standard vacuum hoses of about 38 to 43mm diameter.
I added the fully parametric .scad file so you can adopt to different sizes if needed.
It is easy to print without supports when standing on the inner tube, maybe add a raft for better bed adhesion.

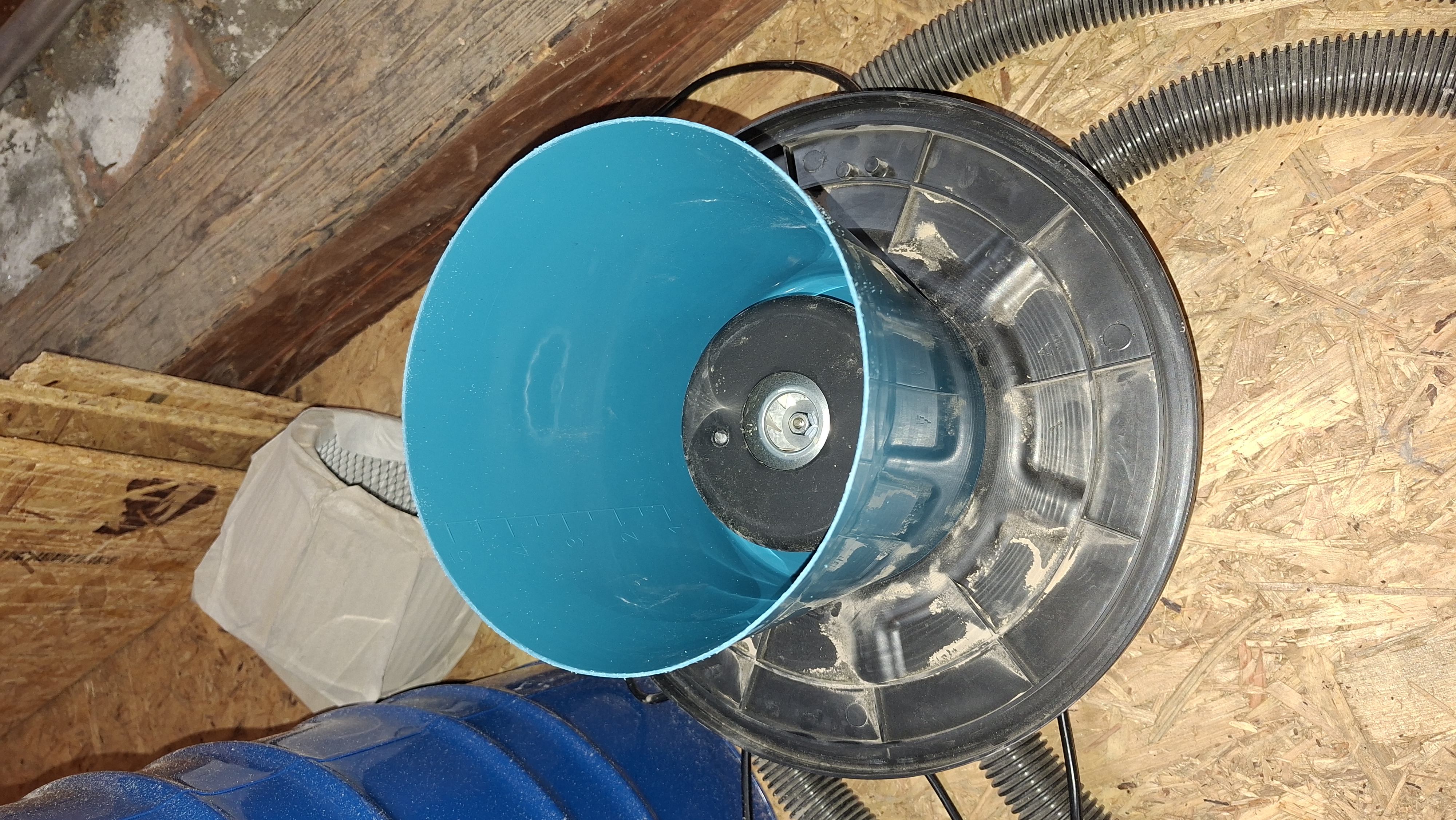

A standard 5l bucket with a 130mm cutout in the bottom around the Filter can further increase te cyclone-effect and reduce filter colgging even more.
