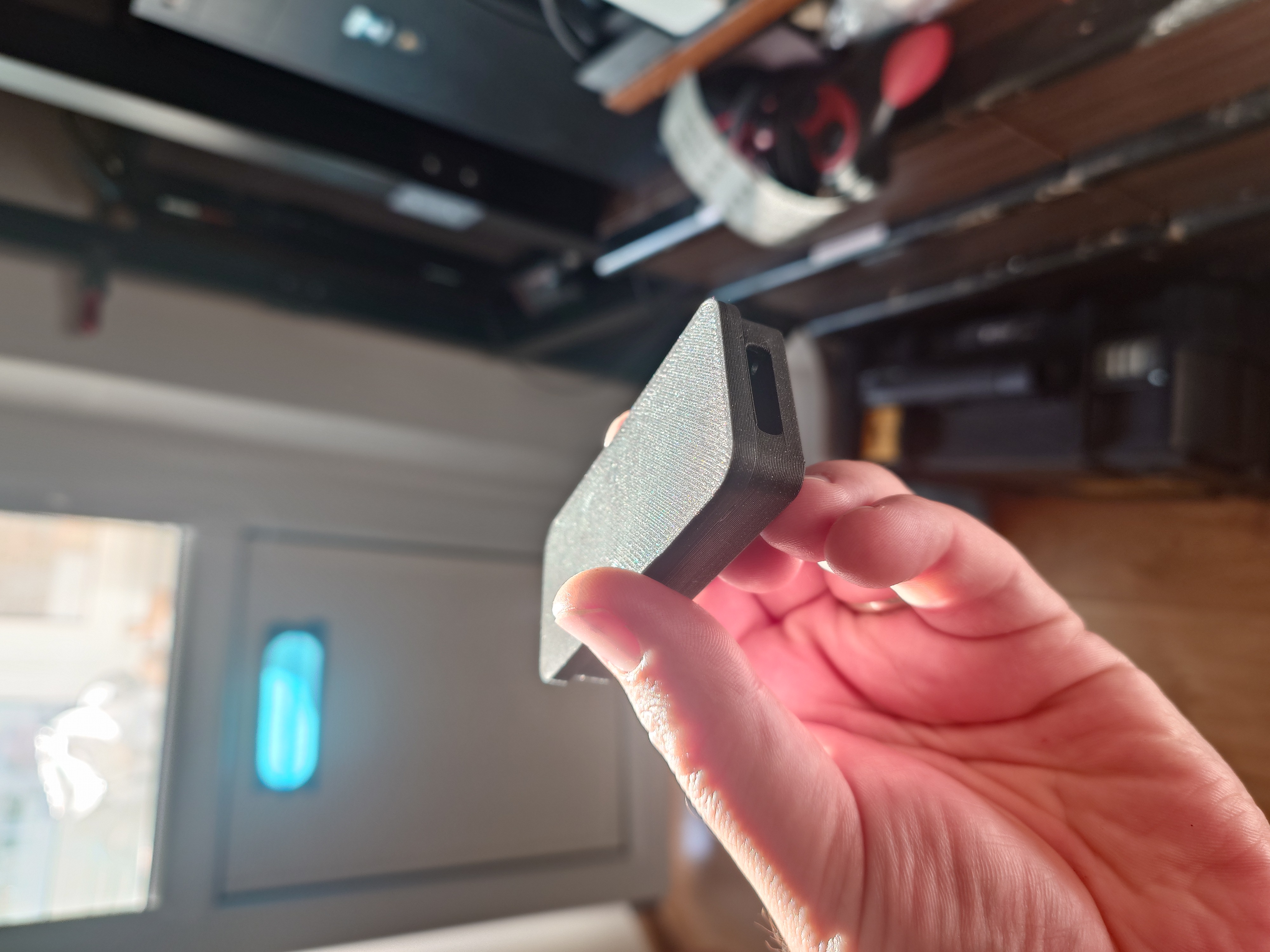

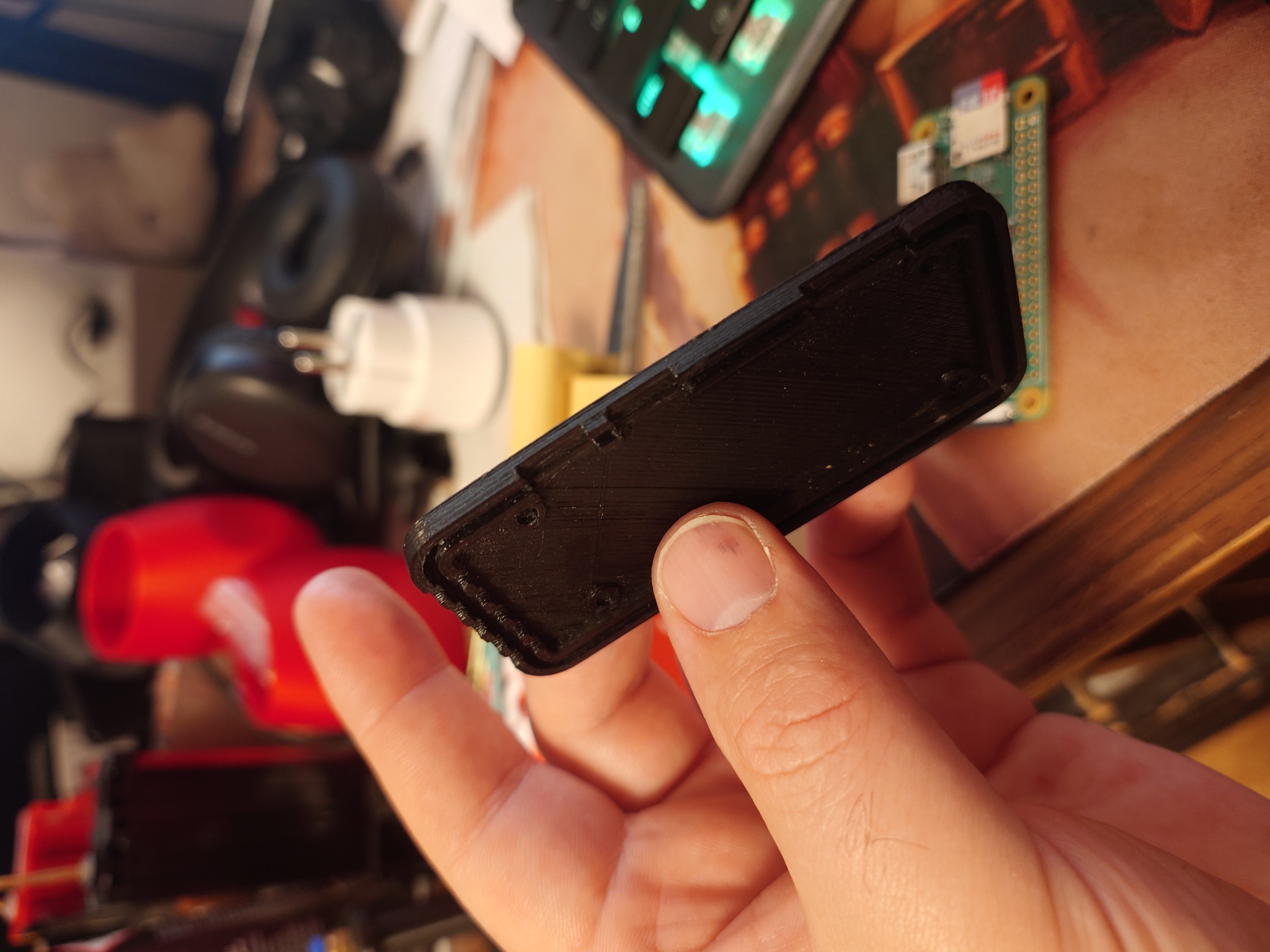

I have designed a compact case for the pi zero. 1 and 2 fit. The case is modular and can be used for many purposes.
- Ocena
- 0 / 5
- Polubienia
- 7
- Pobrania
- 6
- Wydruki
- 0
- Wyświetlenia
- 69
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution — Noncommercial
I have designed a compact case for the pi zero. 1 and 2 fit. The case is modular and can be used for many purposes.

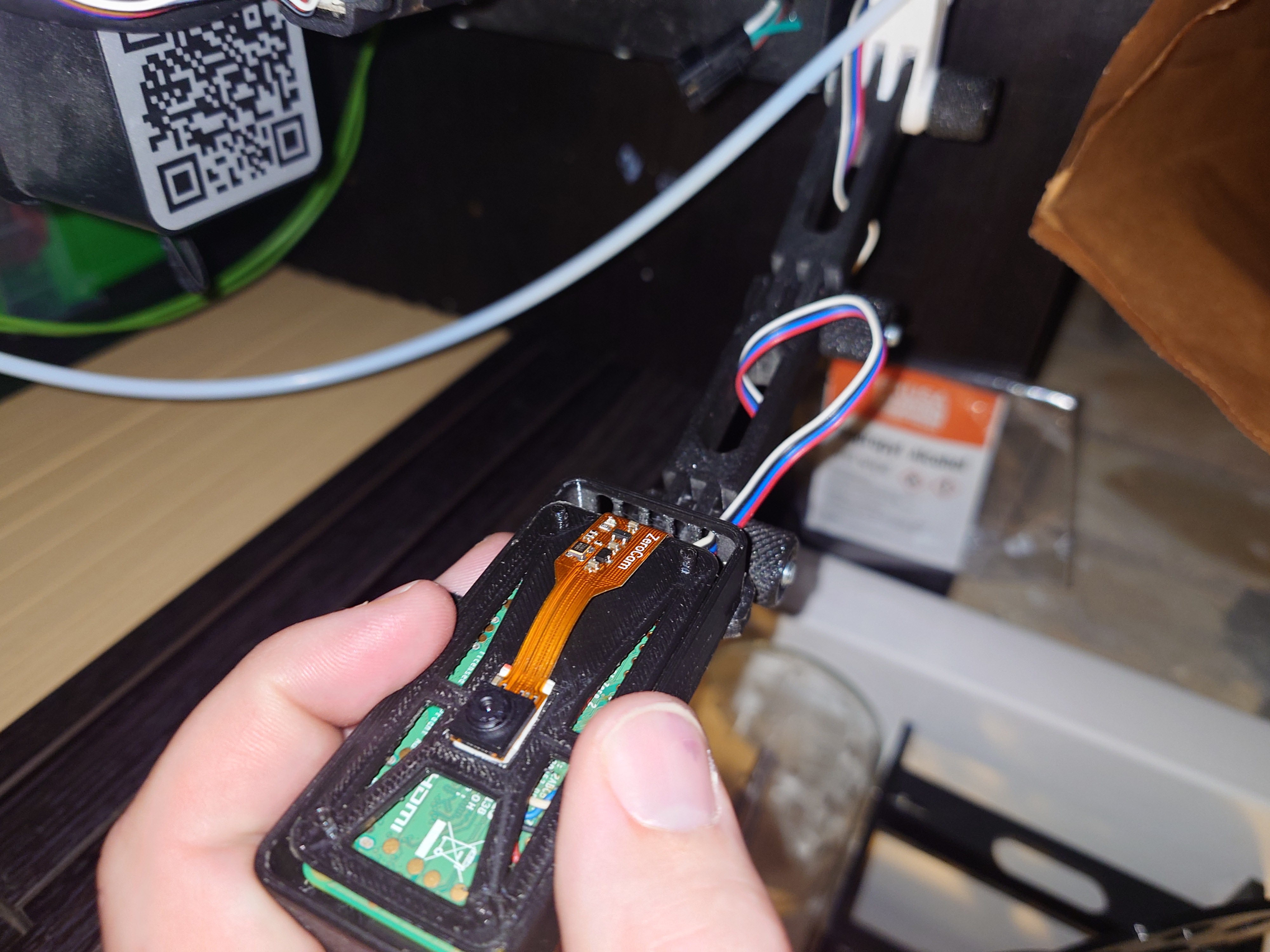

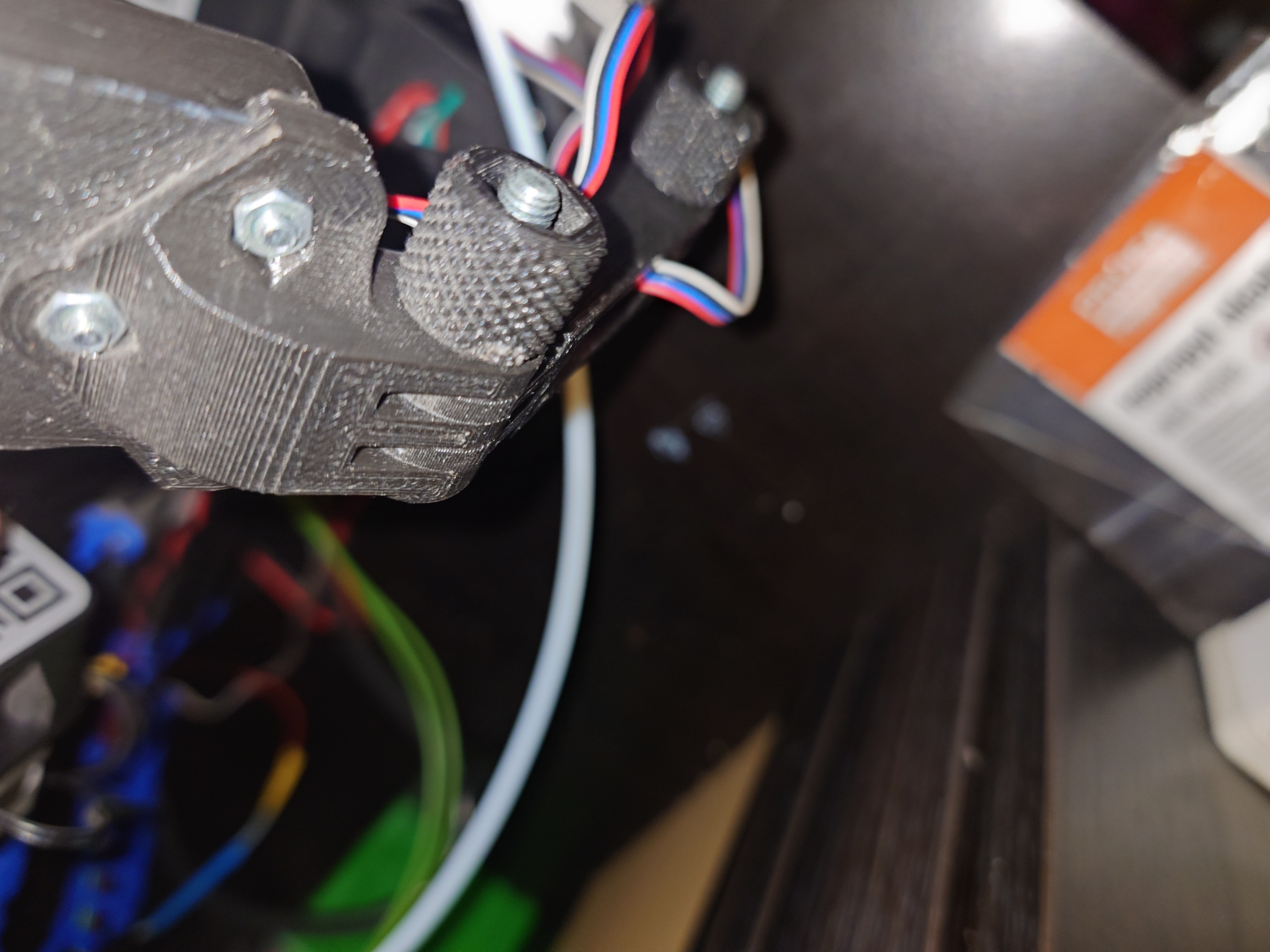

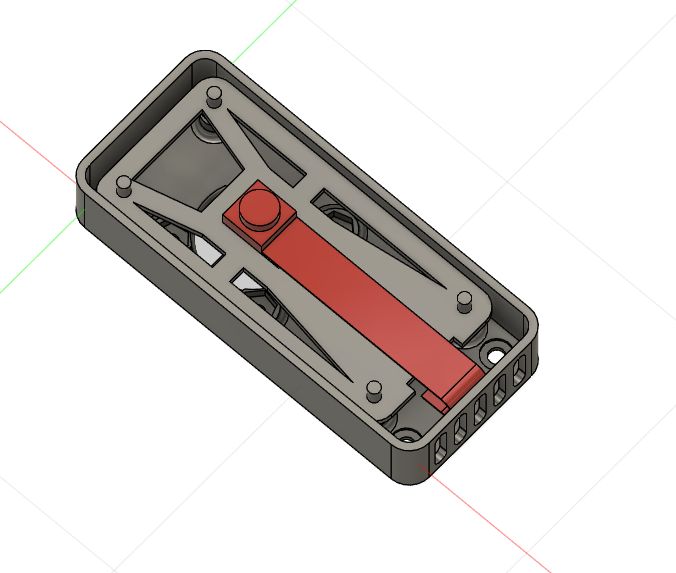

There is an add-on that allows it to be mounted to the “Modular mounting system” by HeyVye. Also an insert and cover to internally mount the ZeroCam from PiHut.

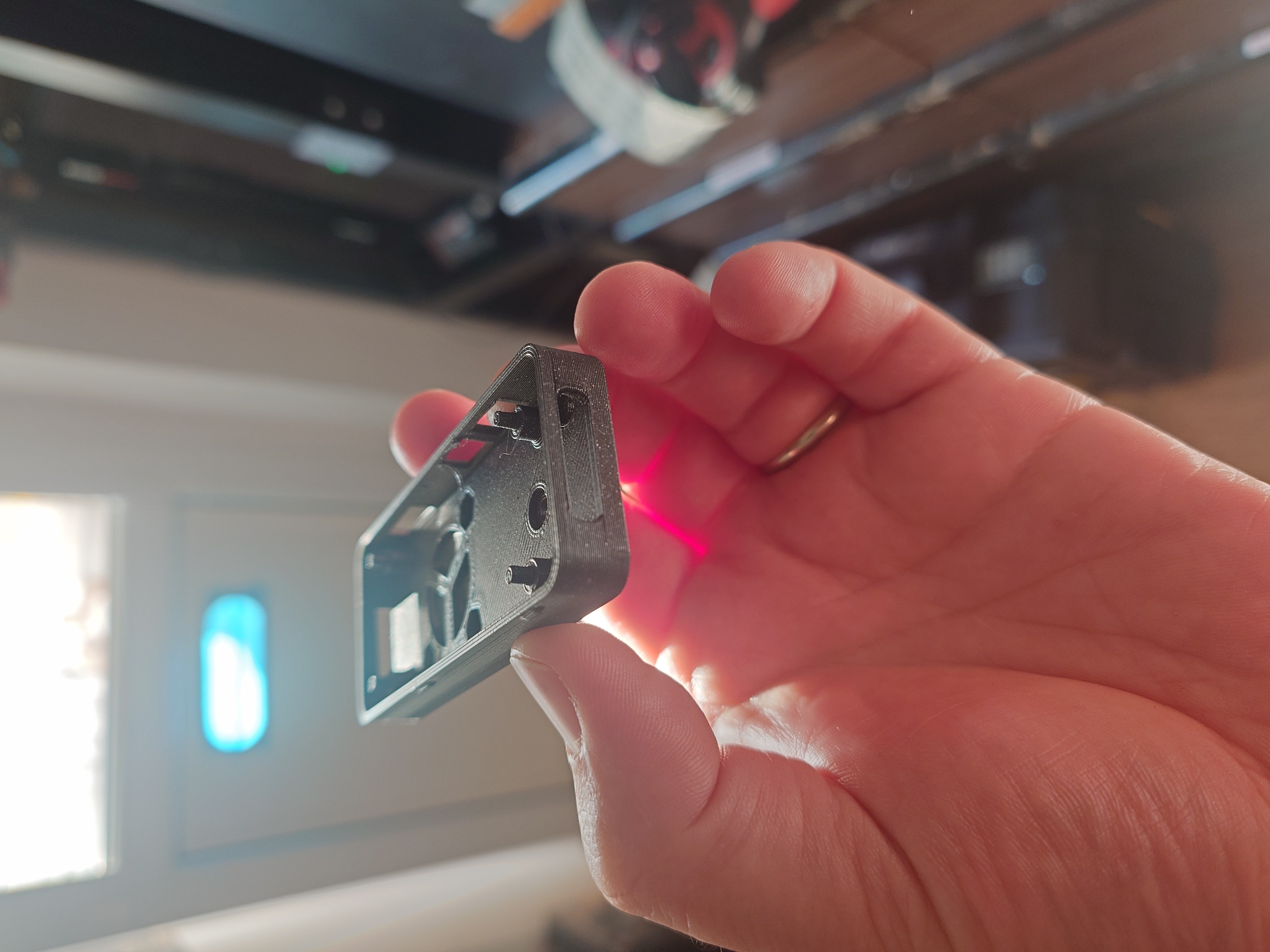

There is a breakaway hole with the possibility to mount a small 20 mm fan and connect it to the pi GPIO without the header.

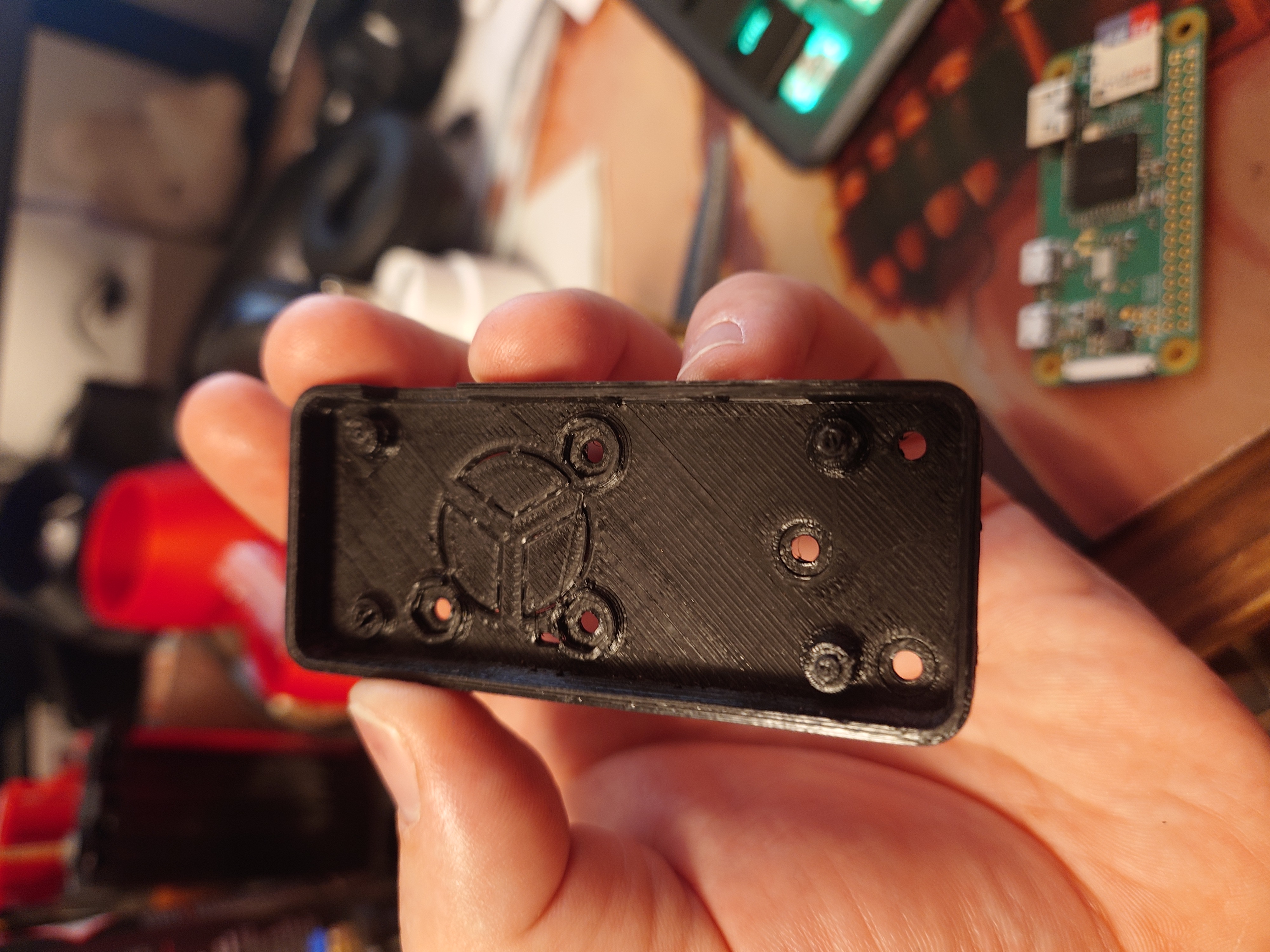

Also holes for inserting four 8 x 2 mm round magnets for mounting. There are options with access for the ribbon cable or a ventilation grille.
I have used this design to run octoprint and clipper on my printers, as a security camera and now on my CoreOne.
This is my first upload to printables. I have added .step and .f3d files if anyone wants to modify it.
Let me know in the comments if something needs fixing or you want a custom configuration.
