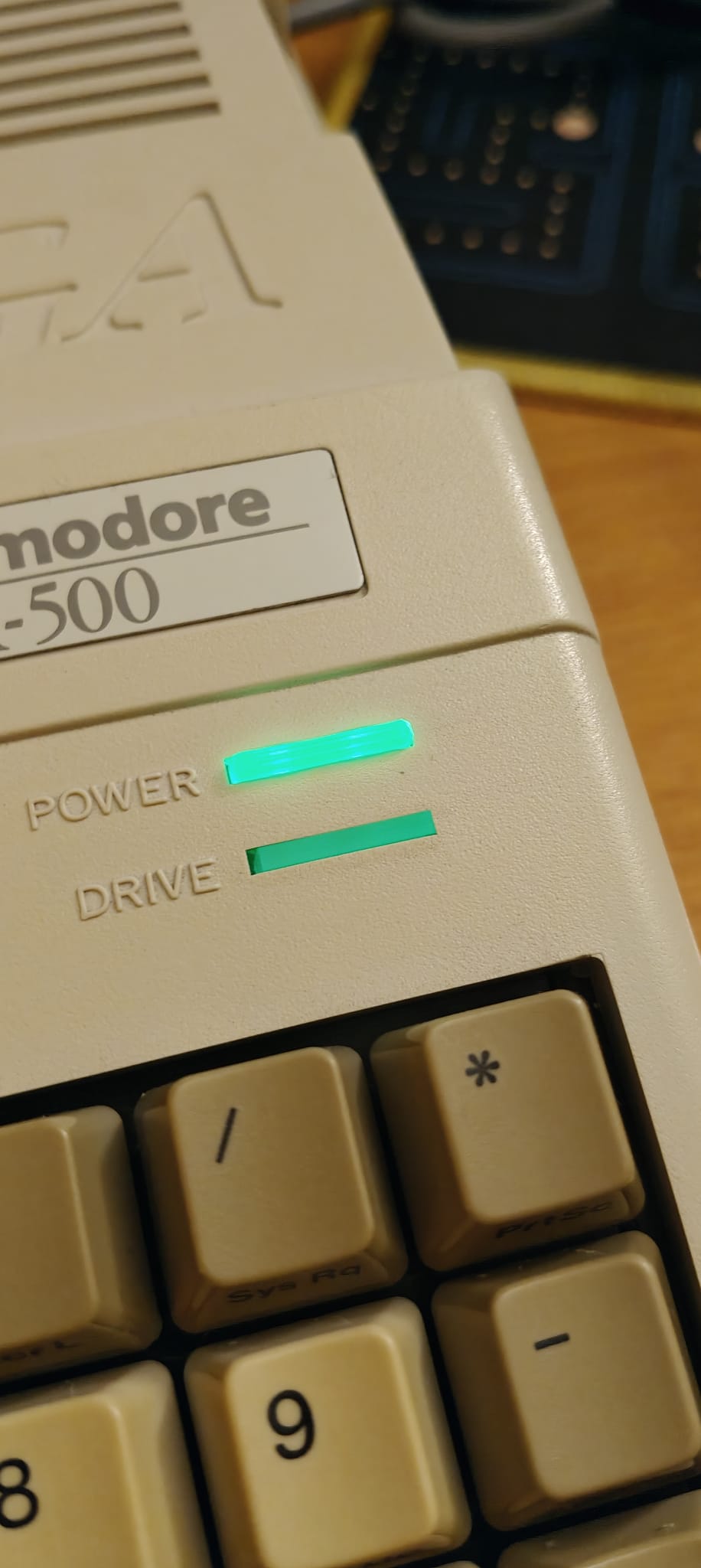

this is a replacement led diffuser for the amiga 500 for broken LEDs or for customization.

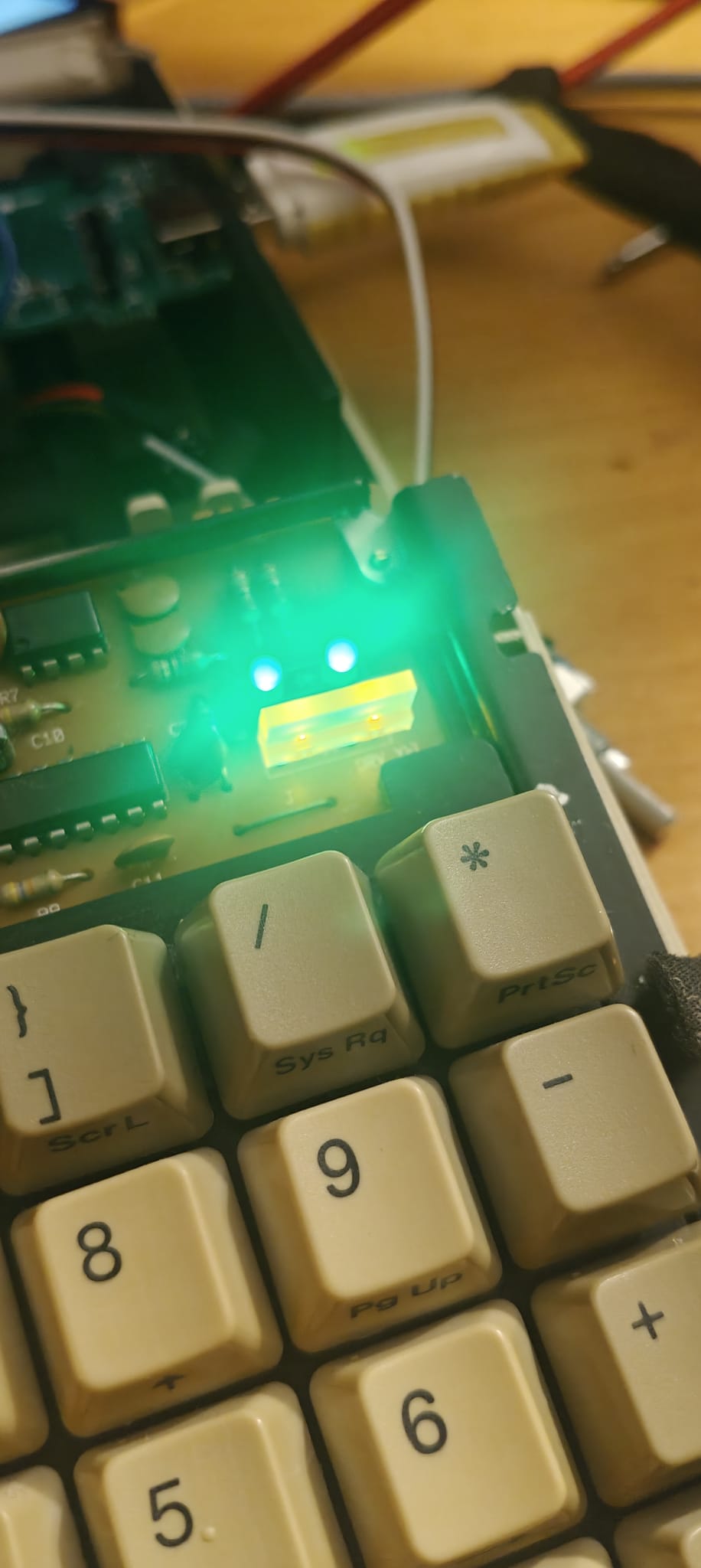

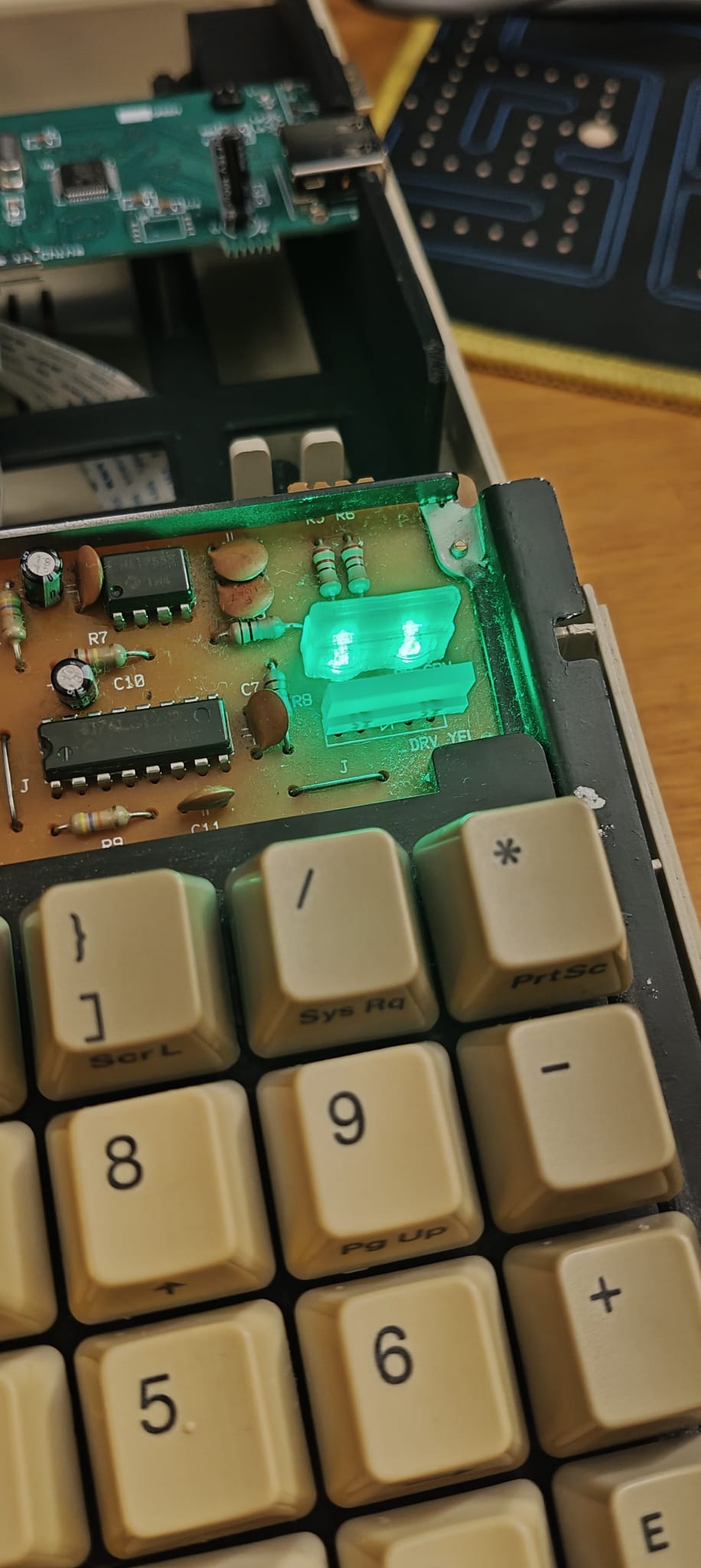

the diffuser is higher than the original one in order to allow the 3mm replacement led to be mounted flush on the keyboard pcb (thus avoiding misalignment that can happen with the original “floating” factory fitted one).
us translucent PLA, print at 0.2 mm height (or higher) without supports with 100% inflill, Ironing is also suggested otherwise sand the top with high grit sand paper (380 or more)
in order to avoid risk of over spill and allow serviceability (or simply if you want to be able to replaceLEDs with another color) NO NOT glue the diffuser to the LEDs, upper shell is enough to keep it in place.
