Nozzle box with threaded lid

This is a storage box for printer nozzles, based on the design with magnetic lid. I however wanted more secure locking so I added a threaded lid. It also means that no magnets are needed.

The lid's basic shape and thread geometry were borrowed from Dimbulb: Threaded Dice Box

https://www.printables.com/model/732931-threaded-dice-box

The lid along its thread was scaled down a bit and sort of ‘knurling’ was added around its perimeter for better grip.

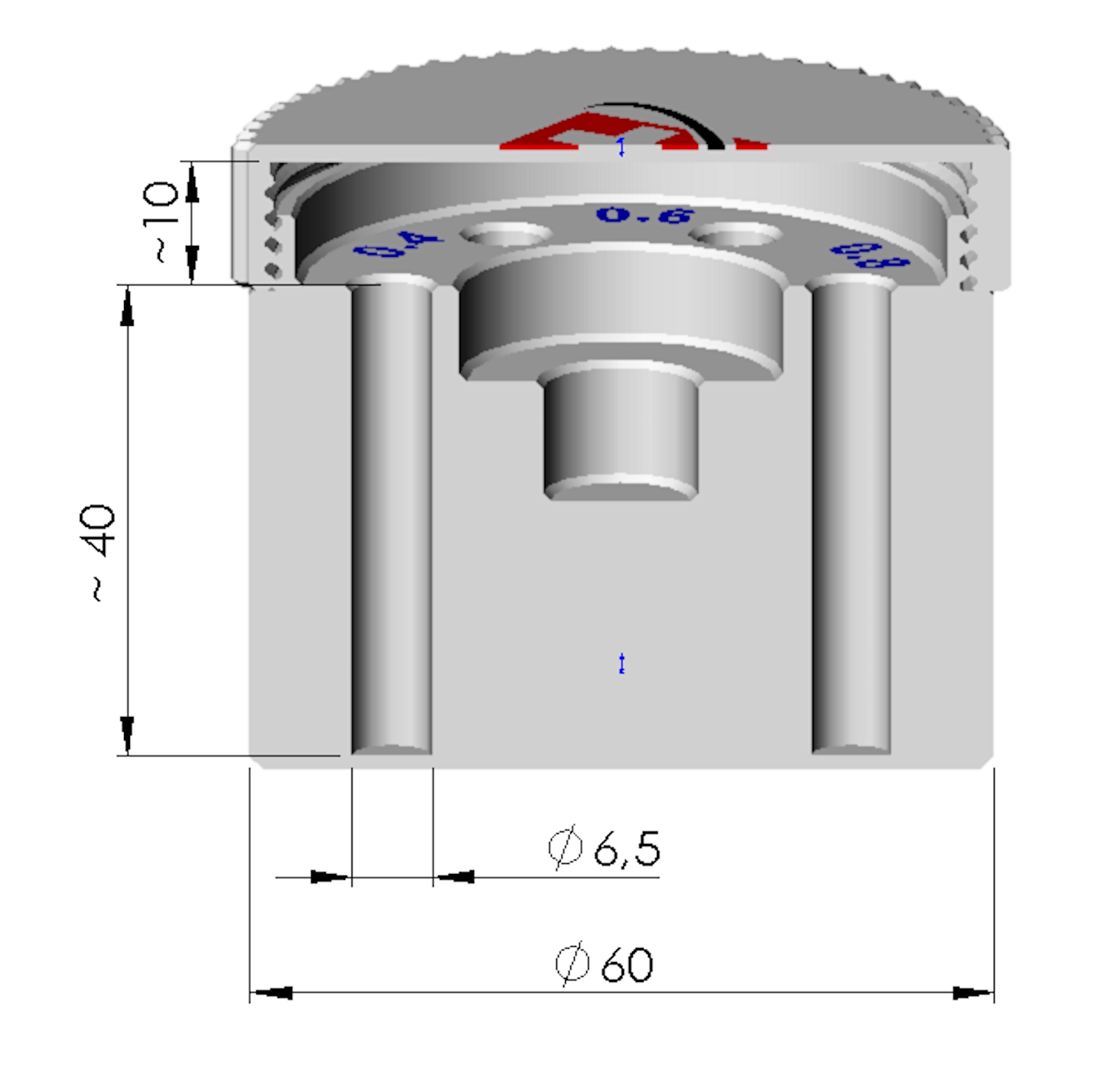

I remixed this box particularly to store Micro Swiss CM2 nozzles for my Bambu X1C printer, but it can naturally hold any other similar parts provided they fit in its internal space (see the main dimensions in one of the pictures). There is also a recess in the middle of the box body to house the MicroSwiss printed 7 mm ‘torque’ wrench.

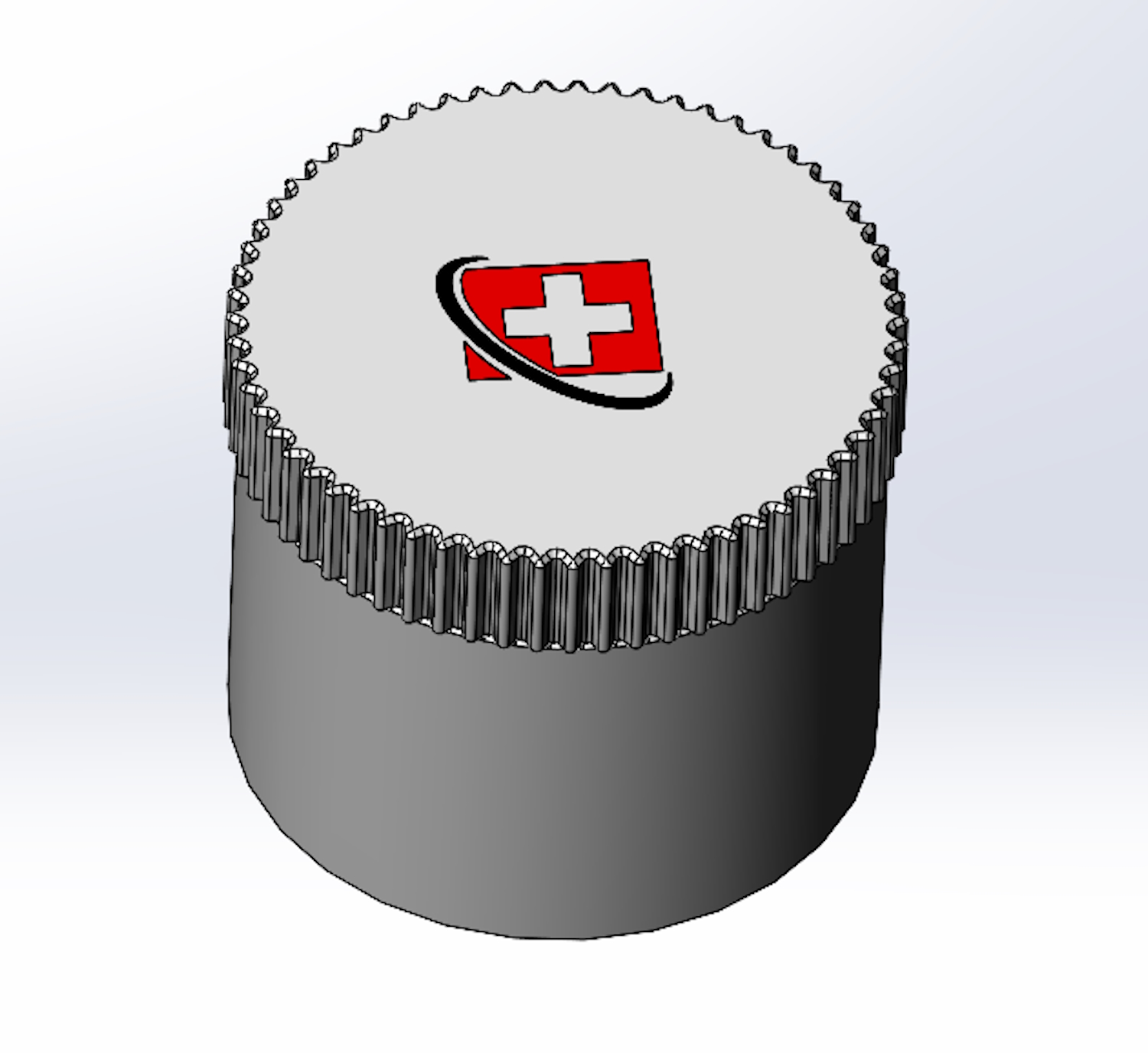

In addition, there is a possibility to print optional embedded texts for nozzle sizes 0.2 – 1.2 mm on the box body, as well as Micro Swiss logo on the lid. The text objects are 0,4 mm thick.

The logo was borrowed from Tuna:  Logo - Micro Swiss, STL & SVG

https://www.printables.com/model/485888-logo-micro-swiss-stl-svg

Texts we stripped from the logo and it was scaled down to fit on the lid. Its thickness was also reduced (1,2 → 0,4 mm).

Both parts were printed with 0.4 mm nozzle with 0,2 mm layers. Just print the threaded portions slow enough to get good quality details there. Also, put enough top layers in the body for smooth surface - especially if you are going to print the texts.
