This box is for controling addresable led stripes.

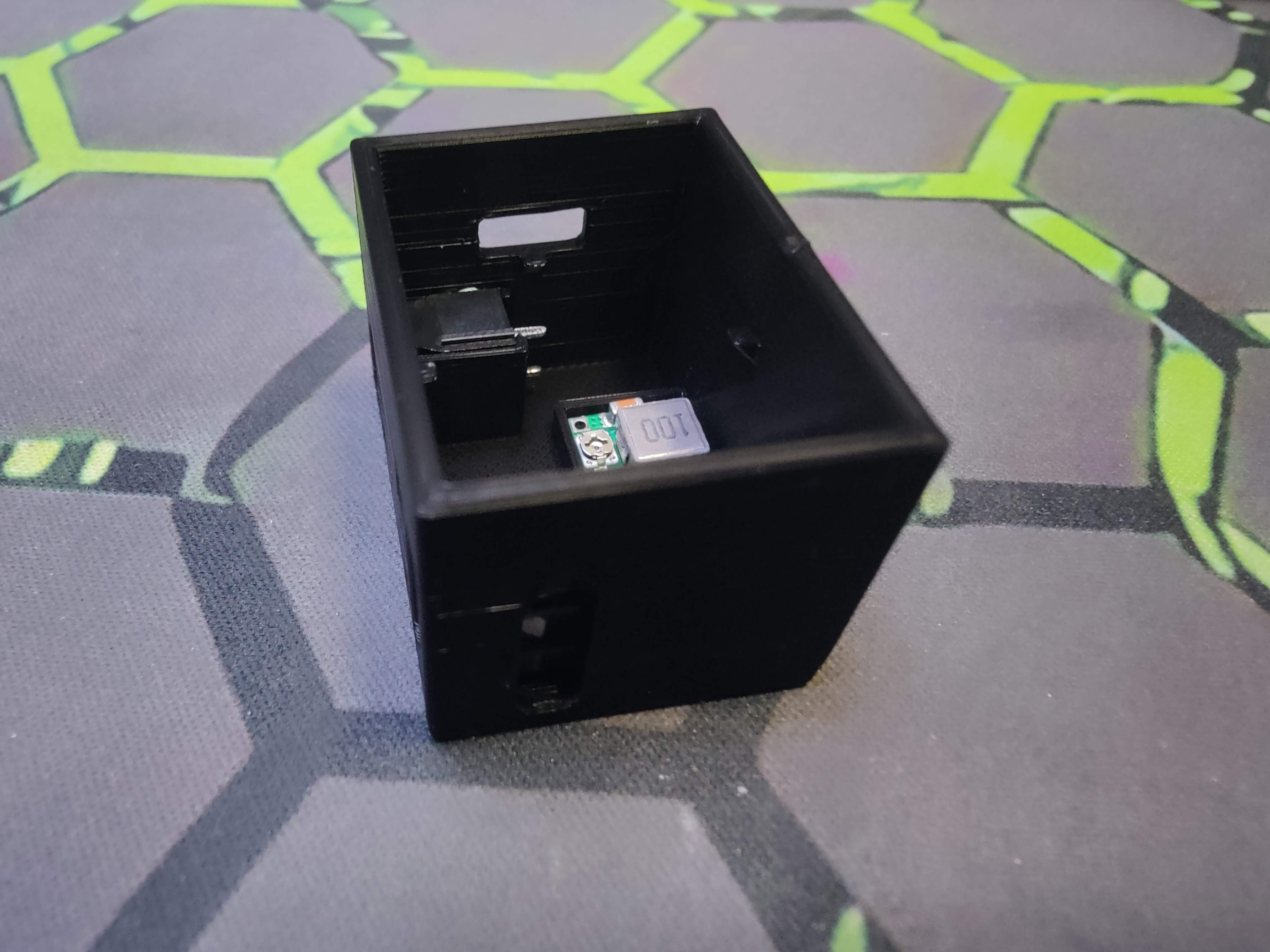

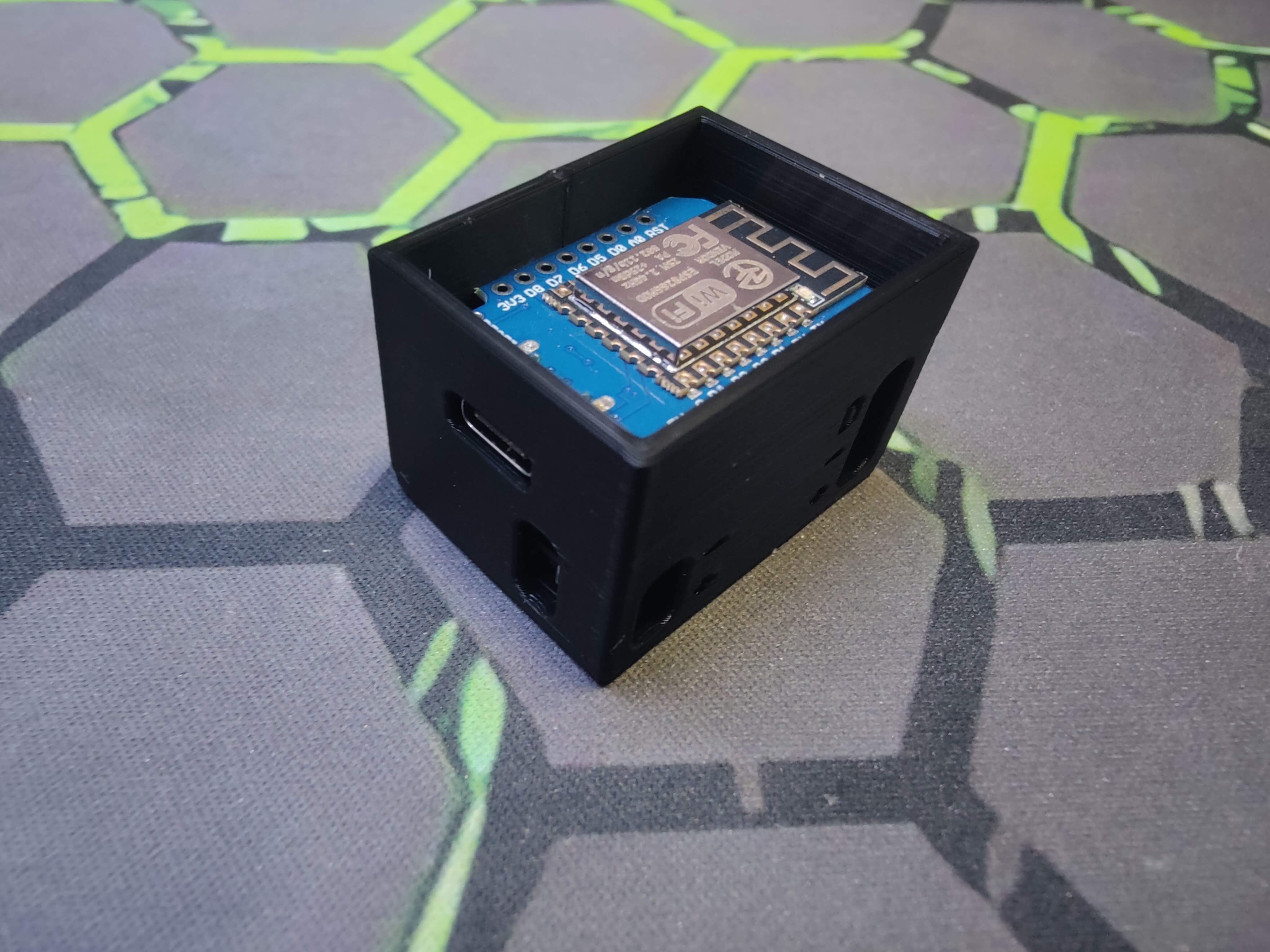

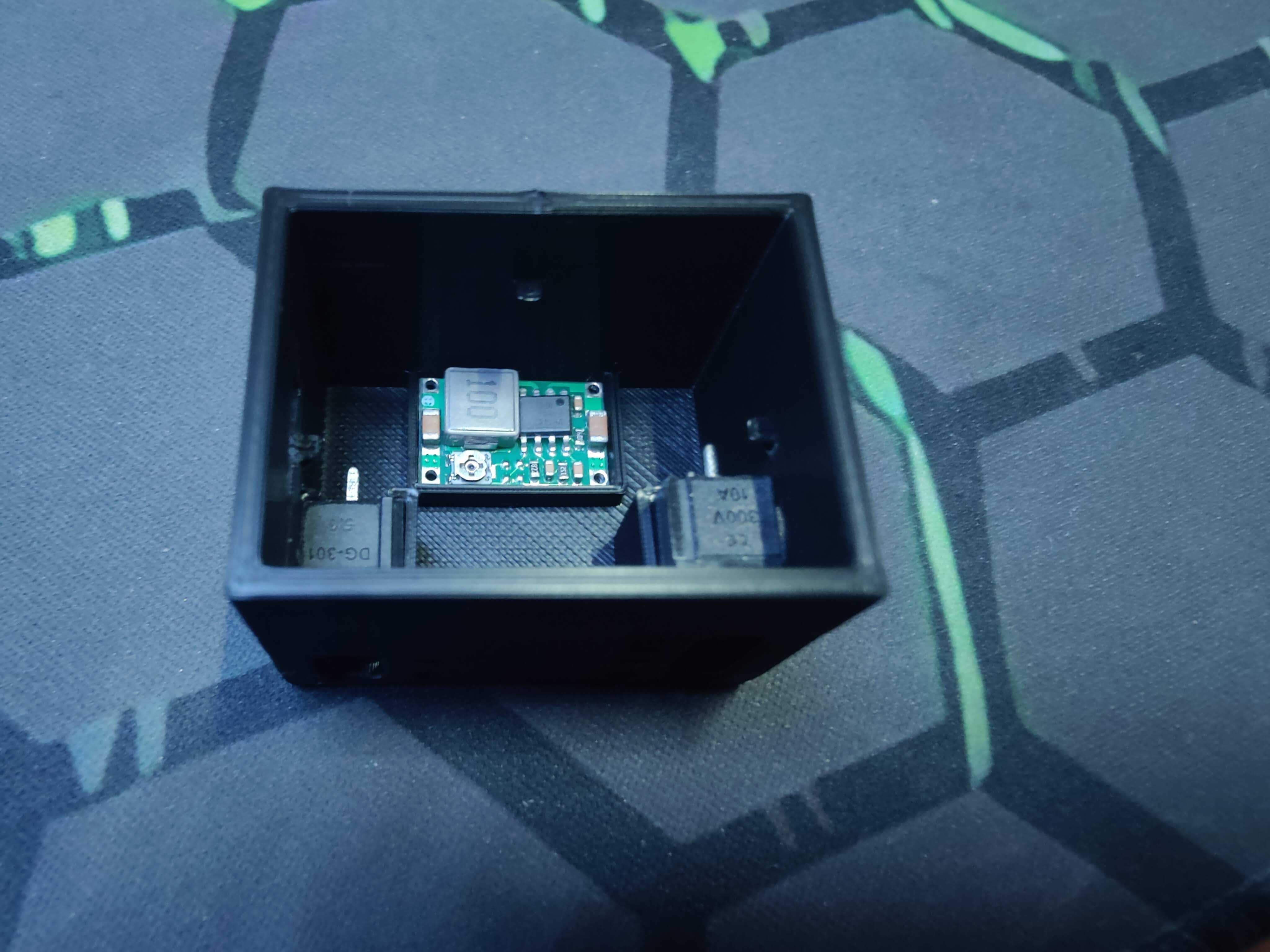

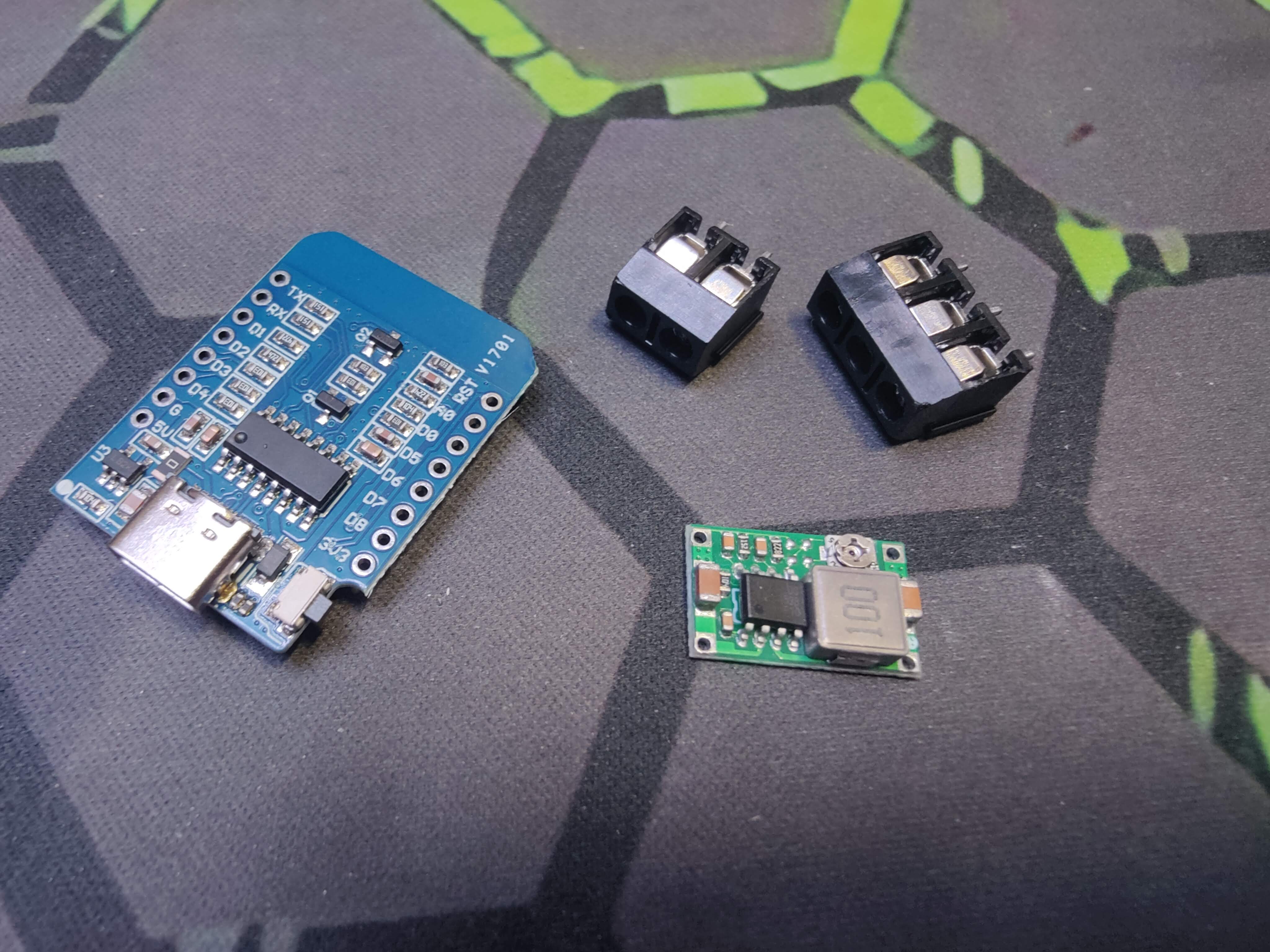

It holds d1mini controler, mini360 step-down converter to power d1mini and two screed terminals.
I'm attaching also cutoff model to help soldering.
12V input should be connected to two-screws termial, output for led strip shold be connected to three-screws teerminal (which contains also data line).

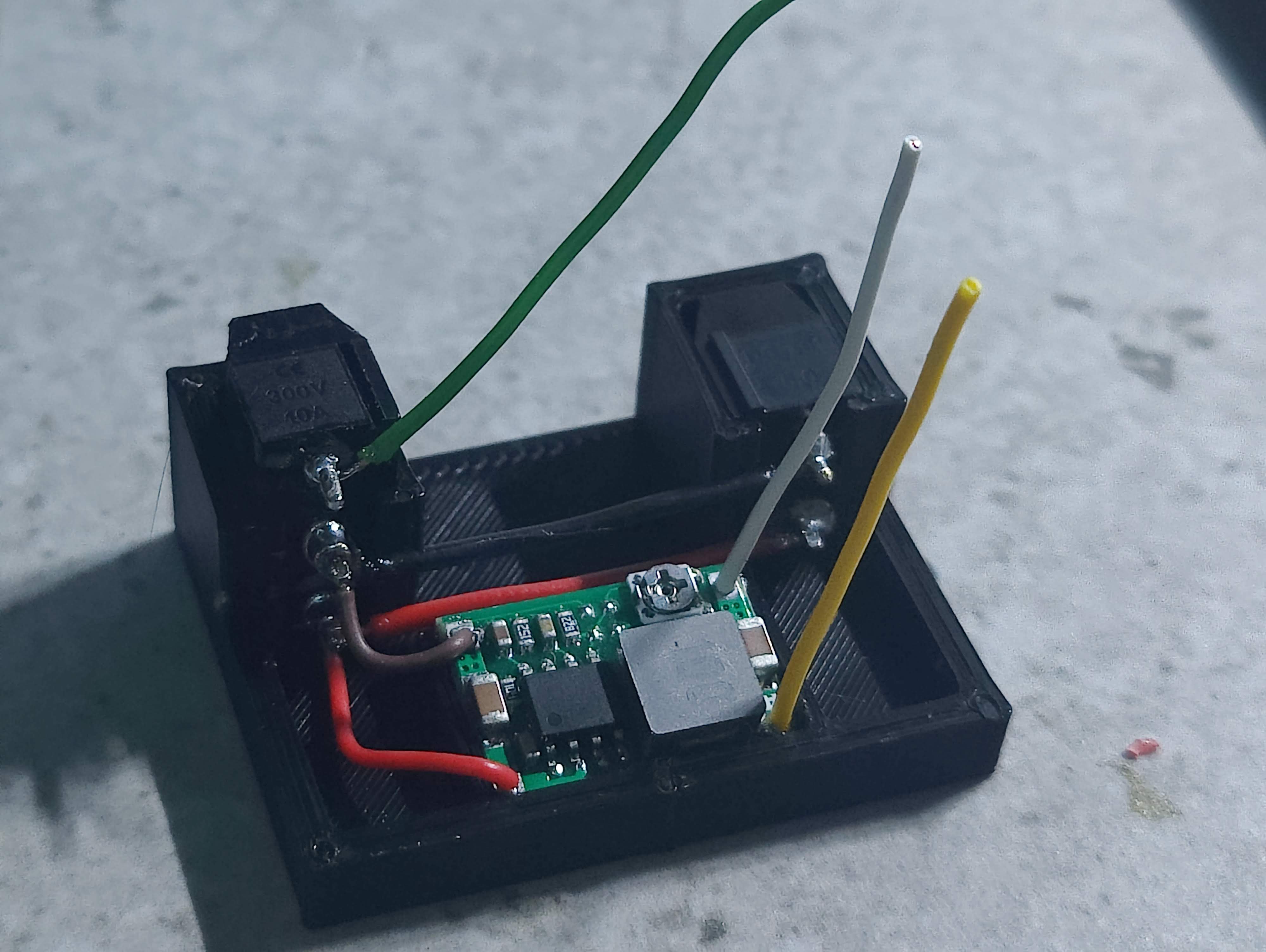

Wiring (shown on photo):
- red is + (from 12v input)
- black and brown is -
- yellow is + (5v to power d1mini)
- white is -
- green is data line from d1mini to led strip
Remember to set correct voltage (5v or 3,3v) on mini360 step-down converter using potentiomenter before soldering power cables to d1mini (yellow and white in my example).
I'm using 12V WS2815 stripes.
Can be printed without supports.
