Accessibility adapter for dormakaba compact reader 91 12
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution — Noncommercial
Goal

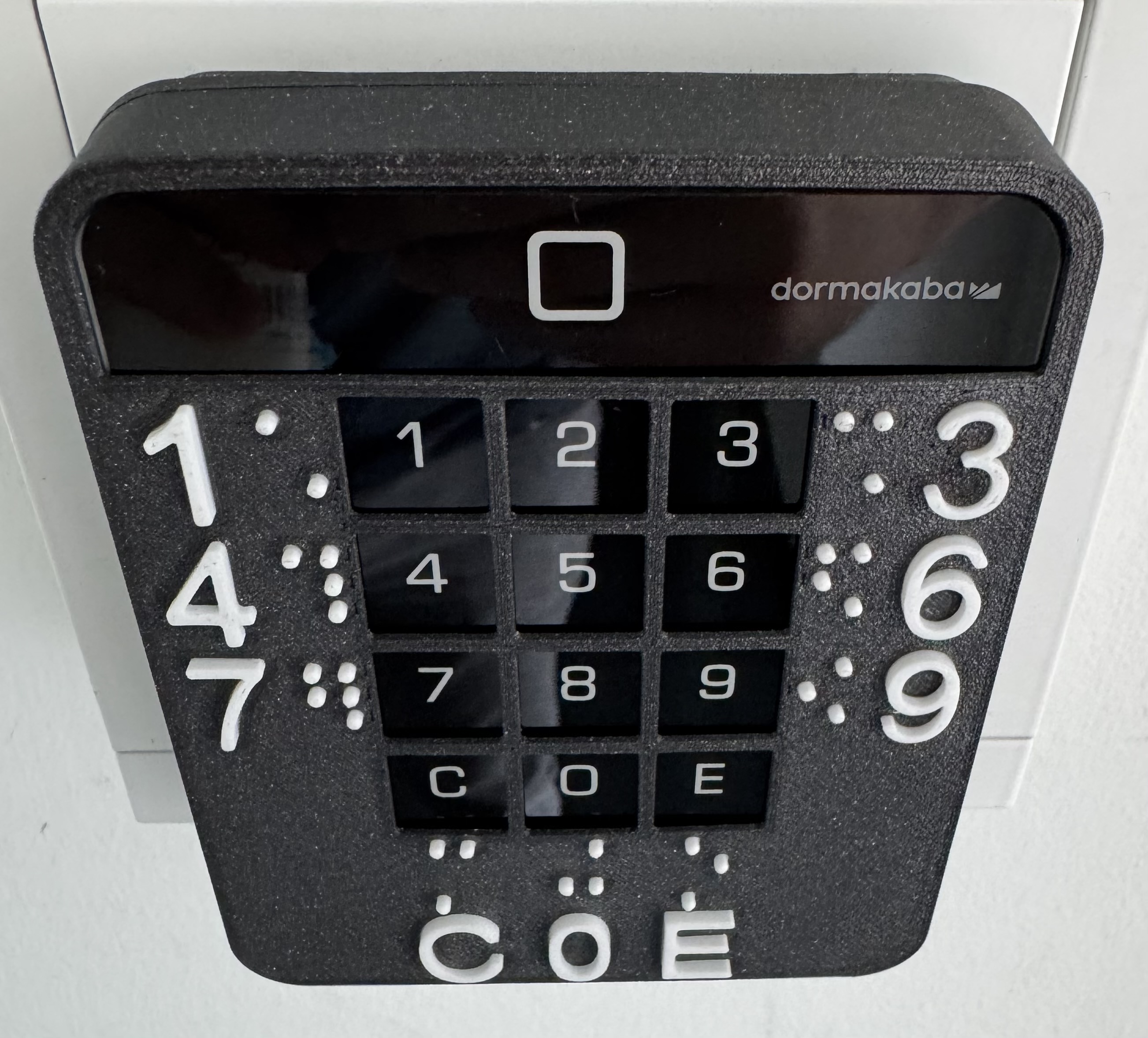

This adapter aims to enhance the otherwise flat surface of the dormakaba Compact Reader 91 12 by providing tactile features that improve accessibility, including:
- 8-dot Braille
- Numbers and letters
- Grid lines between the actual touch buttons
Printing & Assembly

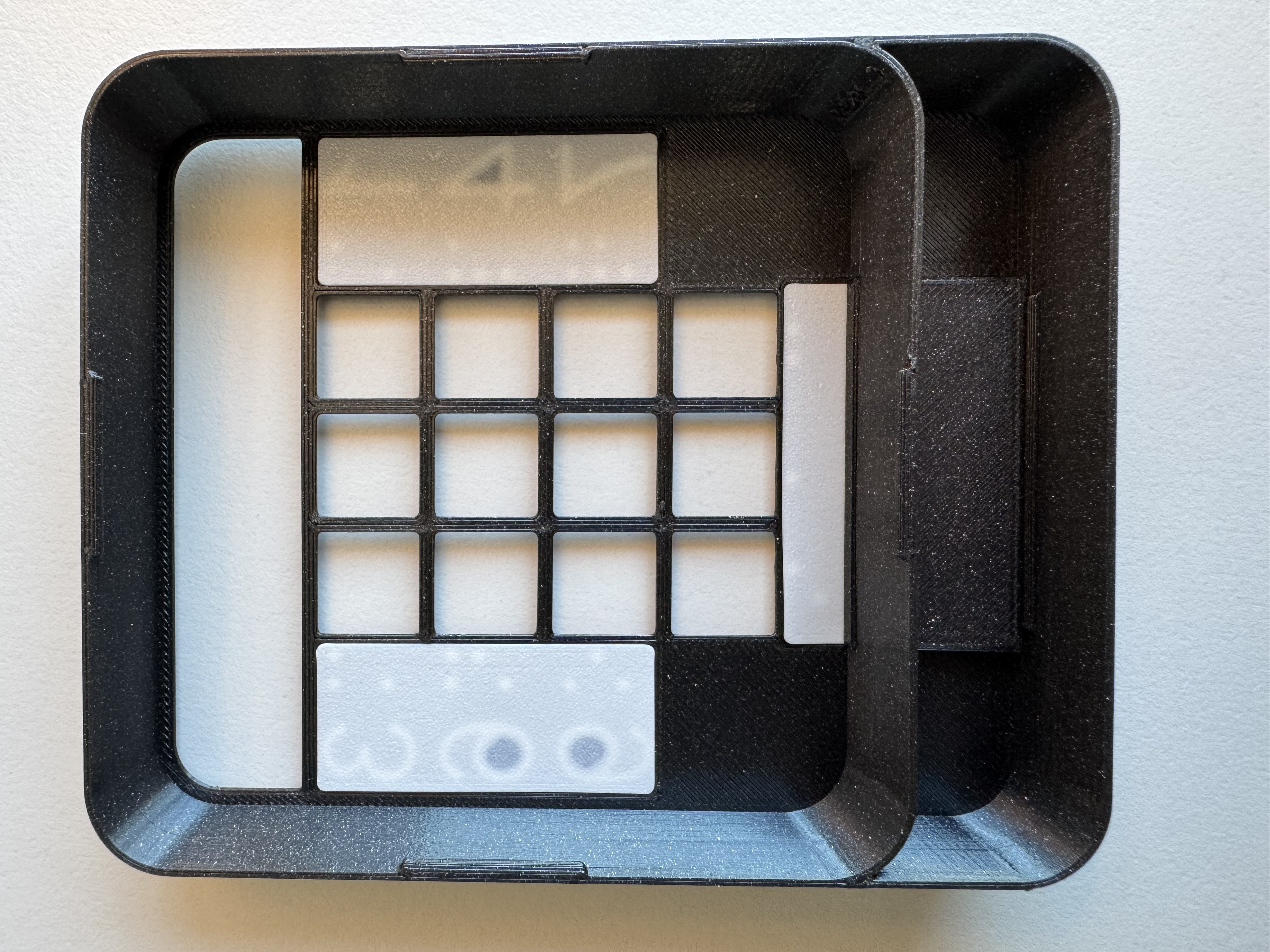

Prints in 5 parts: This design eliminates the need for any support structures. It has been tested with PETG.
Easy Assembly: No tools or glue are required. Simply:
- Push the three parts with the numbers and letters through the corresponding holes of the main body from the back.
- Slide the last piece through the hole of the main body behind the bottom lettering to secure it in place.
- Finally, push the entire adapter over the reader.
Note: Ensure there is about 2 cm of space underneath the reader to accommodate the bottom inscription.
Special Thanks
This model was primarily created during company time at inovex GmbH, who graciously agreed to allow its upload here.
This model is in no way associated with the dormakaba Group.
