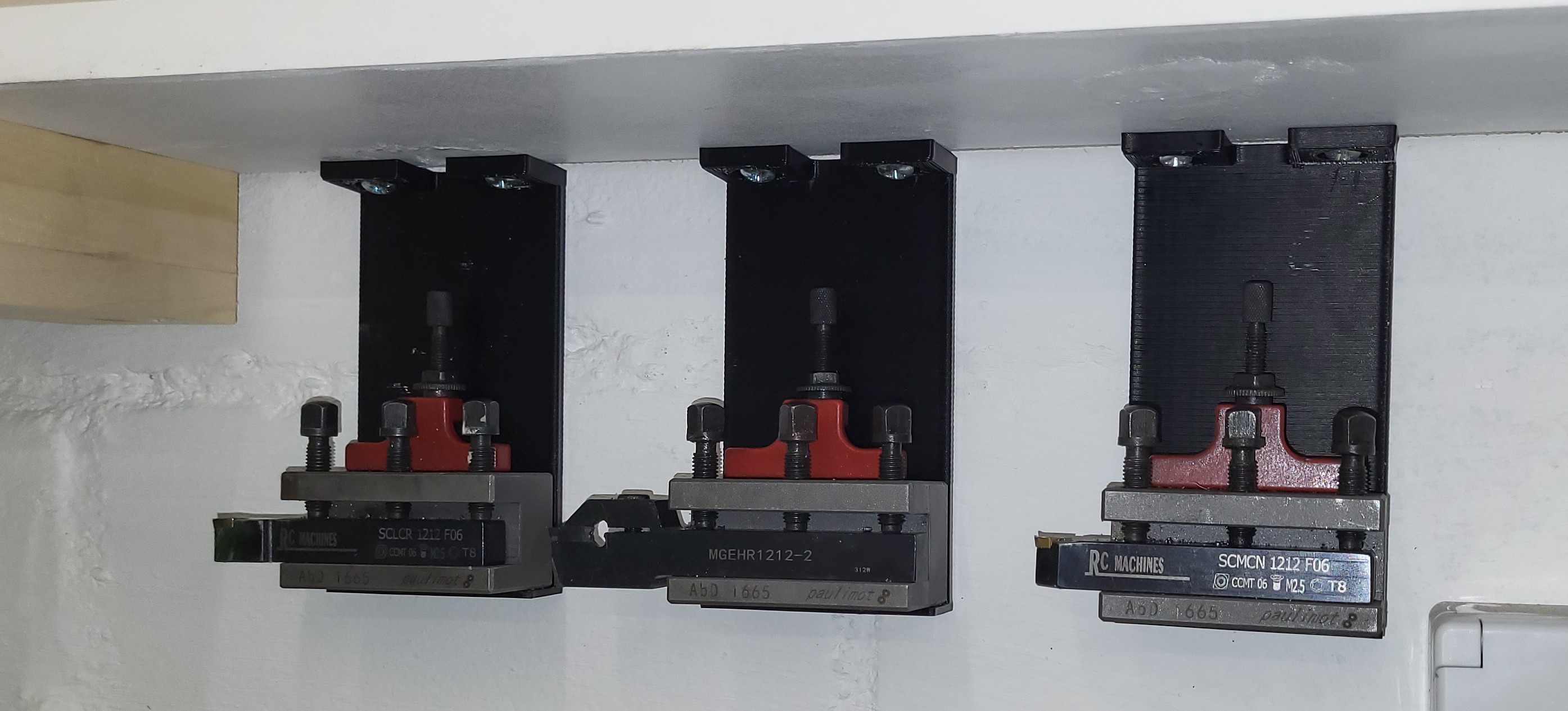

This is a model for a Multifx Ab size wall holder and under a shelf holder. It was test fit with Paulimot Multifix type Ab holders (65mm wide).

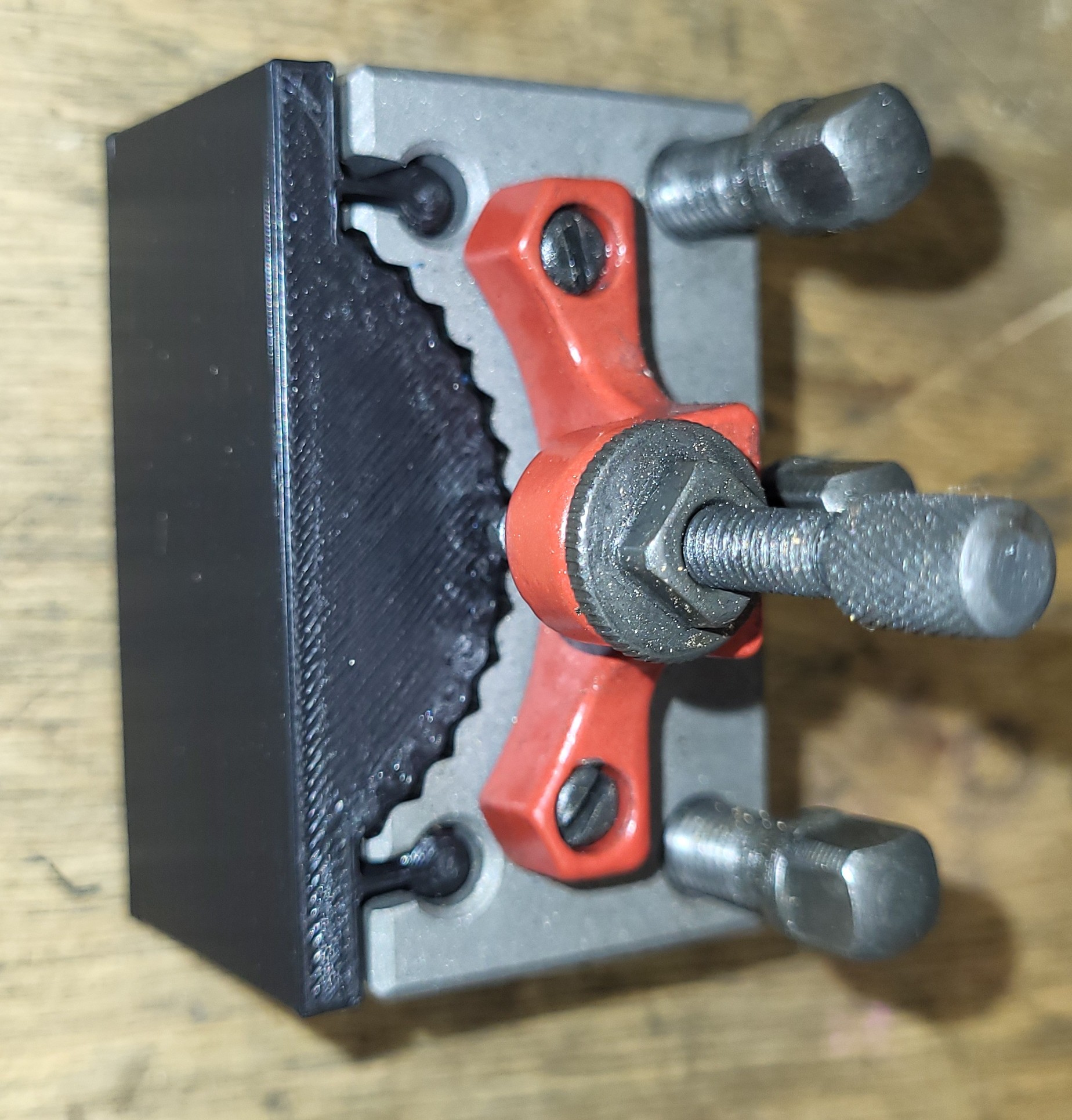

One picture shows only the fit of a pre-production peace demonstrating the fit.
There are two models:

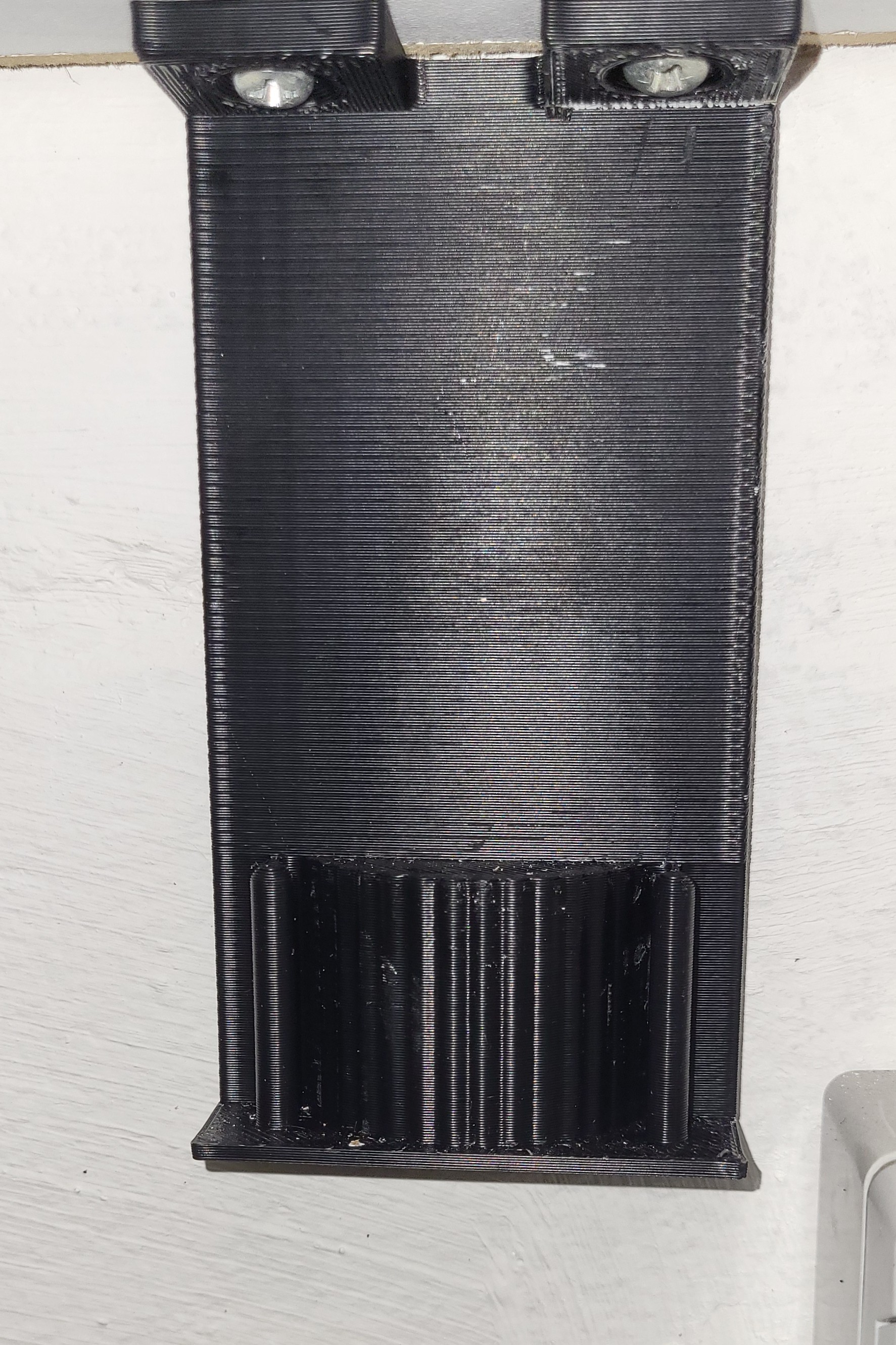

An under the shelf holder with sufficient space to slider the multifix holder into the tool holder.
A holder with mounting holes at the back that can be screwed to any kind of wall.
The OpenSCAD models are included for adaption to other Mutifix sizes.
I printed the under the shelf once in ABS, standing up, 0.6mm nozzle and speed profile. This requires a lot of supports, but gives a perfect fit to the multifix body. Printing with the backside on the print bed might also work very well.
