I needed an easy way to do simple tasks at my Octoprint controlled printers.
This case houses a Pi 4 with 6 Cherry MX switches and their key caps, along with a 8 neo pixel bar for status lights. These all hook up to the gpio and can be controlled with Octoprint plugins, in this case RGB Status, and Octoprint Enclosure.
In addition to the printed parts you will need to source the following
Cherry MX or Clone Key Switches: https://www.amazon.com/gp/product/B07X3VFBFJ/
Key Caps: https://www.amazon.com/gp/product/B07SKMYR54/

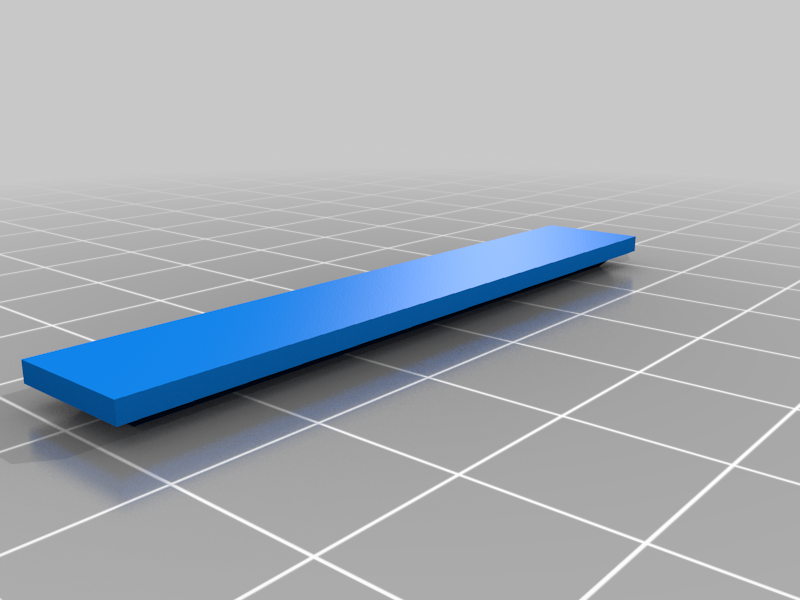

WS2912B 8 led bar: https://www.amazon.com/gp/product/B07KD55QKJ/
Dupont hook up wires or crimpable pins to make your own connectors
8 M2x10mm sheet metal screws
6 M2x6mm sheet metal screws
I laser engraved my keycaps on a K40 machine it was pretty easy to set up and make a legend on them,
Print Settings
Printer Brand:
Prusa
Printer:
I3 MK3S
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.3mm
Infill:
15%
Filament: Atomic PLA Black
