Screwable Hook for Lever Latch Lock

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

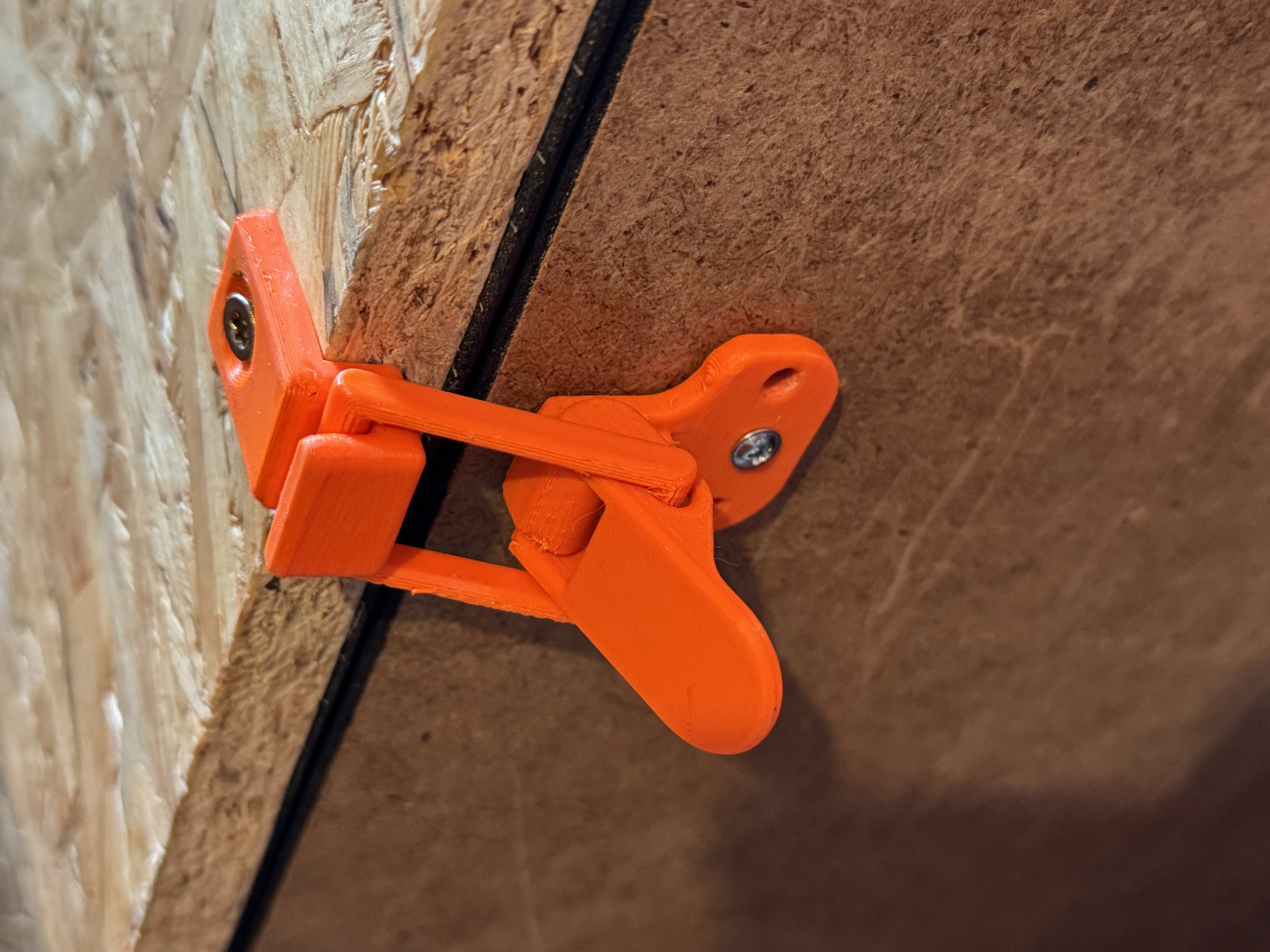

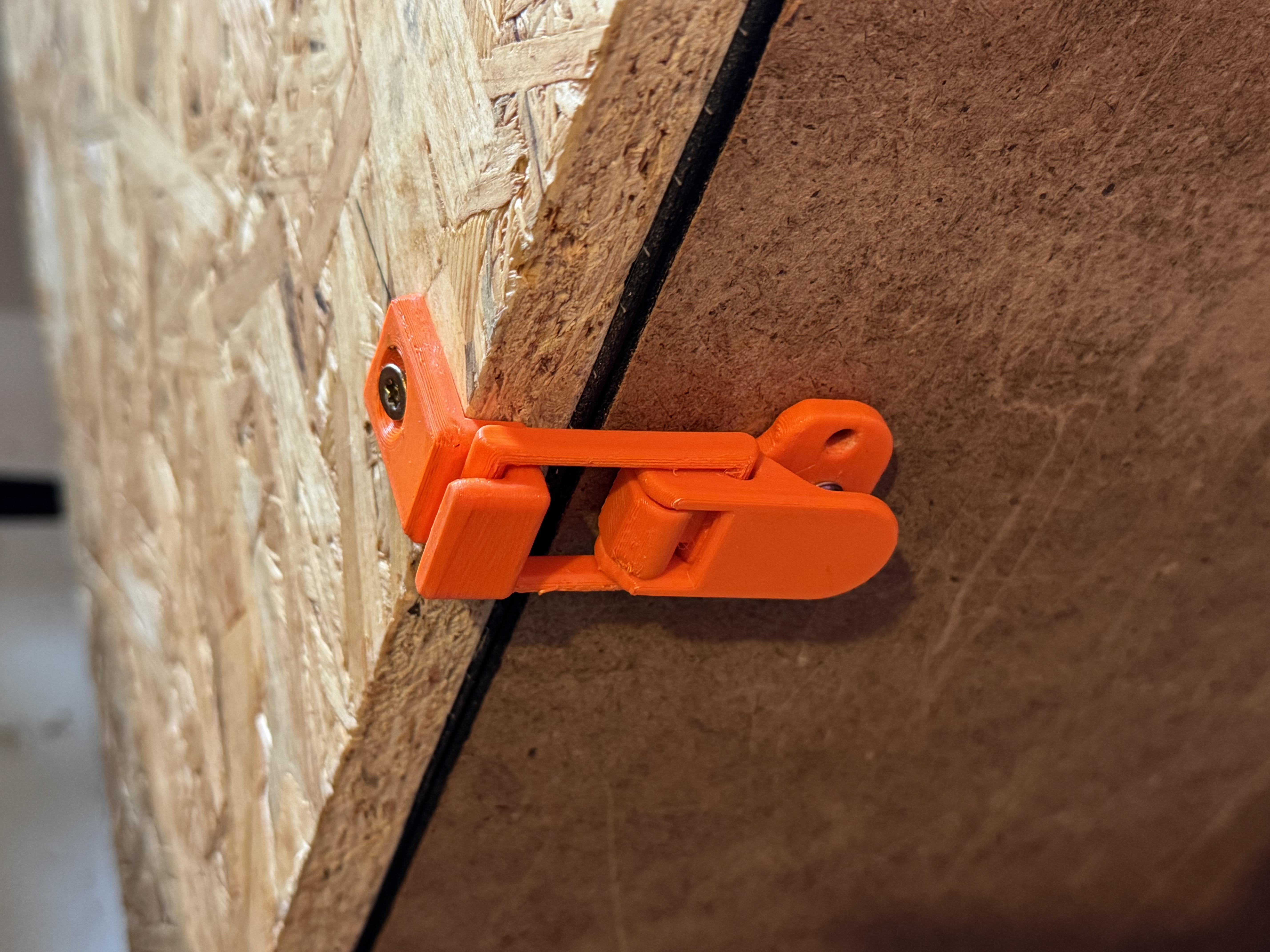

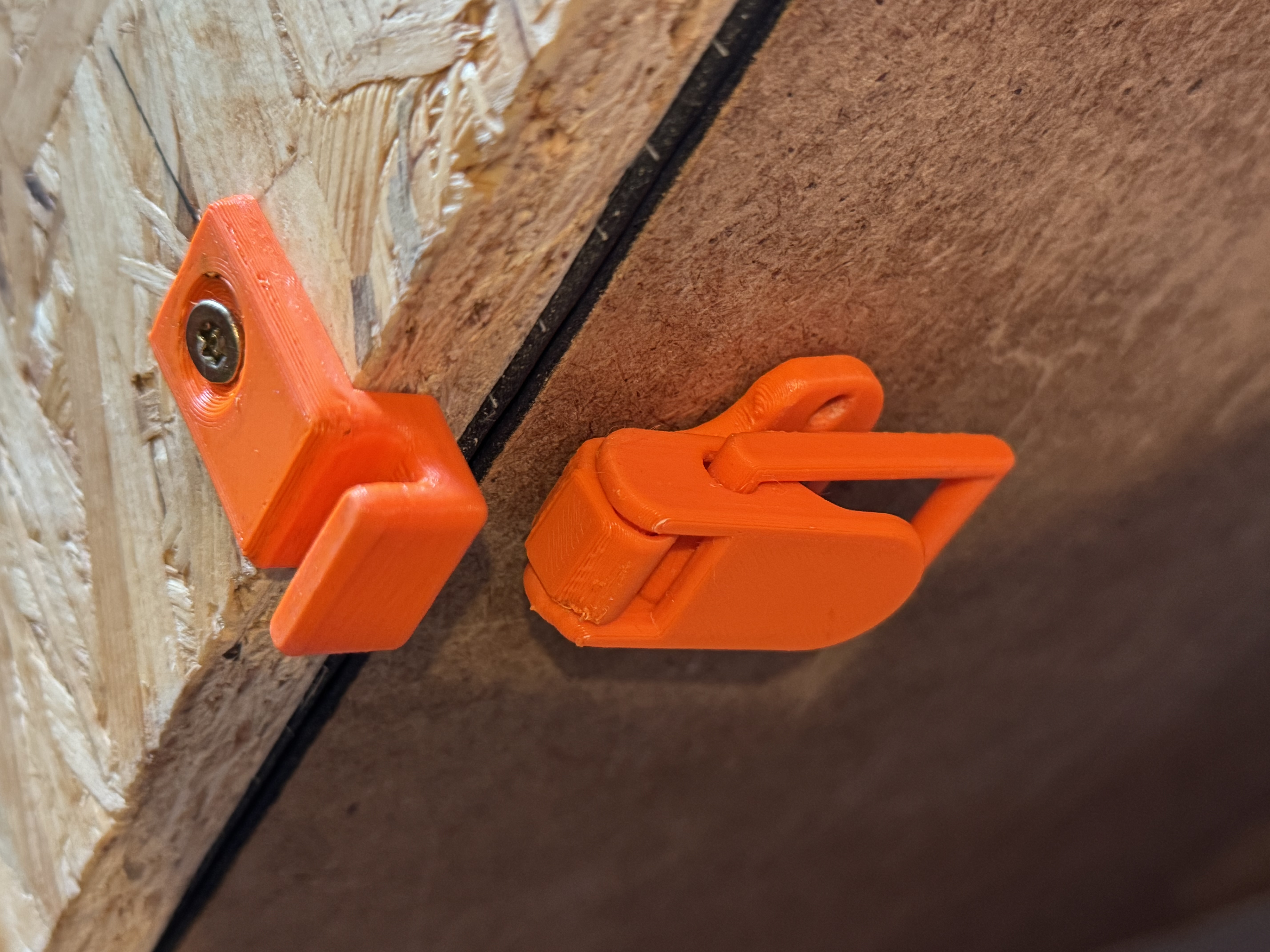

I added to the original awesome model:

option to attach the hook with a 3-4mm diameter countersunk screw
option to mount the hook perpendicularly to the lever
split latch from the lever to two parts so that they are printable without supports (and clicked together)
hole with a 3-4mm diameter countersunk screw to the lock

Instructions to print:

Prefer PETG for good flexibility and strength. Print with 0.2mm layer height and 4 perimeters.
When printing the latch I recommend using brim for better first layer adhesion.
