First Tech Challenge Arducam Case
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- RC & Robotics
- Licencja
- Creative Commons — Attribution

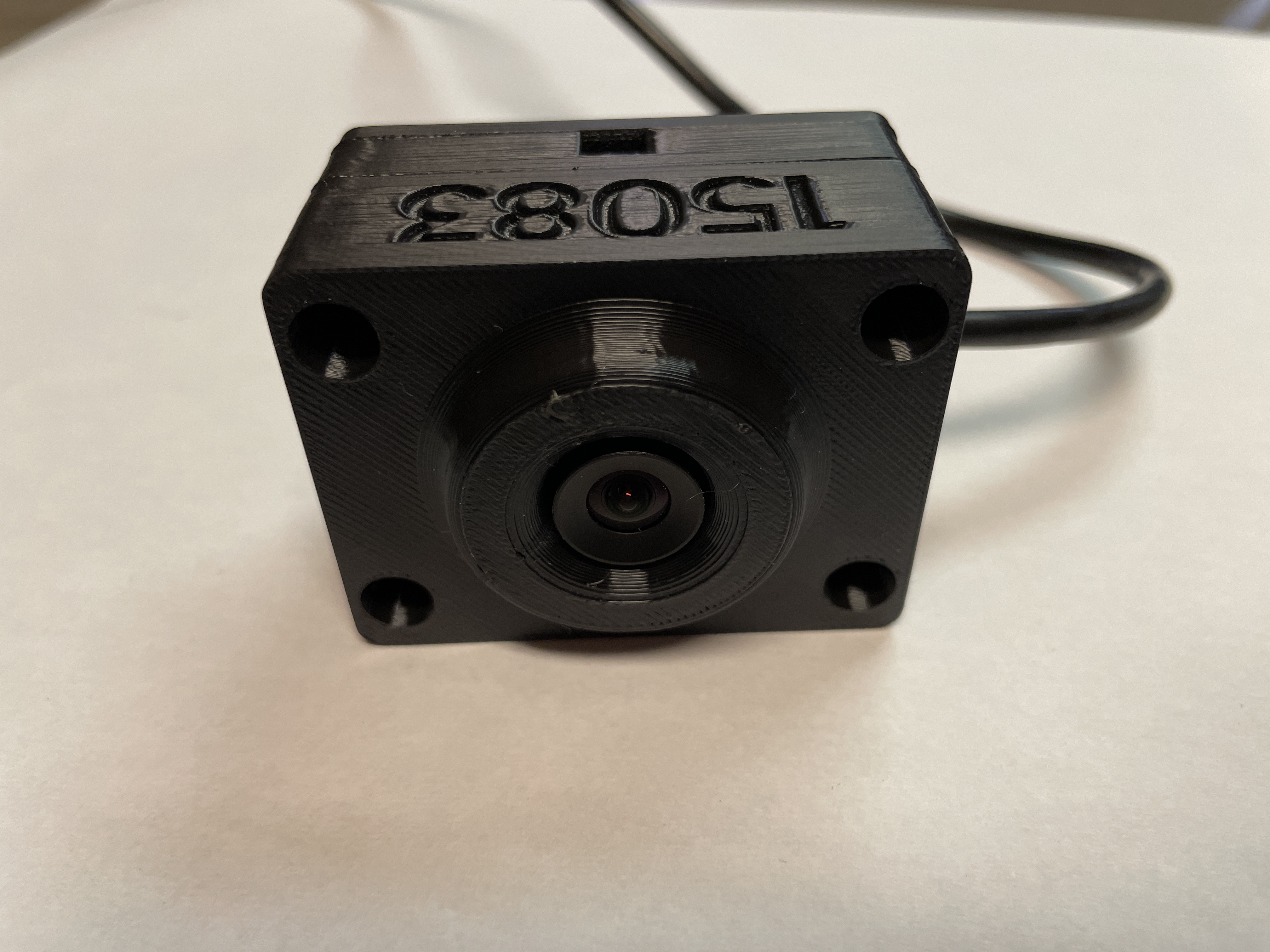

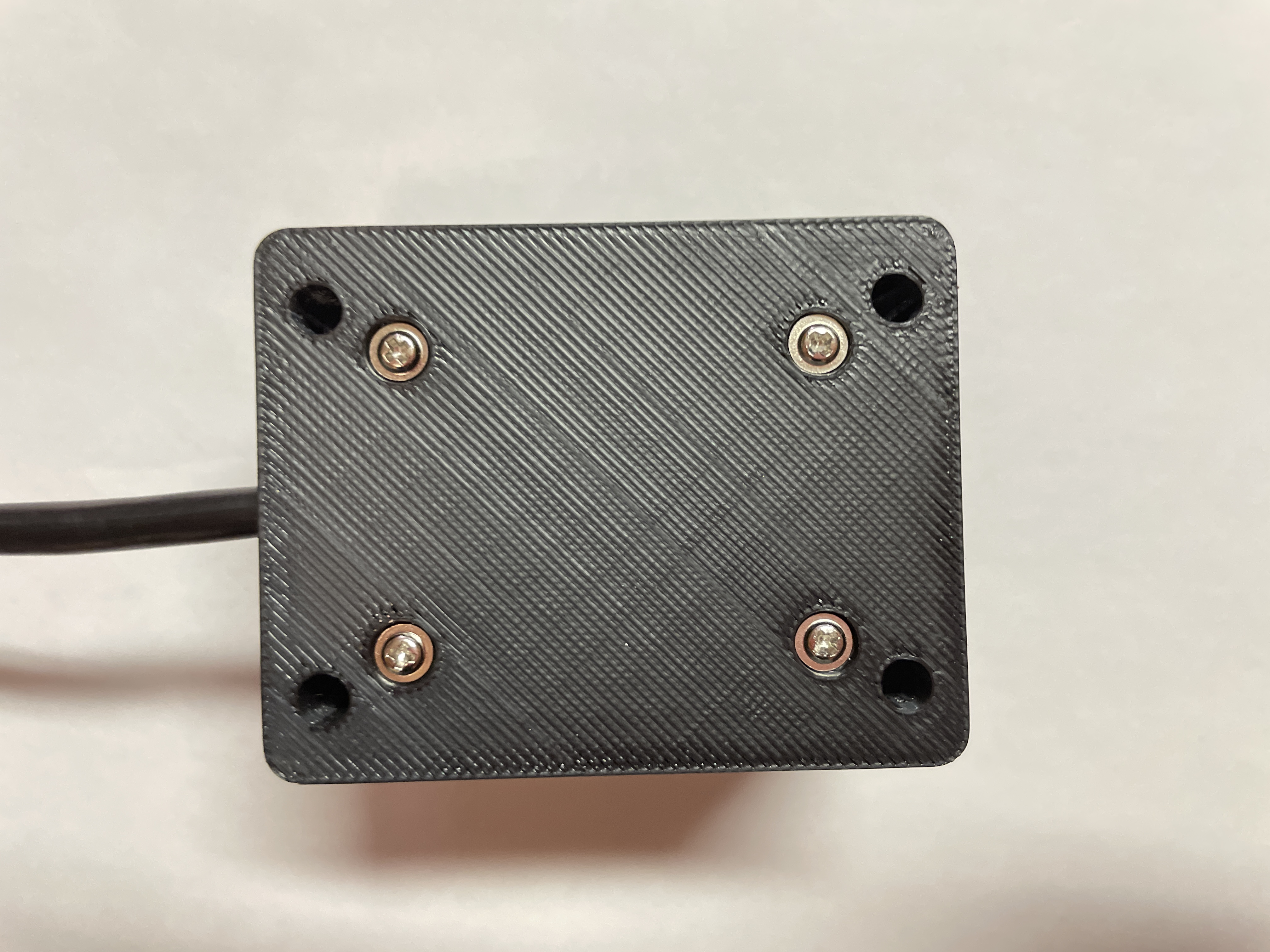

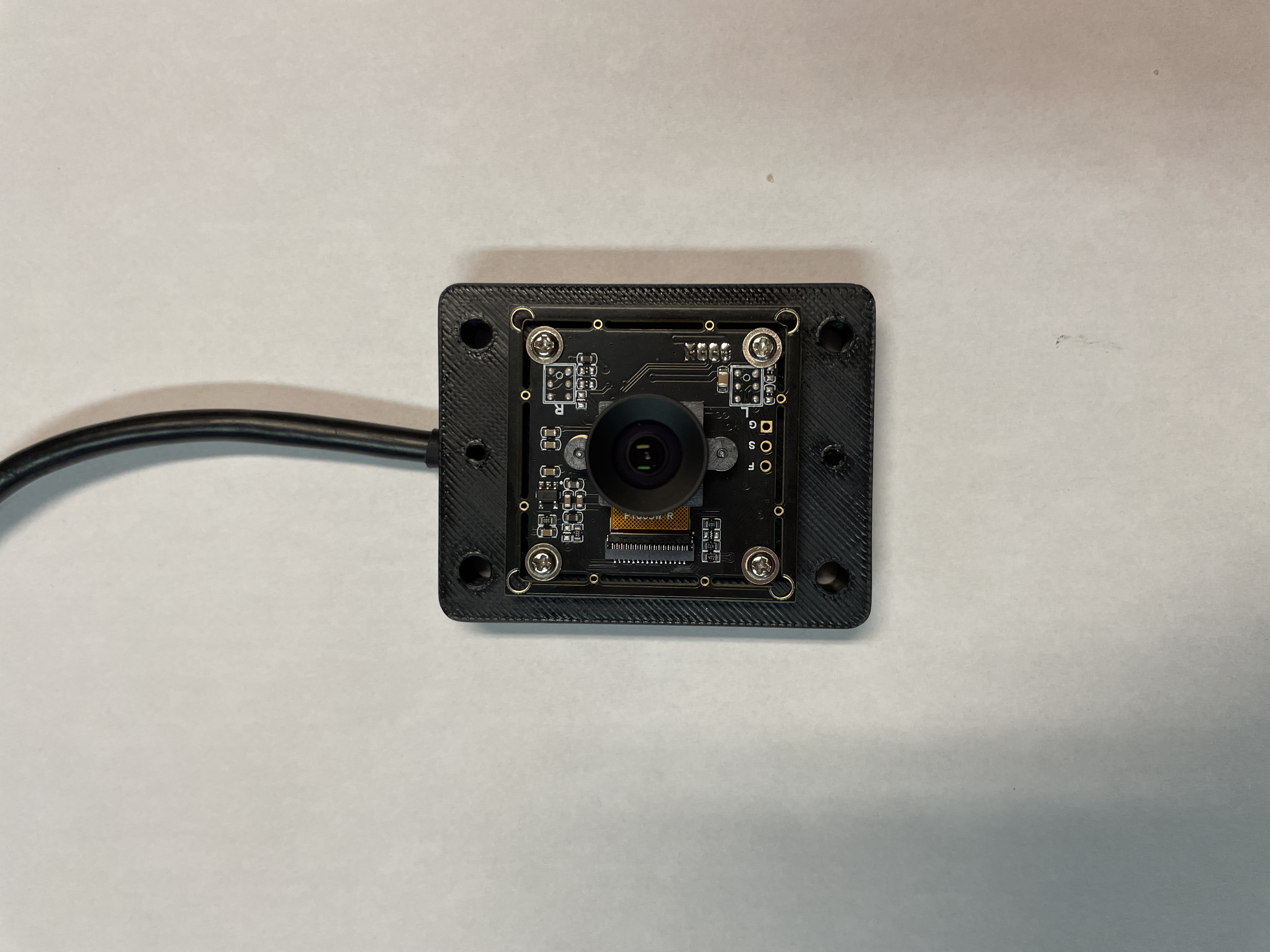

This case is designed to facilitate the mounting and protection of the Arducam B0332 camera along with other Arducam cameras that share the same footprint. The case is specially designed for use in FTC and aligns to an 8mm grid pattern.
The case has 4 different grooves so that the Arducam's USB cable can be fed out of the case from any direction in order to simplify wiring.
I've included a PDF with in-depth assembly instructions as well as printing instructions for the application of support material.
Print Settings:
- 0.2mm Layer Height
- 10% Infill
- 2 Perimiters
- Paint on supports (support guide in the assembly instruction PDF)
Made by FTC team 15083
Linked below is the URL for the camera this case is designed for:
