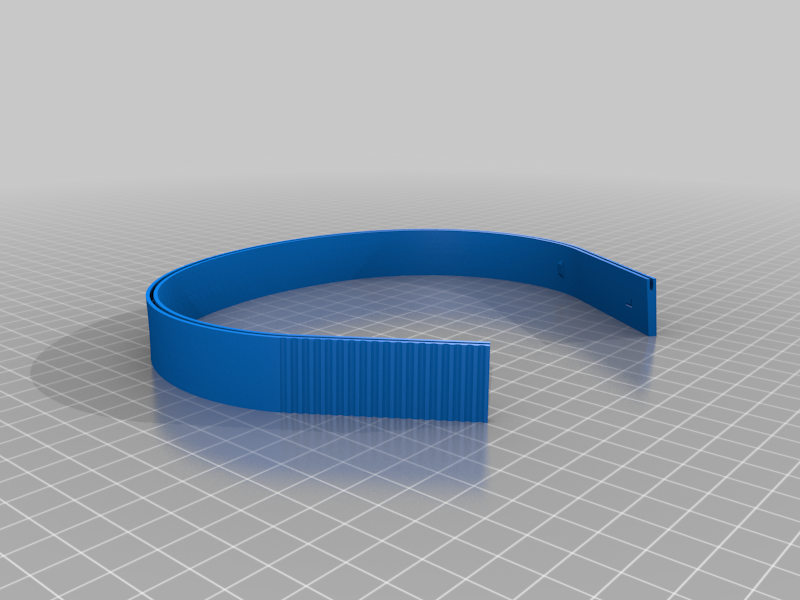

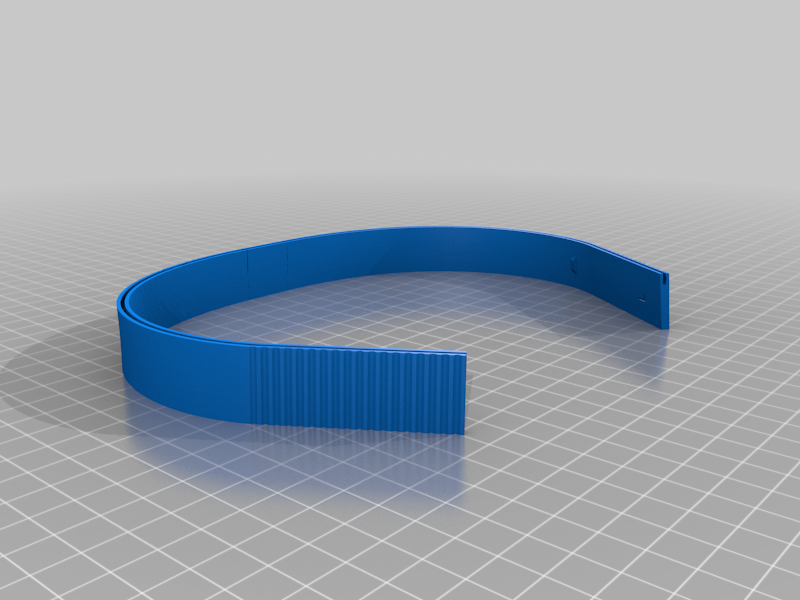

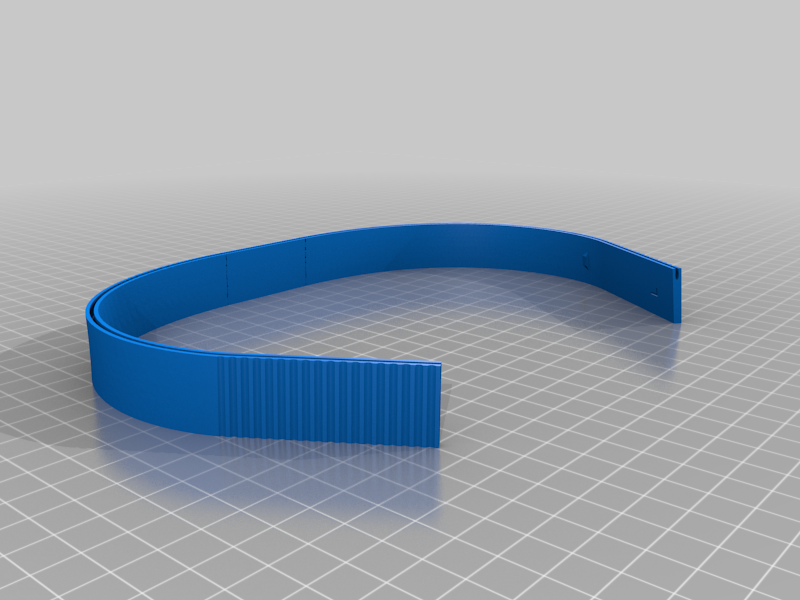

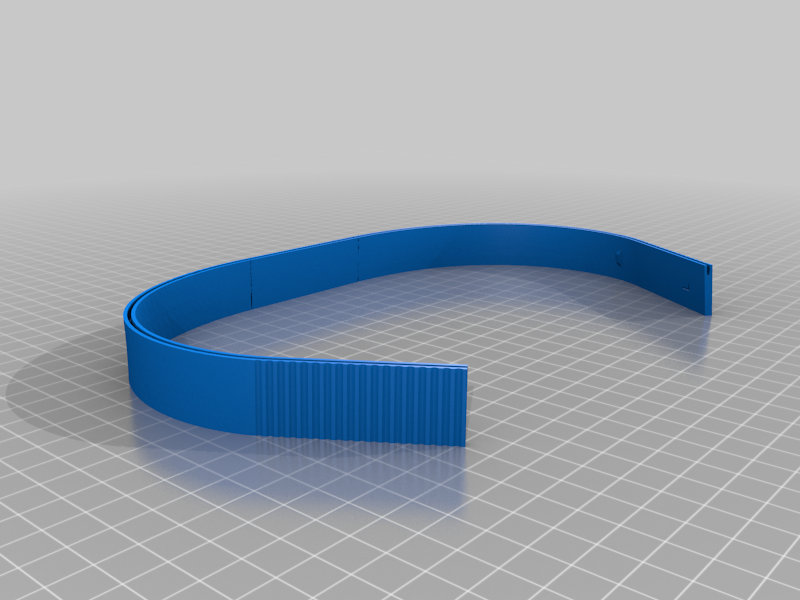

Customizable Headband for Bluetooth Headphones

Customized Bluetooth Headphone headband for bigger or smaller heads.

Description

As I write this headband-v51.stl is 160mm across at the widest point. This is an OpenSCAD file to let you customize that.

I've uploaded an 180mm, a 200mm, and a 220mm version, but you can open the RevisedHeadband.scad with OpenSCAD, open its Customizer pane and enter a different value for widen. Negative values also work to shrink the widest point distance.

How to Use:

• Get a recent version of OpenSCAD.
• Put headband-v51.stl and RevisedHeadband.scad in the same directory
• You may have to zoom out (scroll wheel on mouse) to see the whole headband.
• Setwiden to taste. ***Render** (on the OpenSCADDesign menu) This fixes Preview drawing artifacts ***Export as STL** (on the OpenSCADFile menu)
• Slice and print normally

How RevisedHeadband.scad works:

• RevisedHeadband.scad reads in the original stl file, makes copies, and slices and clones the copies to make a revised headband.
• Like all OpenSCAD files, RevisedHeadband.scad is just a short text file that you can open and edit in any text editor.

Print Settings

Printer Brand:

Prusa

Printer:

Rafts:

Supports:

Resolution:

Infill:

Filament: doesn't matter PLA gray

Notes:

How I Designed This

I stood in front of a mirror with a ruler on my head, looking absolutely ridiculous, and eye-balled it.

After I'd printed the left and right baffles, I test fitted the baffles, ear pads, and headband and tried wearing it for half an hour.

Custom Section

This isn't a Thingiverse Customizer because it requires headband-v51.stl and RevisedHeadband.scad in the same directory. I'm under the impression that Thingiverse Customizers have t just be a single .scad file.

Category: Audio
