3D Printer Emission Sensor Array (Sensorbox v2) Code Remix
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution
I have used the two linked code bases to add some features to it.
They include the following:

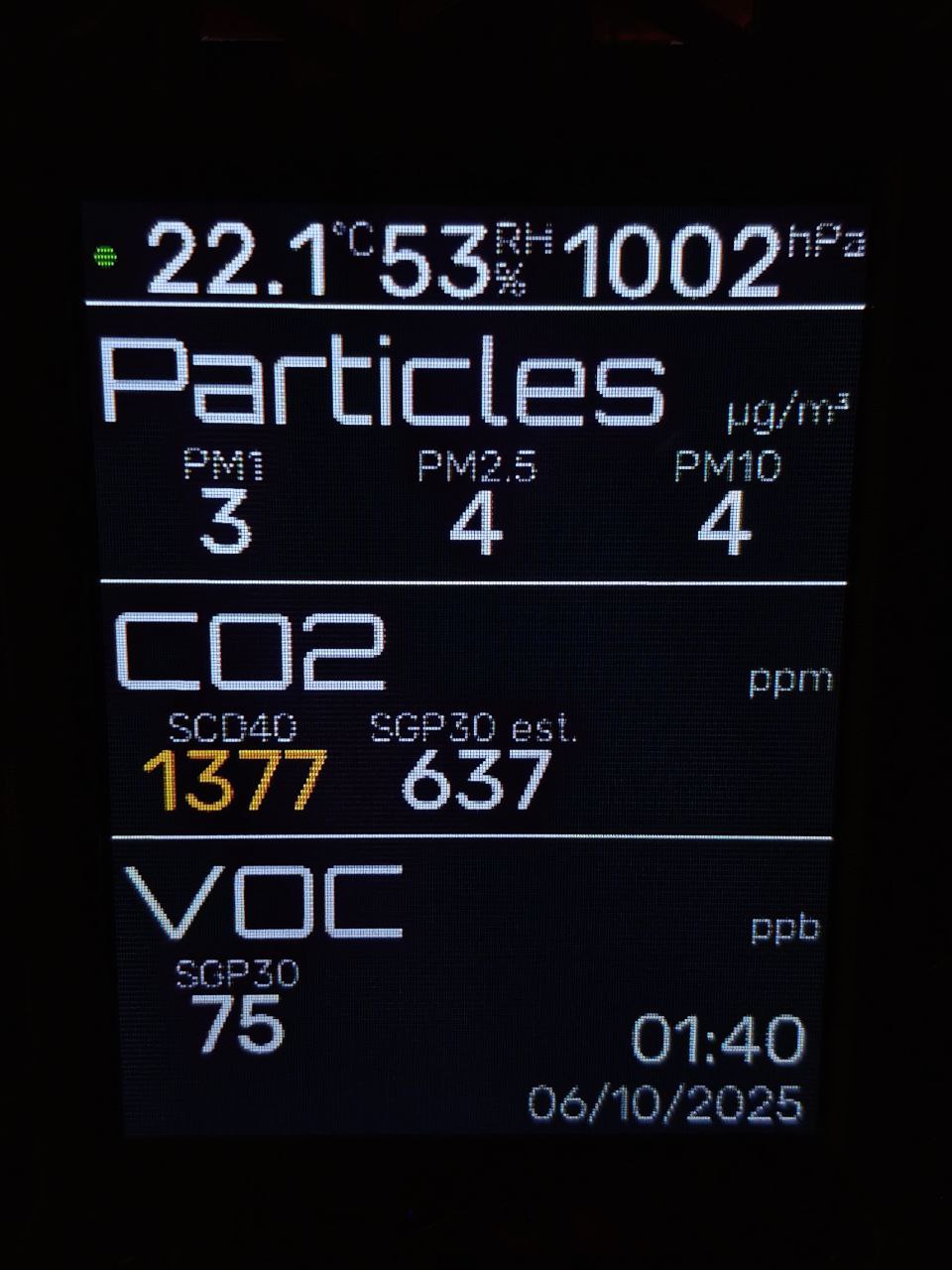

- Wifi Icon in the top left. (Red if disconnected, green if connected) (only page 1)
- Time and date in the bottom right [DD/MM/YYY] (NTP enabled), autohides when Wifi is disabled to not have an error show. (only page 1)
- Added a text popup when turning on/off wifi to see if it actually did it. Same for saving the SGP30 Value baseline for reboots (no re-calibration needed)
- Added different brightness modes. 100%, 33%, 15%, OFF. Sensorbox defaults to 33% (bright enough)
- Edited button logic. Short/Single press = brightness, medium press = switching pages, long press = toggling wifi, very long press = manually saving the SGP30 value baseline with text popup IF the current values are in the safe threshold to not skew the baseline.

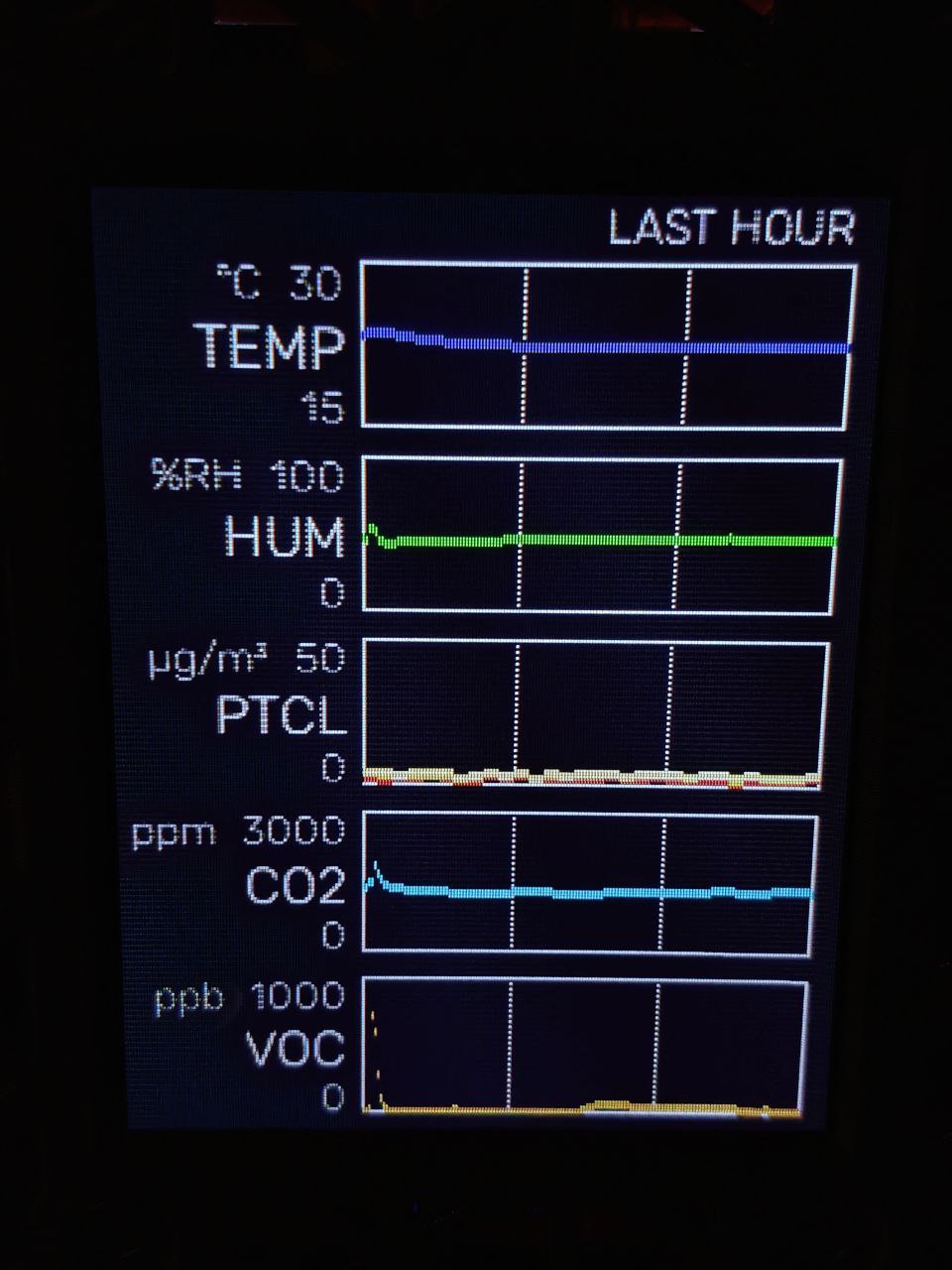

- Rearranged the 2nd and 3rd page and swapped Pressure with Particles.
- Added an automatic save of the SGP30 Baseline every couple of hours that gets restored on reboot.
Button cycles:
Brightness = 1ms - 490ms
Switching pages = 500ms - 2000ms
Wifi toggle = 2200ms - 5000ms
Saving baseline = 5100ms - 7500ms
That's everything i can think of right now.

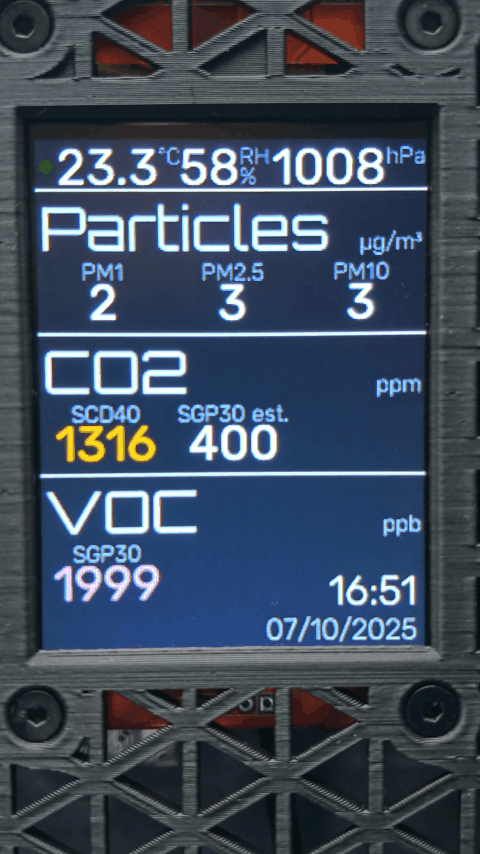

Update: Added a Gif to the gallery to show off the different brightness steps.
That gif seems to keep breaking once it played..
