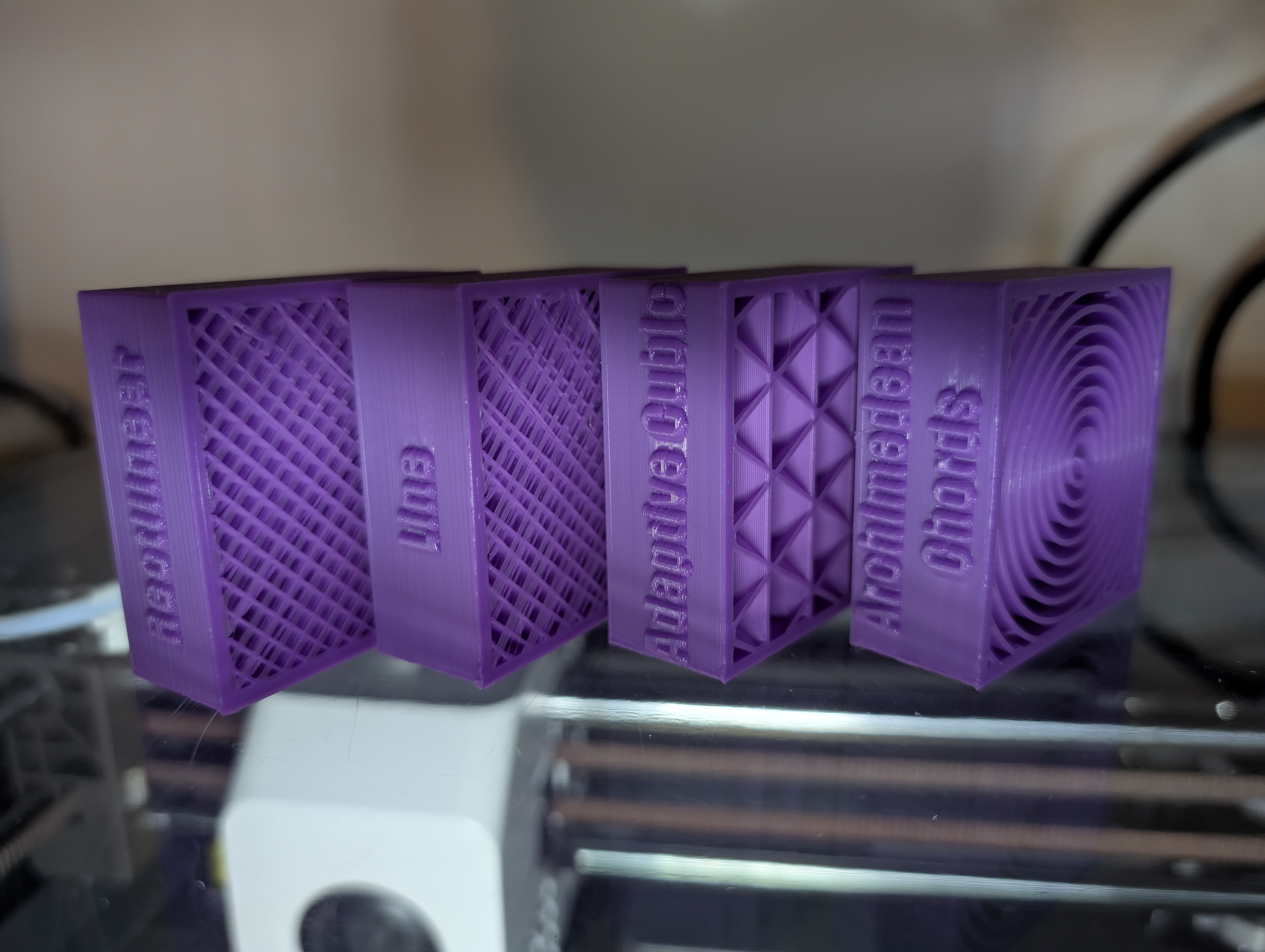

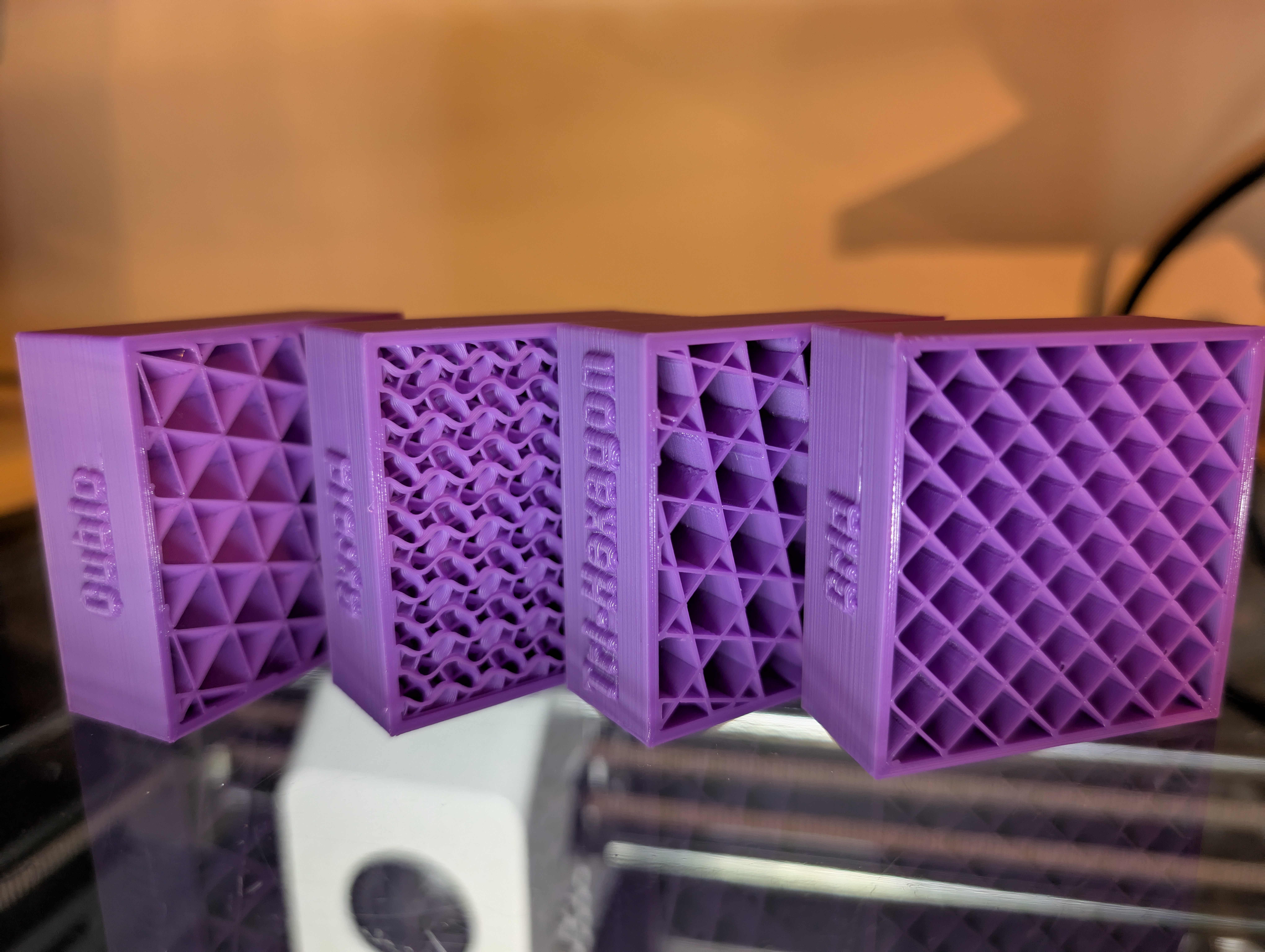

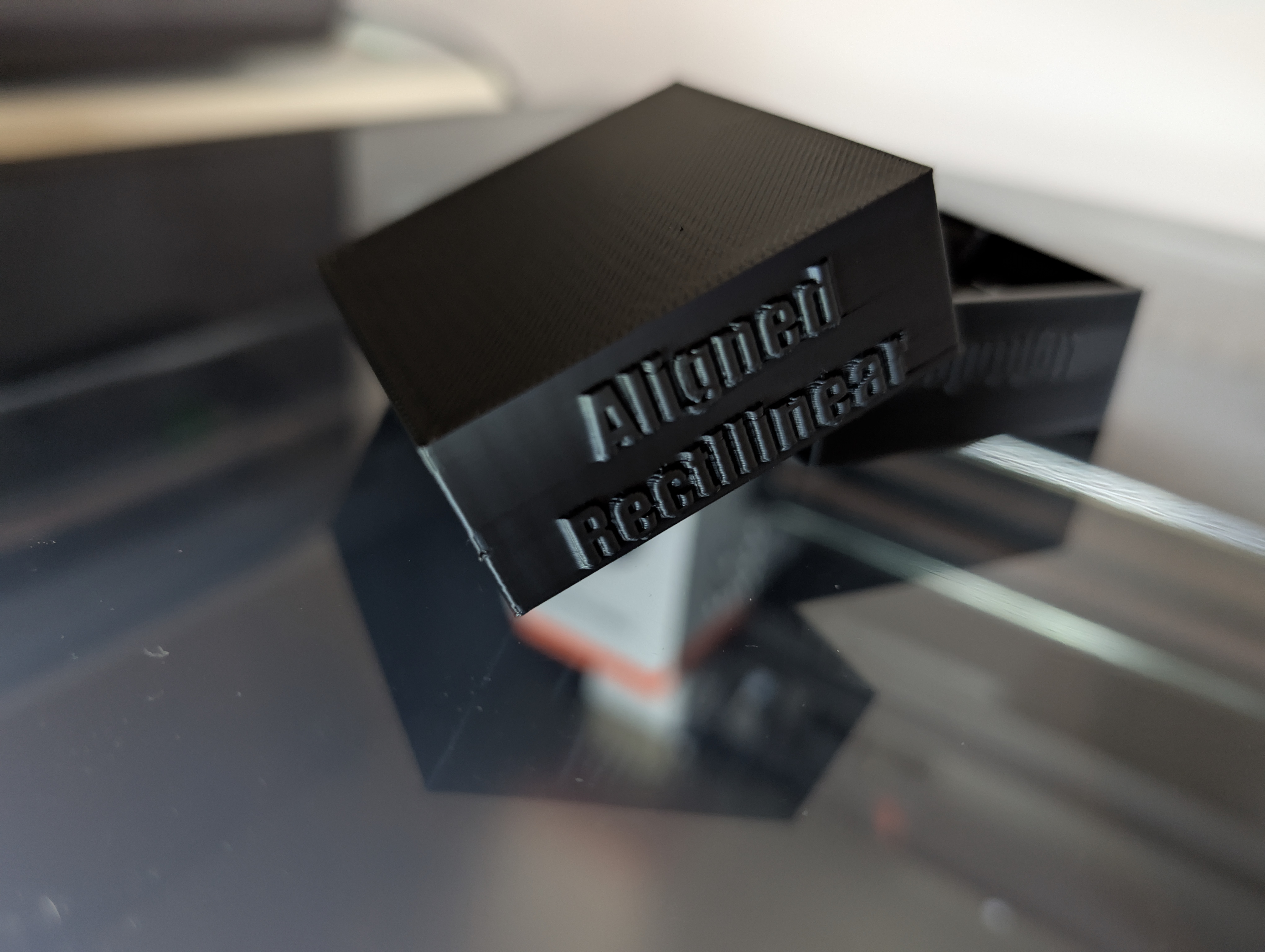

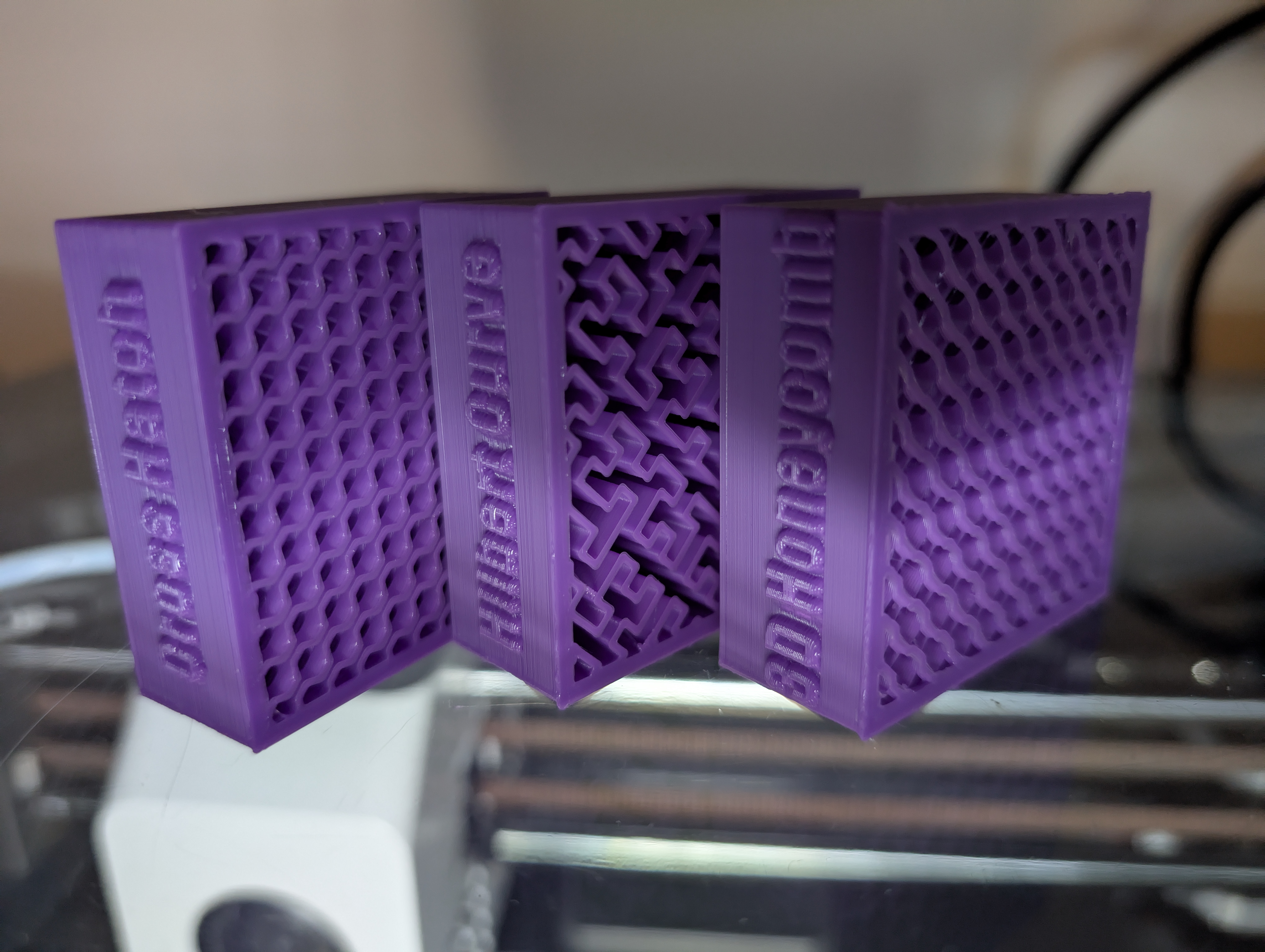

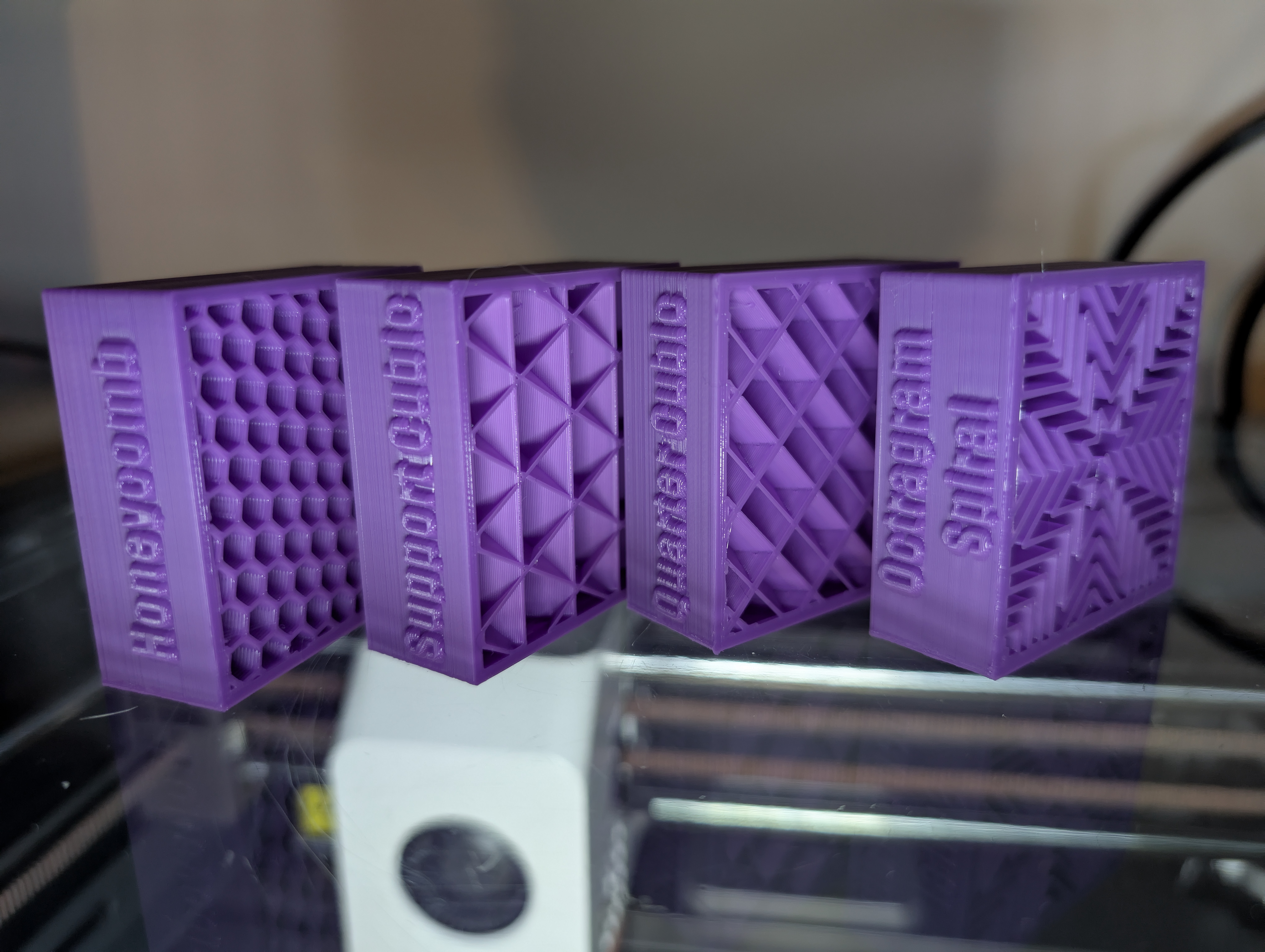

This is a simple Infill and Top Layer Sample Print which I wanna share for all who always think about “what infill should I choose”. It contains every available infill and top layer Style currently available in anycubic slicer.
One Sample is 50mm x 50mm x 20mm
Project is created in Anycubic Slicer and Includes Profile for PLA-Filament, Process and Anycubic Kobra S1 Printer.
I used 15% Infill on all to make Comparison easier and 4 Top Layers to have a clean solid finish and 0 Bottom Layers to actually can see inside. I used 4 Wall Loops to make the sample a bit stronger in general.
Per Default the Top Layer is set to Monotonic and changed, when there is a Top Layer with the same Name as the Infill, so you got on Hilbert Curve Infill also the Hilbert Curve Top Layer and so on.
Infill Line = Top Layer Monotonic Line
