Rokenbok Simple Quarry (And Quarry Mod)

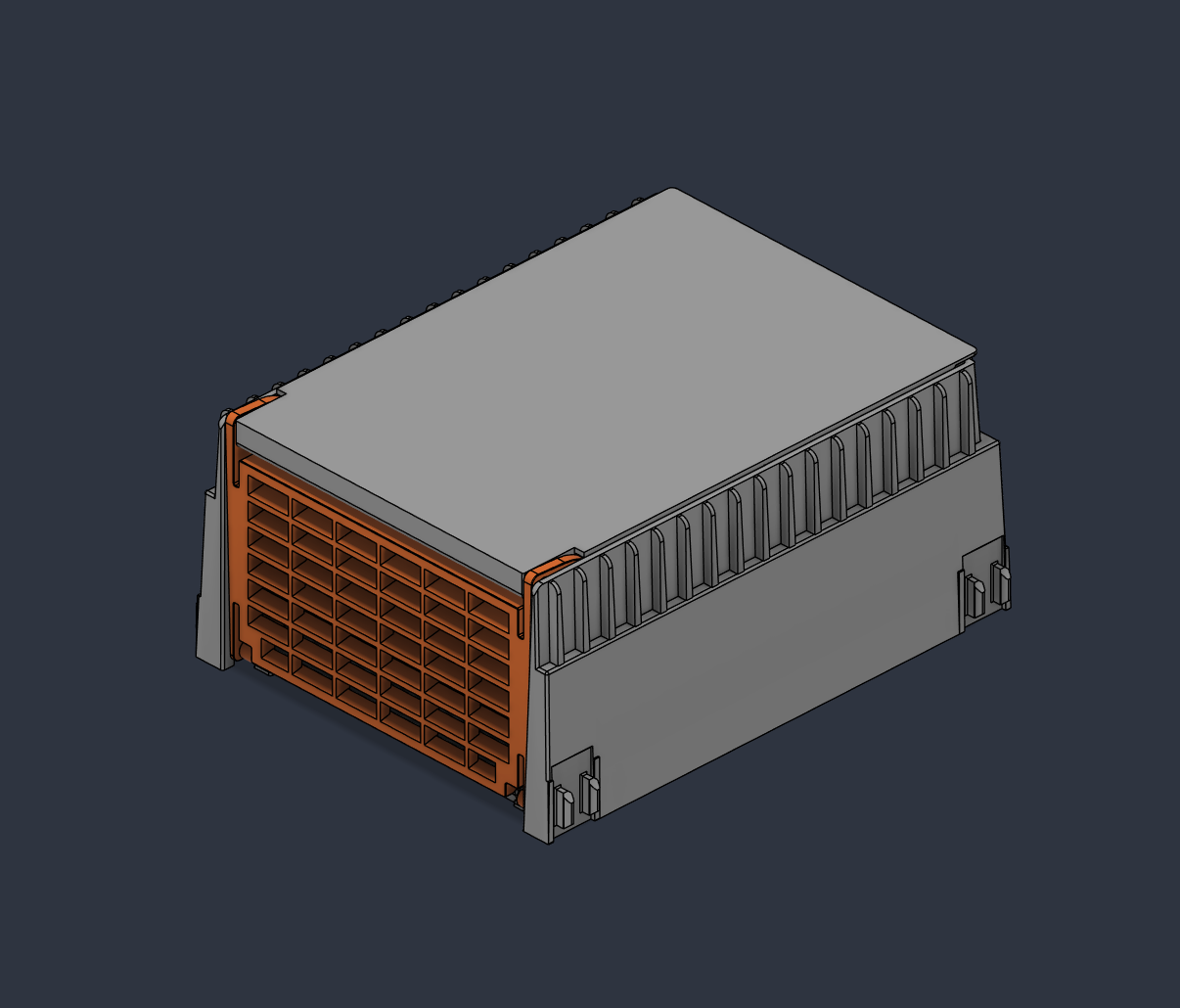

The quarry is one of the more ubiquitous parts of the original Rokenbok system. The large gray and orange part folds closed to store all the little marble-like balls called Roks. This model does away with the side decorations the original quarries had as they were in the way for certain building techniques.

There are two options for snaps: BV2 and AAS. AAS (Add A Snap) is my newest revision for large parts where the snaps are printed separately and fit into snap sockets that accept other parts snapping in as well. The BV2 variants have the snaps built in and won't be updated further.

Also includes my Quarry Mod Models, where I have envisioned some improvements to allow the quarry to be used in even more situations:

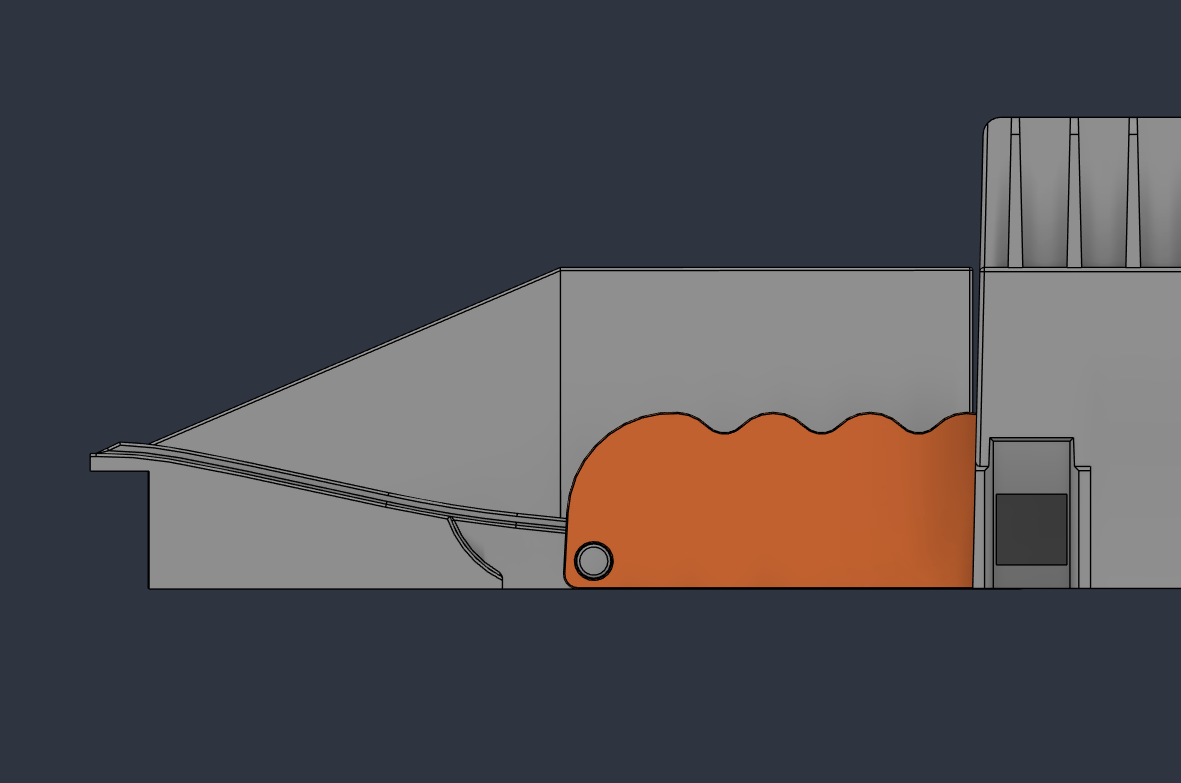

1. The stock lid/ramp only really works flat on the ground floor. I've devised a replacement ramp that works on deck plate floors on any build level.

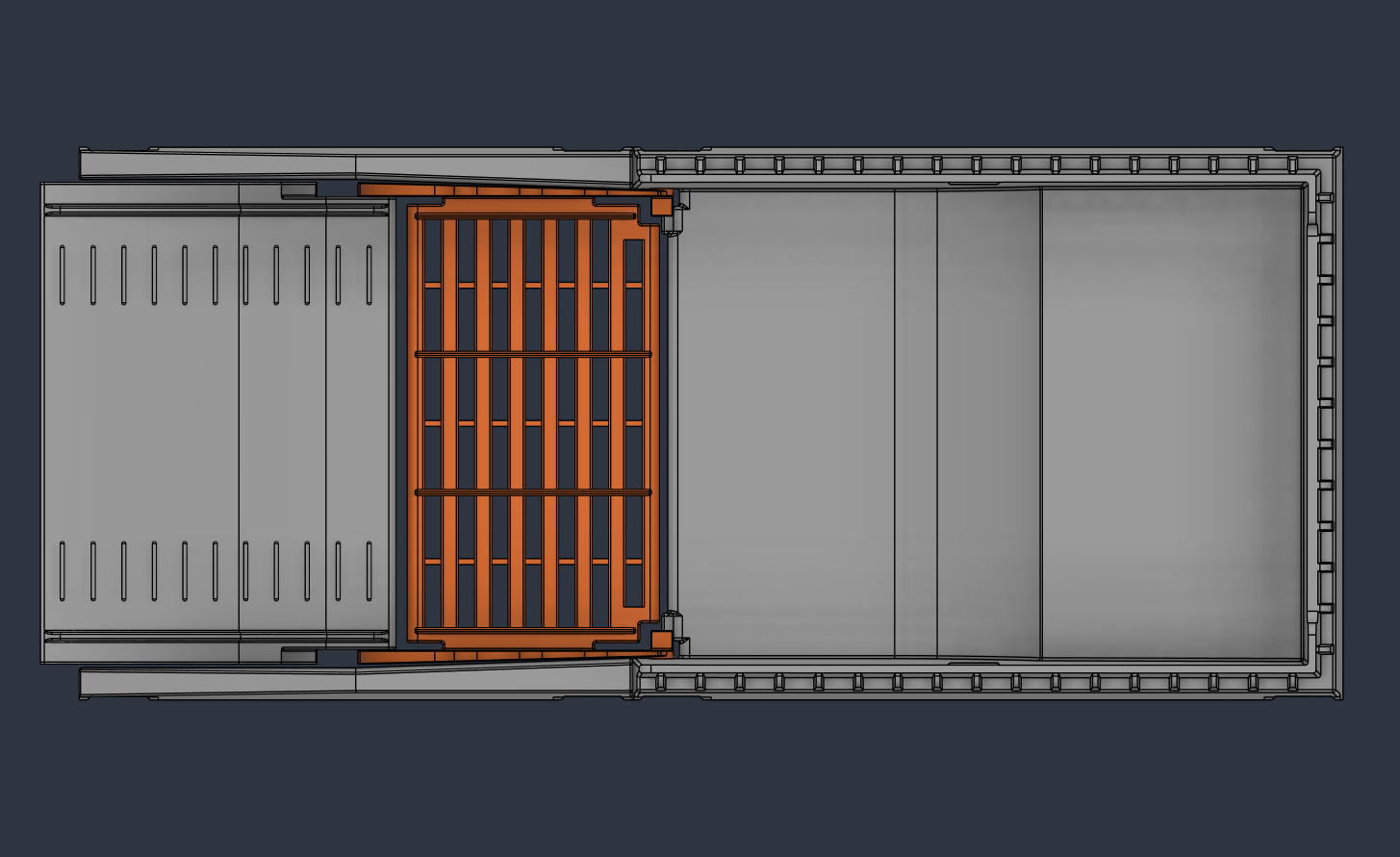

2. The stock grate doesn't always corral roks well, and with this fitting within a bay, now needs better walls to contain said roks.

Note for usage on upper build floor levels: The plastic hinges will allow sagging. Clip a flush part such as an upside down catwalk or beam on single snaps or risers under the outer guard hinge to support the sagging

Print with PETG, automatic supports will be fine.
