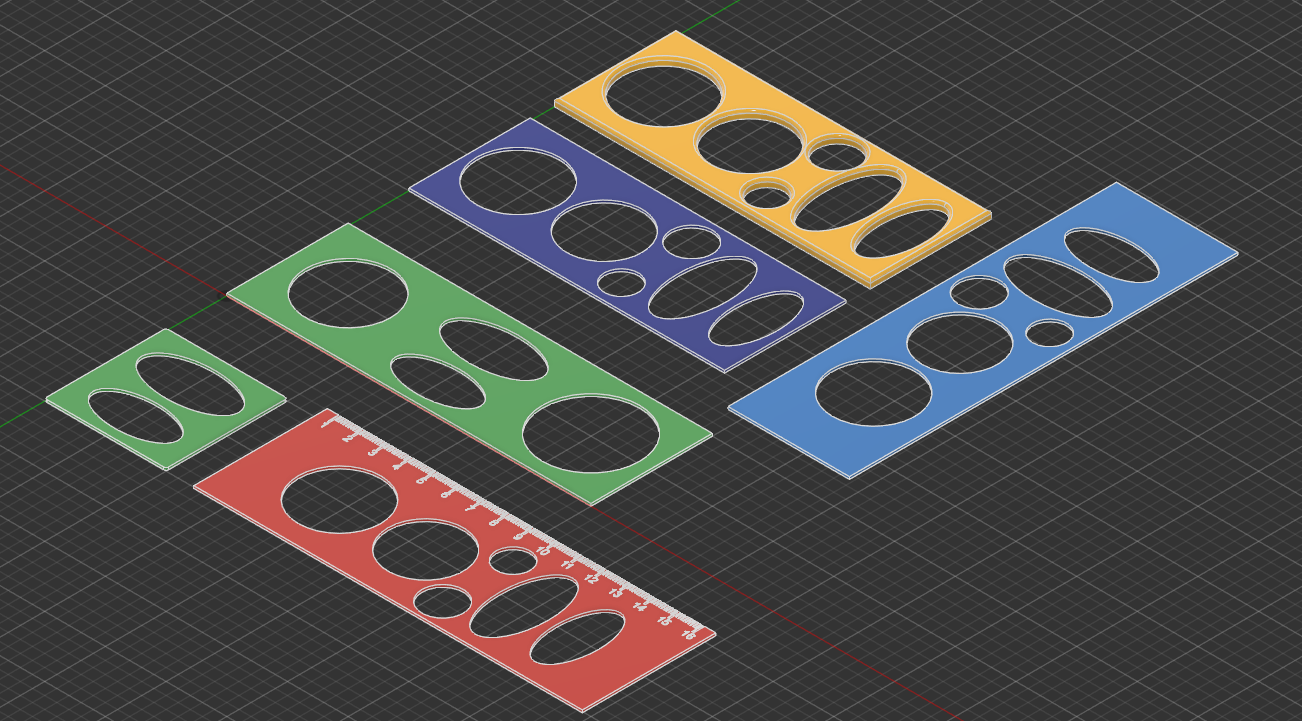

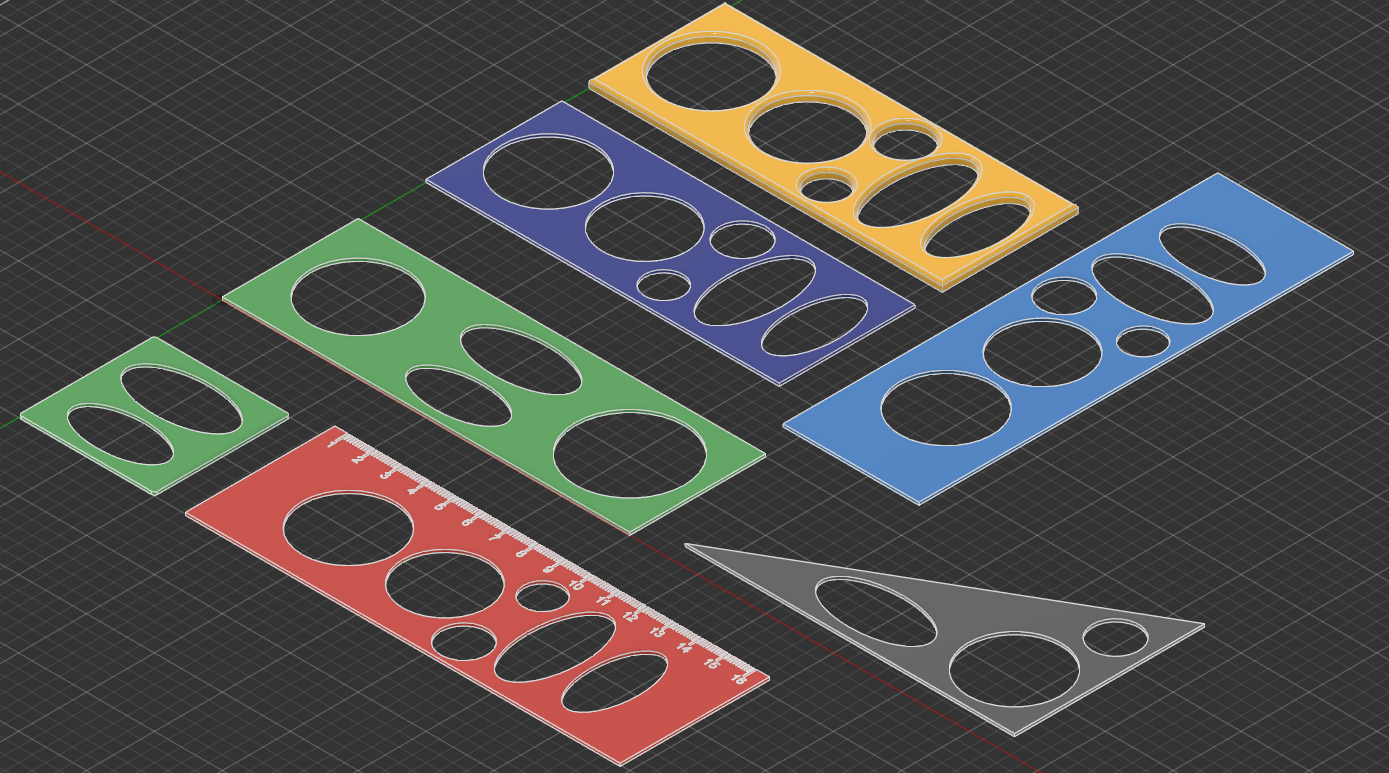

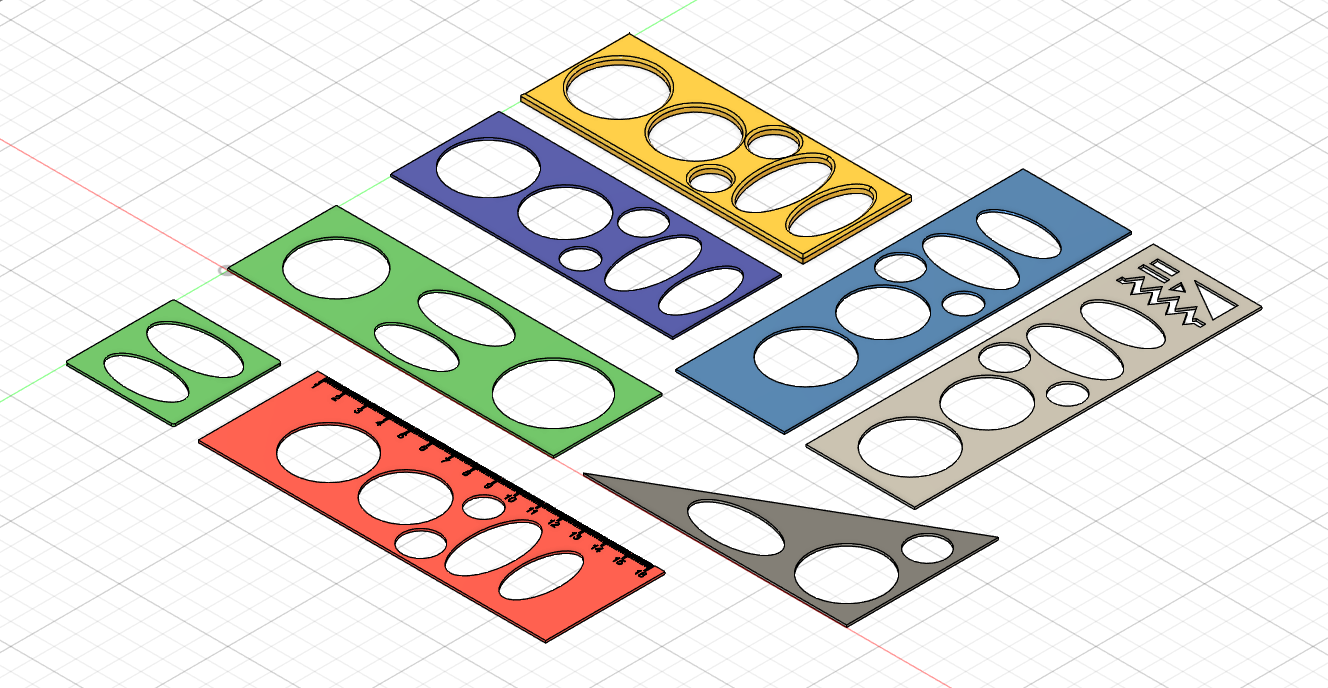

A collection of rulers I designed to help with drawing basic physics diagrams and other kinds of schematics primarily targeted at students who need something small that contains basic shapes as well as ellipses.
I couldn't find a ruler that had a template for an ellipse and so I made my own design. I also plan to update the collection with more variations and fixes over the next few days.

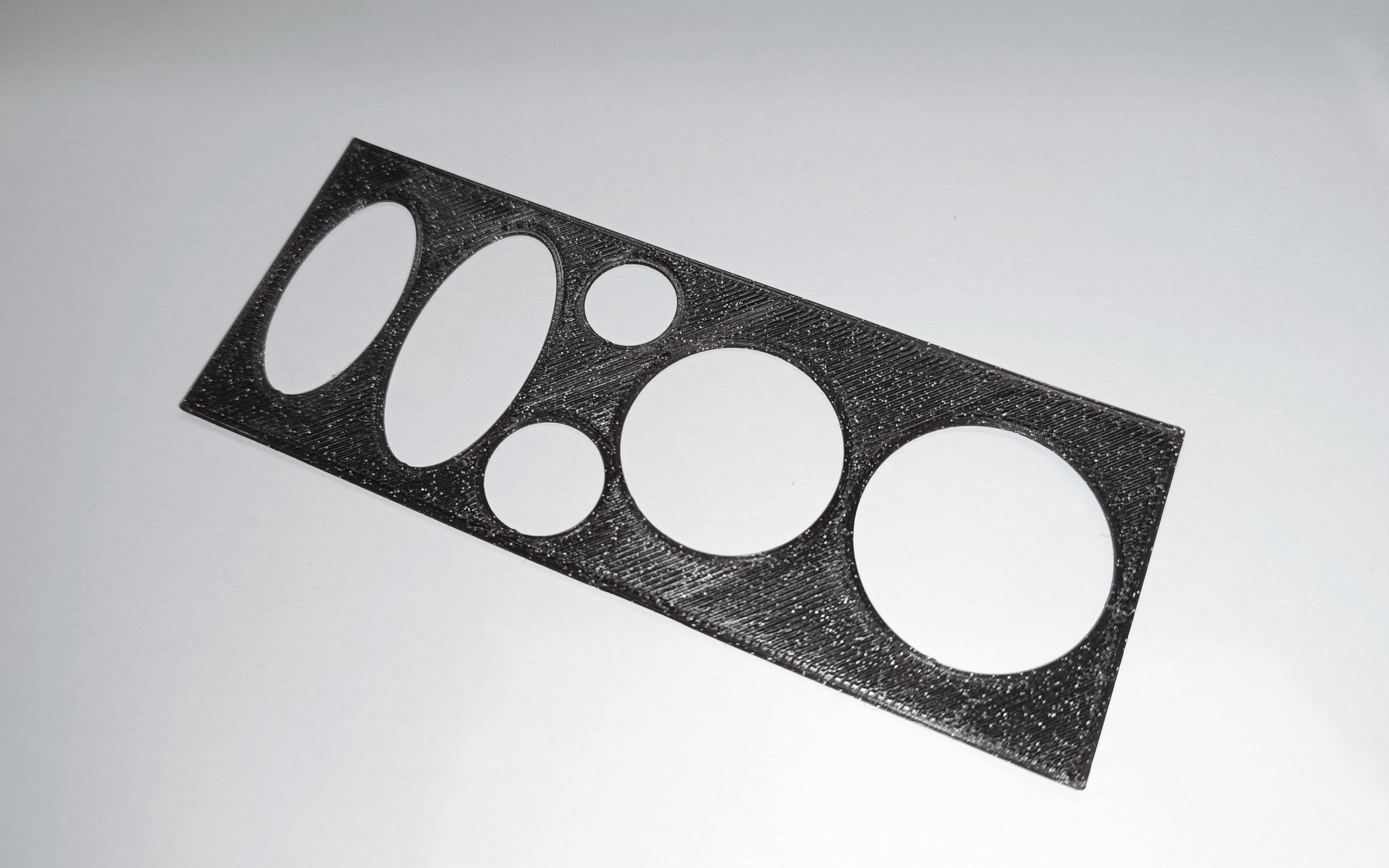

I recommend printing it with PLA or PETG, the high-profile version may also be usable when printed with flexible materials.
Note: the version with markings required a nozzle diameter below 0.4mm to be properly sliced with Cura however I did not run into this issue with Prusa Slicer
The gcode files provided were sliced for an Ender 3 V2
