The most significant updates include:

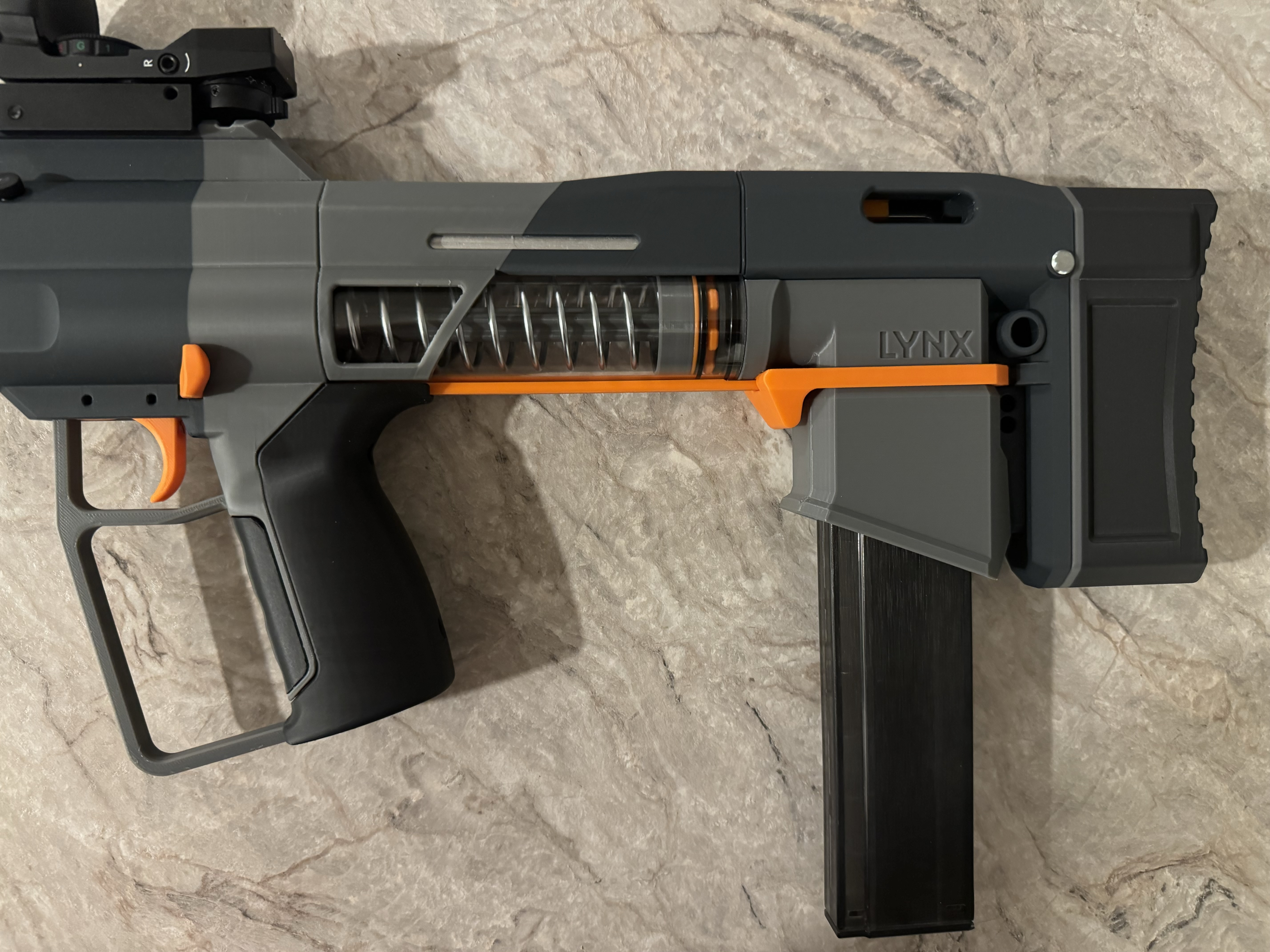

return spring around barrel: compression spring 20mm OD, 1,5mm wire diameter, 305mm long- shortened to about 170mm. shortening the return spring in combination with the modified pump block allow for the spring to be compressed while making sure that the main plunger spring can get compressed for a locked prime.

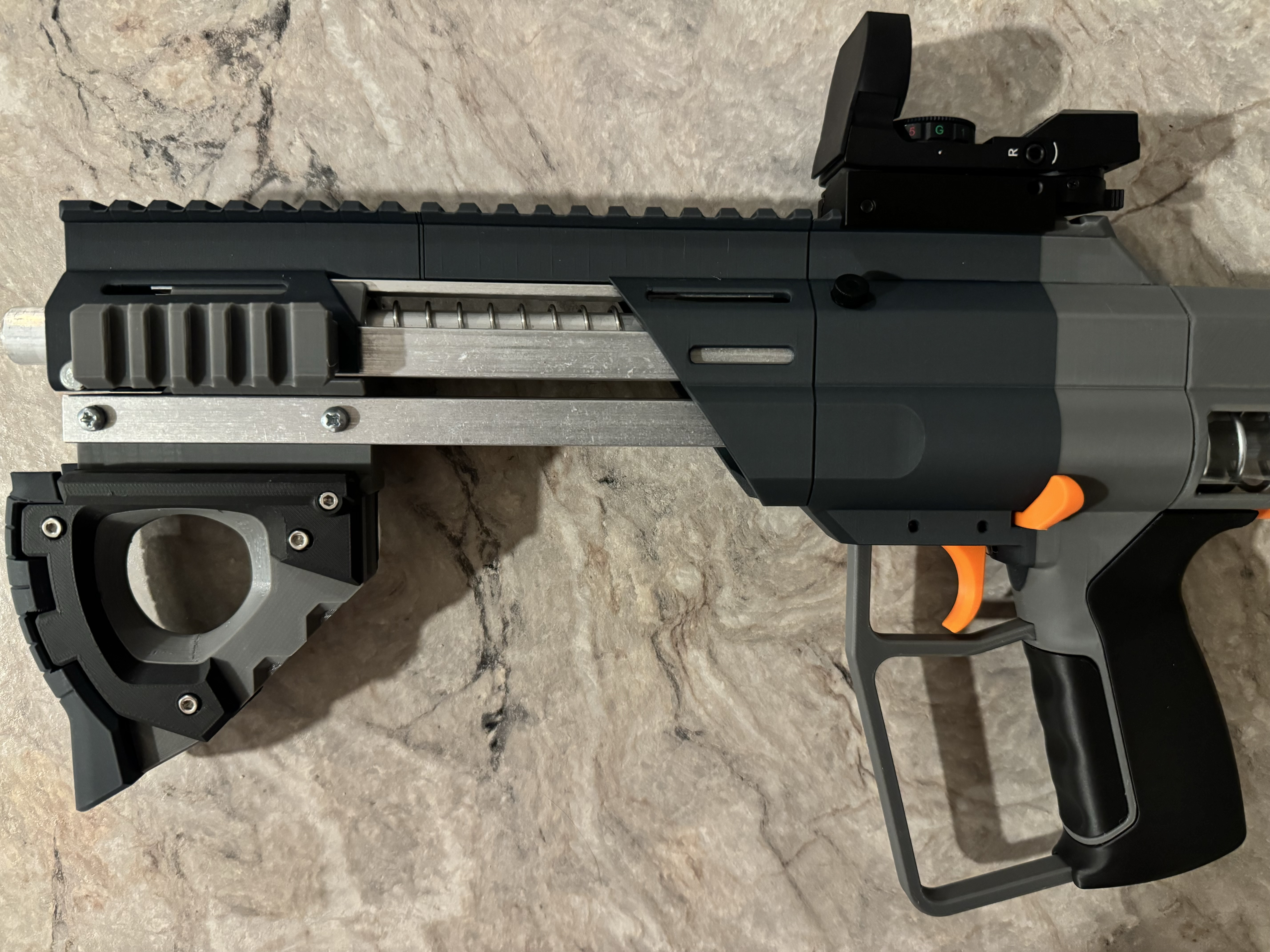

M3 heatset inserts for side picatinny rails and grip inserts.
2.4x16mm dowel pin for thump mag release lever.
I redesigned the plunger head to be just a bit thicker in order to achieve a better air seal.

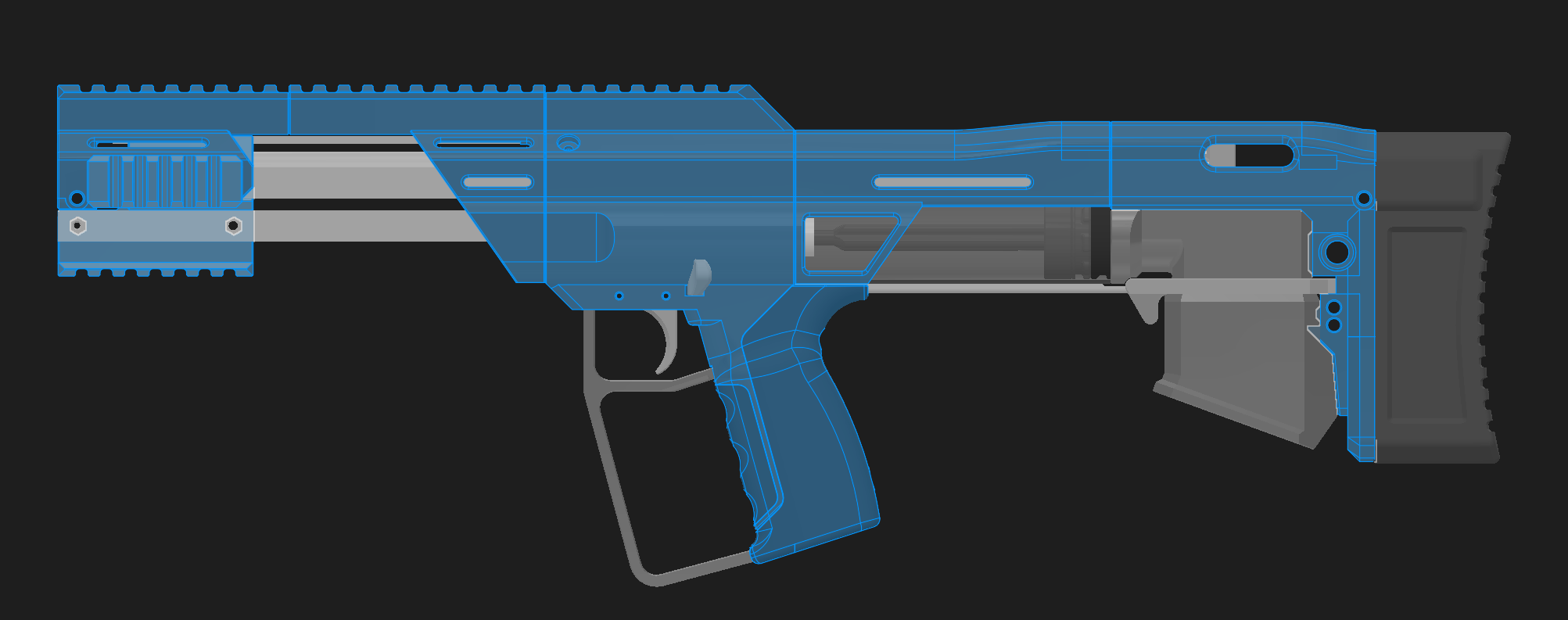

Various design tweaks and remodels like the faux shroud, spacer and stock piece as well as the main receiver with the grip insert.
QD Stock bumper by JEM_3Dprints
thumb mag release parts by guygasm
enjoy!
