Everything Remote - Top and Bottom screws/no power option
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Noncommercial

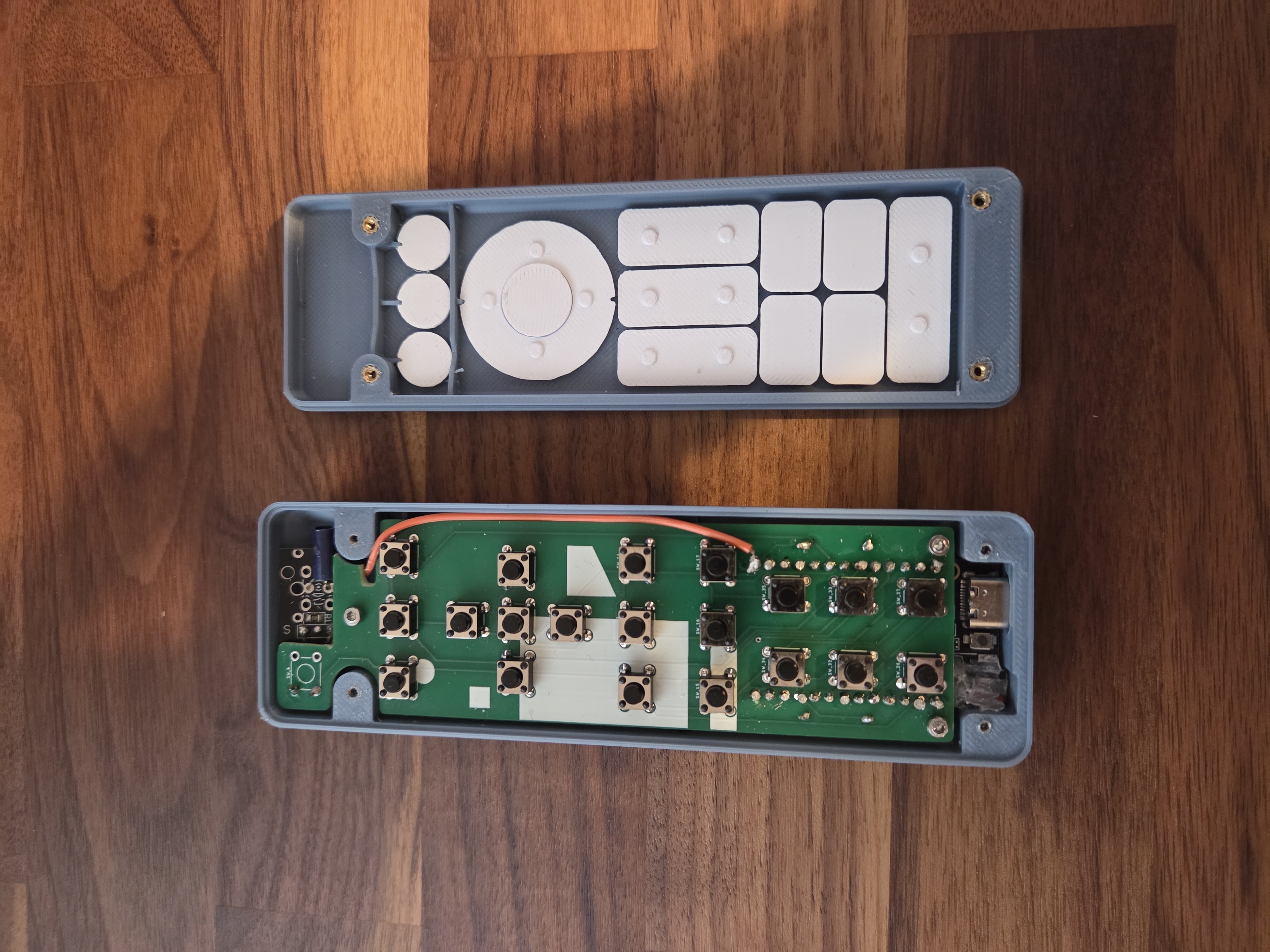

I must have printed the original case 10 times but I could never get the clips to engage without snapping, I also had a small bulge in the centre of the remote but that could be due to my printer tolerances as the original doesn't give much wiggle room. Another remix uses a latch on the button which is an improvement but I still found that has a little give in it so this remix just uses 4 screws, one in each corner of the base. For me this provides a rigid remote with no give in the body.
Heatset inserts mean you can screw and unscrew this multiple times and gives an overall better screw grip.
I've provided two versions of the top, one with the power button cut out (as per the original design) and one without if you've replaced the power button with a vibration sensor by following my github guide.
Screws: Use M2 x 10 for all 4 corners.
