U7 Pro Wall – Desktop Stand + PoE Injector Box

Version 02

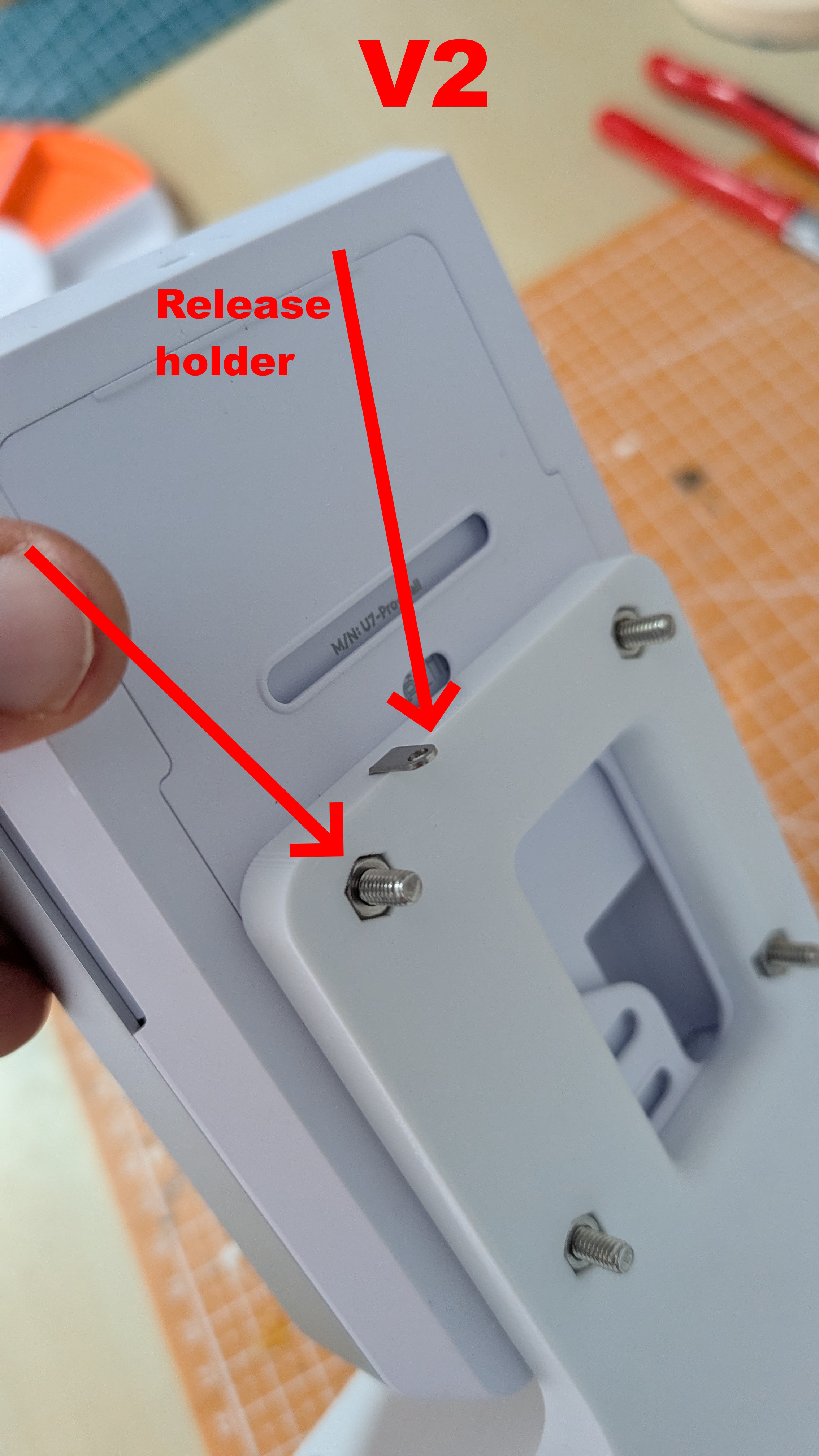

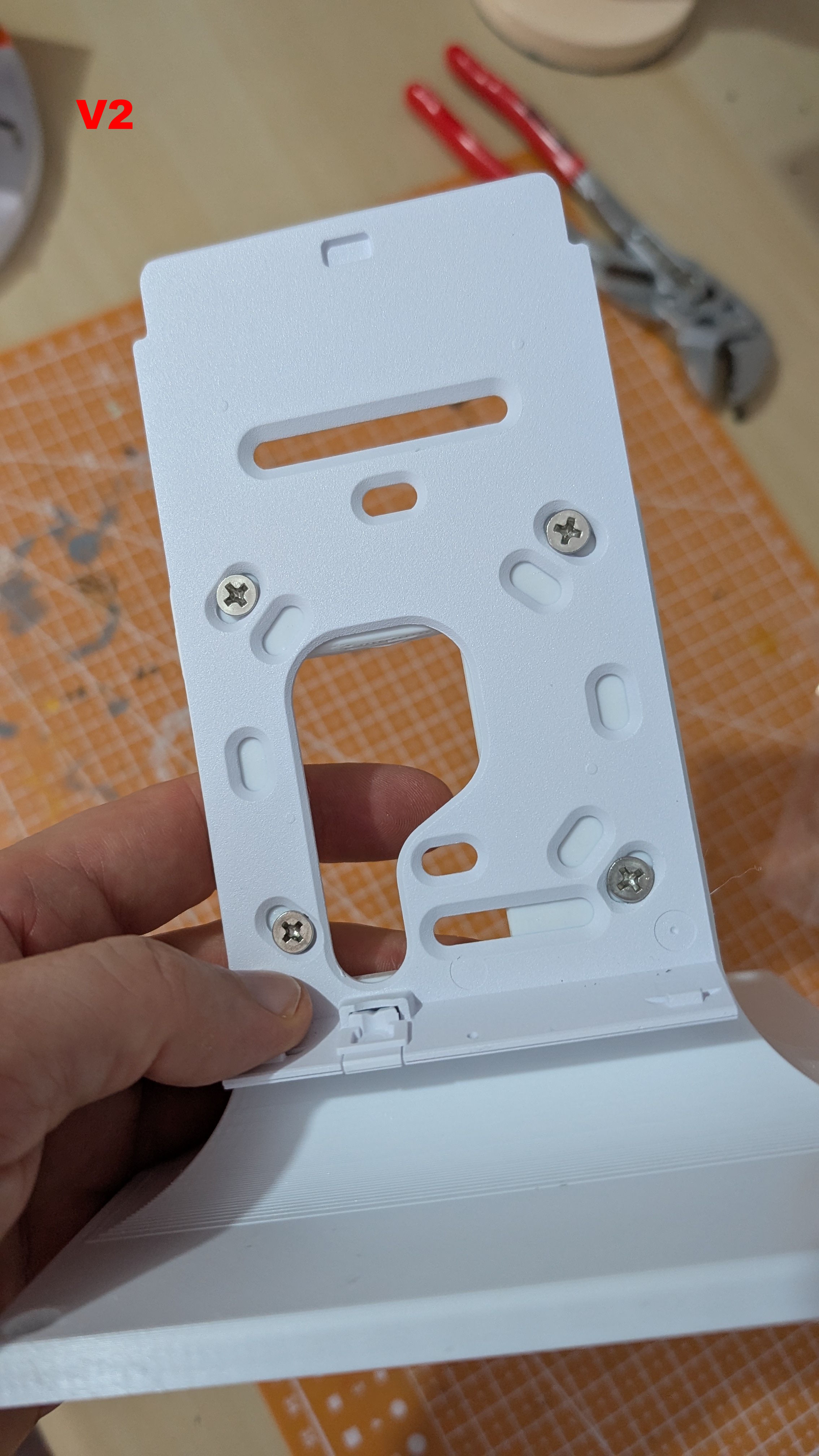

In this revision, the mounting method for attaching the U7 Pro Wall bracket to the printed vertical support has been improved.

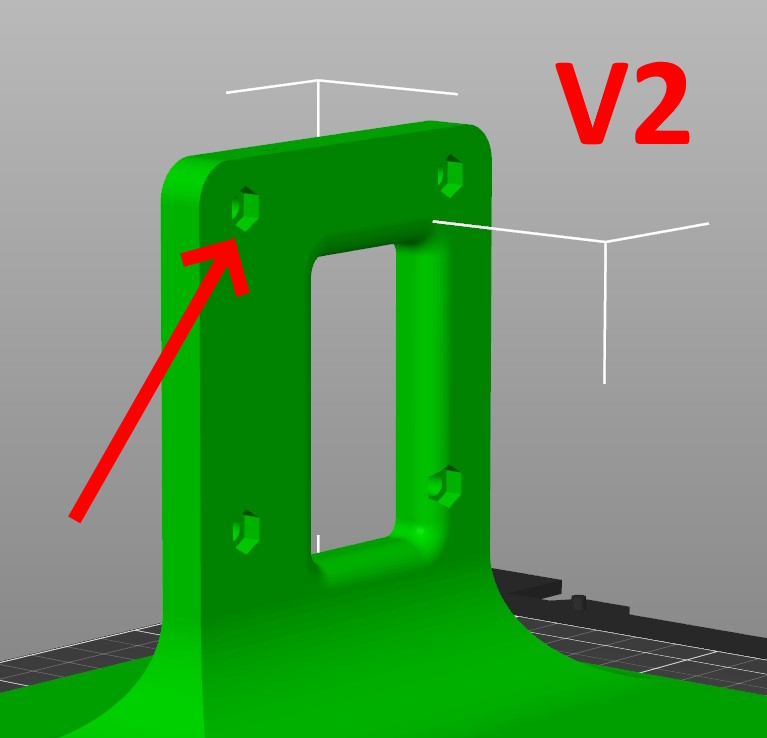

Instead of the previous M5 screw solution, the design now uses an M4 screw with a nut on the opposite side, providing a more stable connection.

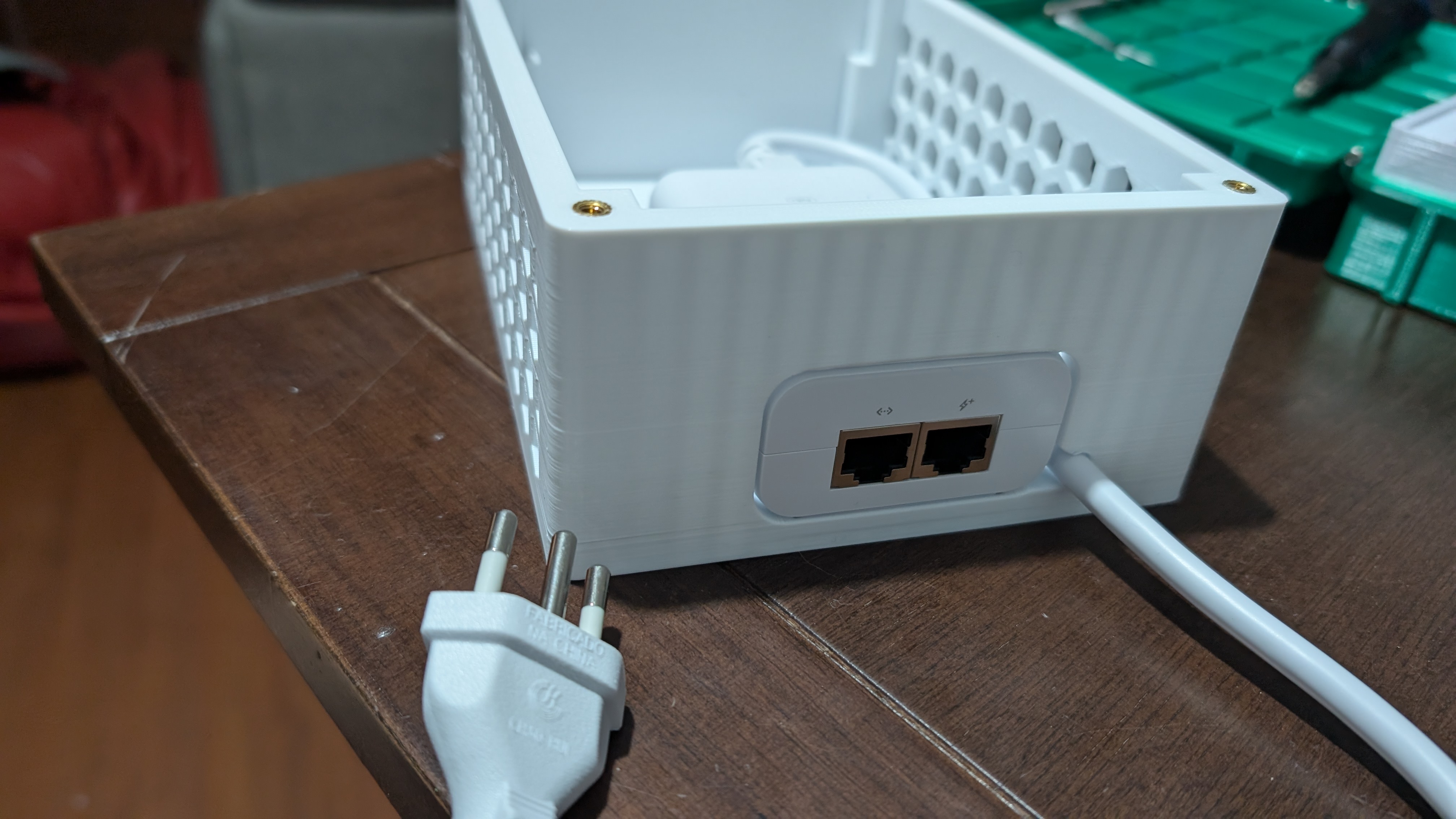

The stand still includes the integrated enclosure for the U-POE-AT 48V PoE+ injector, allowing a clean desktop setup without exposed cables or loose components.

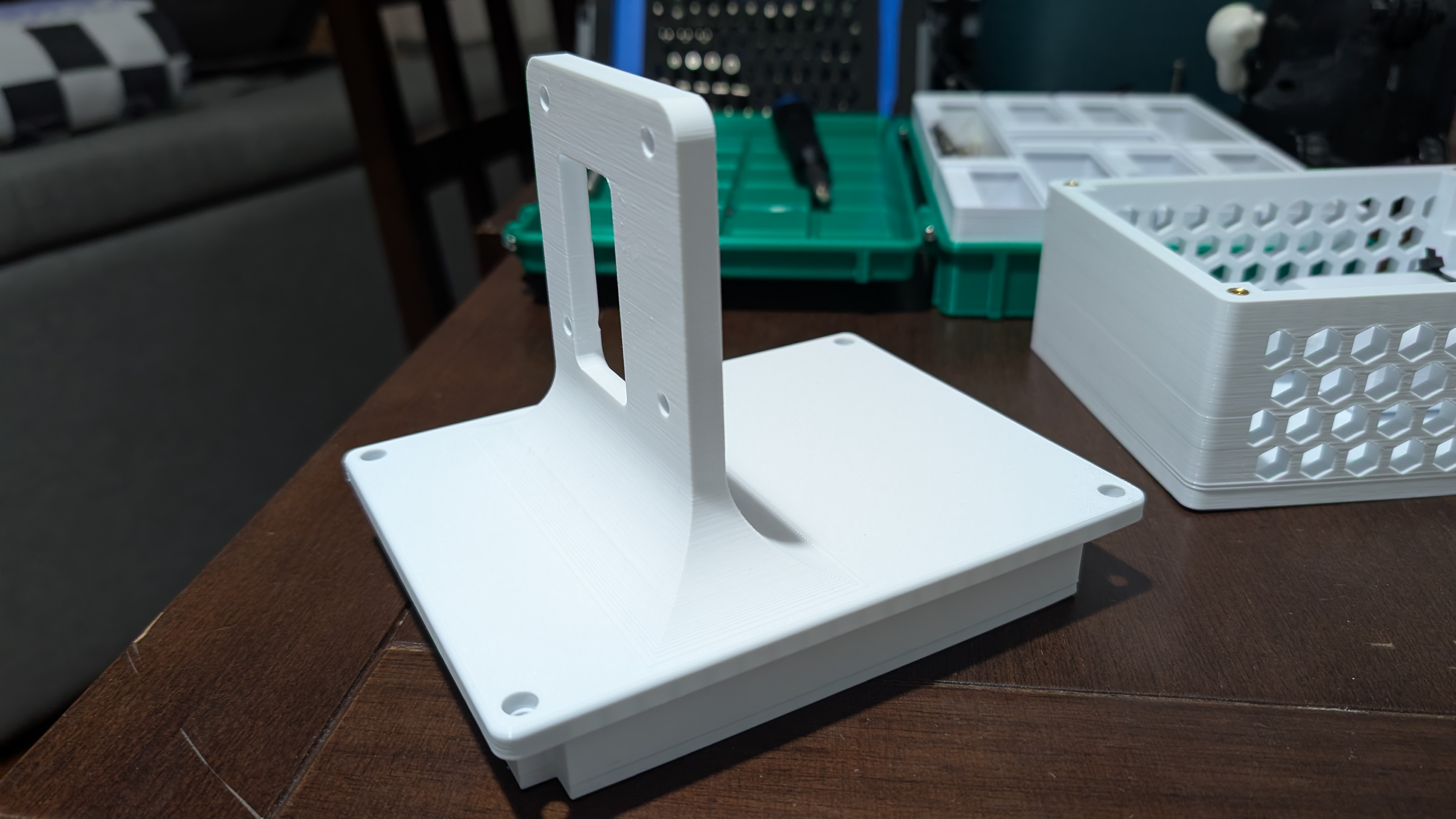

The model remains split into three parts:
• Base
• Top cover
• Optional weight insert for added stability

Hardware required (updated):

• Ubiquiti UniFi U7 Pro Wall
• Ubiquiti U-POE-AT 48V / 30W PoE+ injector
• M4 nut
• M4 heat-set threaded inserts (for the base)
• M4 screws - flat head (10 mm or longer)
• 3.6 mm nylon zip tie (to secure the injector)
• Soldering iron (for installing inserts)

Version 01

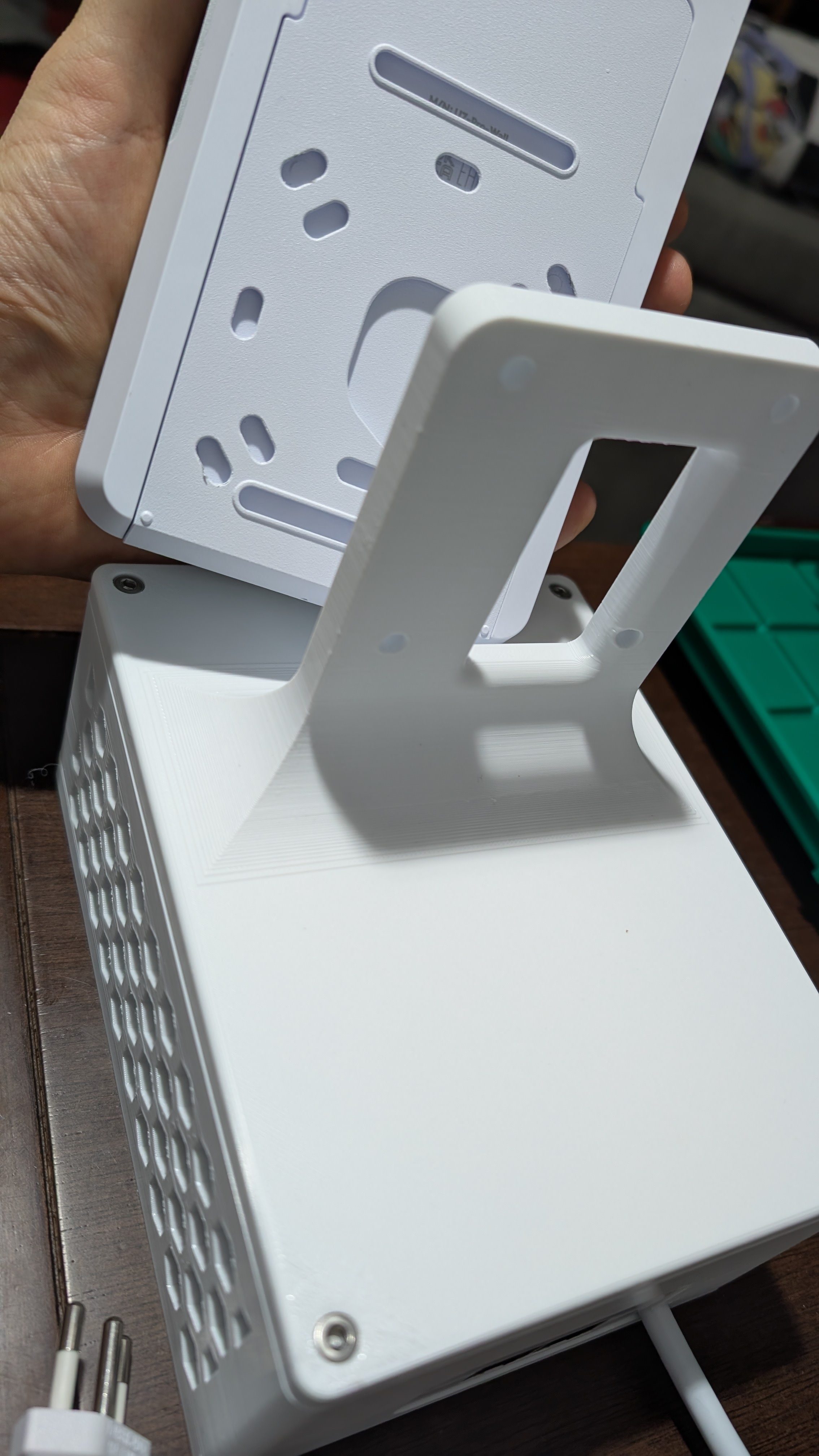

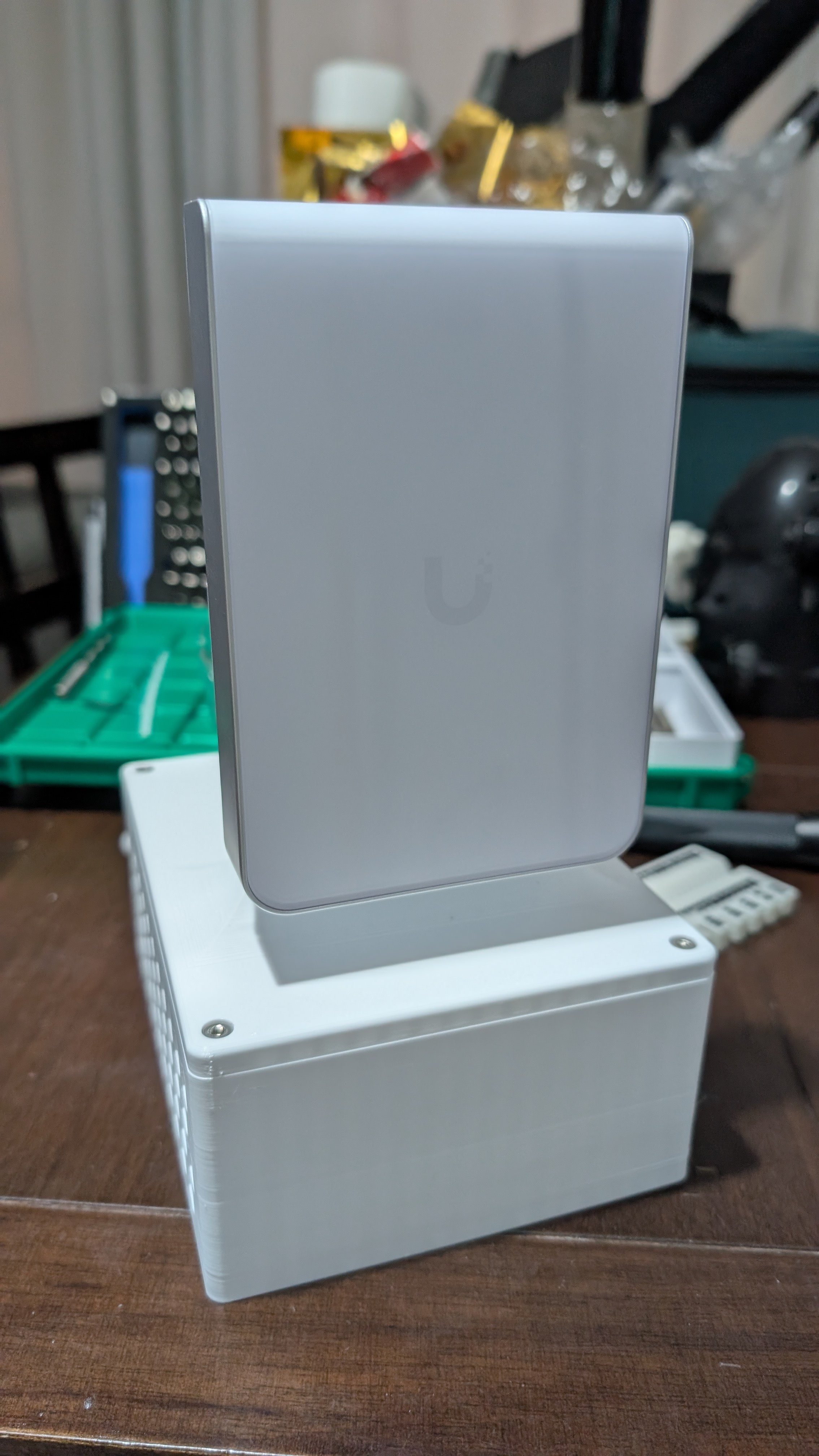

This model allows you to use the Ubiquiti UniFi U7 Pro Wall as a desktop access point.

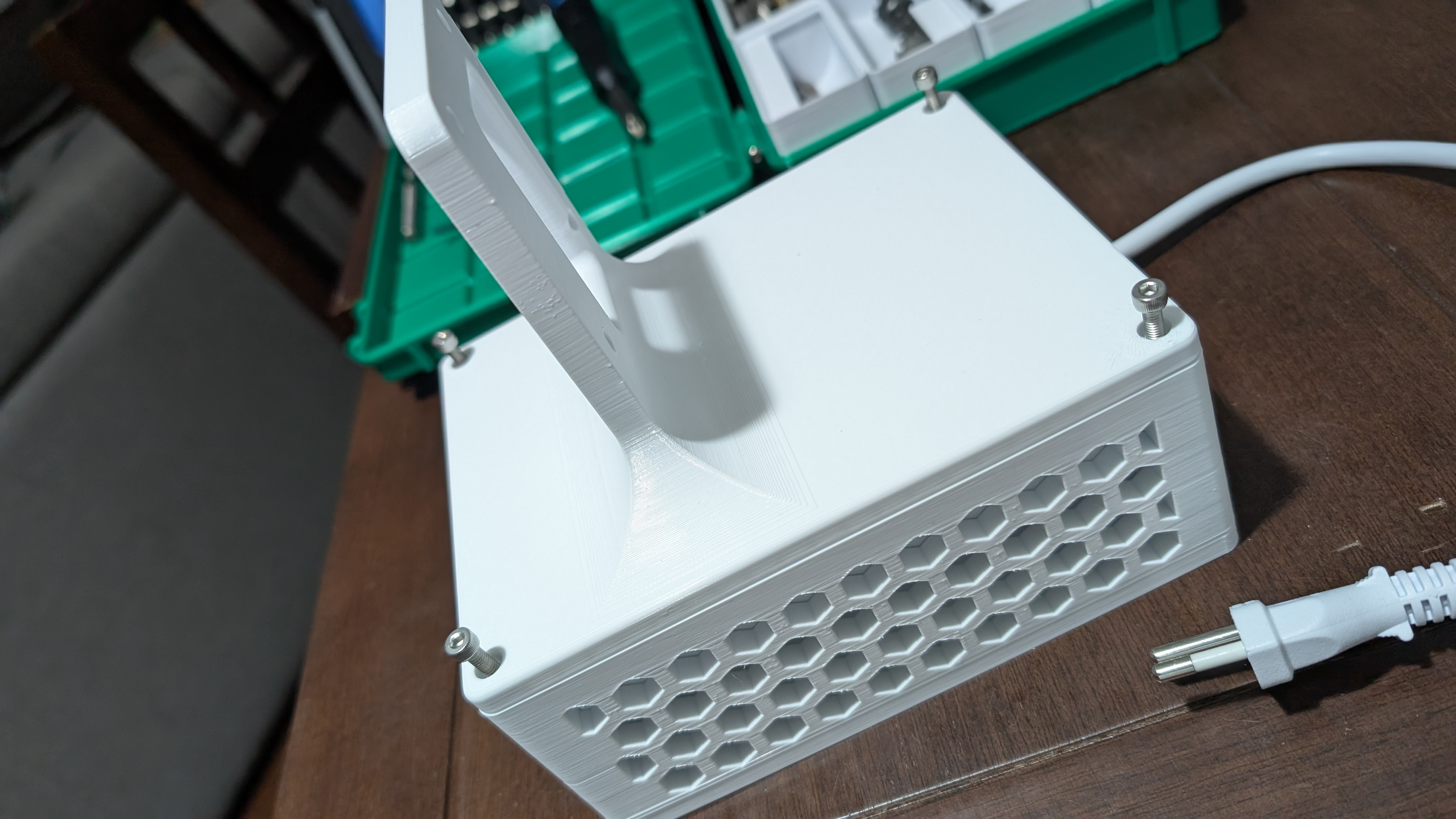

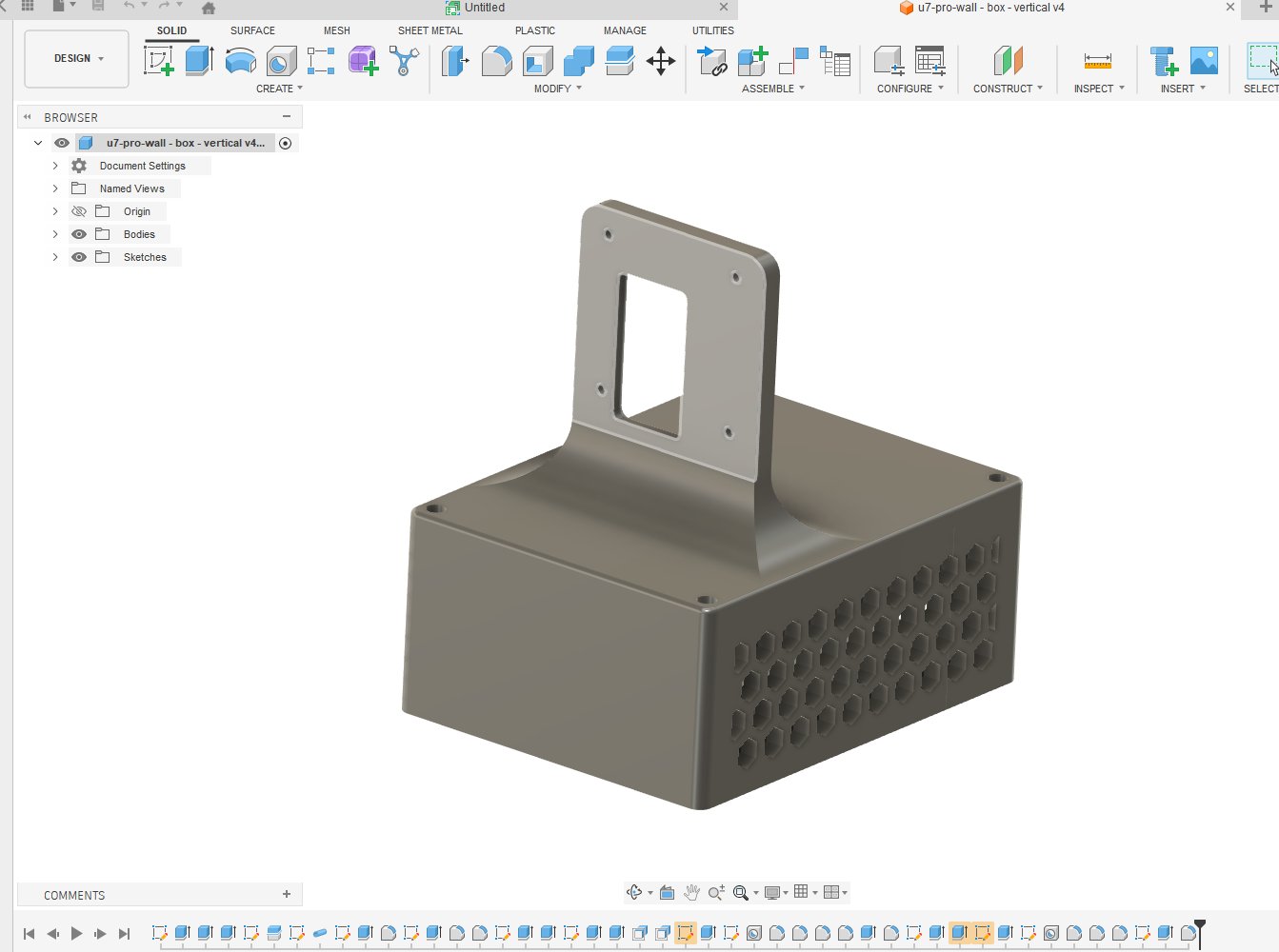

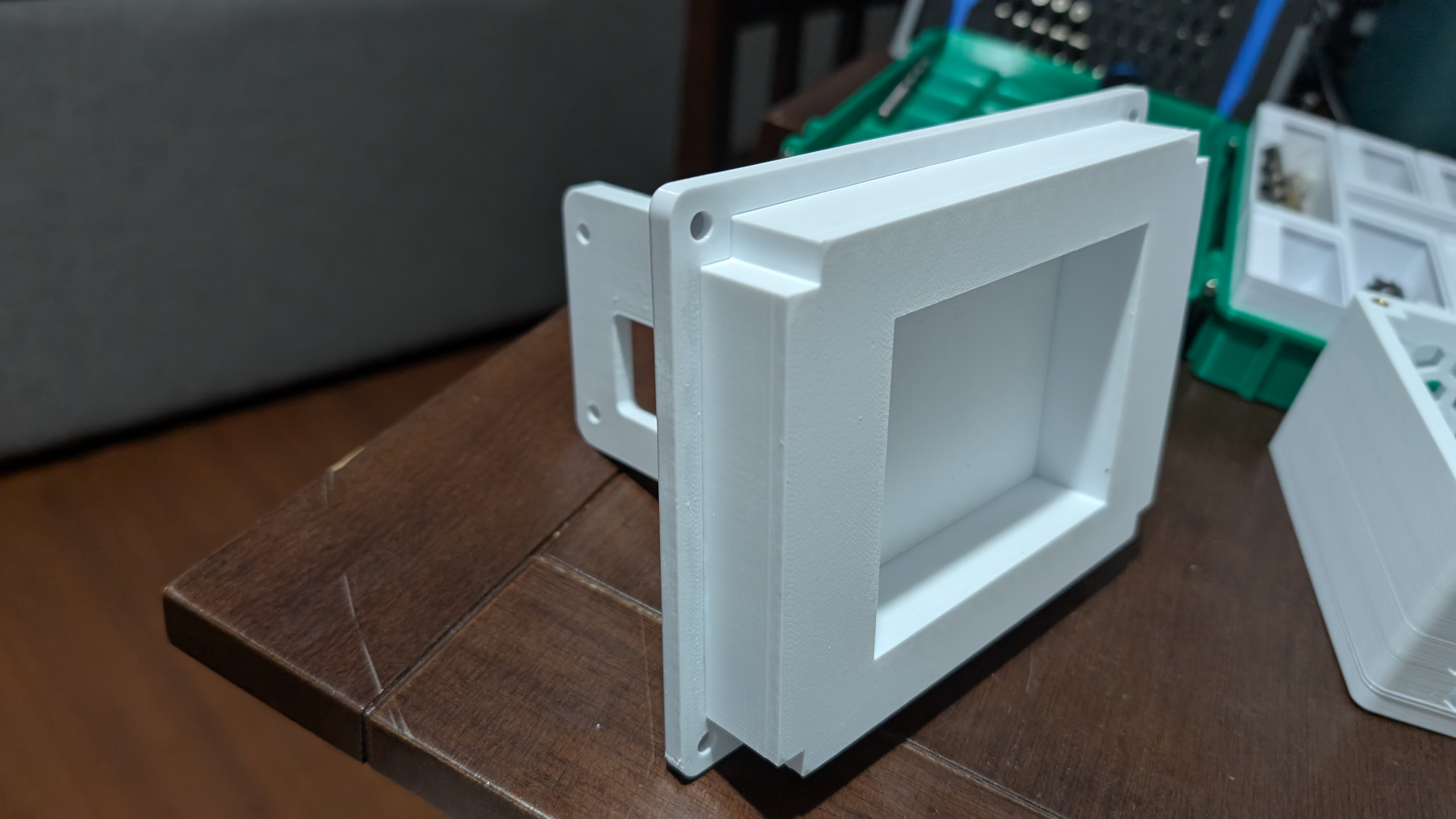

It includes a vertical desk stand and an internal enclosure designed to hold the U-POE-AT 48V PoE+ injector securely inside the base. The design is fully 3D-printed and uses standard hardware for assembly.

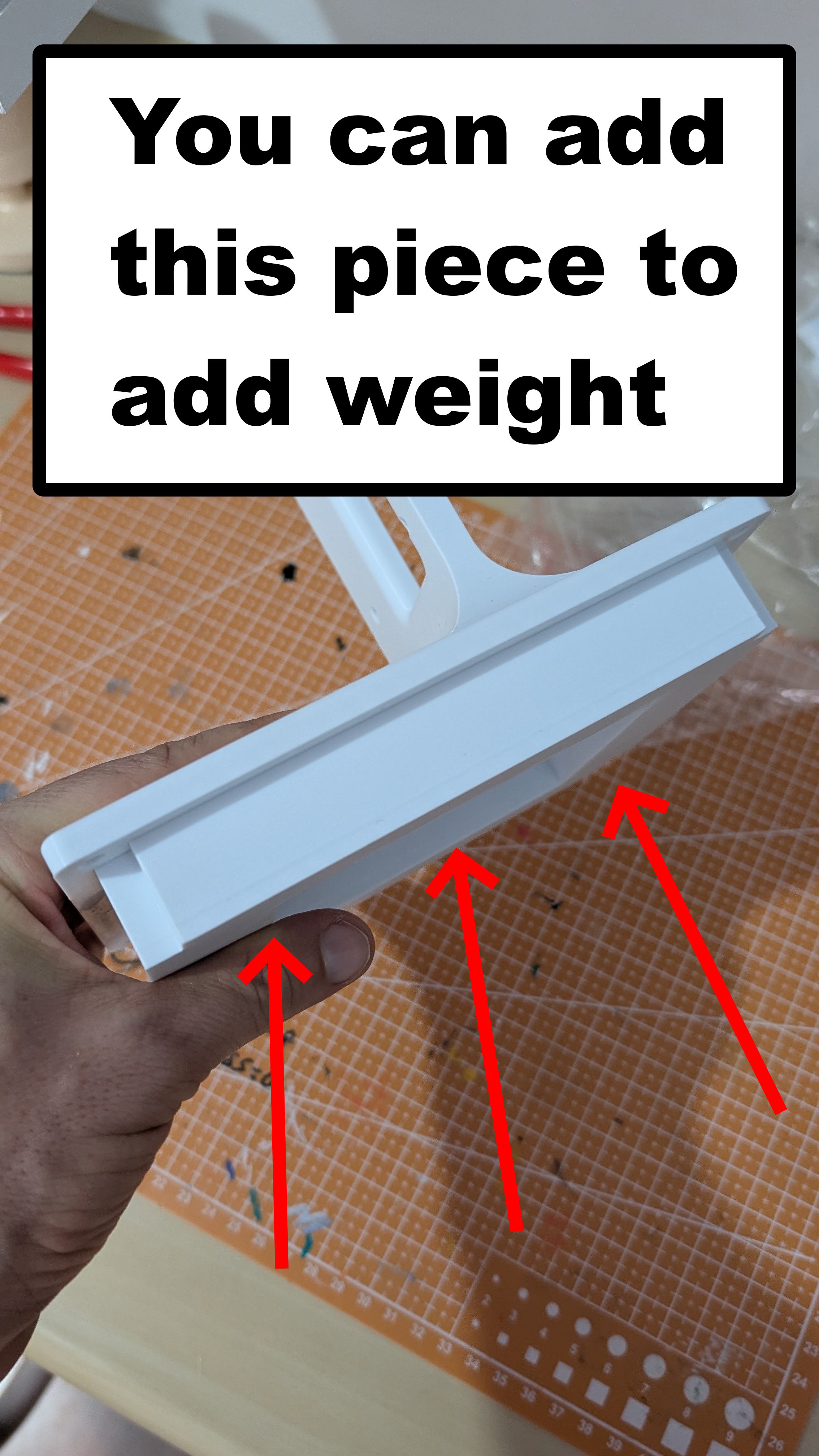

The model is split into three parts: base, top cover, and an optional weight insert that can be filled or printed solid to improve stability.

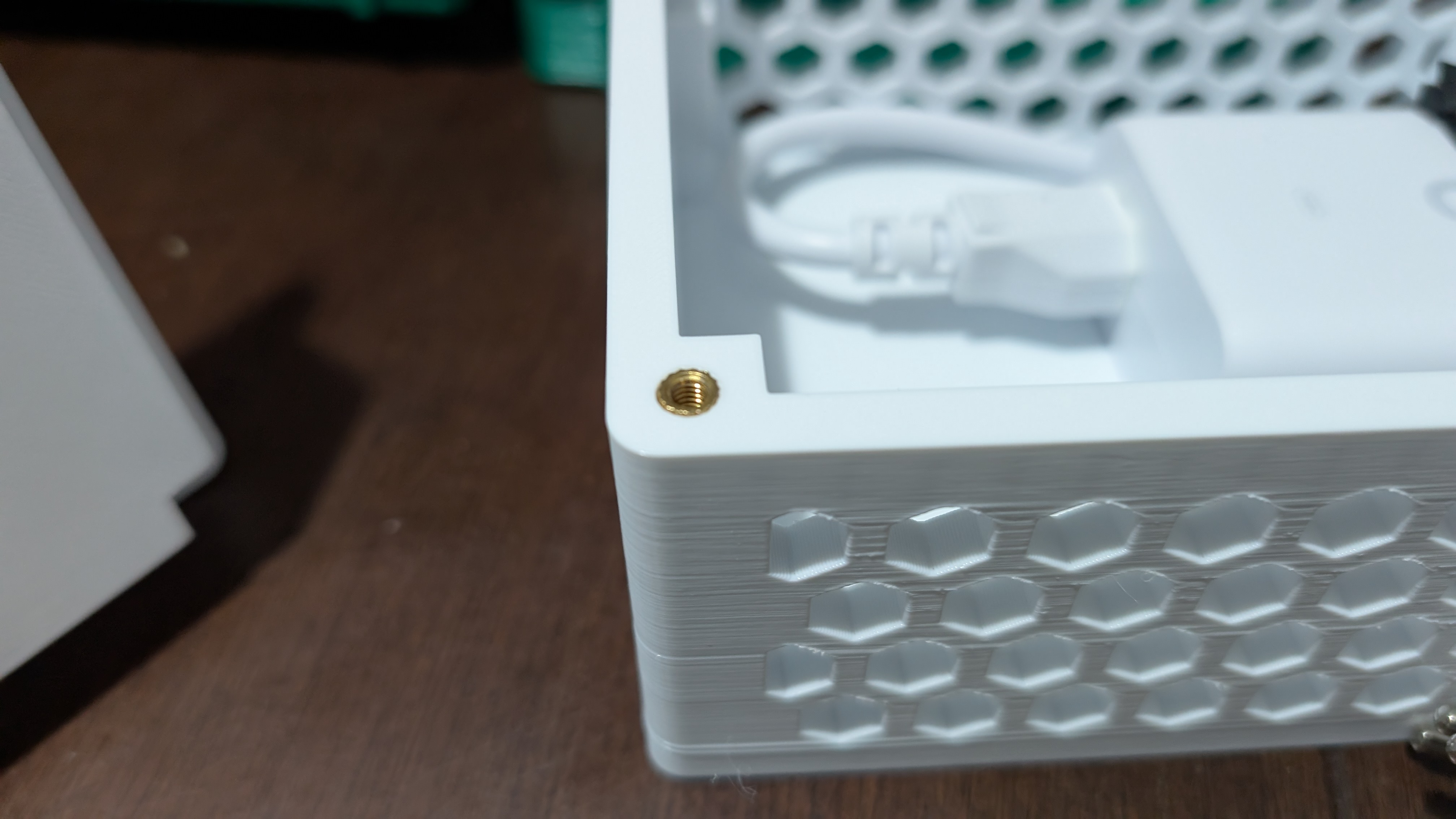

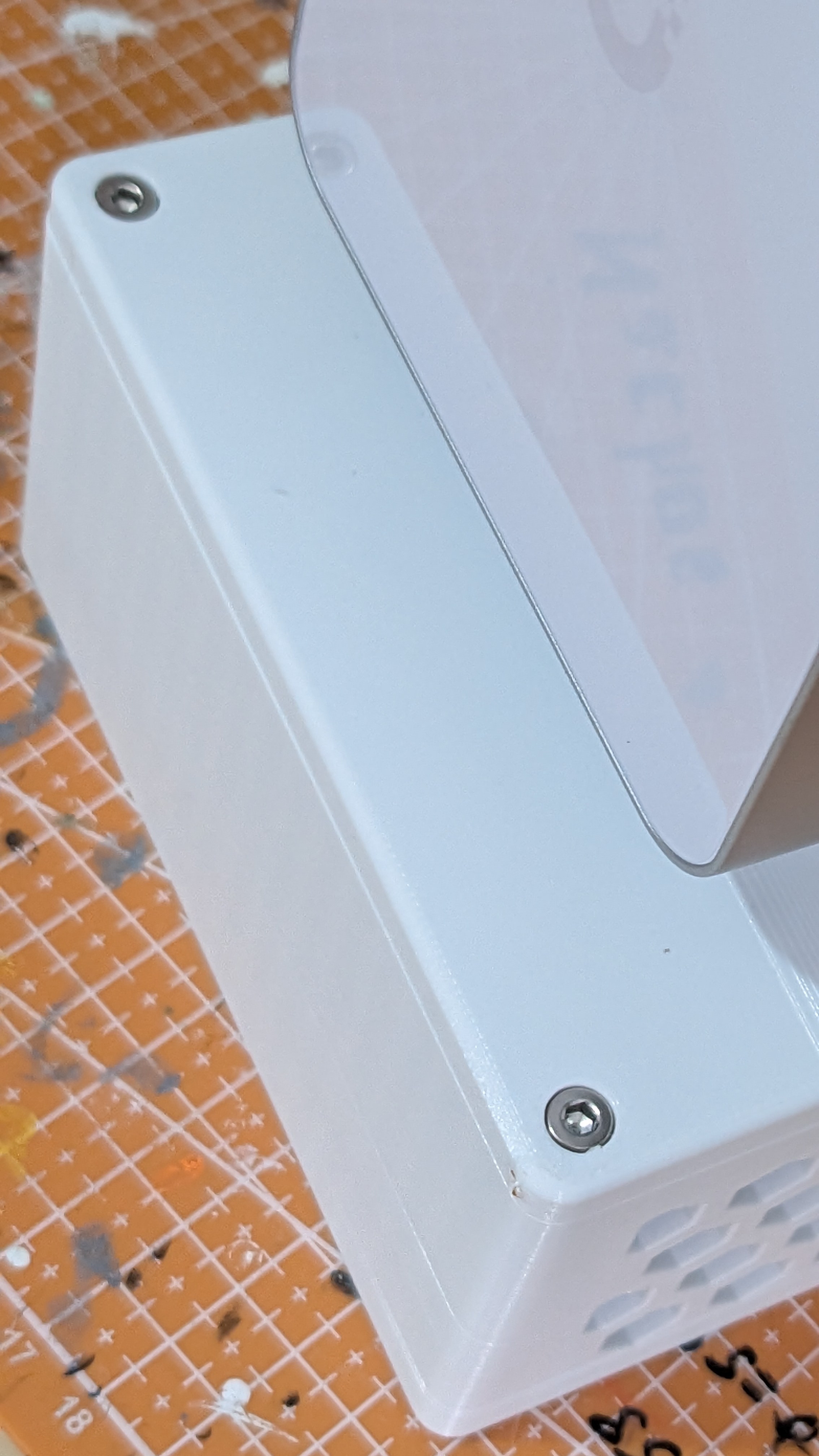

The base includes recesses for heat-set threaded inserts (M4) installed with a soldering iron. You can use M4 screws from 10 mm to 30 mm depending on your preference.

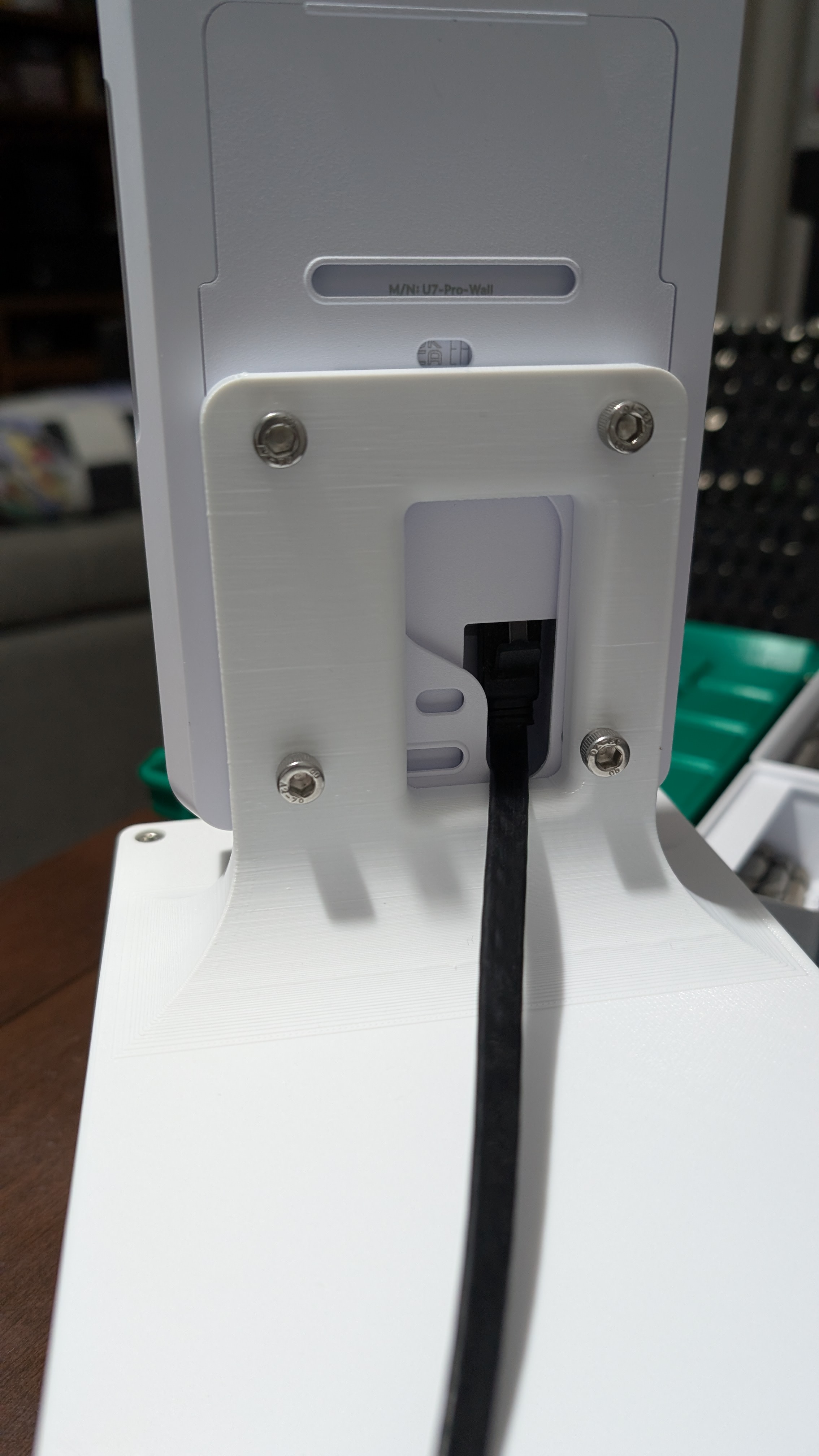

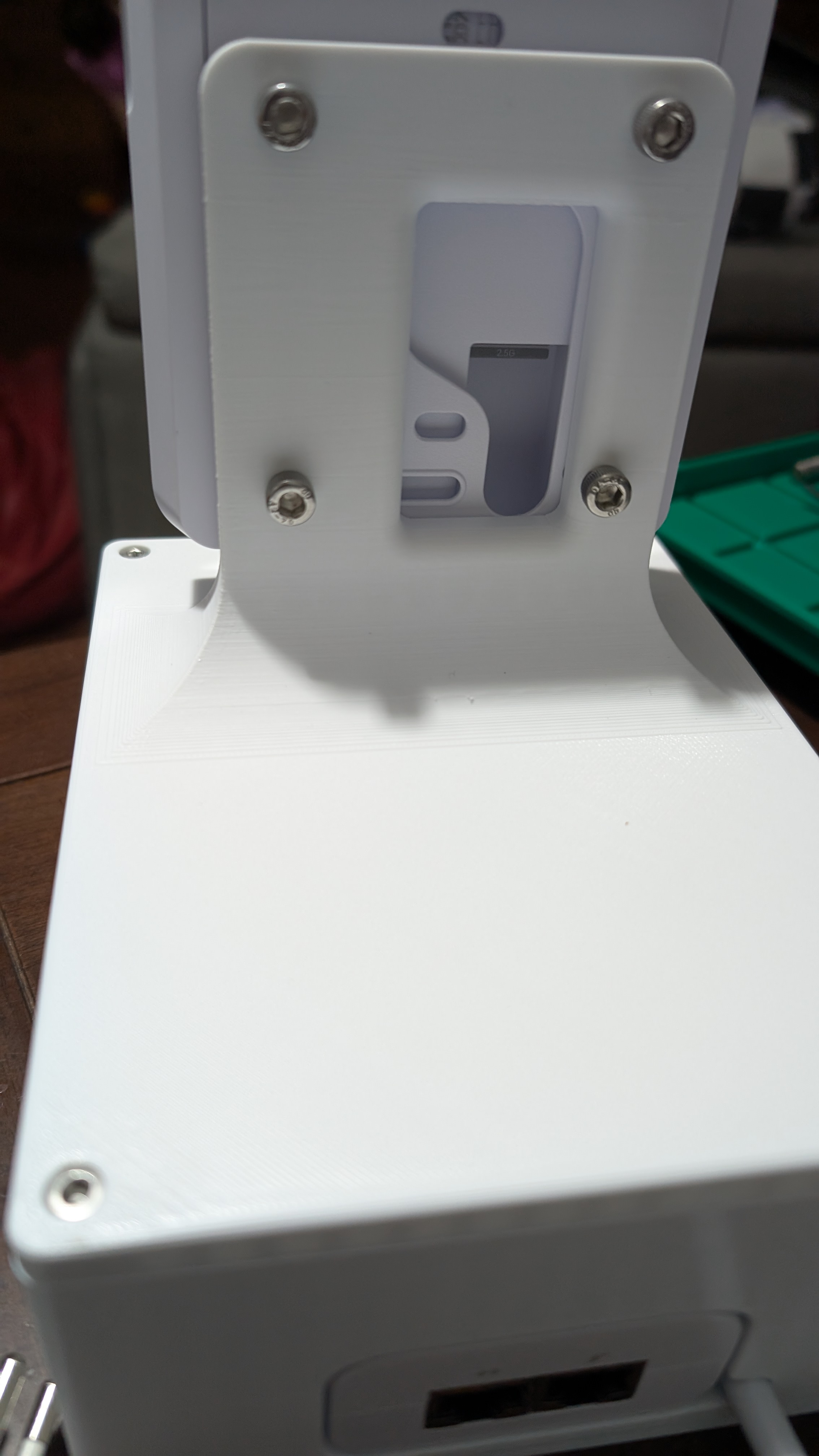

To attach the U7 Pro Wall to the vertical bar, the design uses four M5x12 screws.

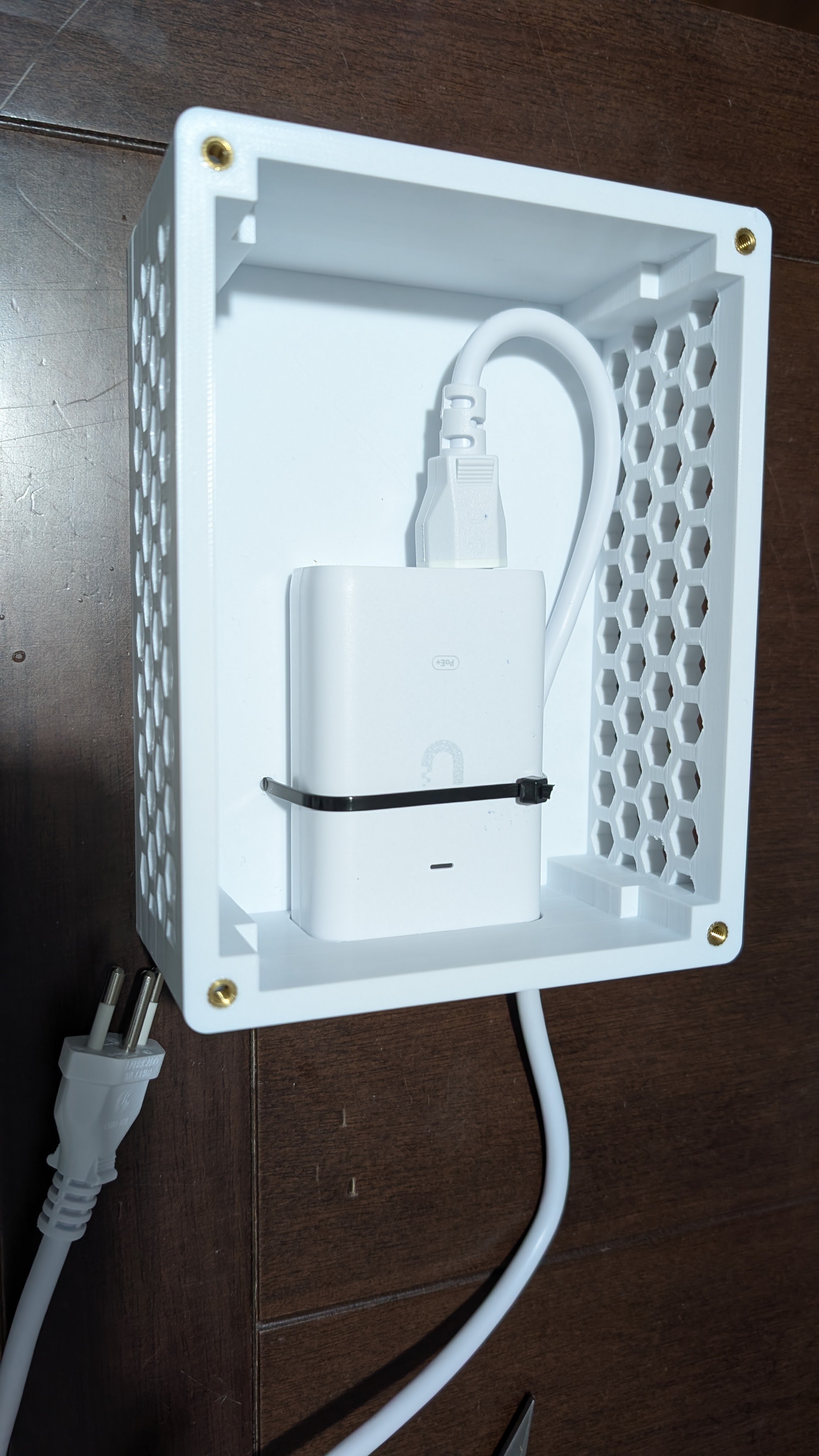

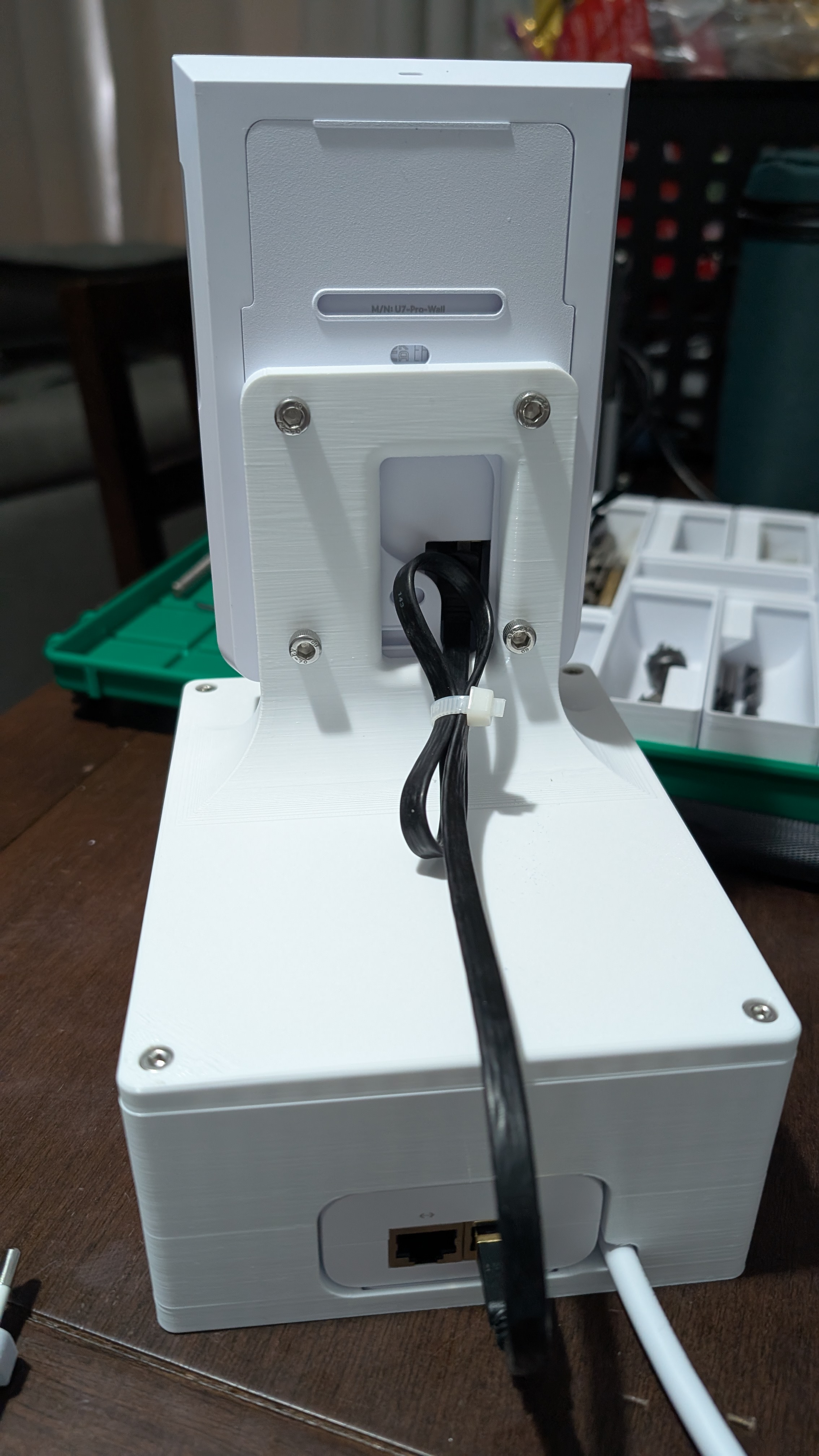

To keep the PoE injector firmly seated inside the base, the design includes a slot for a 3.6 mm nylon zip tie. The zip tie passes through the printed channel and wraps around the injector, adding extra stability and preventing movement during handling.

This setup lets you place the U7 Pro Wall on a desk cleanly, without exposed cables or loose injectors. It is ideal for labs, test benches, network demos, or temporary setups.

Materials Needed
• 3D-printed parts (base, top cover, optional weight insert)
• Ubiquiti UniFi U7 Pro Wall
• Ubiquiti U-POE-AT 48V/30W PoE+ injector
• M4 heat-set threaded inserts (for the base)
• M4 screws (10–30 mm length)
• M5x12 screws (4 pcs, for attaching the AP to the vertical bar)
• 3.6 mm nylon zip tie (for securing the injector inside the base)
• Soldering iron (for installing the M4 inserts)
• Screwdriver (M4 and M5)
