IF YOU ARE INTERESTED VISIT THE GITHUB PAGE: https://github.com/jotalac/crypto_viewer
Crypto Price Viewer
- DIY cryptocurrency price dispaly.
Description

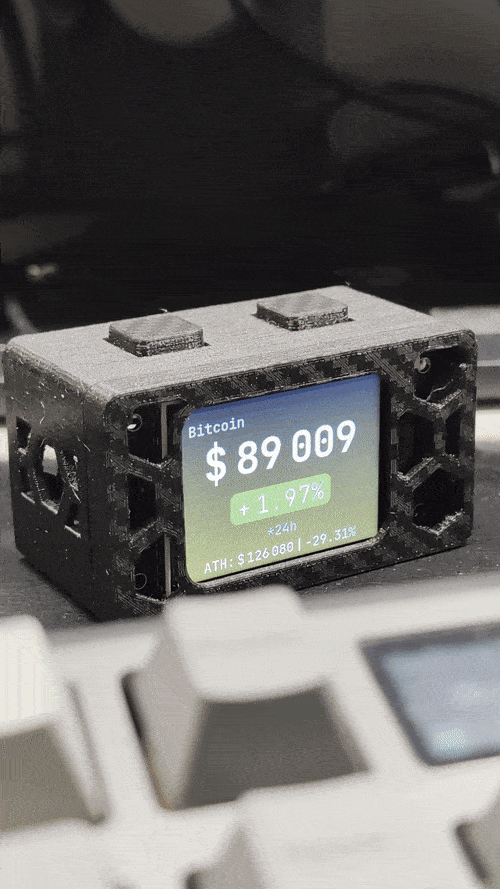

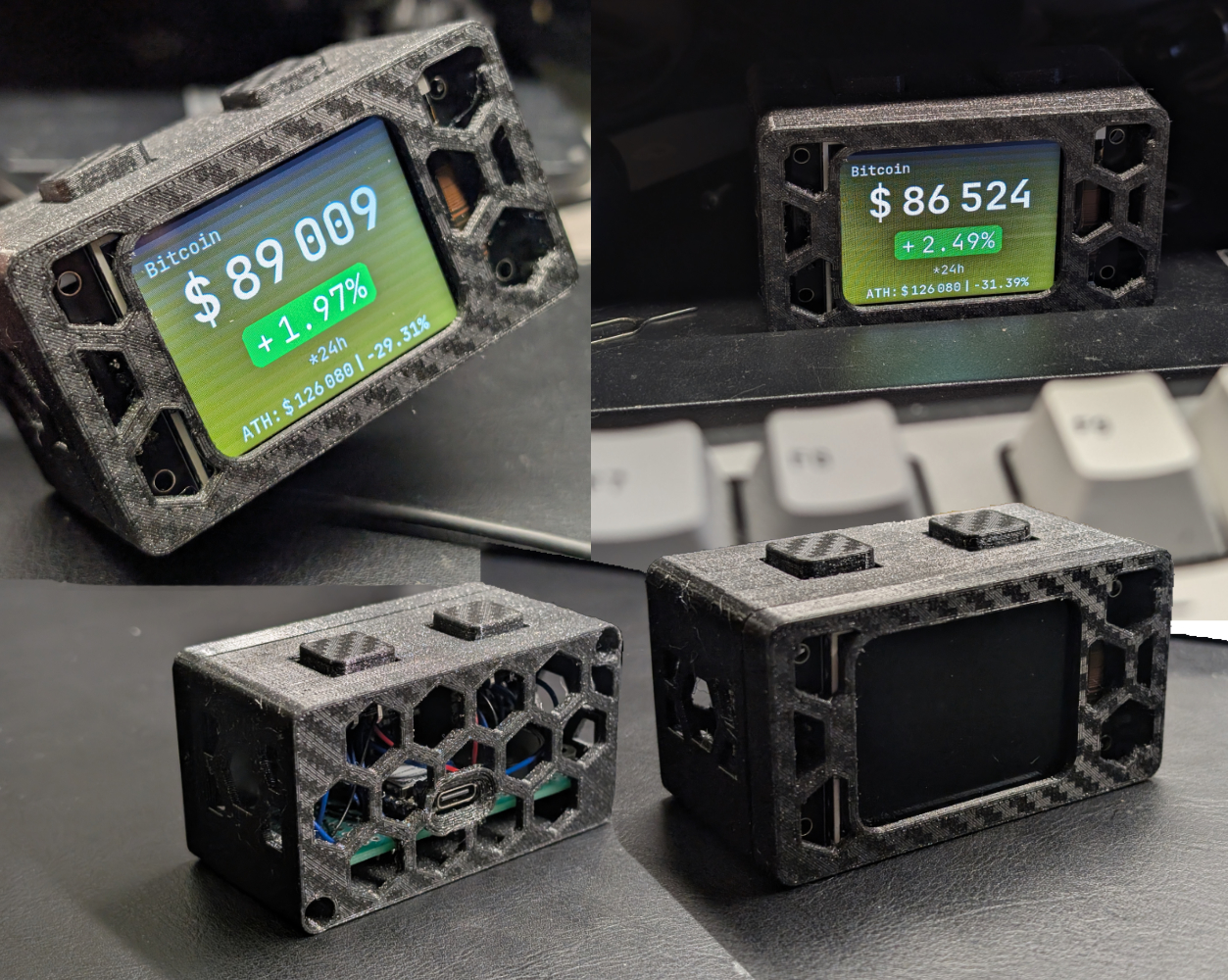

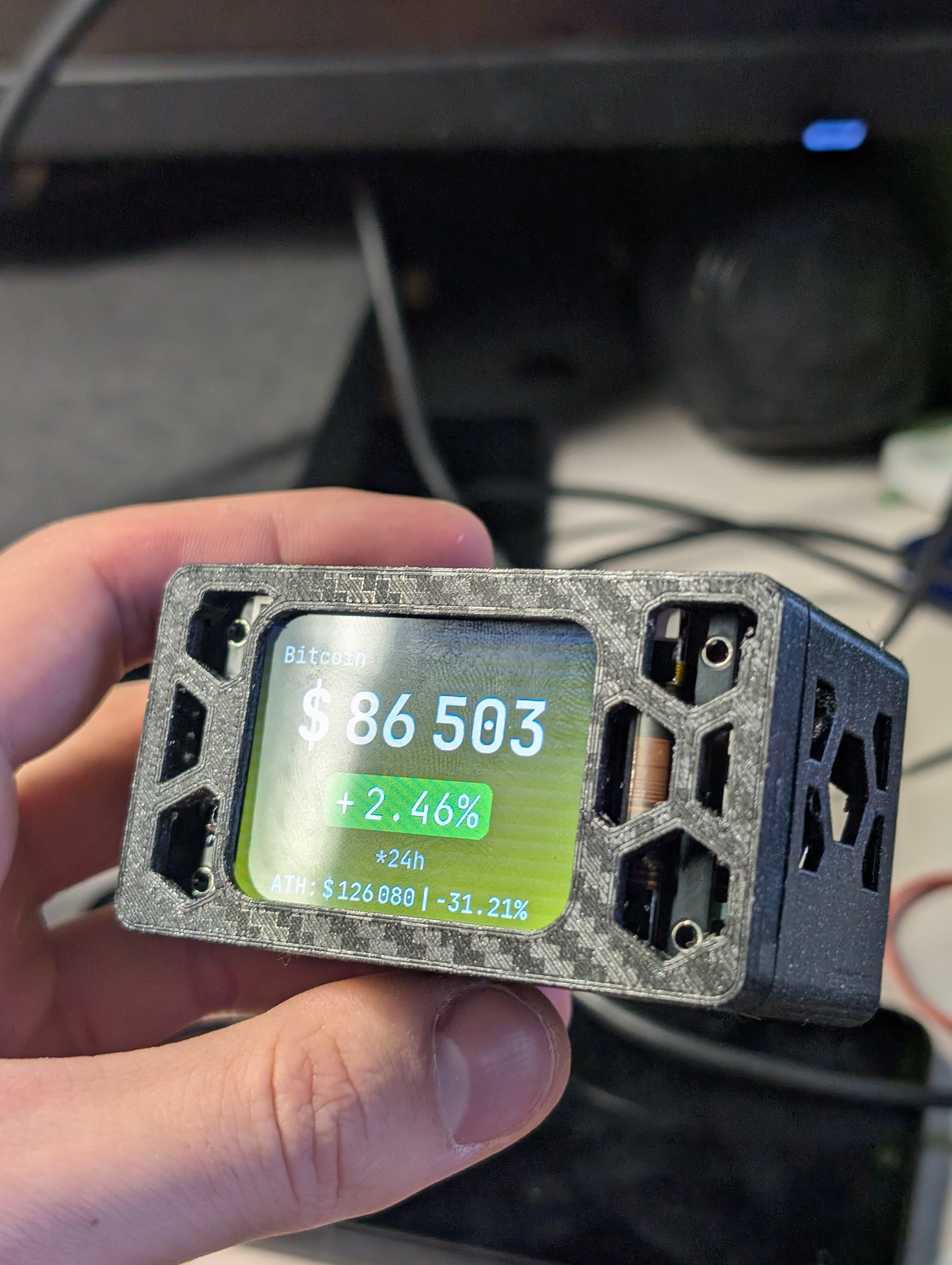

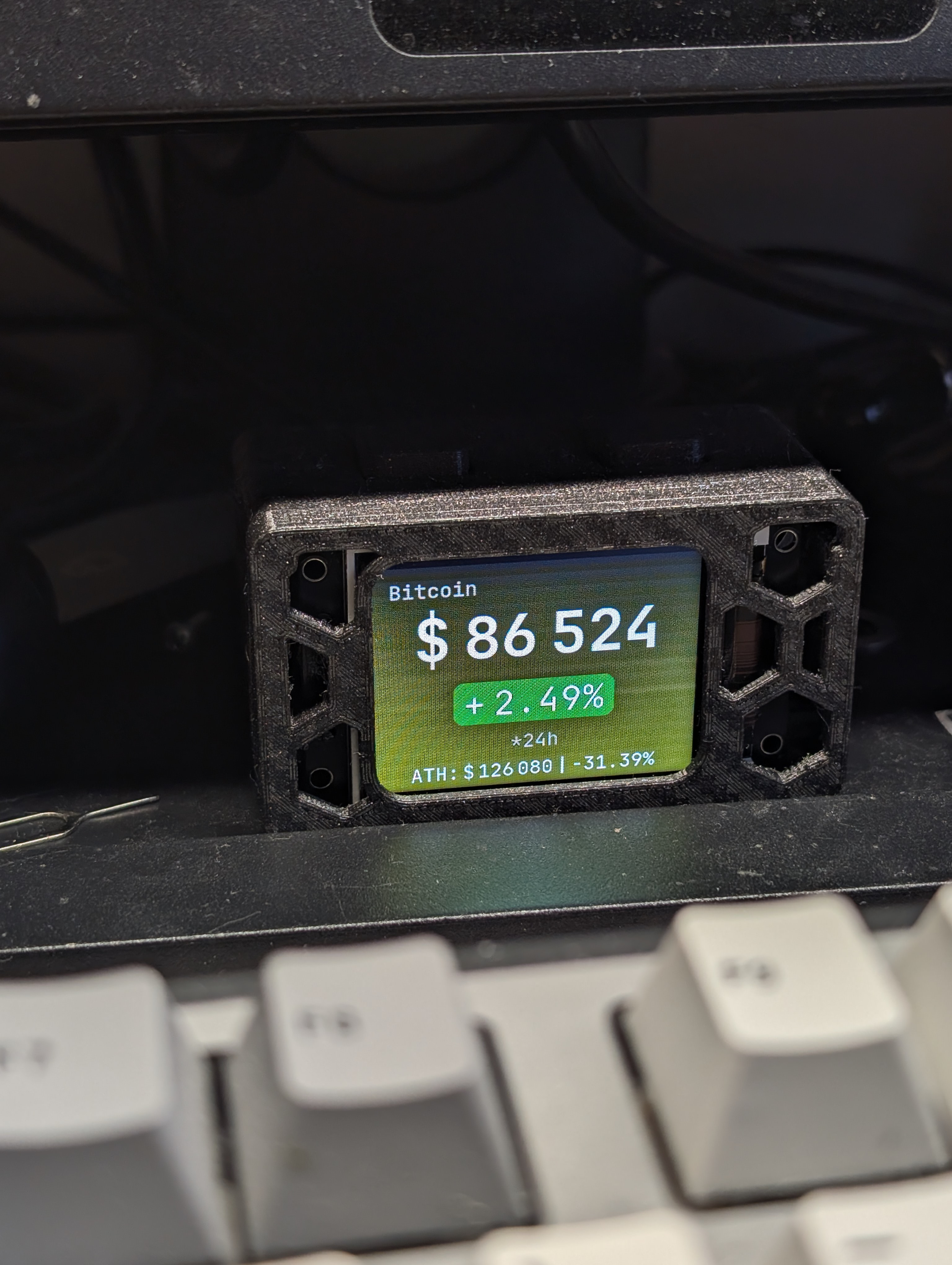

This project is diy simple cryptocurrency price viewer. It fetches real-time data from a cryptocurrency API and displays it on a screen. The device is housed in a 3D-printed case with colored screen. This is a standalone device that is not dependent on your computer.
Features
- Price Tracking: Fetches and displays up-to-date cryptocurrency prices.
- **Display:** Shows data on 240x320px screen.
- **Button Controls:** Navigate through different cryptocurrencies.
- **Buzzer:** Provides audible alerts.

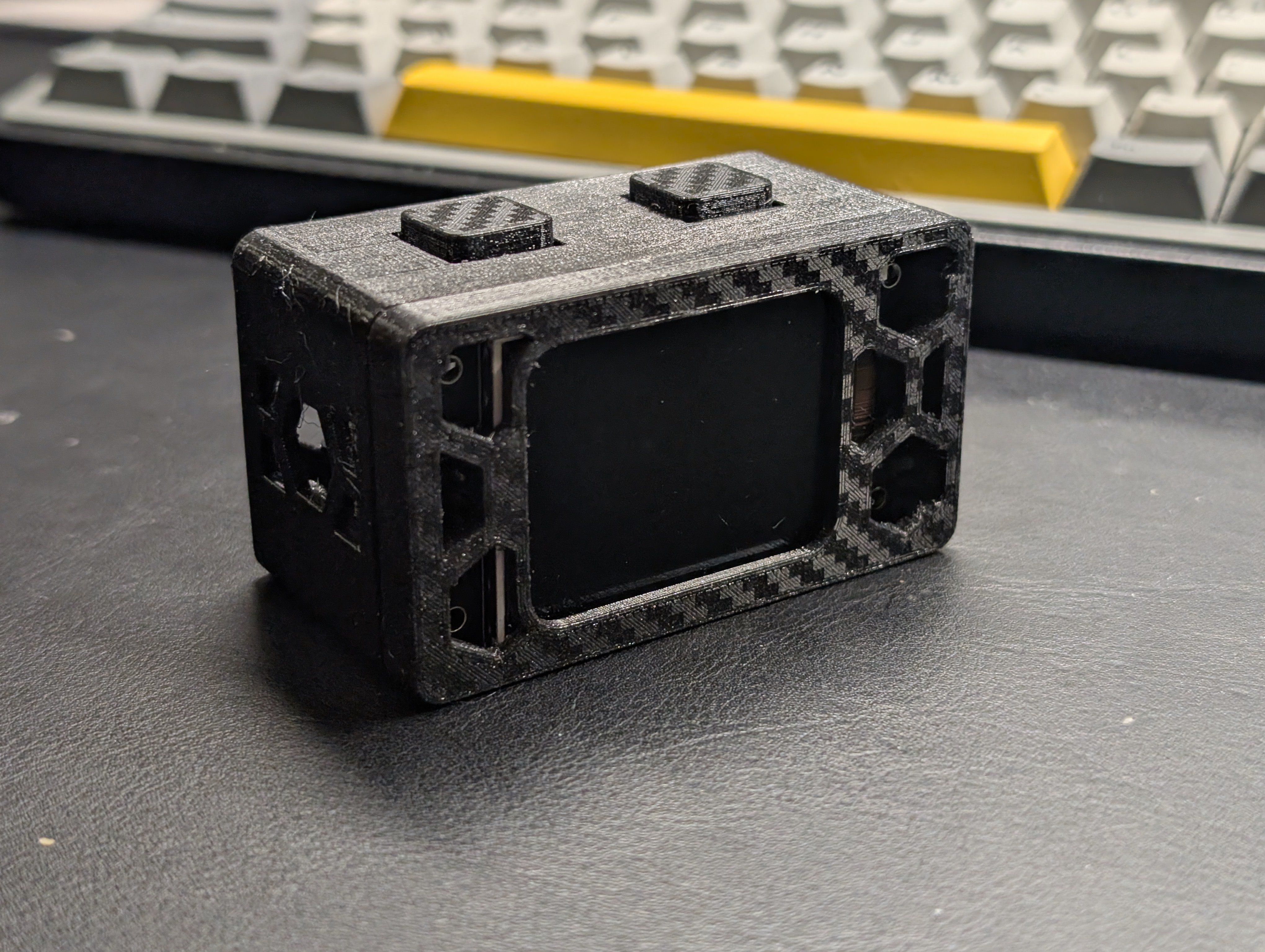

- **3D-Printed Case:** A custom-designed case to house all the components.
- **Configurable from phone:** Connect to AP and configure the device from your phone.
- **Wi-Fi Connectivity:** Connects to your local network to access the internet.
Hardware
This project uses the following hardware components:
- Microcontroller: XIAO ESP32C6
- Display: 2inch 240x320px TFT Display:
- Buttons: 2x - 12x12mm tactile switch (B3F-4055)
- Buzzer (optional): buzzer without generator
- Antenna (optional, for better signal): mini antenna with uFL connector
- Perfboard: prefboard 30x70 mm
- Cables and wires
- 3D printed case: 3d printed parts, in the model folder
- Screws: 2x 2.5x20mm screw (for case assembly)
