Sturdy Riser: Gothic Cathedral Edition

Follow the instructions on the original design by Devin at https://www.printables.com/model/1450583-centauri-carbon-cable-arm-sturdy-riser

You will still need:

1. 16 m3x16 (or slightly longer) screws and nuts (For connecting the riser pieces)
2. 2 m4x8 or m4x10 screws
3. 1 m4 nut
4. 2 m4 washers
5. New PTFE tube (The stock one may not be long enough)

Printing:

I highly recommend using the provided 3mf files, as I have painted on supports only where needed, to minimize filament and save time.

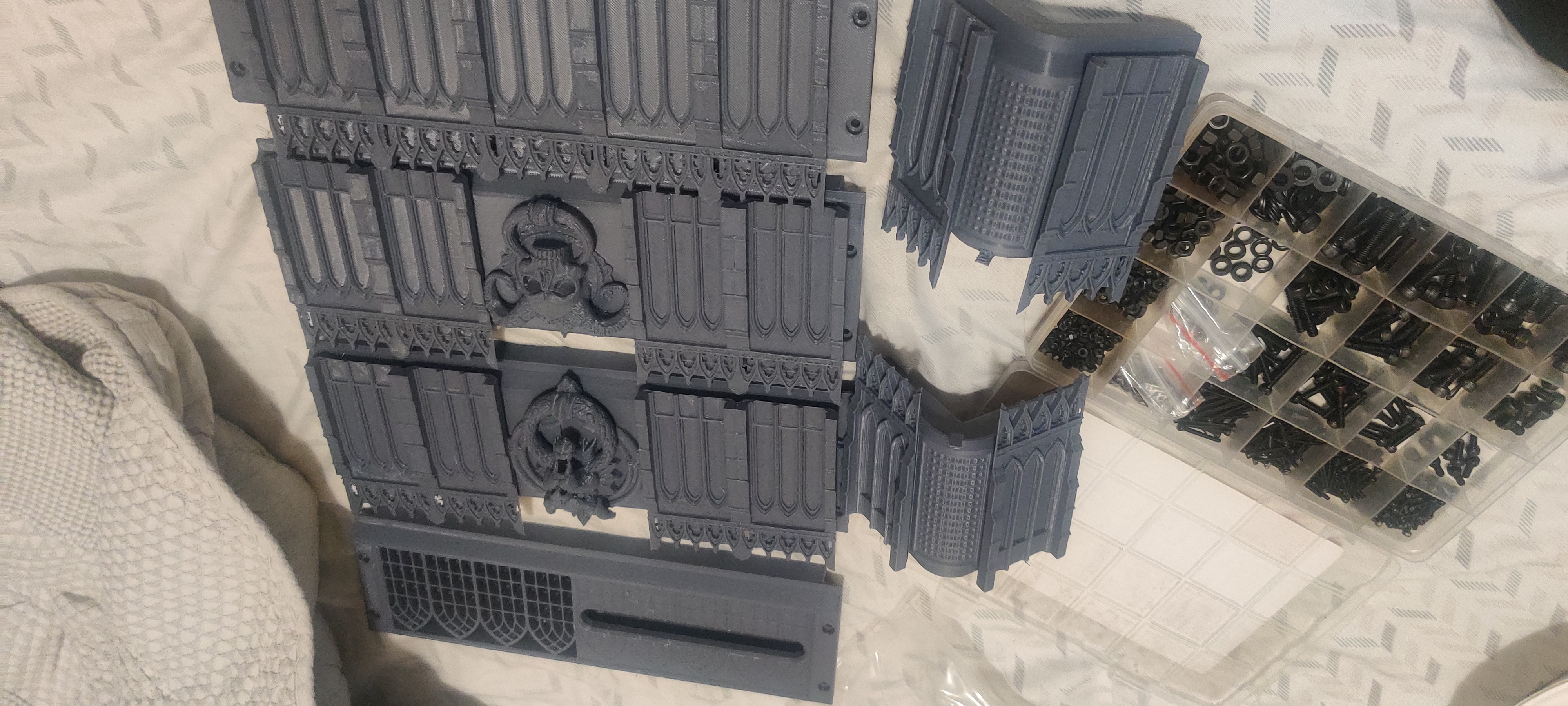

Of the included files you will need

1. 1 - Back Wall (sturdy_riser_cable_arm with cherub)
2. 3 - Either vented or solid walls (Personal preference)
3. 2 - Front Right/Rear Left Corners
4. 2 - Front Left/Rear Right Corners
5. 1 - Cable Arm Mount (in the original ancillary pieces file)
6. 1 - Cable Arm
7. As many cable clips as you need
8. 4- Gargoyles of your choosing

Assembly:

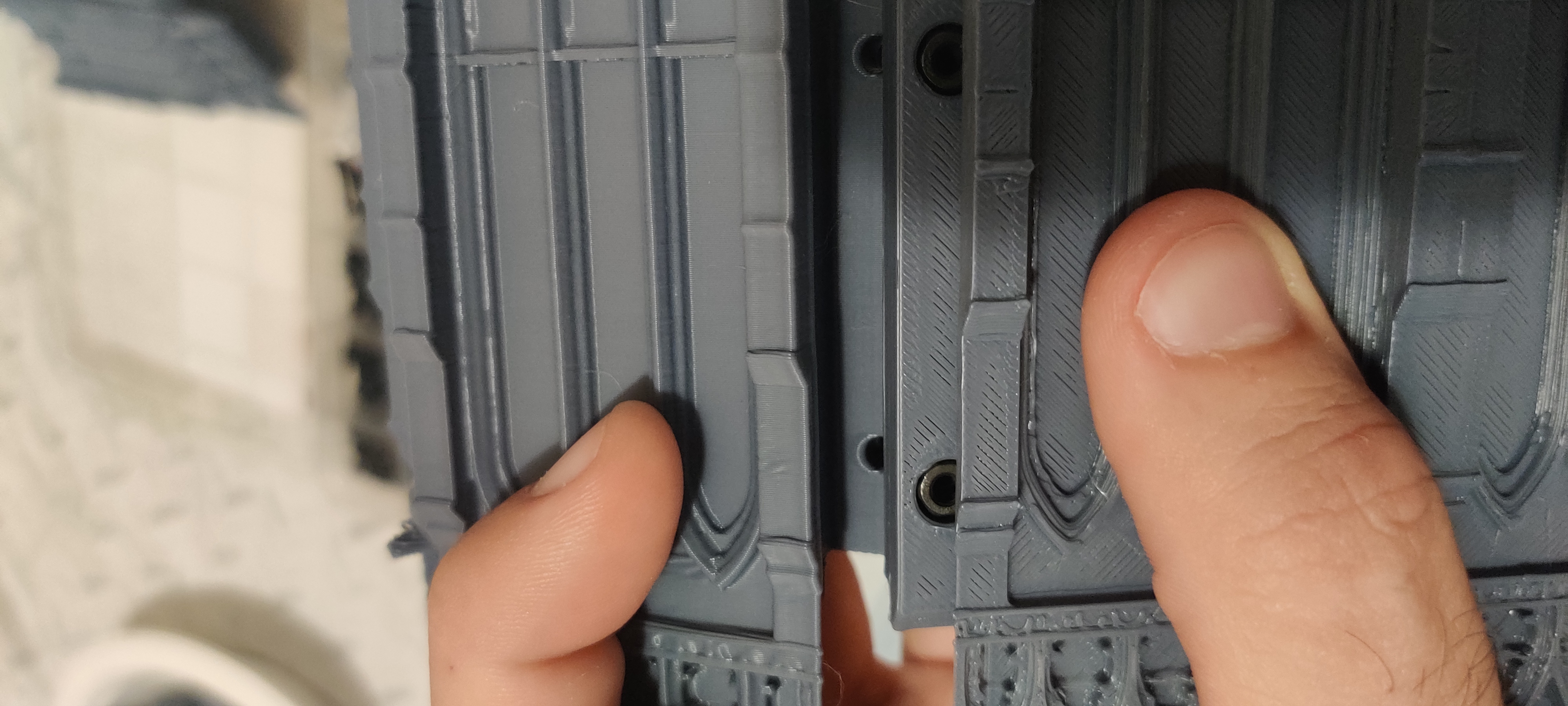

Similar to original, I have left just enough space between the cathedral walls to snugly place the m3 nuts within, before you place the connecting piece next to it and screw in an m3 screw.

Let me know if you would like to see anything changed
