Only for light displays (max. 27"/ 3KG)
Required Parts:
2x 15cm, 10mm Aluminum/Steel Rods
1x M6x80 screw
1x M6 nut
some washers
Display side:
4x m4x16
Vesa plate side:
4x m4x12 screws
4x m4 nuts
Recommended Print Settings:
Material: PETG or a stiffer material.
Orientation: The part should be printed in its original orientation (as provided in the file) to ensure maximum layer strength.
Infill: An infill density of 25% or higher is recommended for durability.
no supports needed

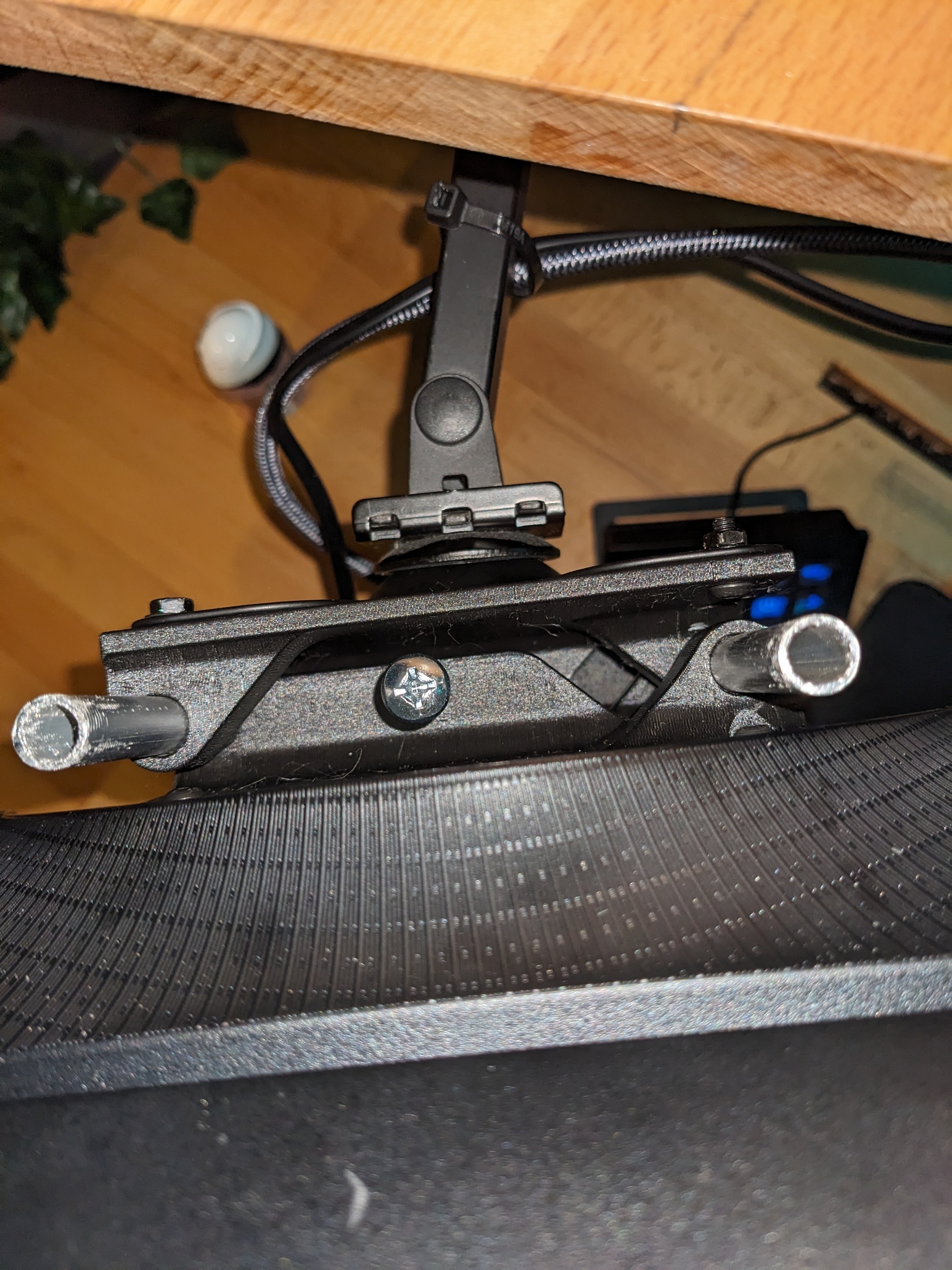

Assamble it exactly like shown on the pictures (L shaped part on the Wall mount side, other on the display itself, NOT the other way).
Note: The tolerances for the metal rods are intentionally tight. Assembly might be difficult, but this is necessary to prevent the monitor from wobbling during adjustment.
This has been tested with a 25" Samsung Odyssey G4B. Compatibility with larger or heavier monitors cannot be guaranteed.
