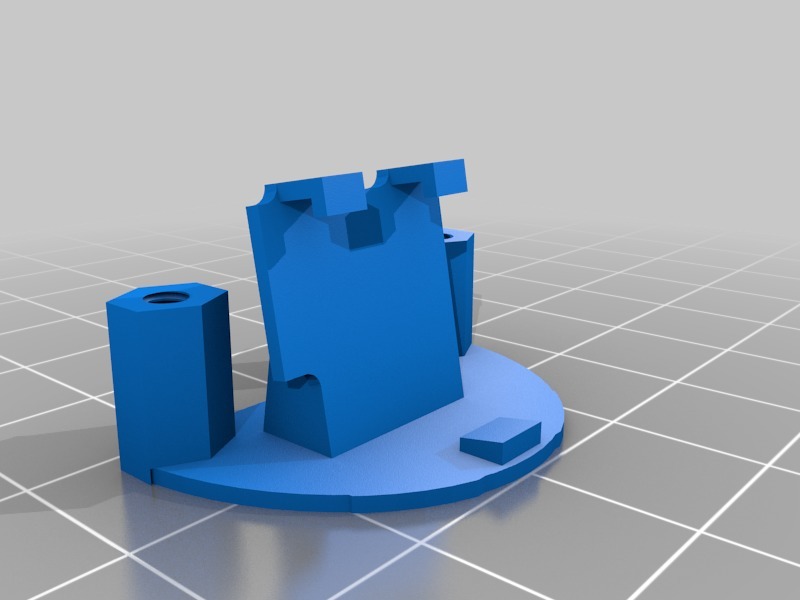

This thing fits the Hyperion 600TVL camera common used by Flitetest.
I recently built the FT gremlin around the Josh Bixler frame. At first, I was using double-sided tape which worked, but wanted something a little better since the tape would occasionally come loose. Flitetest hasn't yet released the camera holder, so I remixed hackaholic's camera mount for TJ's frame.
For this design, it is designed with M3 threads in the standoffs. My printer does not have the resolution for these to be usable, so I drilled them out and just "tapped" them with an M3 screw. This actually works quite well.
Hope you can get some use out this little thing on an absolutely awesome little quad!
Print Settings
Printer:
Davinci 1.0A with Reptier
Rafts:
No
Supports:
Yes
Resolution:
.2mm
Infill:
20%
Notes:
I used Simplify3D to manually place supports under the "clips." This was the only section that needed supports.
After printing, remove supports carefully. You may also need to drill out and tap the holes for the screws to go into.
