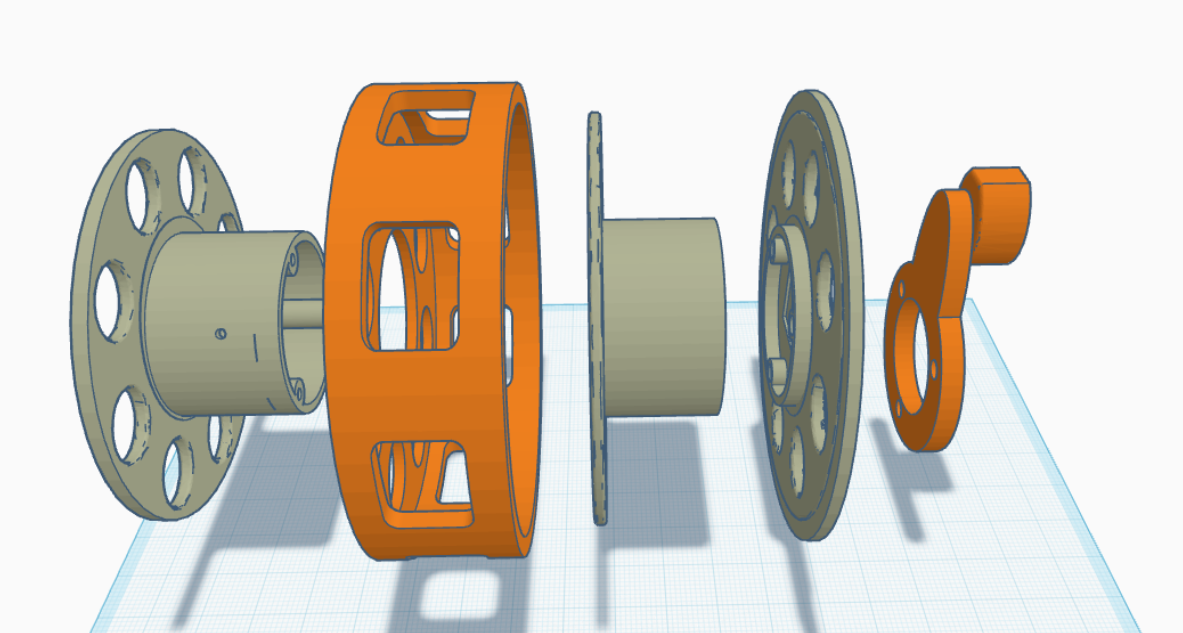

Modified Digitenna
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Gadgets
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
This is designed for the FT-82-43 torroid, which I got from Amazon - https://amzn.to/3KDiDdo
A 150pf Capacitor. I got this kit - https://amzn.to/4orASAj
22 AWG magnet wire - https://amzn.to/4iwDZ8N
BNC female connector chassis - https://amzn.to/4iCZfdc
#6-5/8 stainless screws.
I like the antenna 24 gauge wire from DX engineering and the 26 gauge sotabeams wire.
3 primary turns and another 21 secondary for a total of 24. You do not need to do the typical crossover wind.
80 meter version for an FT-140-43 coming.
*N3DLU designed a new handle in two parts, as mine was hard to print and free up. New file in list.
