Important
Required FreeCAD Version 1.2.0dev or 1.1.0rc3. (I didn't test other version but can confirm it will not work in 1.0.2)
Varset

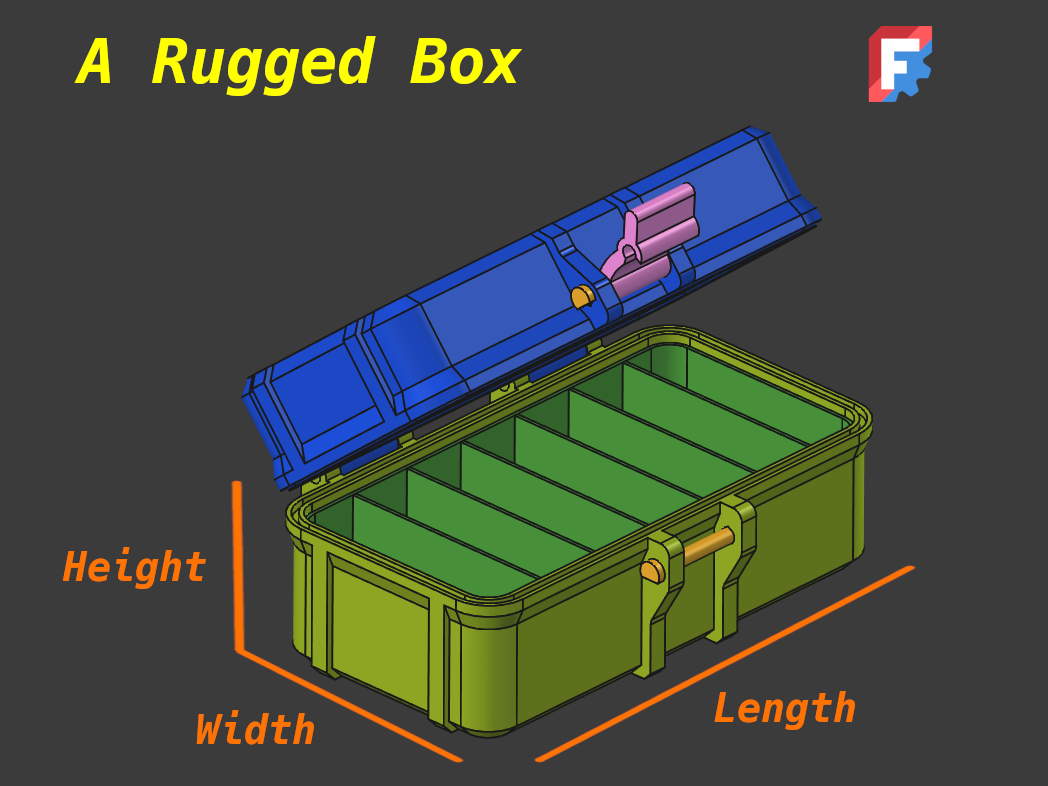

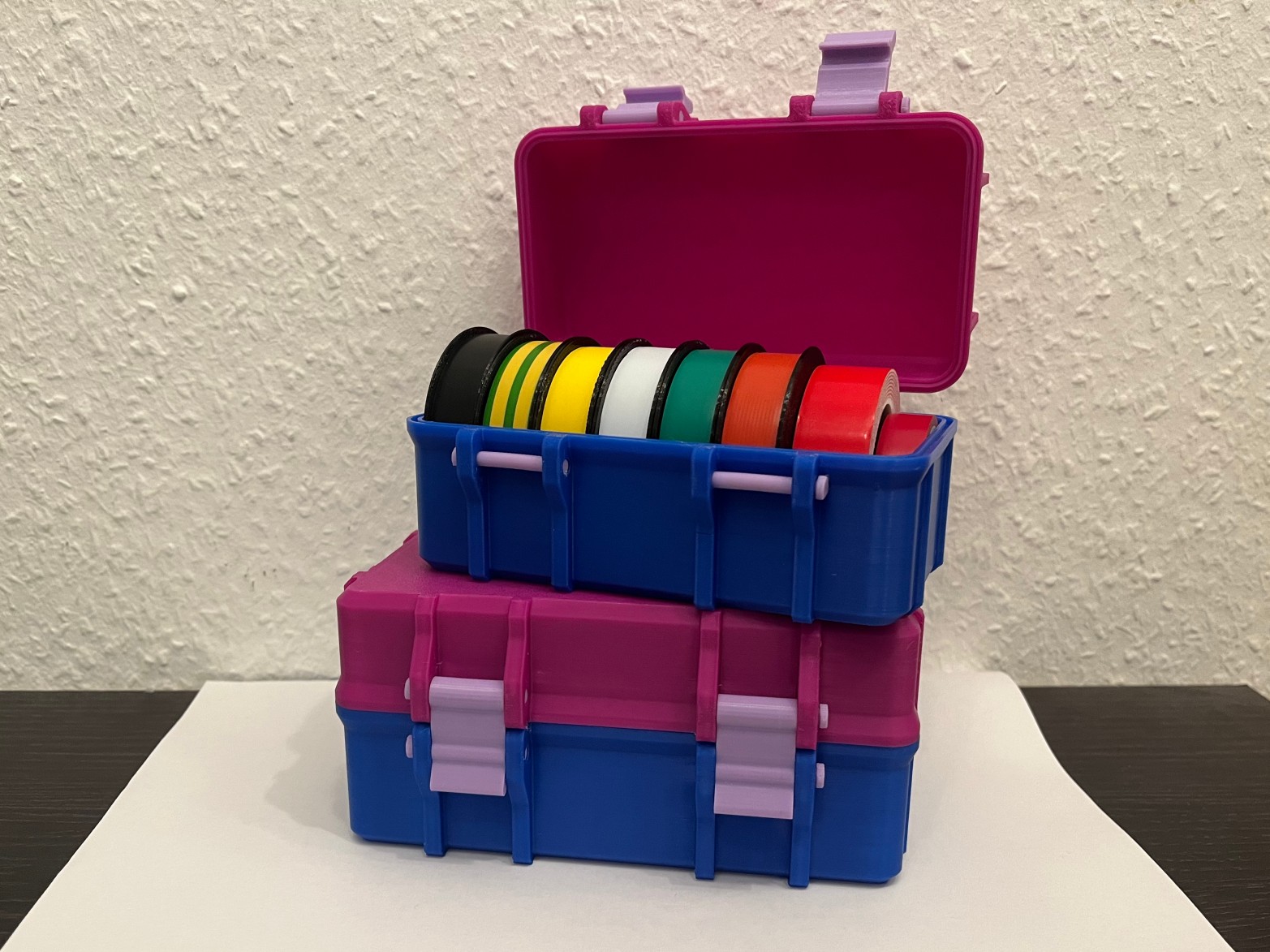

Box (See Picture for Reference) | ||
Parameter | Description | Remark |
Height* | Box Height | Min: 25mm |
Lid Height* | Lid Height | Min: 26mm (Room for improvement*) |
Length* | Inner Box and Lid Length | Min: 70mm |
Width* | Inner Box and Lid Width | Min: 20mm |
Options** | ||
Single | Single - Latch | yes/ no |
*It will not affect the model, if you set the box dimension lower then the constrains.
** The other options are set to Read-Only. TBH i didn't test changes here.
How-To-Use
Simple Box
Setup you Box in VarSet
Select each body (Lid, Latch, Bolt, BoxAndInlay) and Export (File-Export, Ctrl+E). If you select more than one body than your slicer maybe ask if the exported file should be loaded as a single object with multiple parts? - Select no and rearrange the bodies, well yes i guess you know what to
Hint: BoxAndInlay - Set Inlay it's to invisible or select only Box-Body for export. If you export Part BoxAndInlay where Box and Inlay is visible you get one pice, which you can't divide in the slicer.
Inlay
Activate Inlay Body.
Set Length of InlayBlock (Its not a parameter, because i don't you what you want here)
Edit skCustomInlay
...
BOM
Piece | Normal | Single Latch |
|---|---|---|
Latch | 2 | 1 |
Bold | 6 | 4 |
Lid | 1 | 1 |
Box | 1 | 1 |
Based on this model i made this Rugged case for a Trotec BM31:
