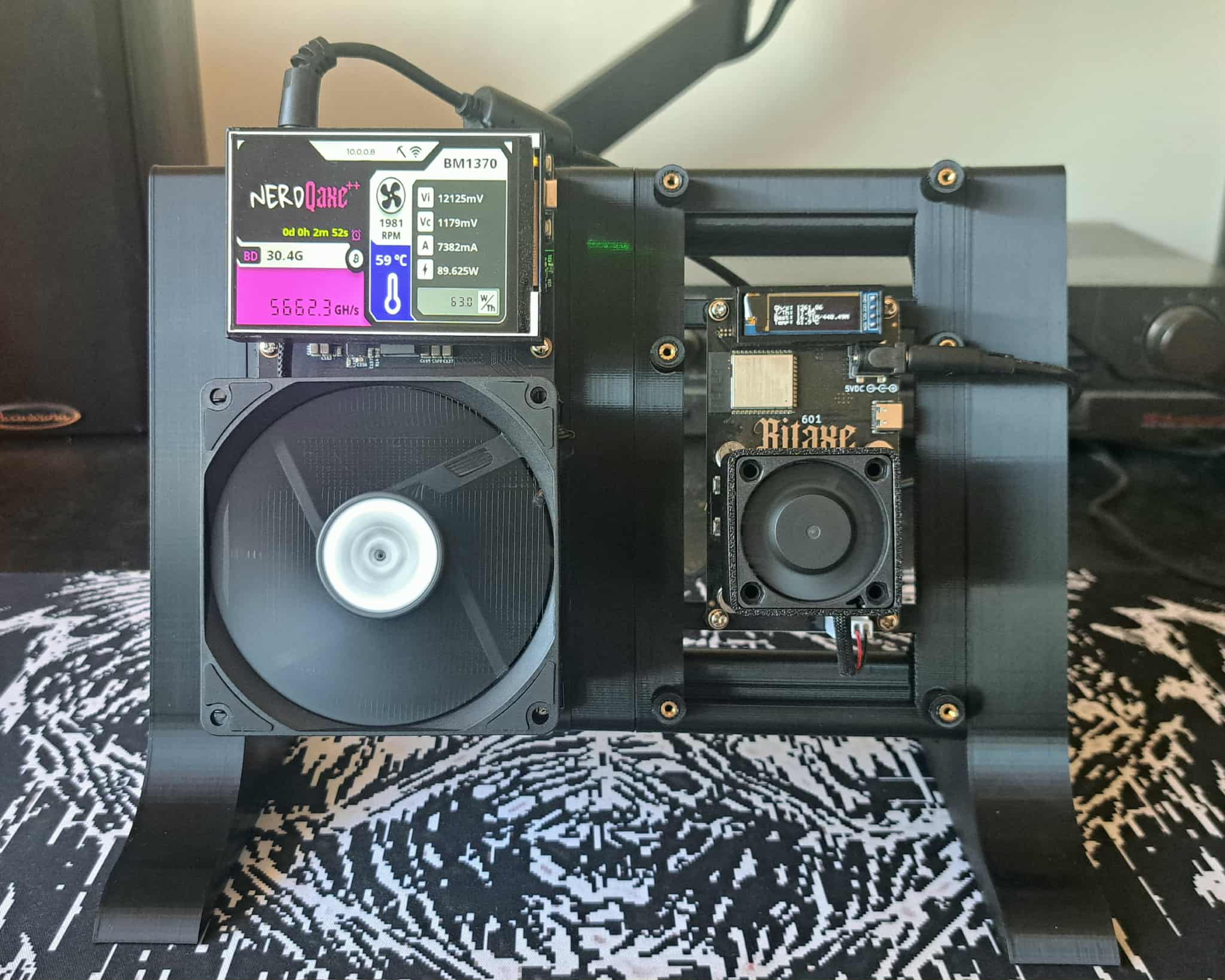

Modular mounting array for your bitaxe gamma (601 and 602) and/or NerdQaxe++.
Hardware required, You will need:
12.7mm (1/2 inch) diameter dowel
M3 threaded inserts
6mm M3 button head screws (that thread into your inserts)
The holes that the dowel go into are 13mm wide, this gave me a nice and snug (but not too snug) fit so that I could minimise hardware securing the dowel in place. Please be aware you might have different success with your local hardware stores tolerances.
PLEASE NOTE:
The files are still in its "beta" stage.
The Nerdqaxe++ mounting holes are not perfect (only close enough) and could do with some sub 0.5mm refining. The mounting points do work but could be better.
There is also no current support for rear-fans for the NerdQaxe++.
The wall mounting bracket has not yet been printed or tested!
In the spirit of open-source, feel free to do whatever you want with the files.
