ToolBox with handle and sections - Open Source and fully parametric

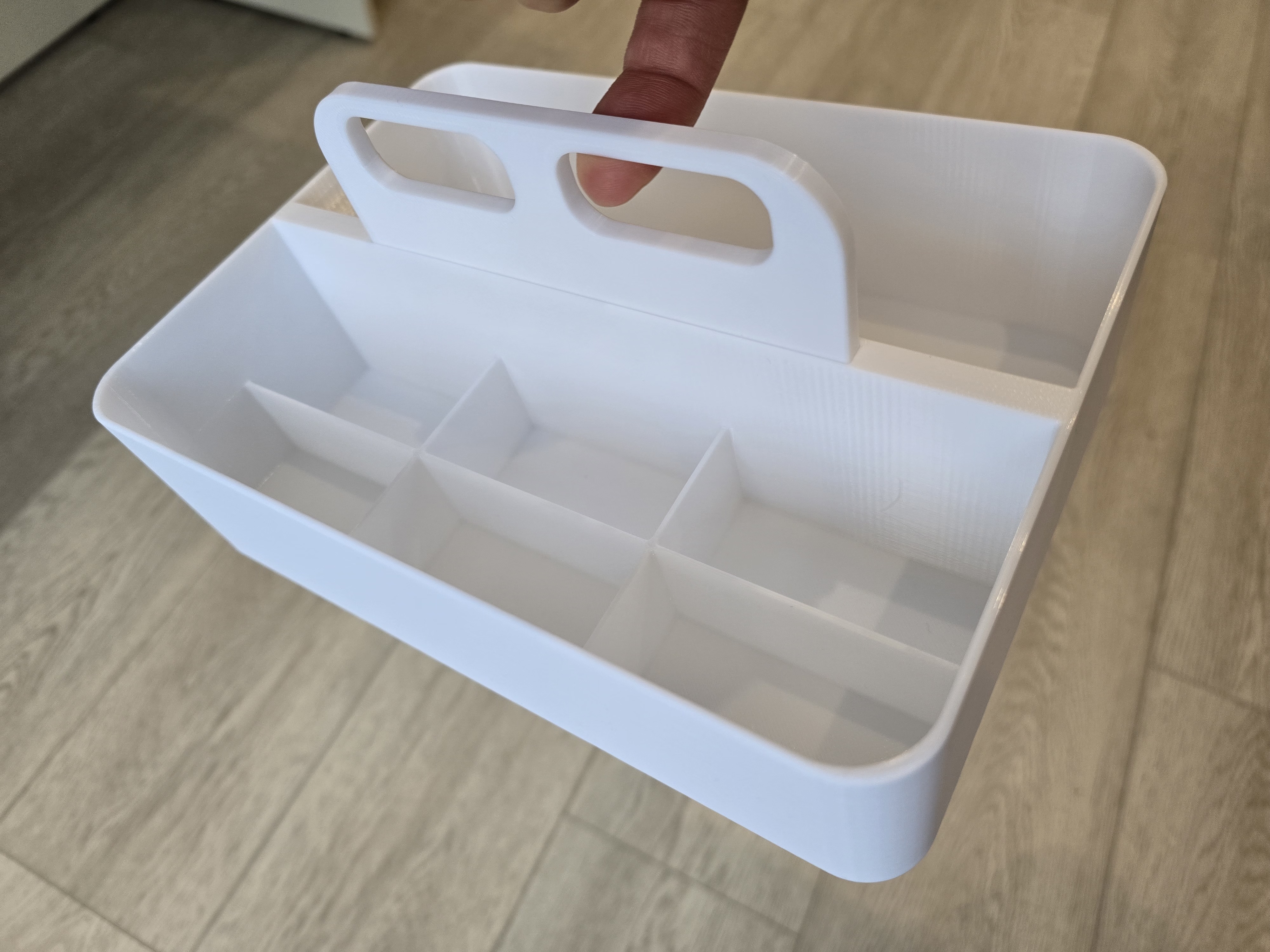

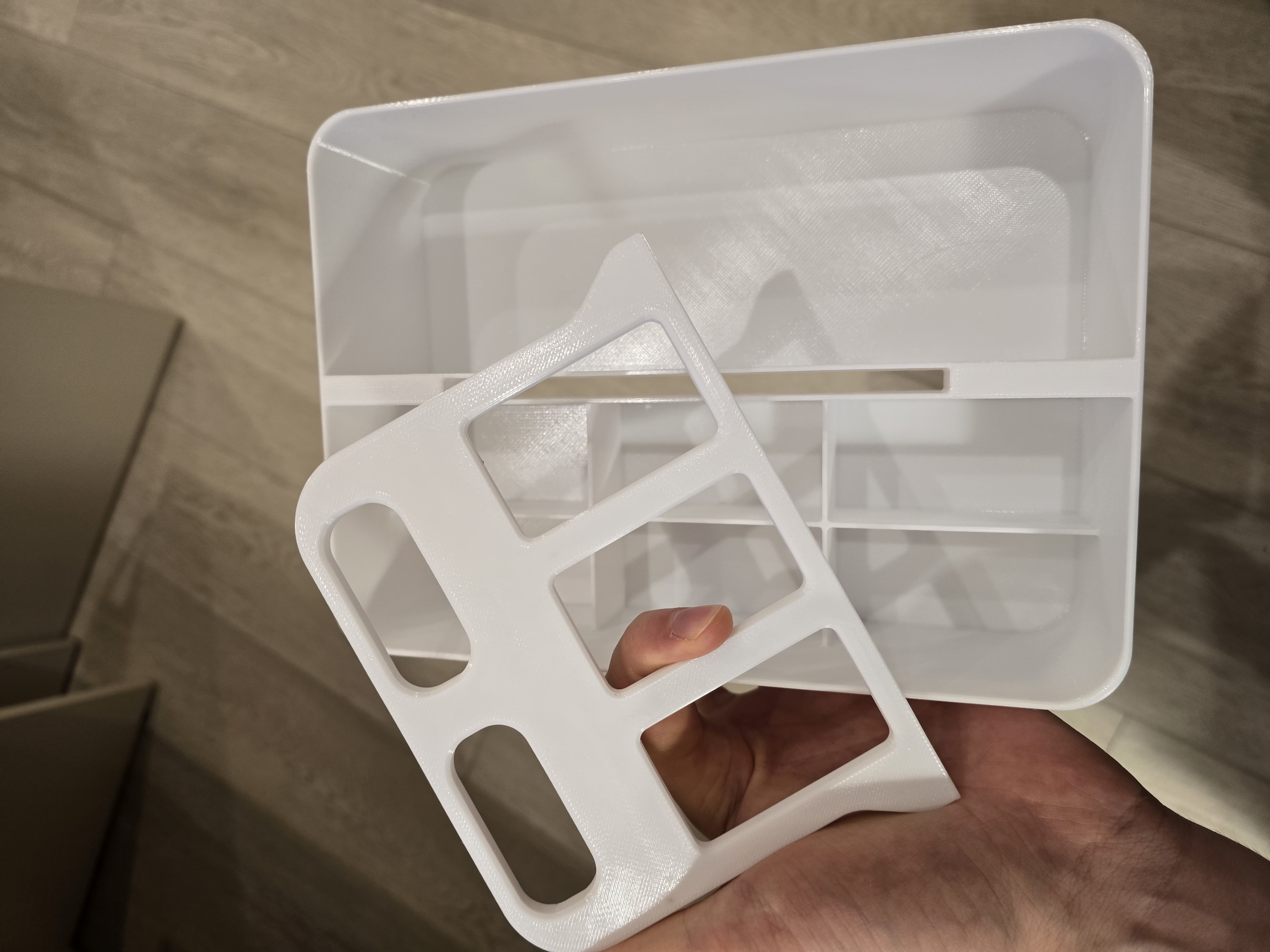

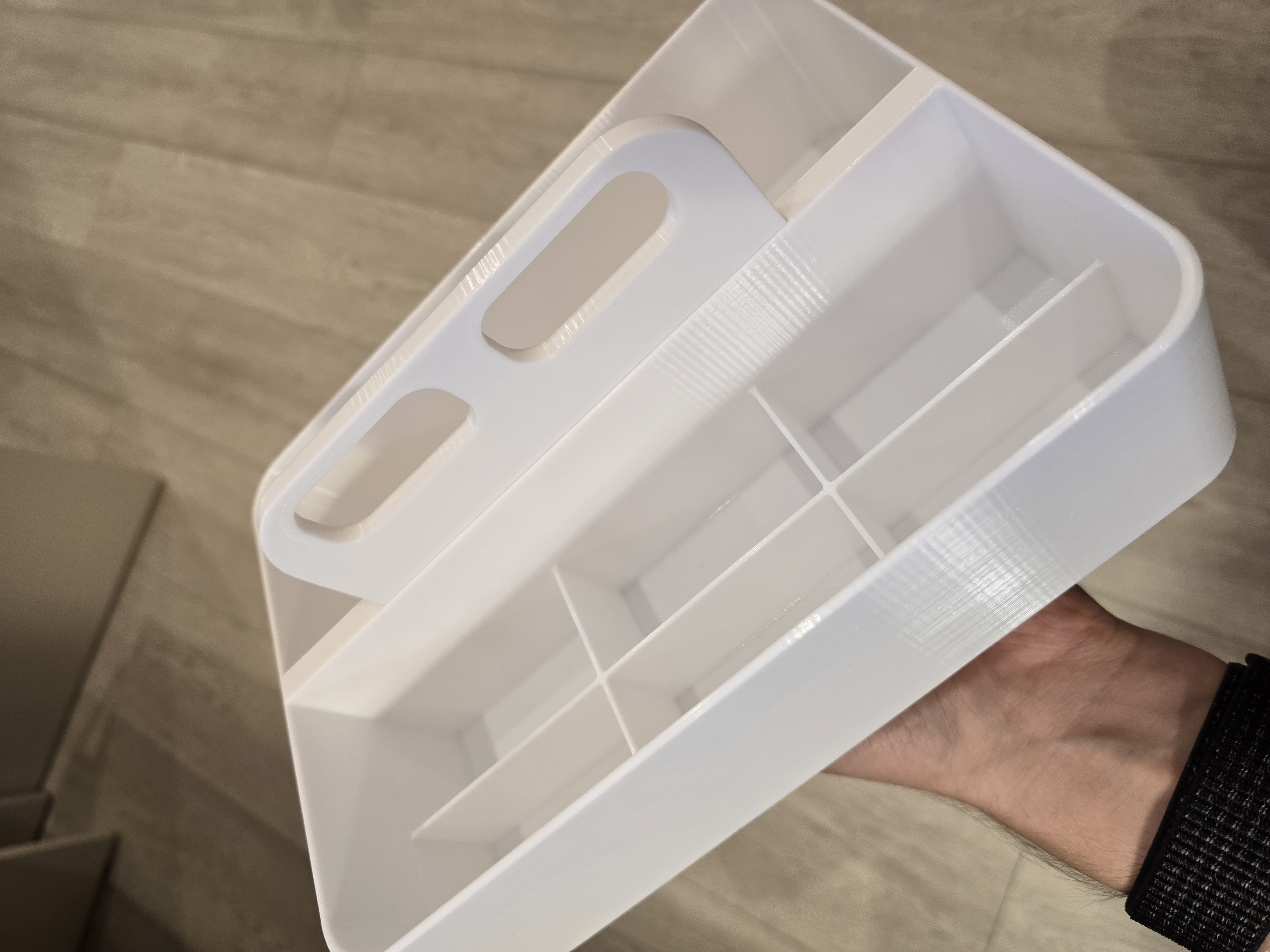

This is a toolbox with two main sections. One of them is divided into smaller sections.

• Main model: 220mm width

• Mini model: 180mm width

But it's fully parametric, you can use FreeCAD to edit the whole ToolBox

Here's my shorts video about it and why I did decided to design this remake.

This model is inspired by Paul's video on YouTube channel Paul Lagier, here's his video link.

One of the Paul's design features is click-closing boxes. I didn't redesign them yet.

Paul's design is available only as ready to print model files. I needed to do some changes to the design so it's easier to print and also becomes parametric and open source.

It can be printed in PLA or PETG (or whatever you wish). I used PETG because it's already in my printer.

Print guidelines for 0.4mm nozzle:

Layer height: 0.2mm or your choice.

These are recommended settings if you don't know what to set.

Feel free to change settings as you wish.

 Use the Configuration sheet in FreeCAD to edit all parameters of the model.
