Due to some problem fixing and rebuilding of my Simson mopeds (KR51/2L) I was looking for a better way to debug the ignition circuit of the M541-Engine with electronic ignition.
I found the schematic posted by SSJ3 Vegotenks @ Simsonforum.de that is higly approved.

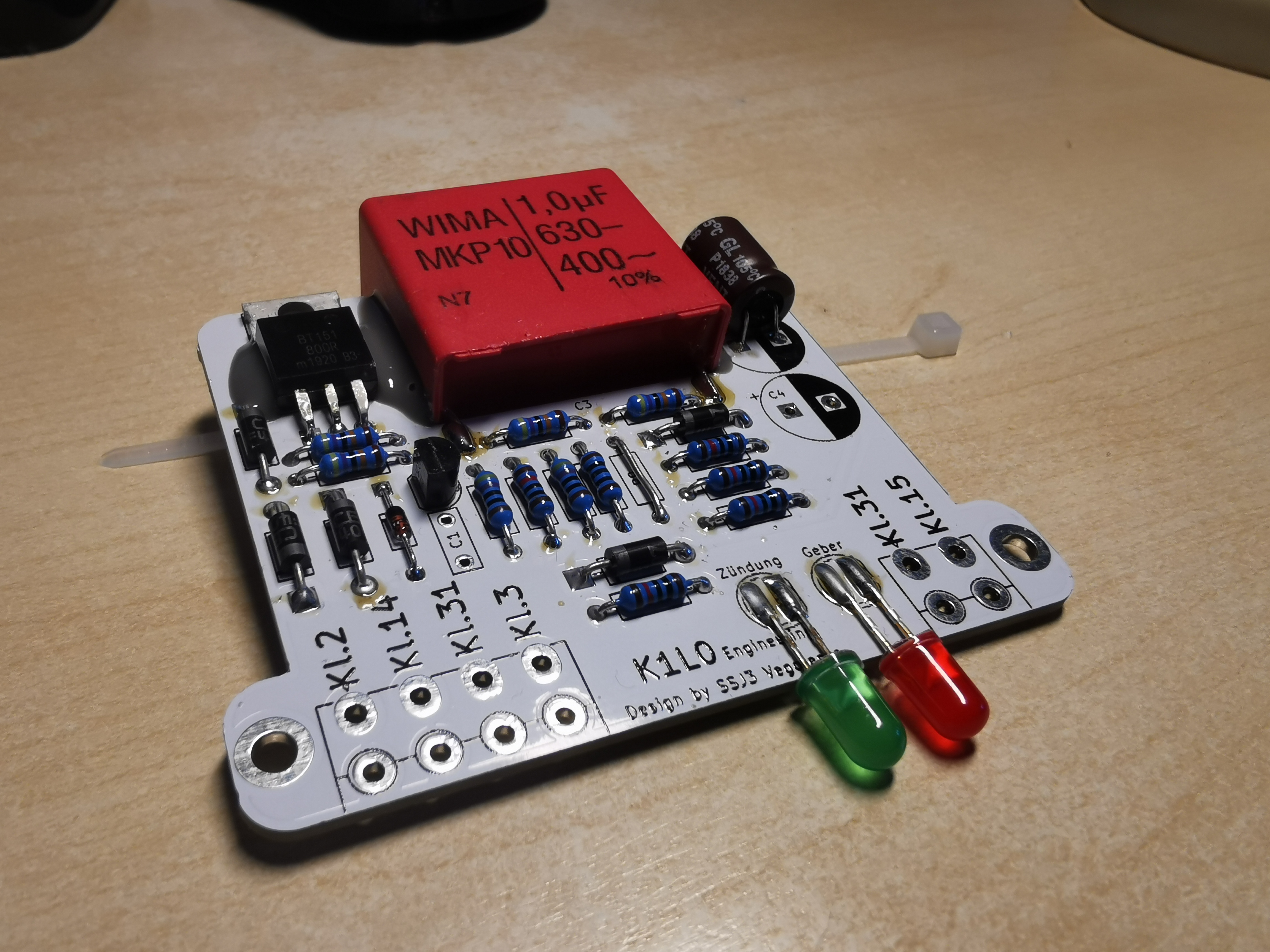

Due to my electonics background I designed a PCB for building up the control unit either for SLEZ (old DDR-style electonic ignition system) or VAPE (modern sold ignition system).
I also created this housing for my PCB that fit's the original mounting bracket.
I had some contact with SSJ3 Vegotenks himself so I sent him two pieces over for tests. He approved!
Schematic can be found in “other files”. I uploaded the production package I used to order at JLCPCB.
