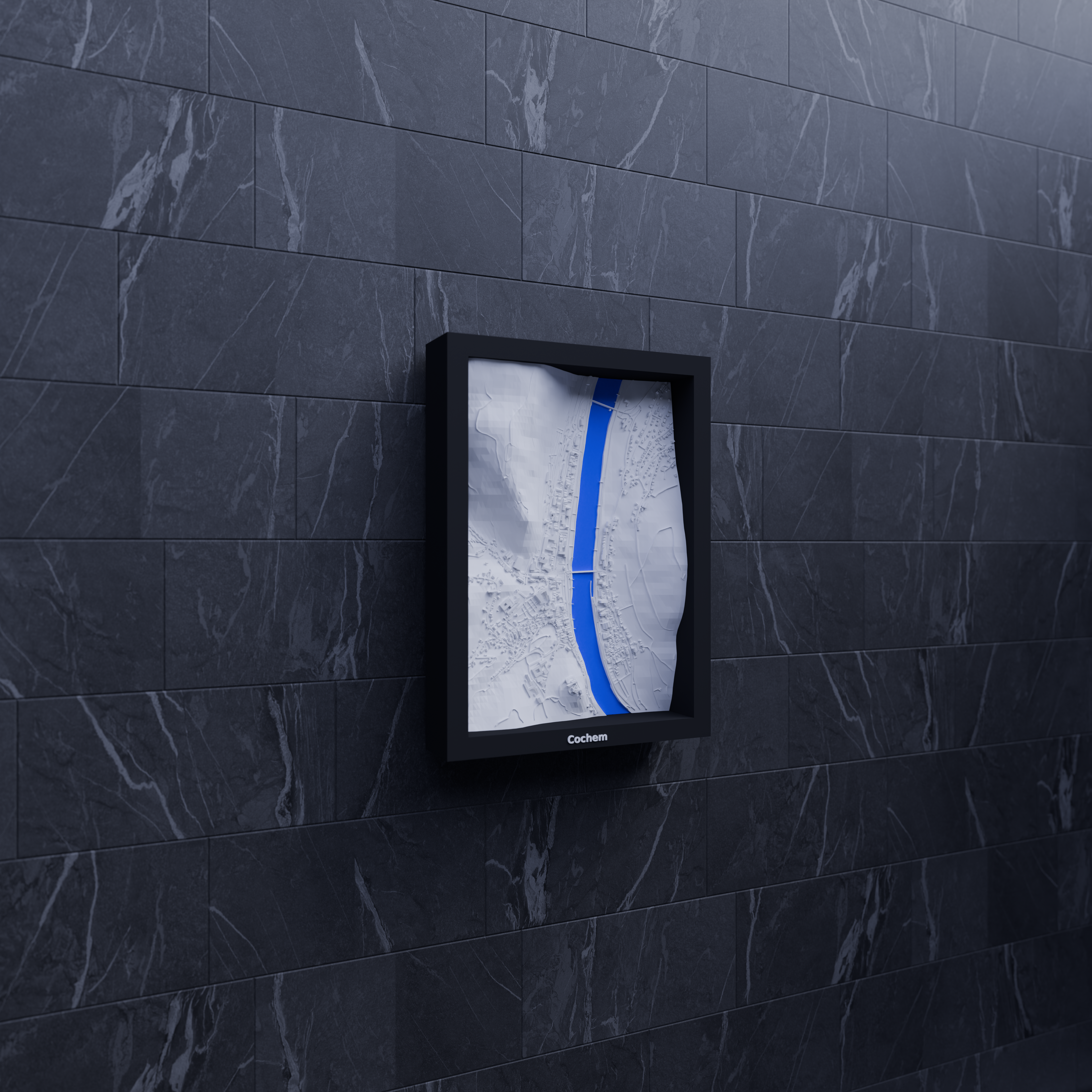

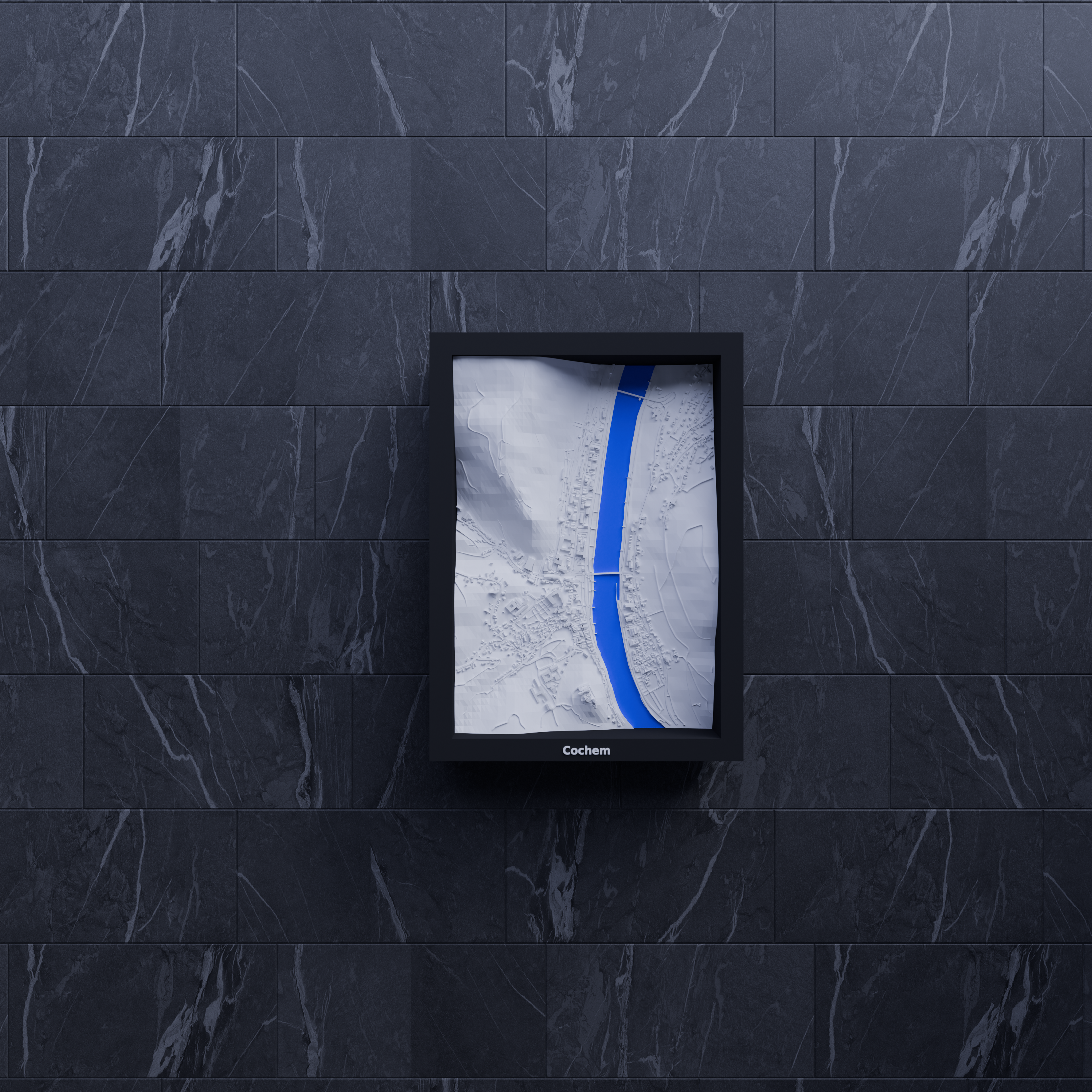

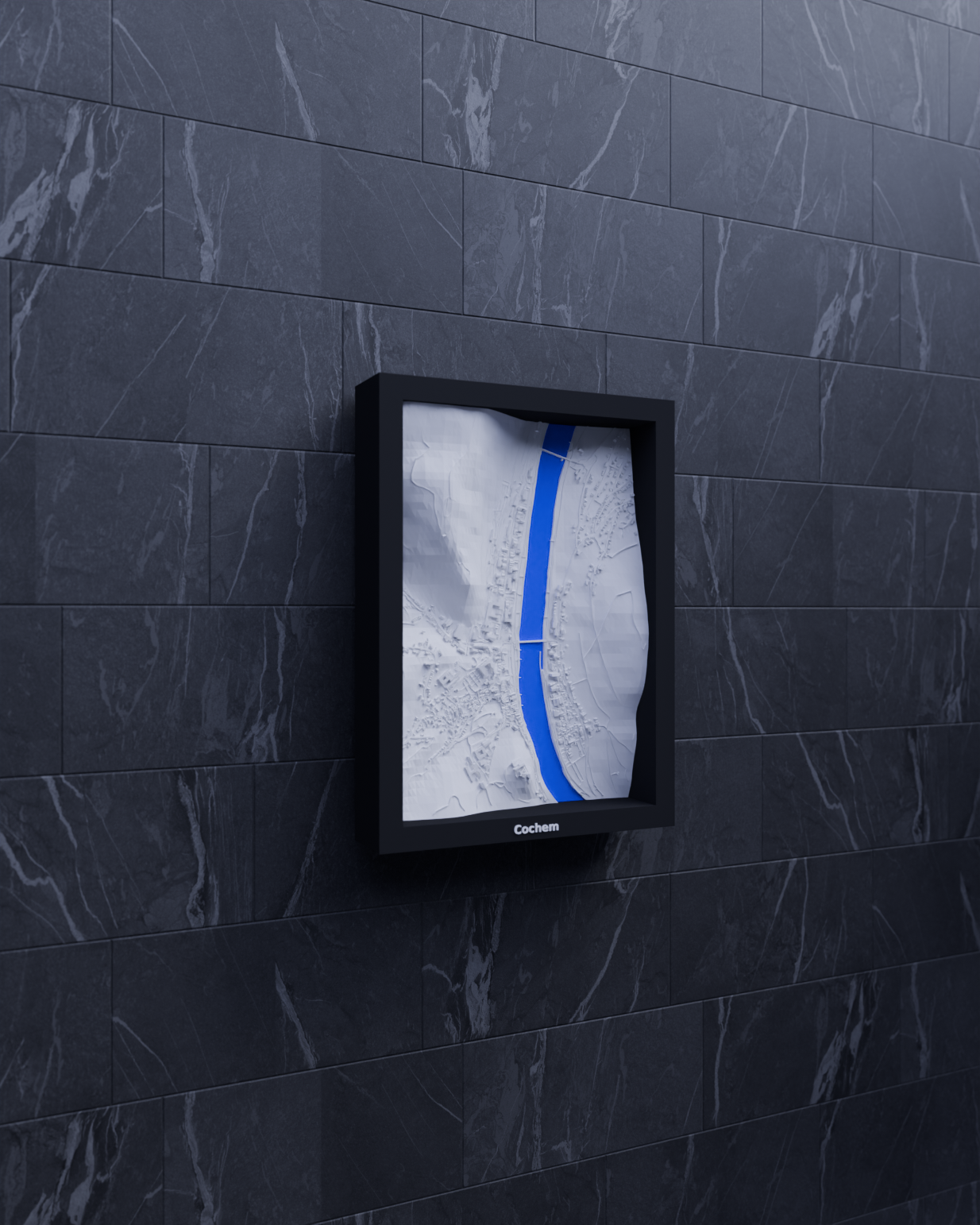

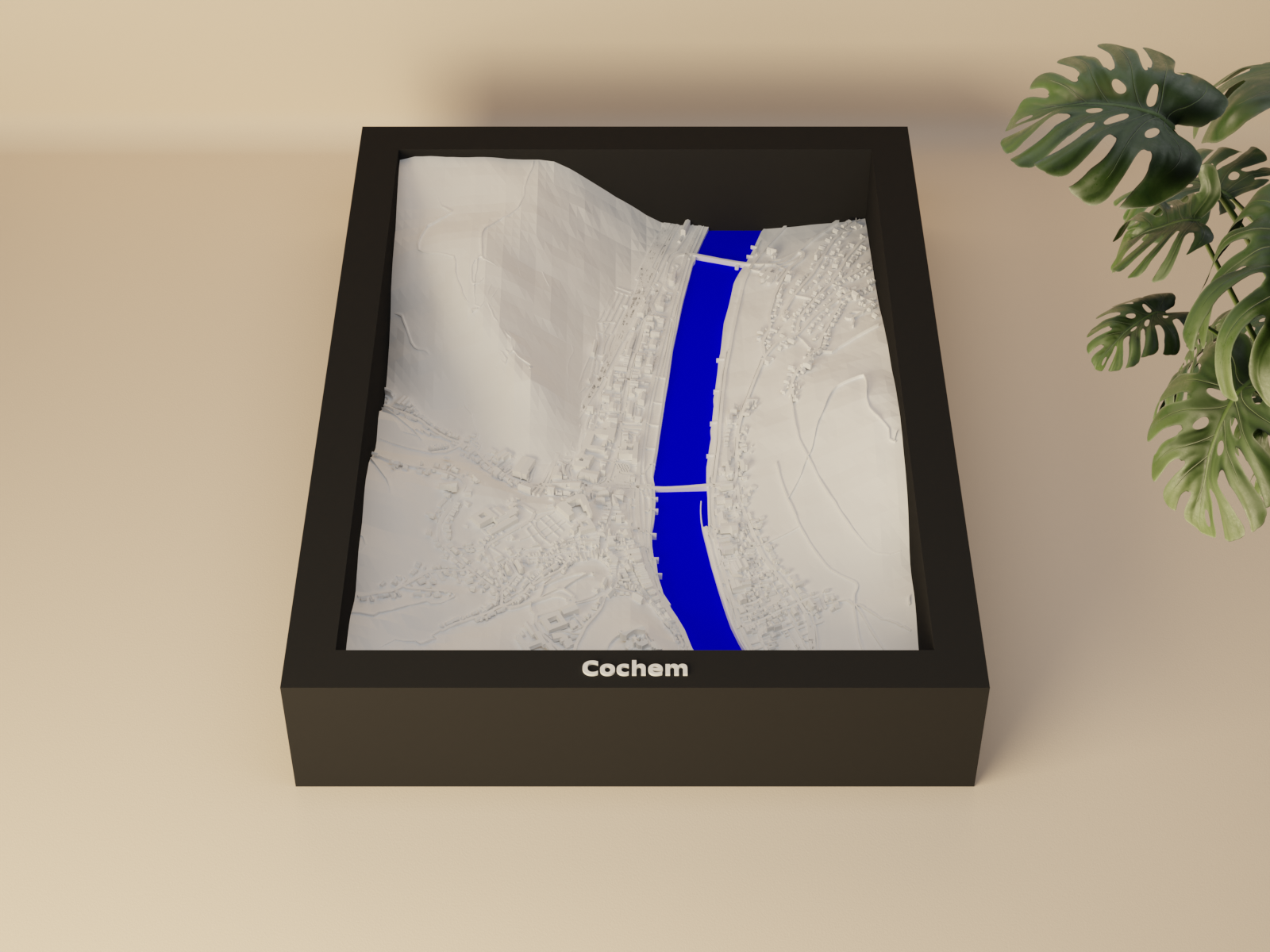

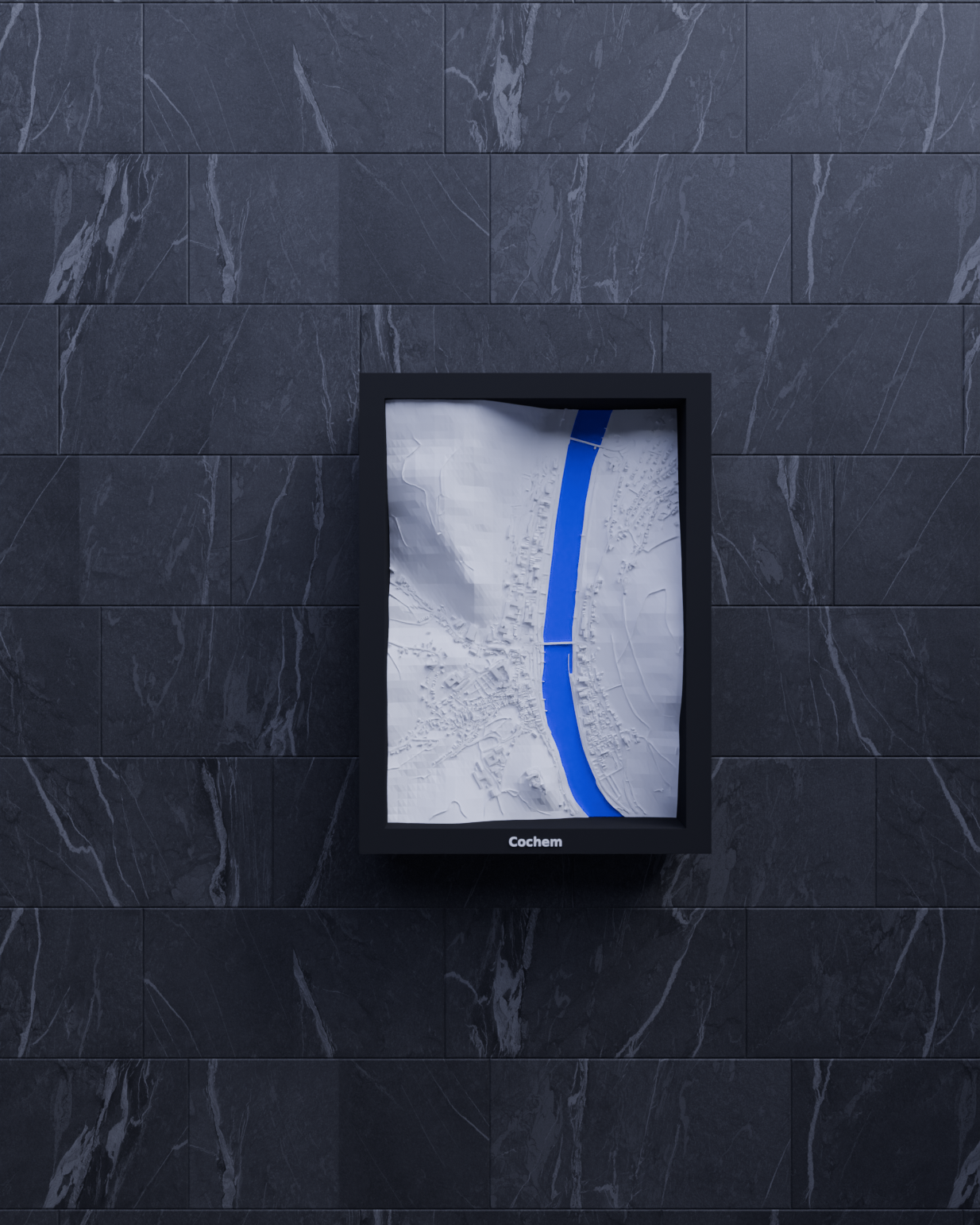

Cochem, Germany - 3D Miniature

3D printable topographic miniature of Cochem - 🇩🇪 Germany

Capture the beauty of Cochem's city landscape with this topographic miniature! This 3D model represents the geographic area around the geo coordinates 50.149, 7.167 (LatLng).

It is scaled down from a geographic area of around 1.198 km x 1.704 km to a 3D printable miniature in the dimensions of 119.5 mm x 170.5 mm. The scale from the geographic area (2.040 sq km) to the miniature is approximately ~10021:1.

The terrain is modeled from geographic data for realistic terrain representation. Ideal for educational purposes, architectural visualization, or as a decorative piece.

Also don't miss out on the other miniatures. Find them in my miniature collection.

Explore all available miniature locations on the interactive miniature map.

Included Frames:

•     </p></li><li><p>
          Dimensions of 139.70 x 190.70 x 31.25 mm,

              text Engraving "Cochem"


              with hanging holes



      </p></li><li><p>



      </p></li><li><p>
          Dimensions of 127.70 x 178.70 x 30.75 mm,

              no text engraving


              with hanging holes



              (fits A1 mini bed size)

      </p></li><li><p>



      </p></li><li><p>
          Dimensions of 139.70 x 190.70 x 30.75 mm,

              no text engraving


              with hanging holes



      </p></li><li><p>


Recommended Print Settings:

• The provided print profiles provide specific (multicolor & single color) settings for the Miniature and the appropriate frame(s).

• The print profile includes two highly specialized print profiles "classic" and "arachne". For optimal results, use "arachne" (note: expect long slicing times).

Assembly:

• Gently put the miniature into the frame. Depending on your printer's calibration, that should be enough to hold the miniature.

• If in doubt, use some super glue. For PLA, I use this glue* (thick variant). I experienced best results with glue that contains Ethyl-2-cyanacrylat.

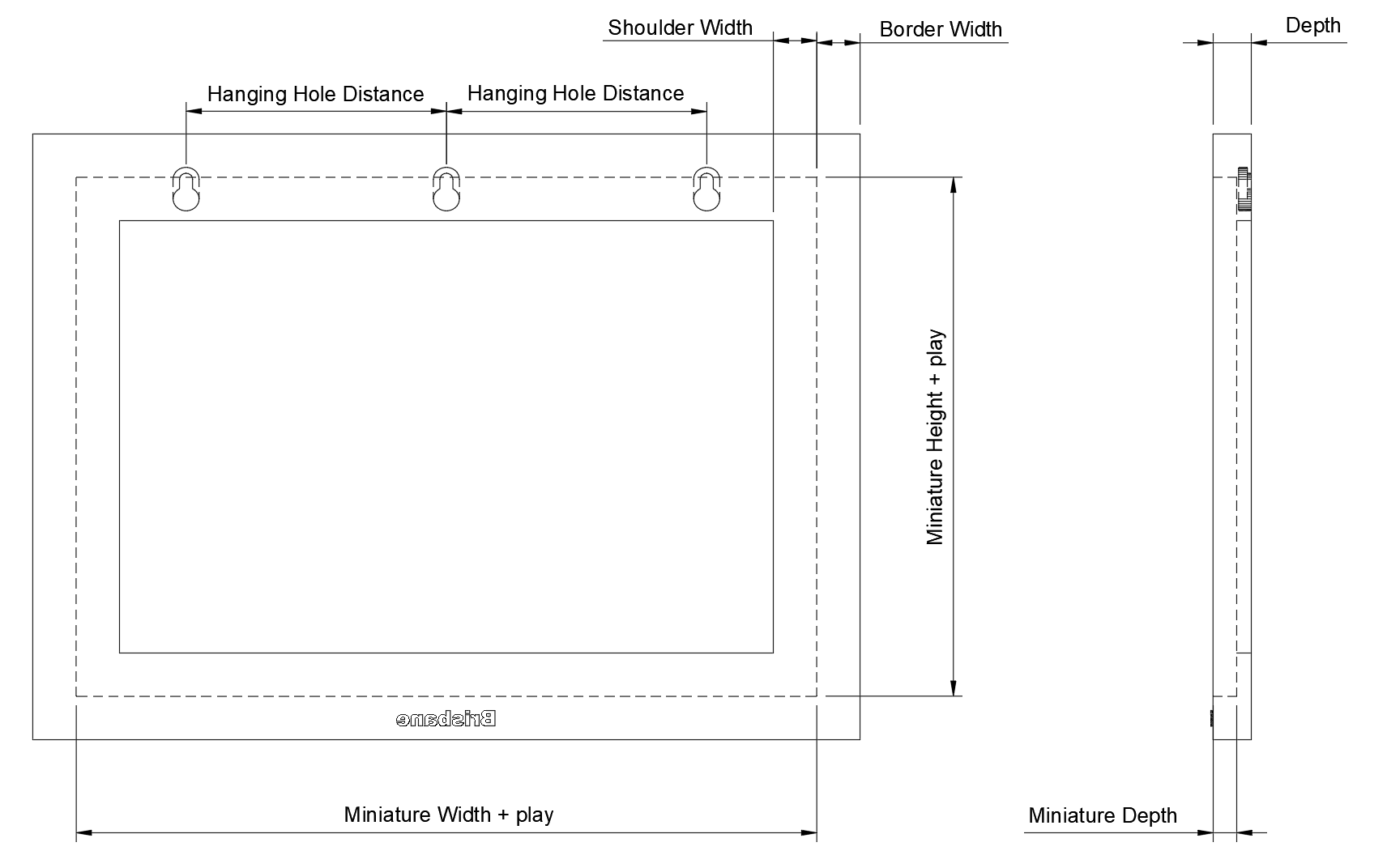

• Hanging Holes: My frames always have a hole pattern divisible by 10 mm - for this miniature's size the "Hanging Hole Distance" results in 60 mm between holes.

Contains information from OpenStreetMap, which is made available here under the Open Database License (ODbL).
