NOT FINISHED JET

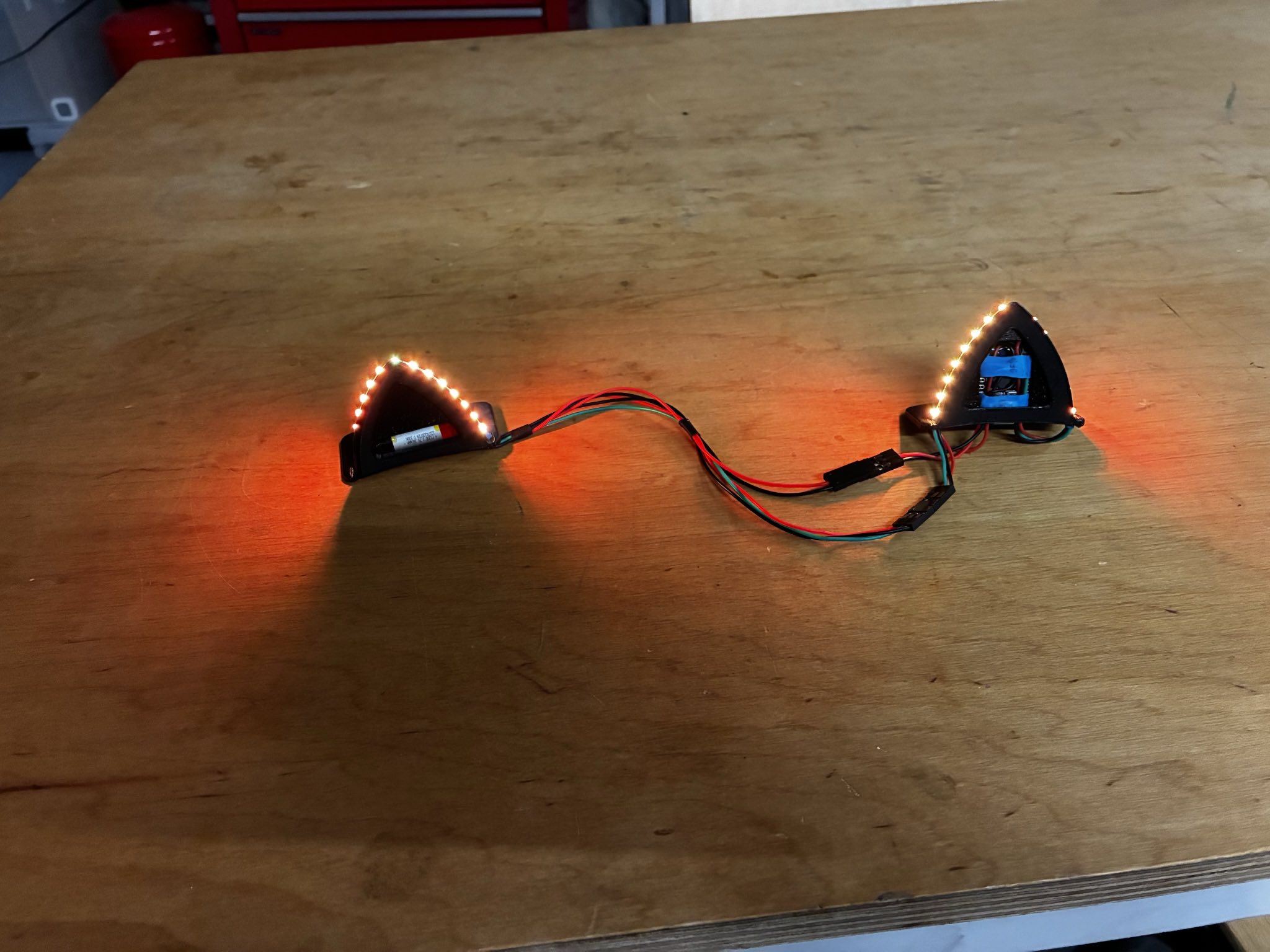

This is my Project of making caters who you can eaysly mount in any kind of headphones. Current version uses a vape Battery with 360mah witch lasts ca 2-3h. I plan to build a v2 with a 500mah Battery and proper power management in the future.
Known Problems
at the moment the ESP with WLED runs really hot (60c) and the Battery voltage (3.7v-4.2v) gos directly to the ESP. And Not all LEDs are visible from the front.
Parts I used
Part I used | Link (Aliexpress) |
|---|---|
ESP 32 C3 supermini | |
1S Typ c BMS | |
(Vape)Battery | |
3mm WS2812 LED Strip | |
Software WLED/Self coded alternativ coming soon | |
M2 Screws (optional) | |
M2 inserts |
You also need some easy to solder cable and jumper connectors
There are some different ways to assemble and different versions
Just-rescaled

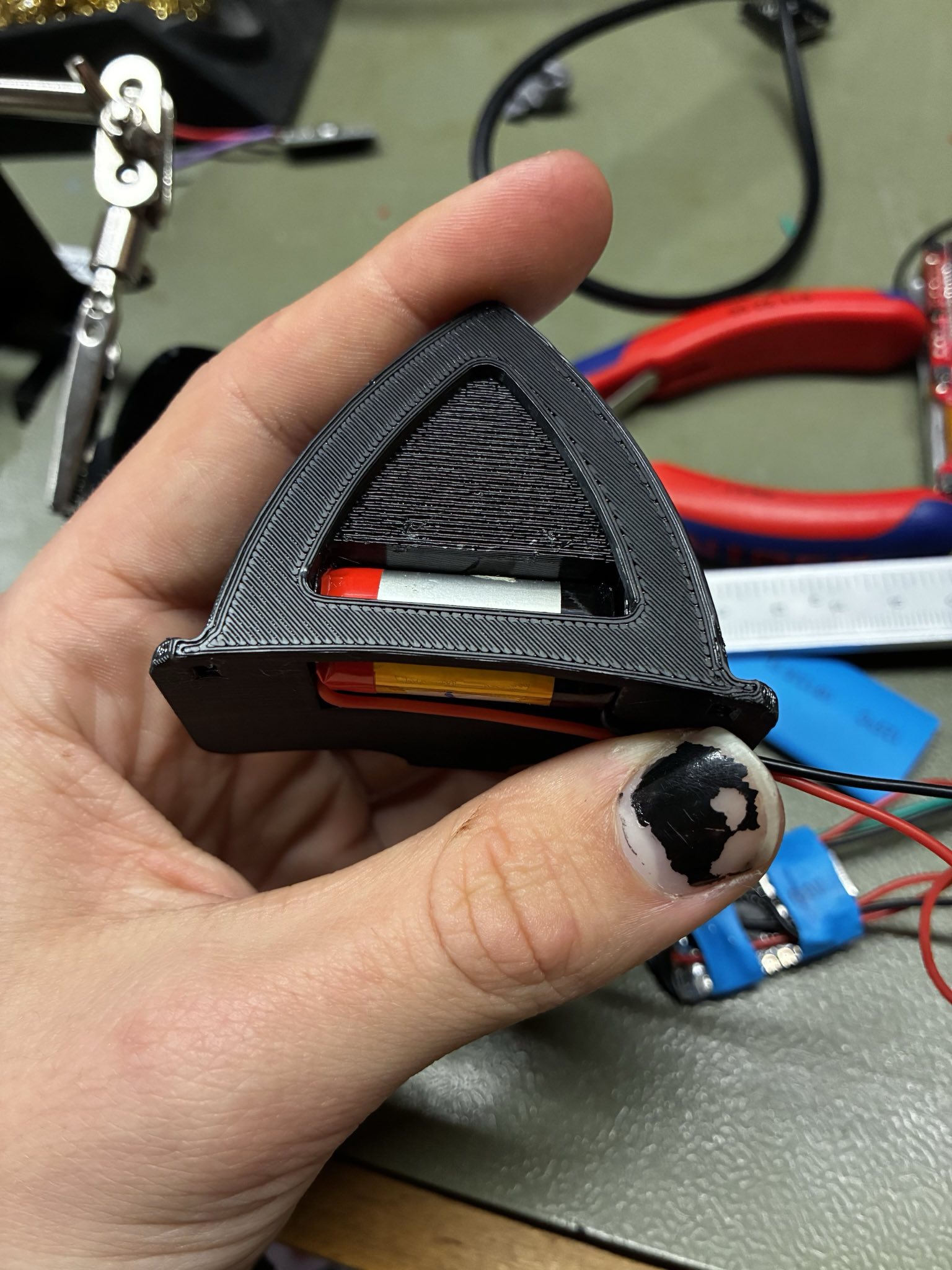

here you just need to glue the front plate in the housing
WLED-Version(easy)

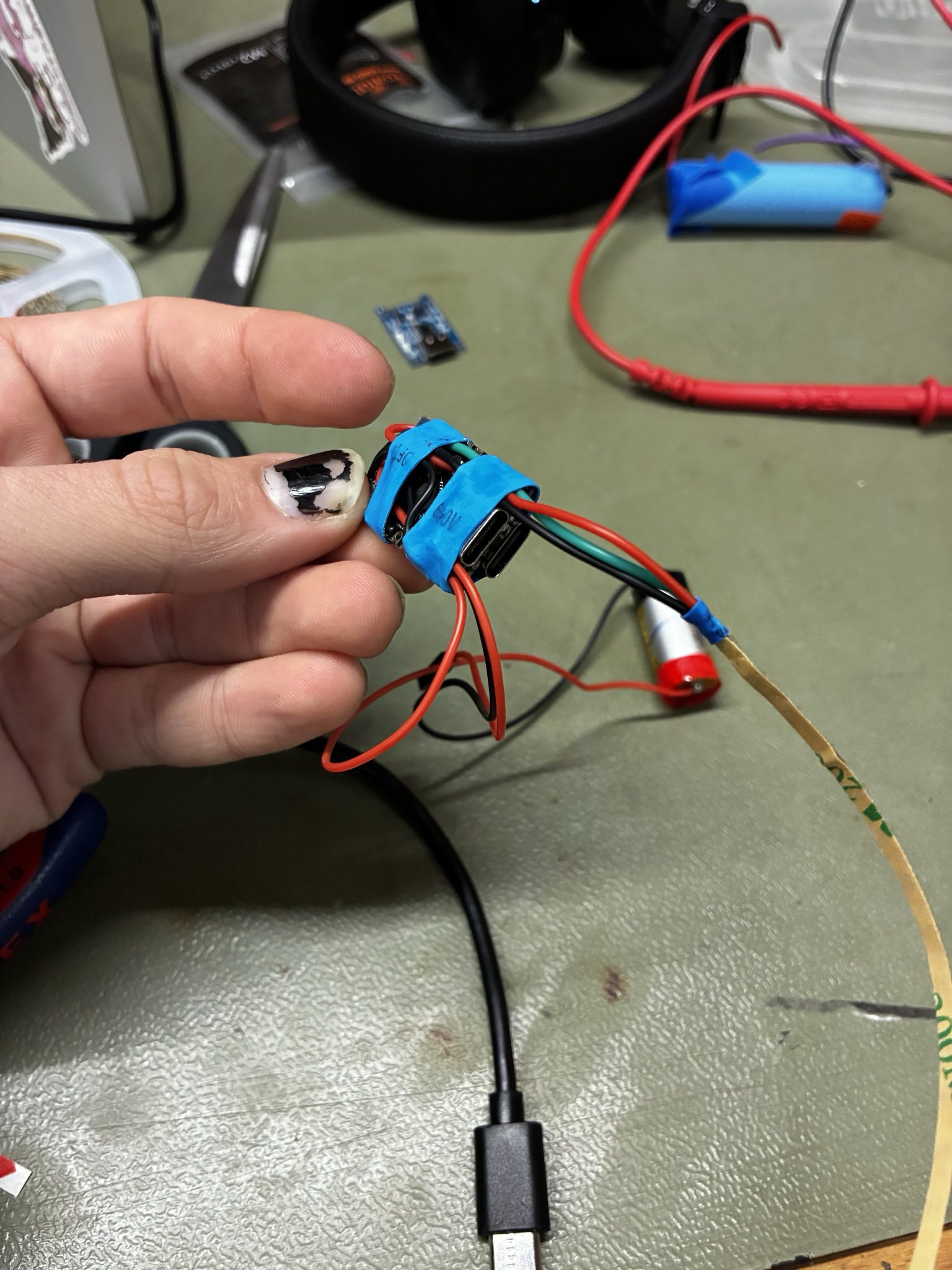

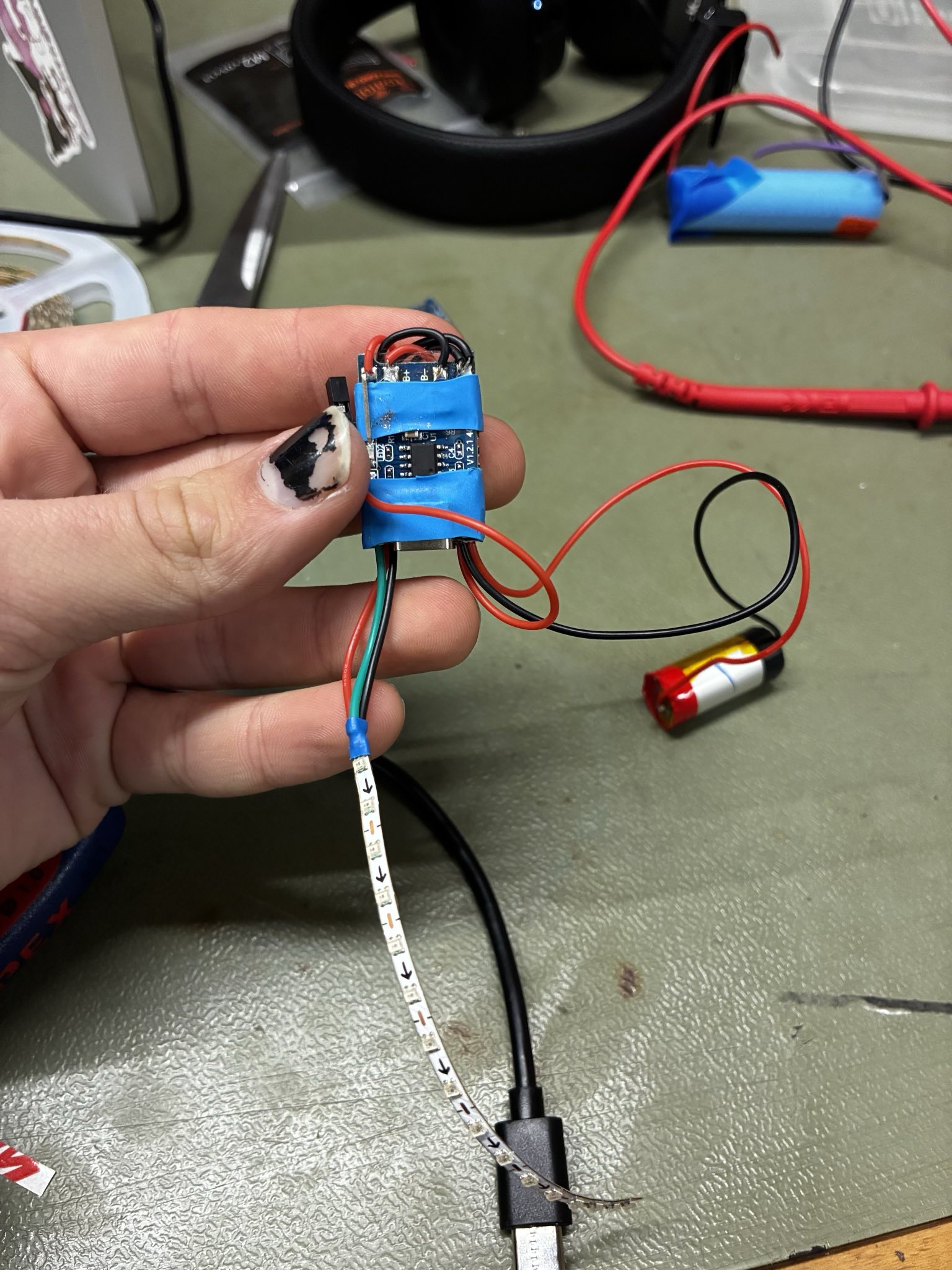

Here you stick the ESP and BMS with dublesidet tape together and solder small wire from the ESP to the BMS over the opesidside from the usb port
WLED-Version(1)
