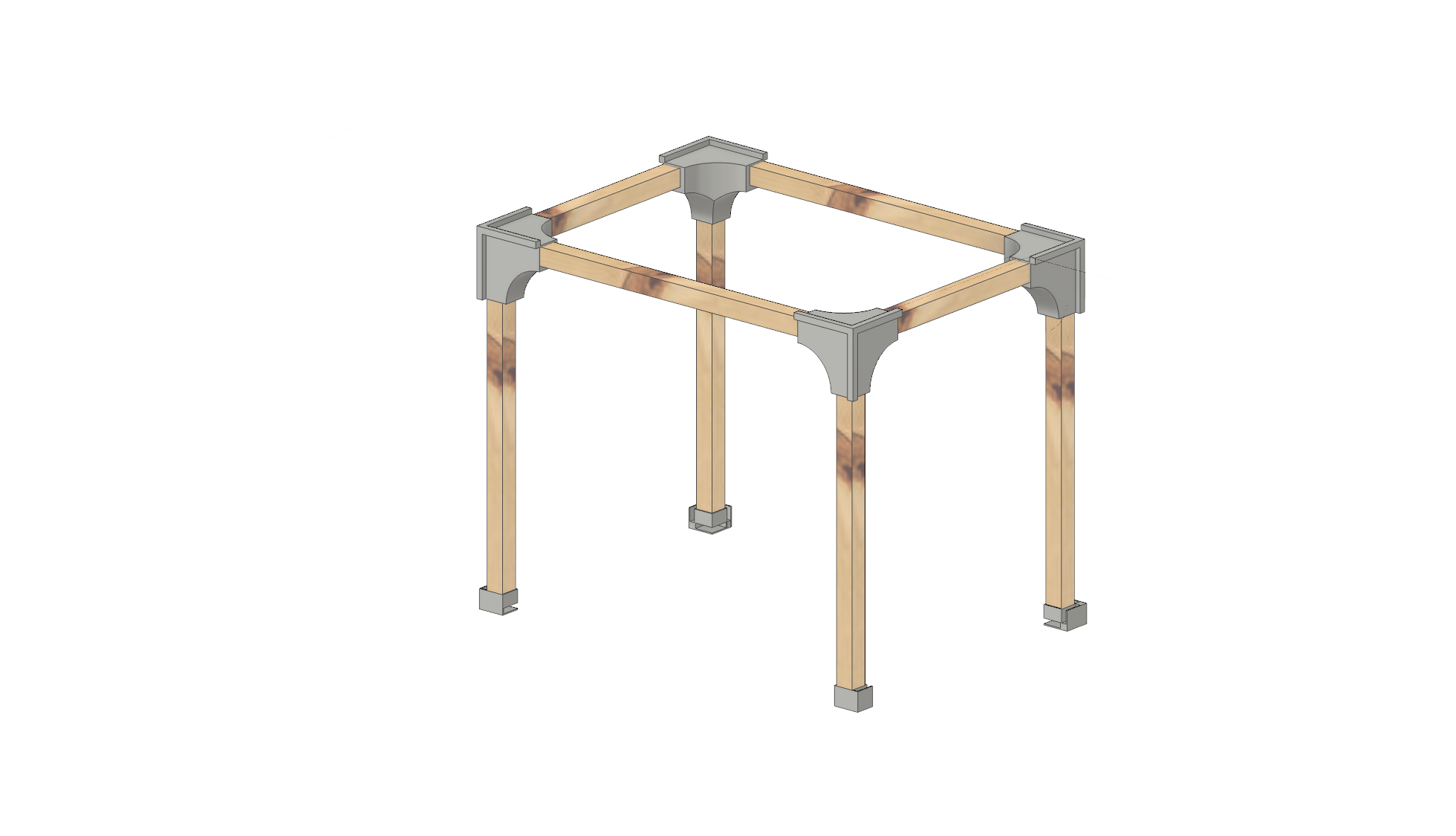

Build a simple StopMotionBox using printed parts and wood without using screws or glue or anything else. You can simply disassemble and store it and assemble it when you have a project :) A paper of A4 fits onto the ground plate. On the top U can place an iPad.
What you need is:
4x rectangular block of wood (14mm x 14mm x 270mm)
2x rectangular block of wood (14mm x 14mm x 292mm)
2x rectangular block of wood (14mm x 14mm x 202mm)
2x wooden plates (270mm x 238mm x 4mm) - right and left cover
2x wooden plates (328mm x 238mm x 4mm) - one plate with a hole in center with a diameter of 30mm - ground and top cover
1x wooden plate (328mm x 100mm x 4mm) - front cover
1x wooden plate (328mm x 270mm x 4mm) - backside cover
printed parts (petg)
optional: a led stripe which can be attached to the top cover
The printed parts are printed in petg using 0.2 layer height. Everything can be printed without support.
