Quick Lock Dual AA Battery Travel Case

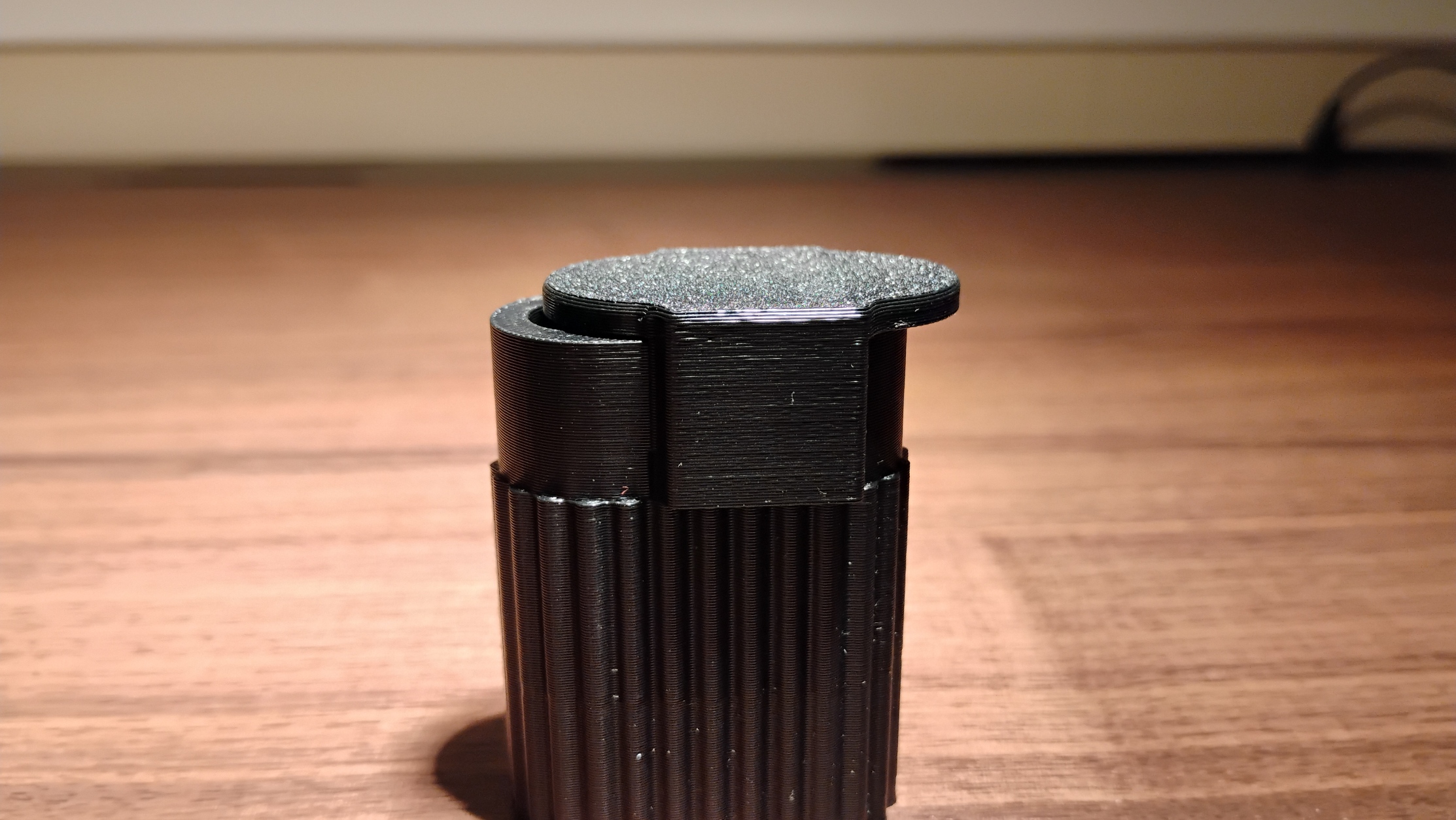

Keep your spare power organized and secure with this Quick Lock Dual AA Battery Case. Designed specifically for travelers, photographers, and EDC enthusiasts, this case features a unique ruggedized "ribbed" exterior for maximum grip and impact resistance. Unlike traditional flip-top cases that can snap at the hinge, this two-piece design uses a secure slide-and-lock mechanism named Quick Lock, ensuring your batteries stay put even if dropped in a backpack or camera bag.
Key Features:

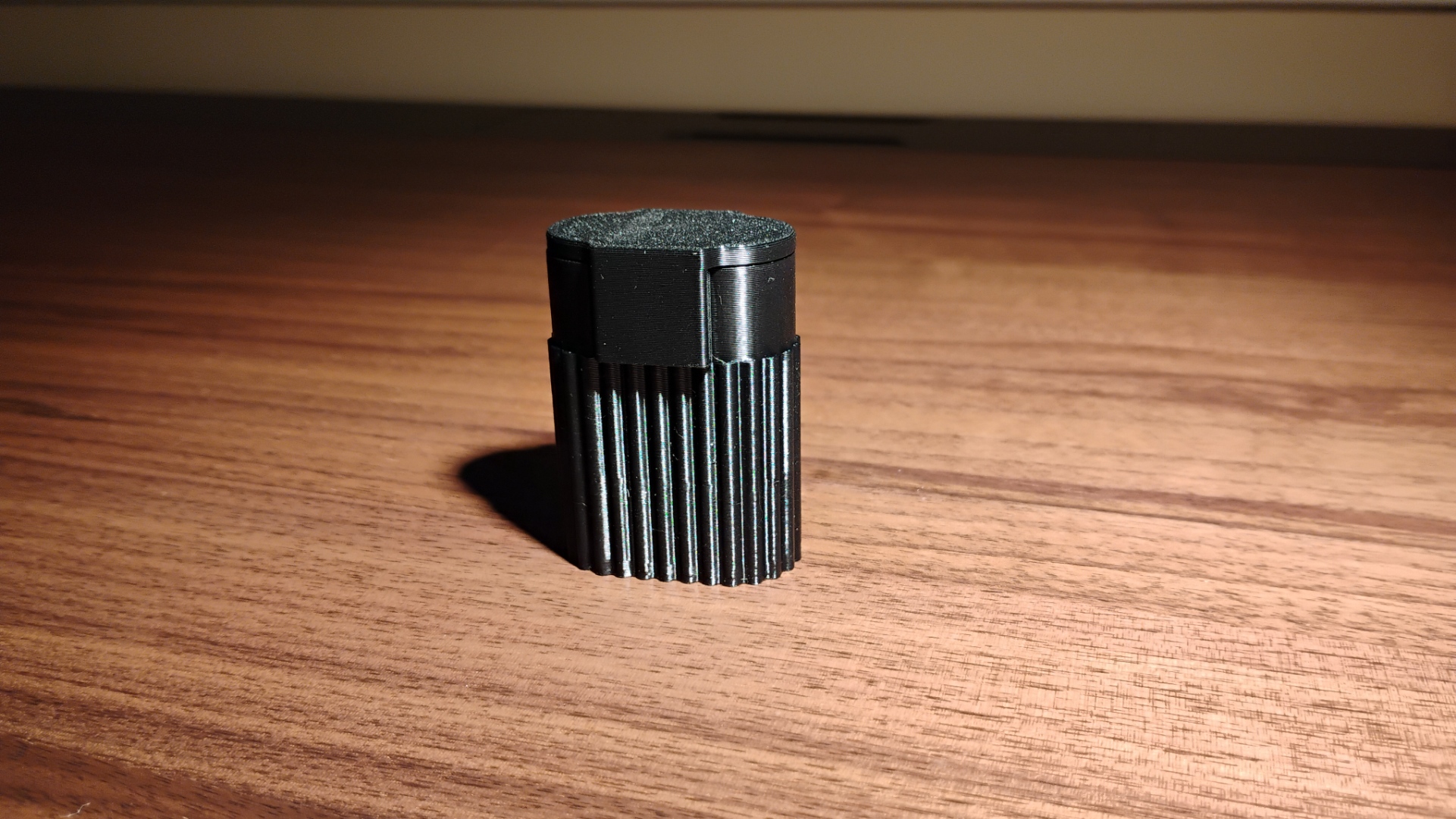

Rugged Ribbed Texture: The vertical outer ridges provide a tactile grip and ensure the case won't slip out of your hands or slide around on a smooth surface.

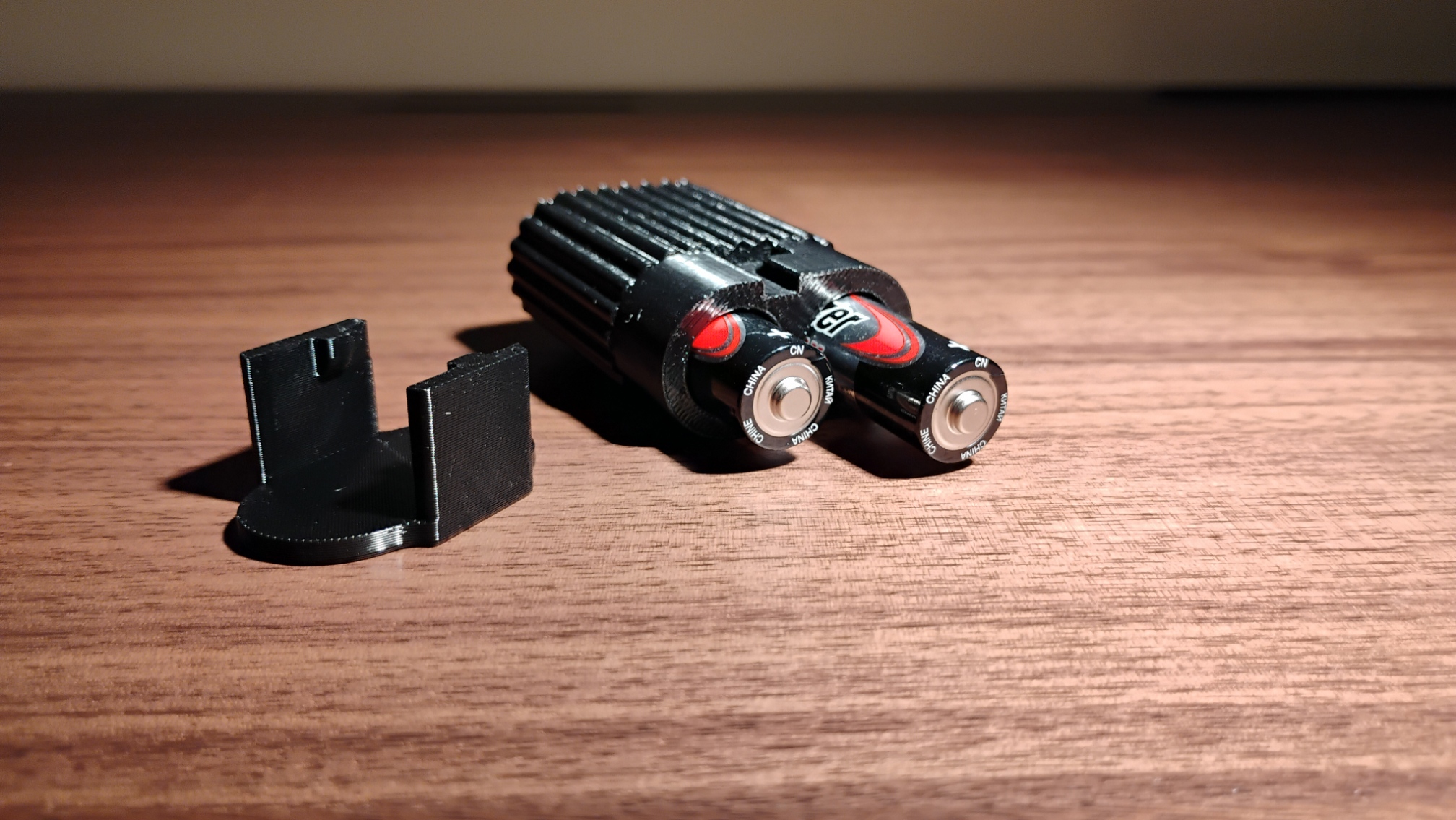

Quick Lock Mechanism: The precision-fit cap slides over the batteries and locks into place, preventing accidental openings.
Minimalist Footprint: Optimized to be as slim as possible while still offering full protection for the battery terminals.

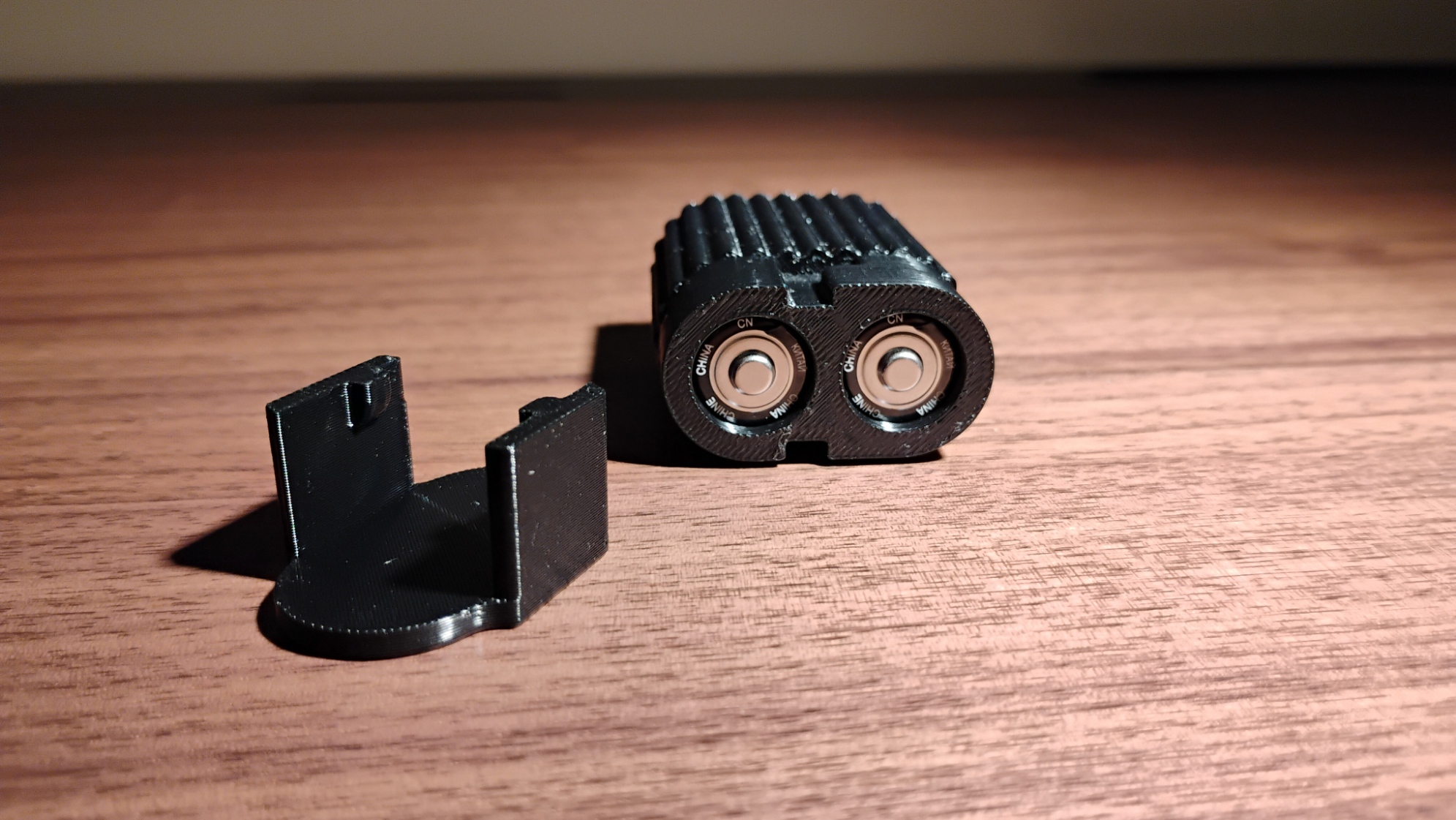

Short-Circuit Protection: Keeps batteries separated and terminals covered to prevent accidental discharge while in transit.
Print Settings & Technical Specifications:
Category | Requirement / Setting |
Compatible Batteries | 2x AA (Alkaline or Rechargeable NiMH) |
Material | PLA, PETG, ABS, PC, or ASA (PETG recommended for strength) |
Layer Height | 0.2mm (Standard) or smaller (for smoother locking action) |
Infill | 15% - 20% (Grid or Gyroid) |
Wall Loops | 3 (Ensures the "locking" tabs are strong and springy) |
Supports | None (Designed to print upright on the bed, lid separate of course) |
Orientation | Print both pieces with the openings facing UP (Lid prints flaps facing up, body prints holes facing up) |
Designer Tips:
The locking mechanism is designed with a 0.2mm tolerance. If you find the cap is too tight to slide on, check your "Outer Wall Flow" or "Horizontal Expansion" settings.
Please share a make if you find this useful—I'd love to see your color combinations!
