Quick Lock AA & AAA Battery Travel Case

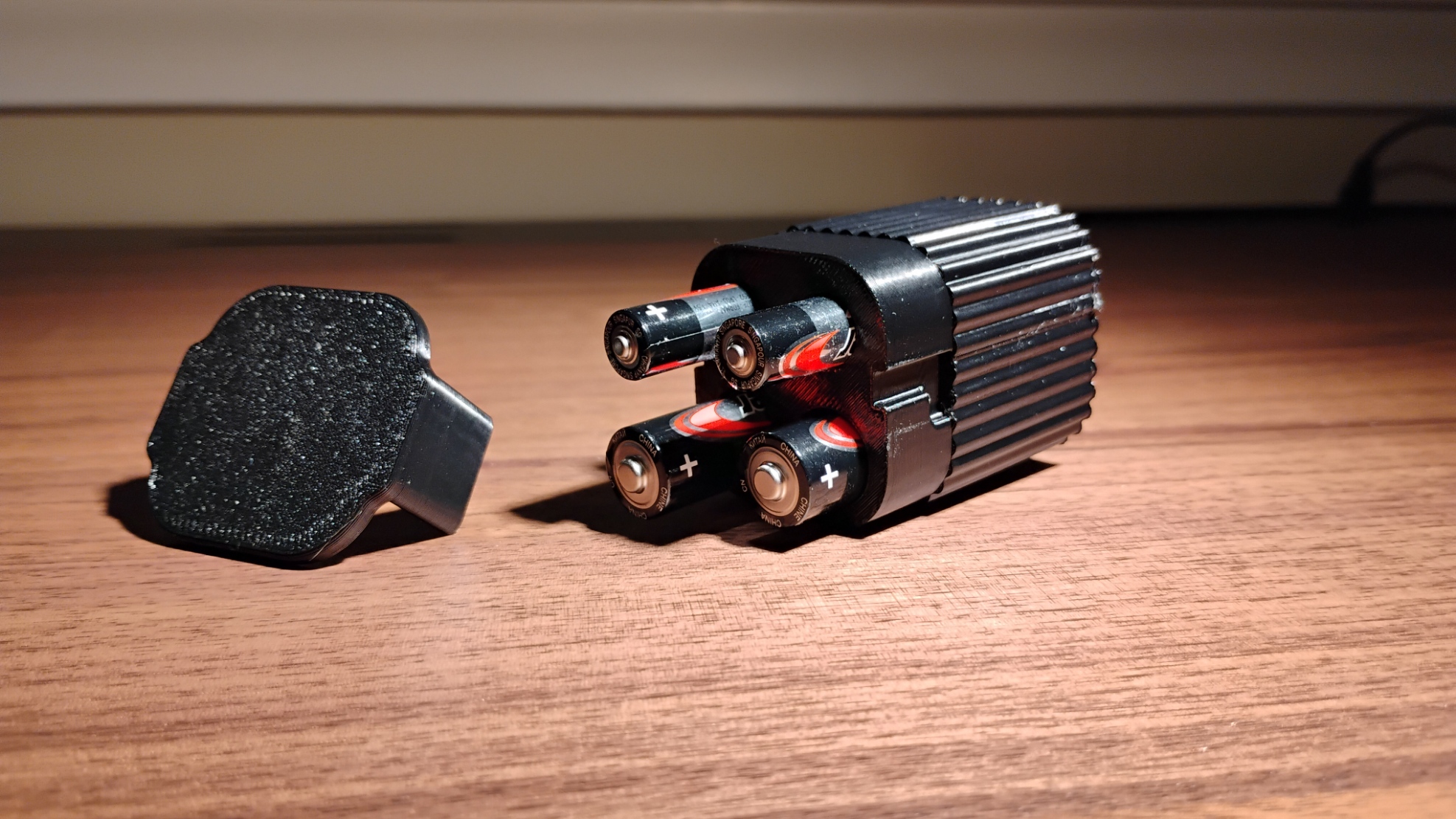

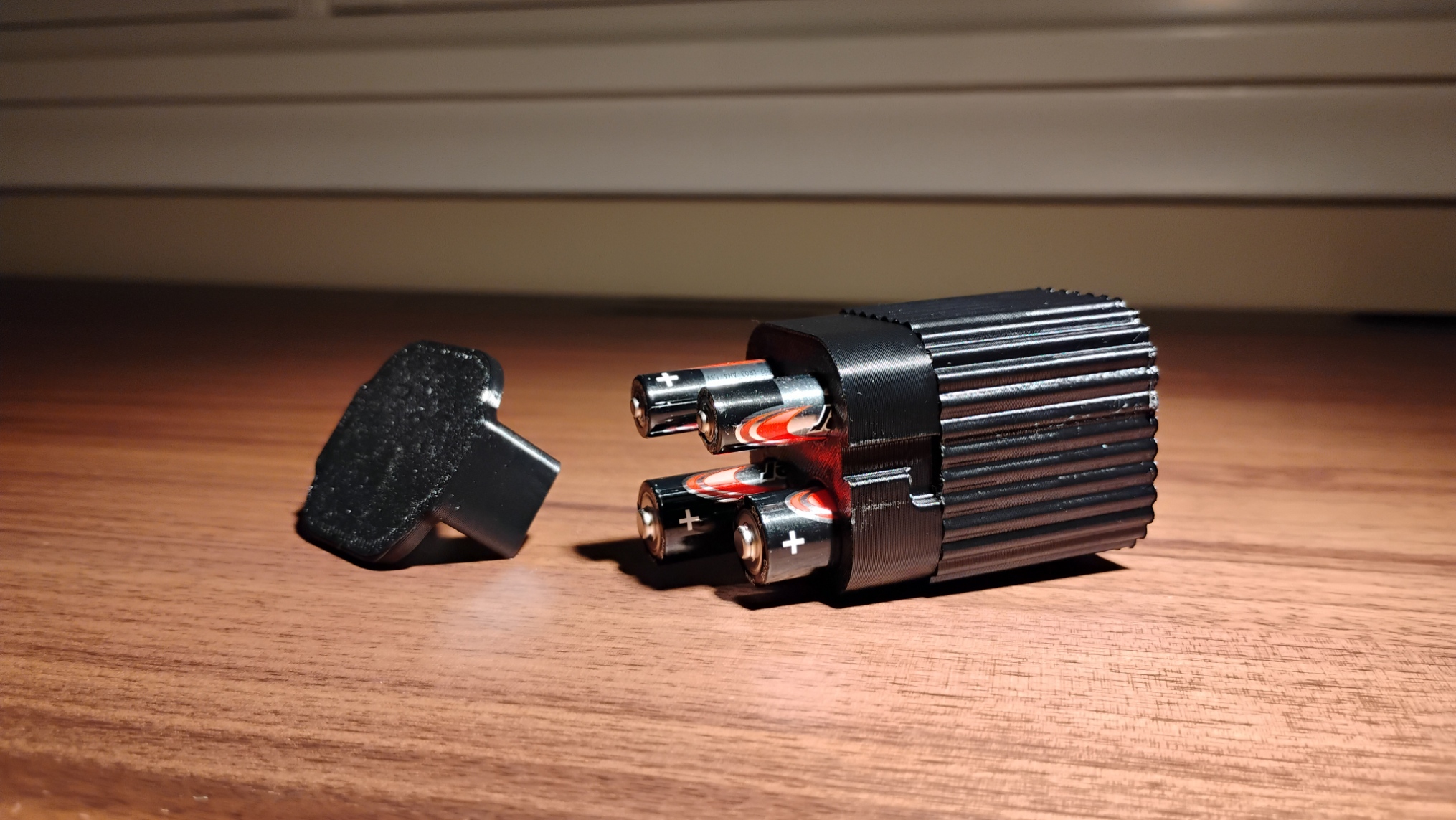

Stop carrying multiple containers for different battery sizes. This Quick Lock Case is a precision-engineered storage solution that securely holds 2x AA and 2x AAA batteries in a single, compact unit. Whether you’re swapping batteries in a high-drain camera flash or a small headlamp, this case keeps your power organized and protected with a rugged, tactical aesthetic.
Key Features:
Dual-Size Support: Custom-molded slots specifically designed to provide a snug, rattle-free fit for both AA and AAA sizes simultaneously.

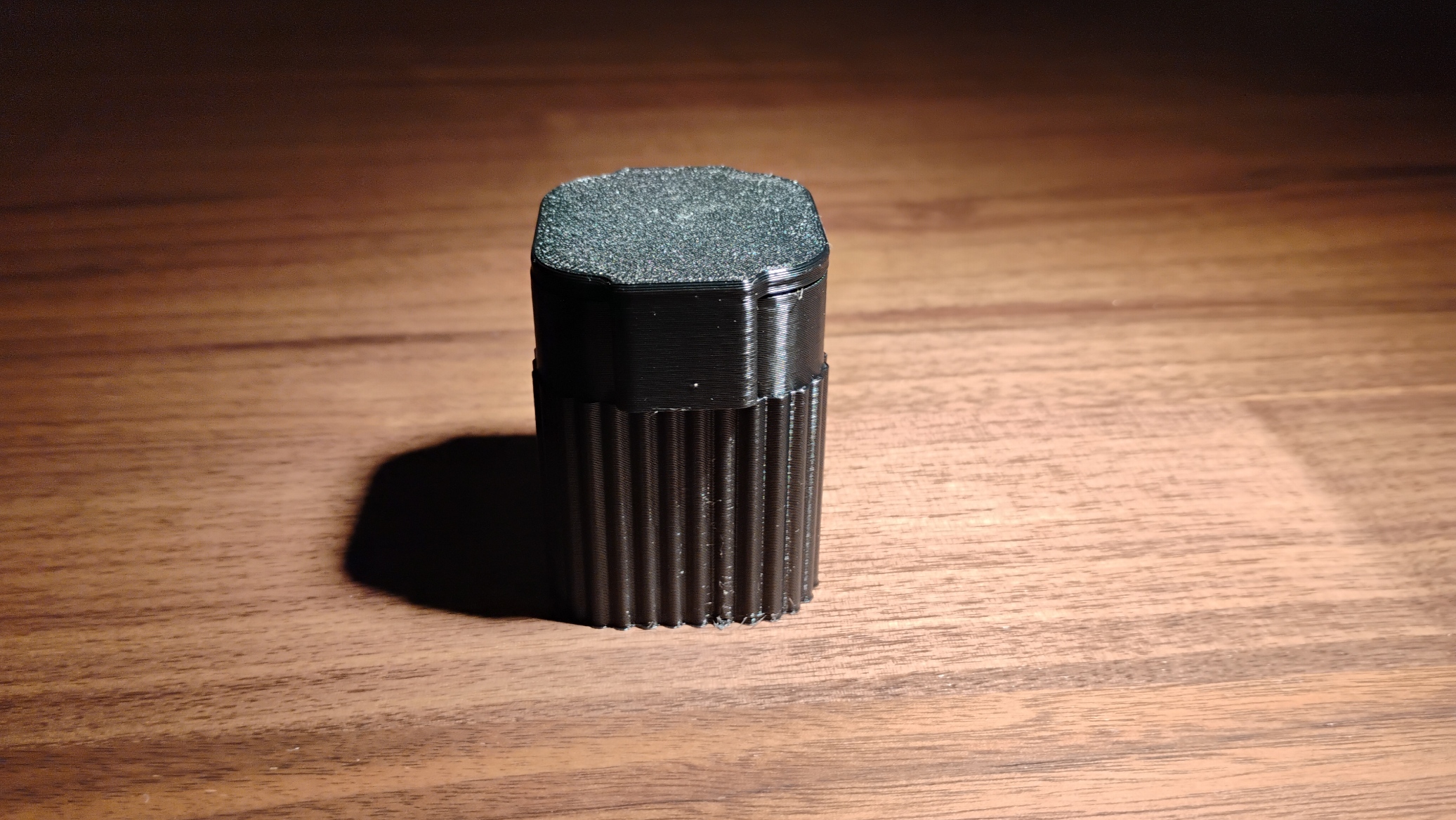

Tactical Ribbed Finish: The vertical ridges provide a high-friction surface for easy retrieval from deep bags or pockets and add significant structural strength to the outer shell.

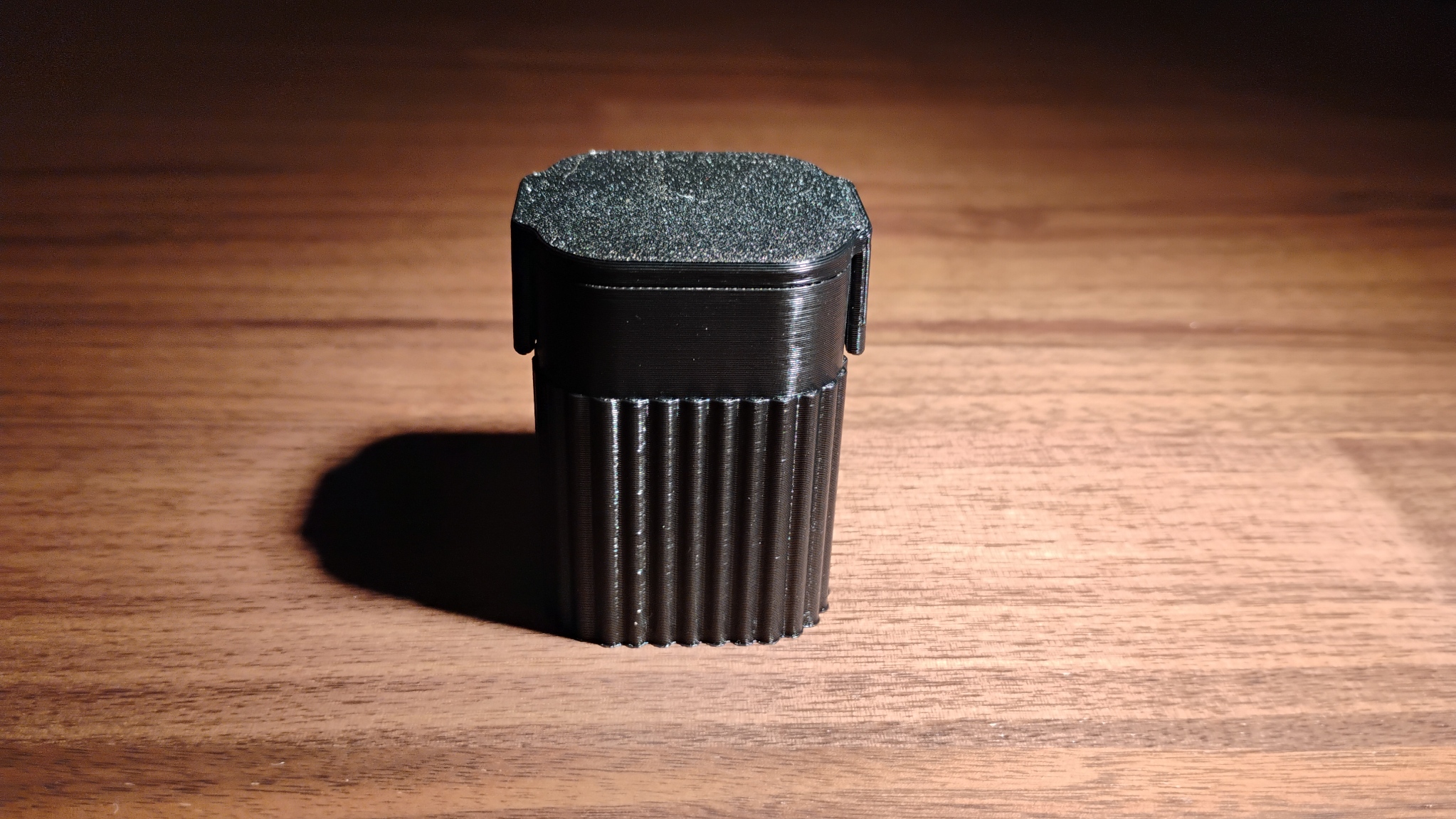

Quick Lock Technology: The heavy-duty cap utilizes a rail-based locking system that stays shut during transit, unlike standard plastic hinges that can fatigue and snap.

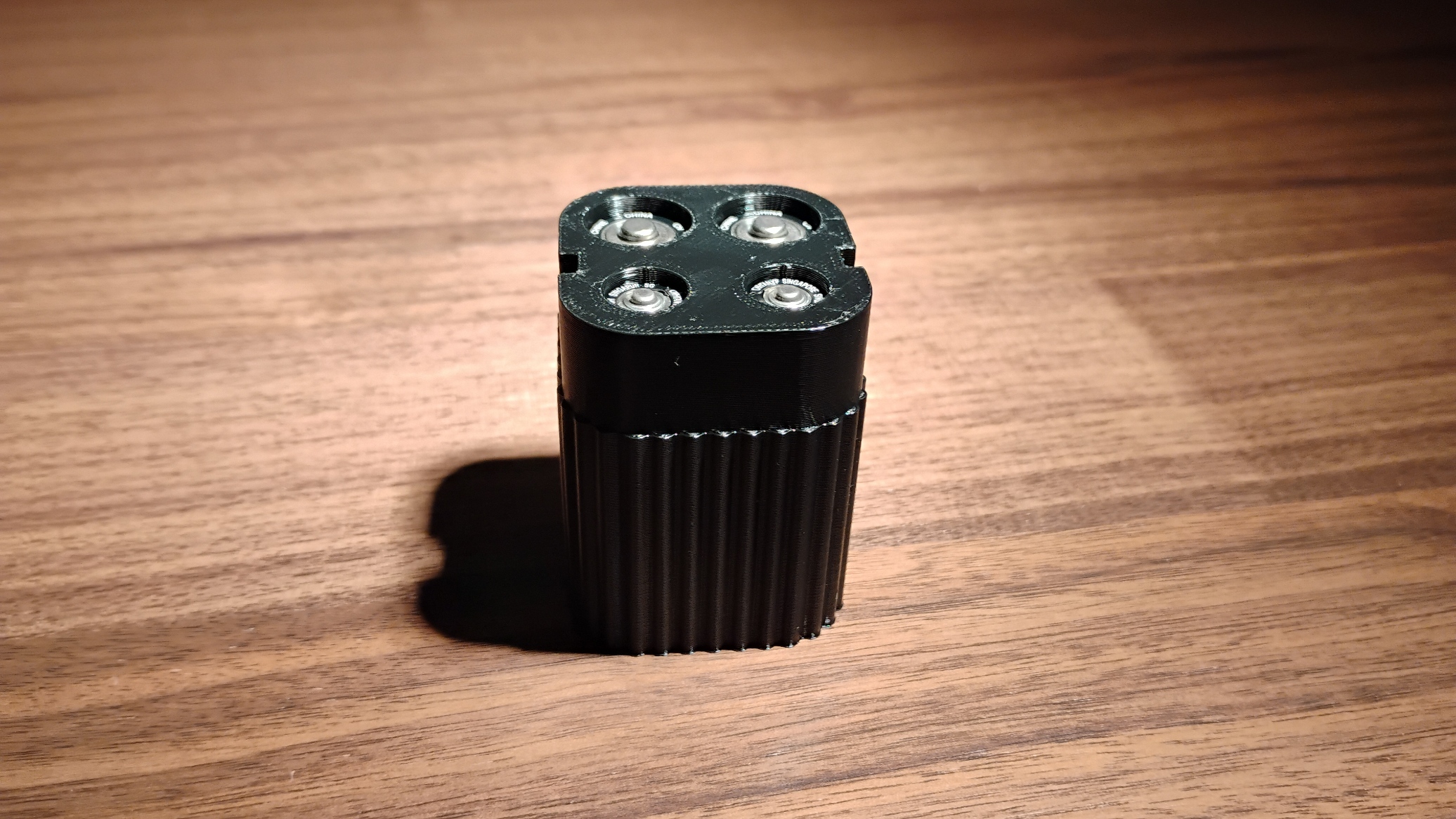

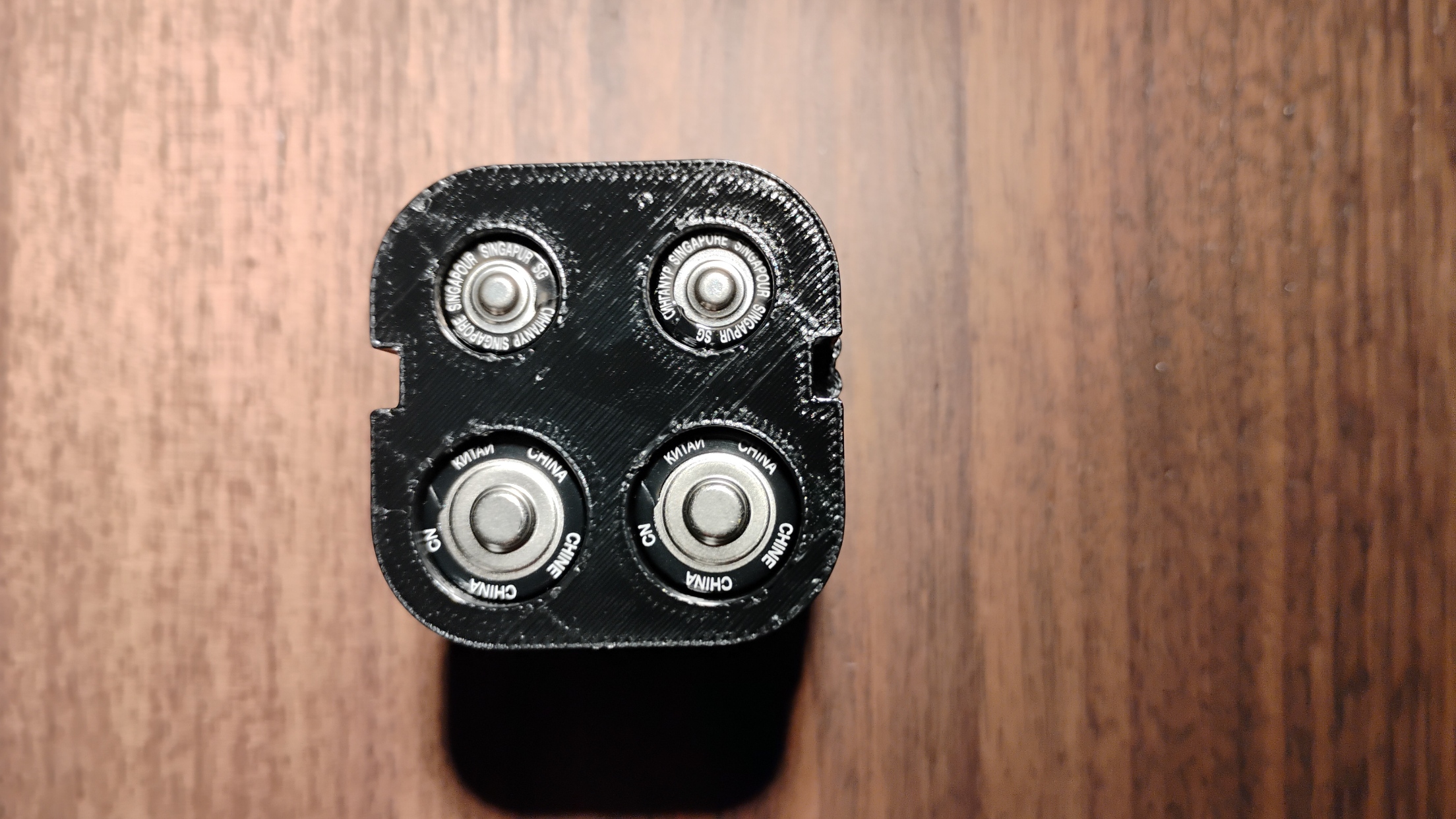

Terminal Separation: Individual recessed bays ensure that battery terminals cannot touch, eliminating the risk of accidental discharge or short-circuiting in your bag.
Technical Specifications & Print Settings
Capacity | 2x AA + 2x AAA (4 batteries total) |
Material | PLA, PETG, ASA, ABS, PC |
Layer Height | 0.16mm - 0.2mm |
Wall Loops | 3 (Recommended for the strength of the locking rails) |
Infill | 15% - 20% (Gyroid or Grid) |
Supports | None (Designed for easy Print-In-Place) |
Build Plate | Textured PEI recommended for a premium finish on the cap |
Installation & Fitment Tips:
Orientation: Print both the body and the cap with the openings facing UP.
Snug Fit: This case is designed with tight tolerances to ensure zero rattling. If the cap is too tight on your first print, try adjusting your "Horizontal Expansion" by -0.1mm or simply slide the cap on and off a few times to wear in the rails for a perfect "click" lock.
