proper sillysledge adapter with lock

silly sledge v30 i guess, spent half a week prototyping the ejection but didnt get it to work, everything else dimensioned correctly works well, have fun!
feel free to remix this again to get it to eject properly if you would like to ask me more you can reach me thru discord [glowyglowbug] quite a bit of cutting was needed to make it fit, i recc printing the barrel bit out and then slowly cutting where it gets stuck :)
would love to get the ejection working reliably but still stumped on how to do it :(

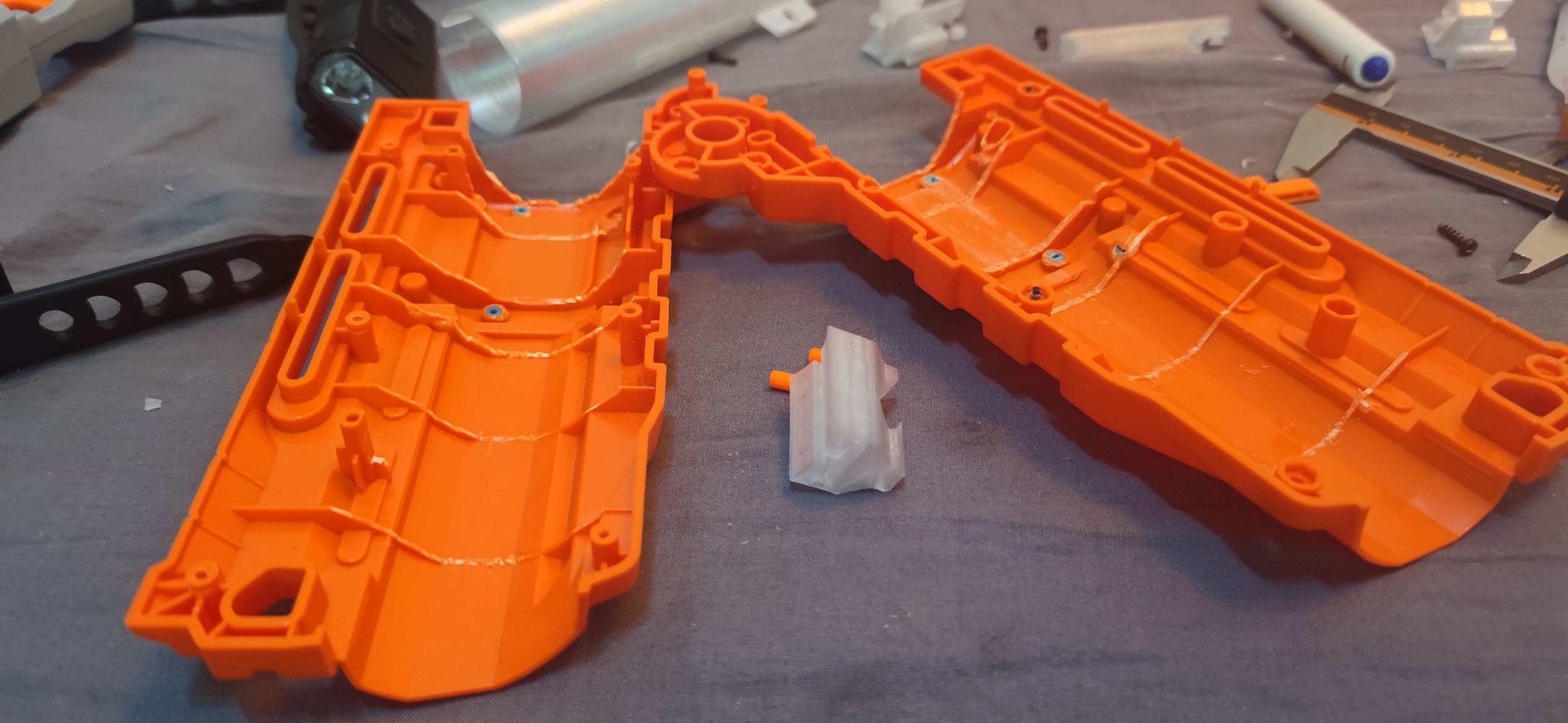

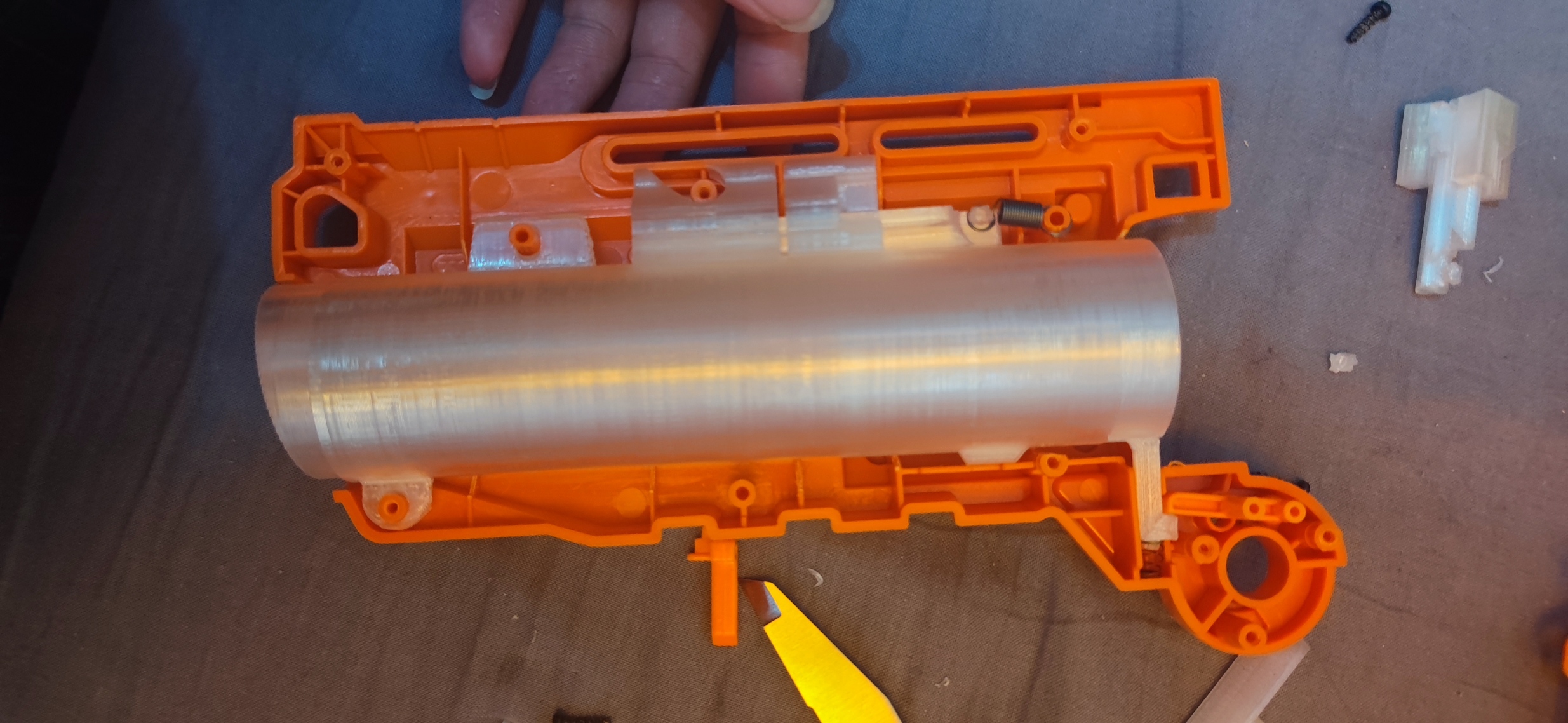

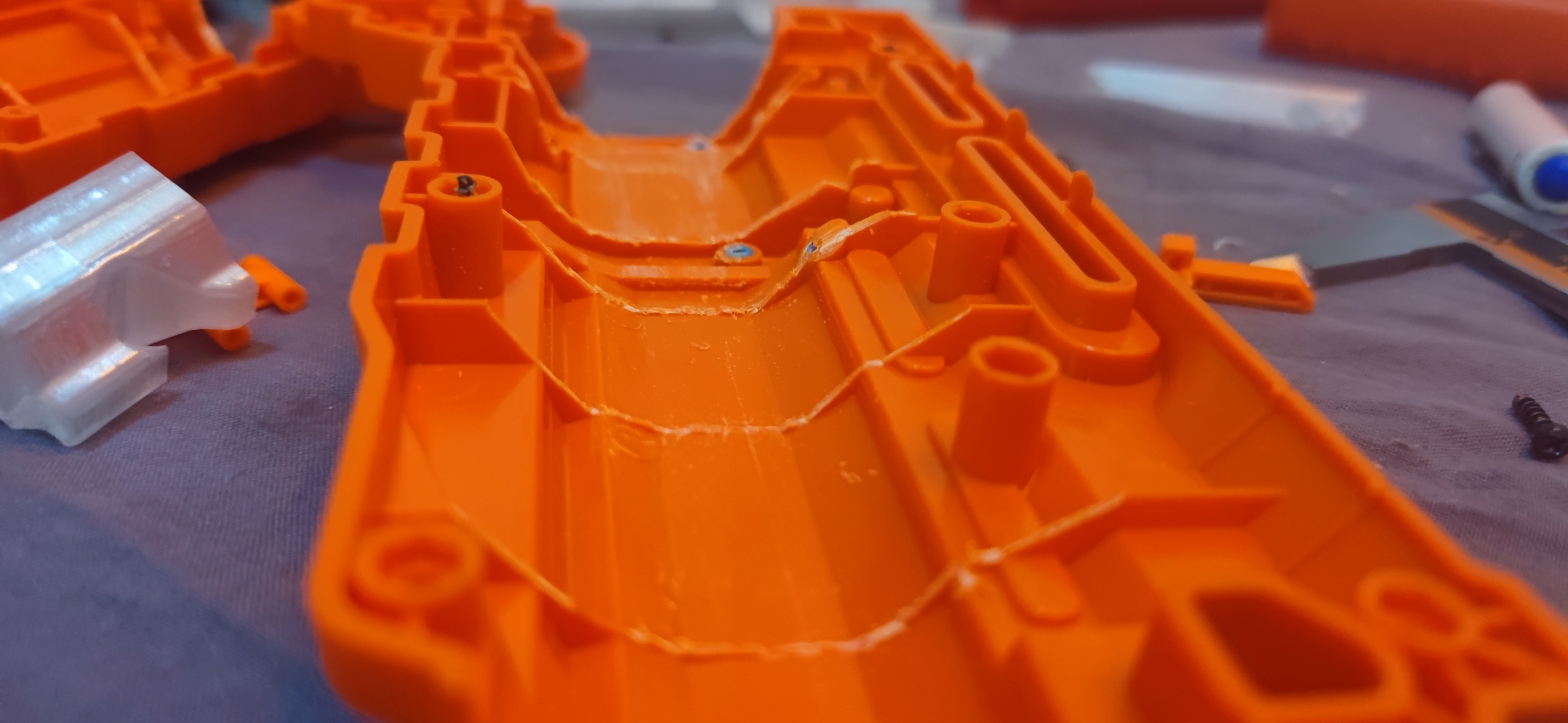

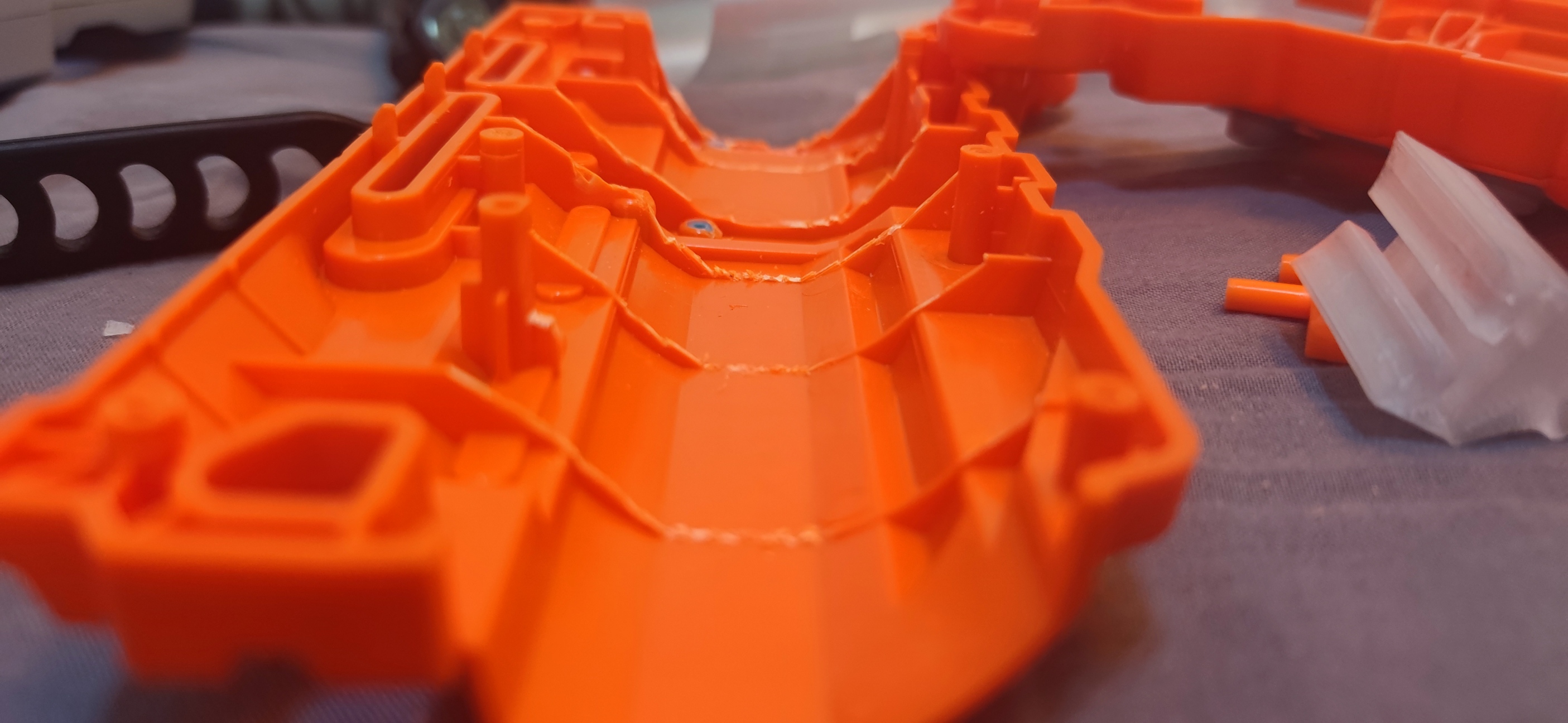

requires a single 016 o ring as the seal, step files provided for modification if needed! btw be careful dont cut off the screw posts when cutting thru stuff :) pics provided of how i cut mine (its a little excessive tho)

Print settings is 0.24 layer height with tree support turned on and 99 walls


i used adaptive layer height for the ejector when i was designing it as you can see in the 3mf

https://youtu.be/B70pOoGtZWw

seal should need a 016 sized o ring (aka CS:1.78   ID:15.60   OD:19.16 )
