Final version of the brace.
Is ACTUALLY ATF compliant now.
Added two holes for use with Grovtec QD sling mounts.
Brace body printed with PLA+ or stronger.
Brace main body:
.16 layer height
6 walls
50% gyroid infil

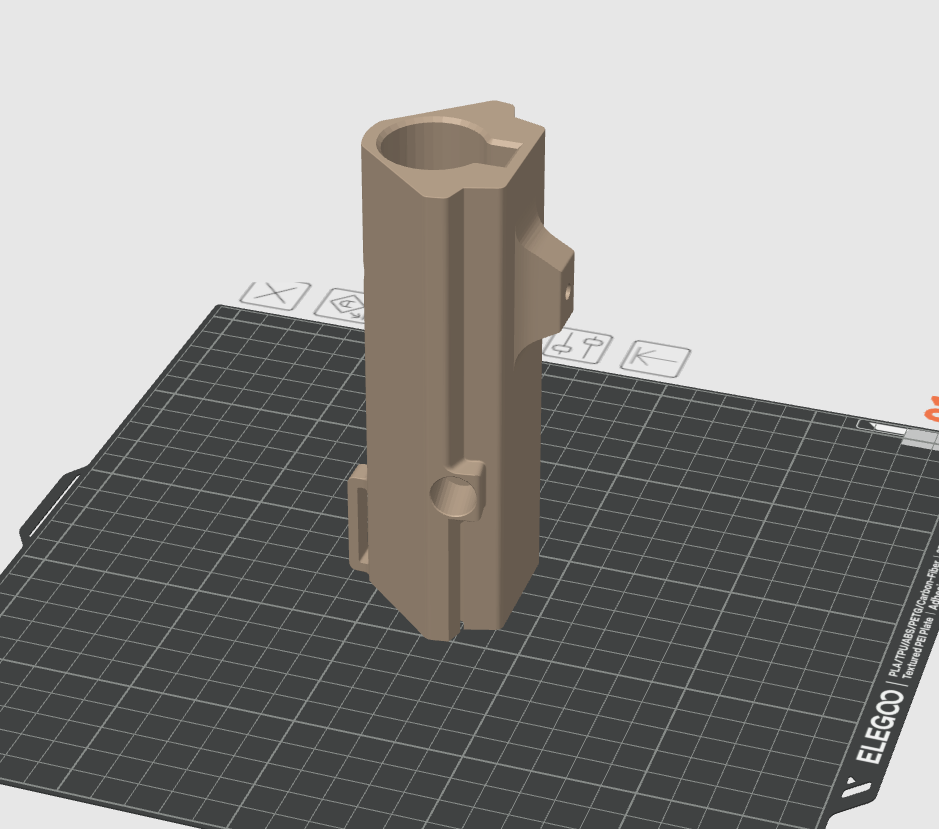

Print orientation in photos.
Brace butt:
I used TPU 85A
.16 layer height
4 walls
35% 3D cross infil

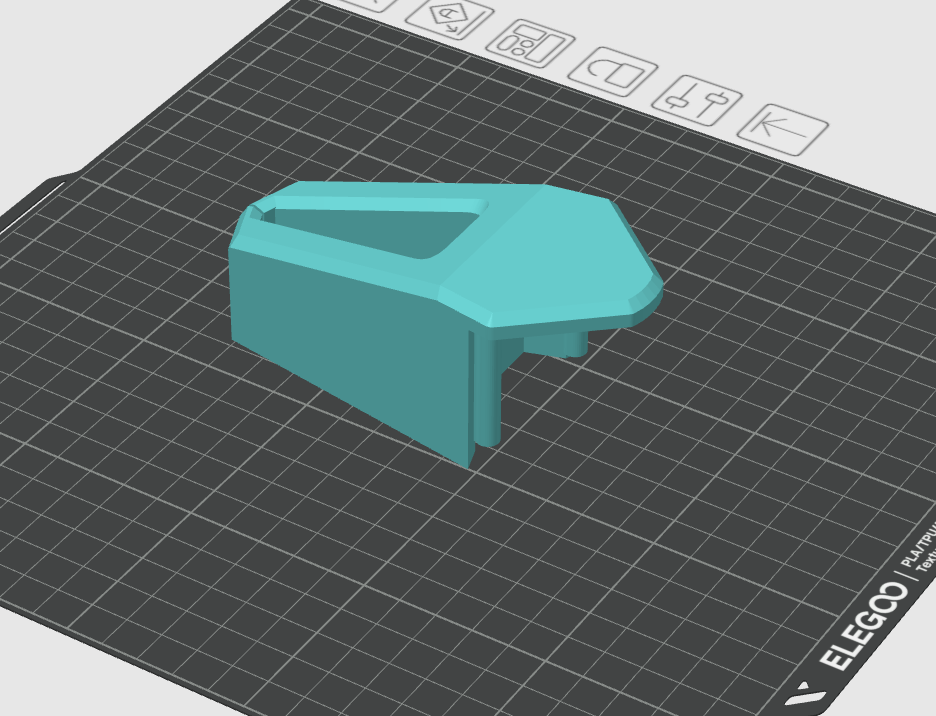

Print orientation in photos.
Pull tab:
.16 layer height
4 walls
25% gyroid infil
Print with large hole straight up and down.
Hardware list:
1- 0.7*7*15 MM compression spring with one loop cut off. (amazon)
1- 1/8*3/4 tension pin (https://www.tractorsupply.com/tsc/product/hillman-tension-pins-1-8-in-dia-x-3-4-in-length)
1- 3/8 in. Adjustable Clevis Pin (https://www.tractorsupply.com/tsc/product/countyline-adjustable-clevis-pin-3-8-in-s175005tsc-pack-of-2-1833317)
Optional hardware:
1 pack - grovtec QD sling mounts GTHM289 (https://grovtec.com/products/heavy-duty-push-button-bases?_pos=1&_sid=02d12552e&_ss=r)
!! IF YOU PLAN ON USING TO QD MOUNTS YOU WILL NEED A 9/16-18UNF-2B TAP !!
