Strapped Box V1

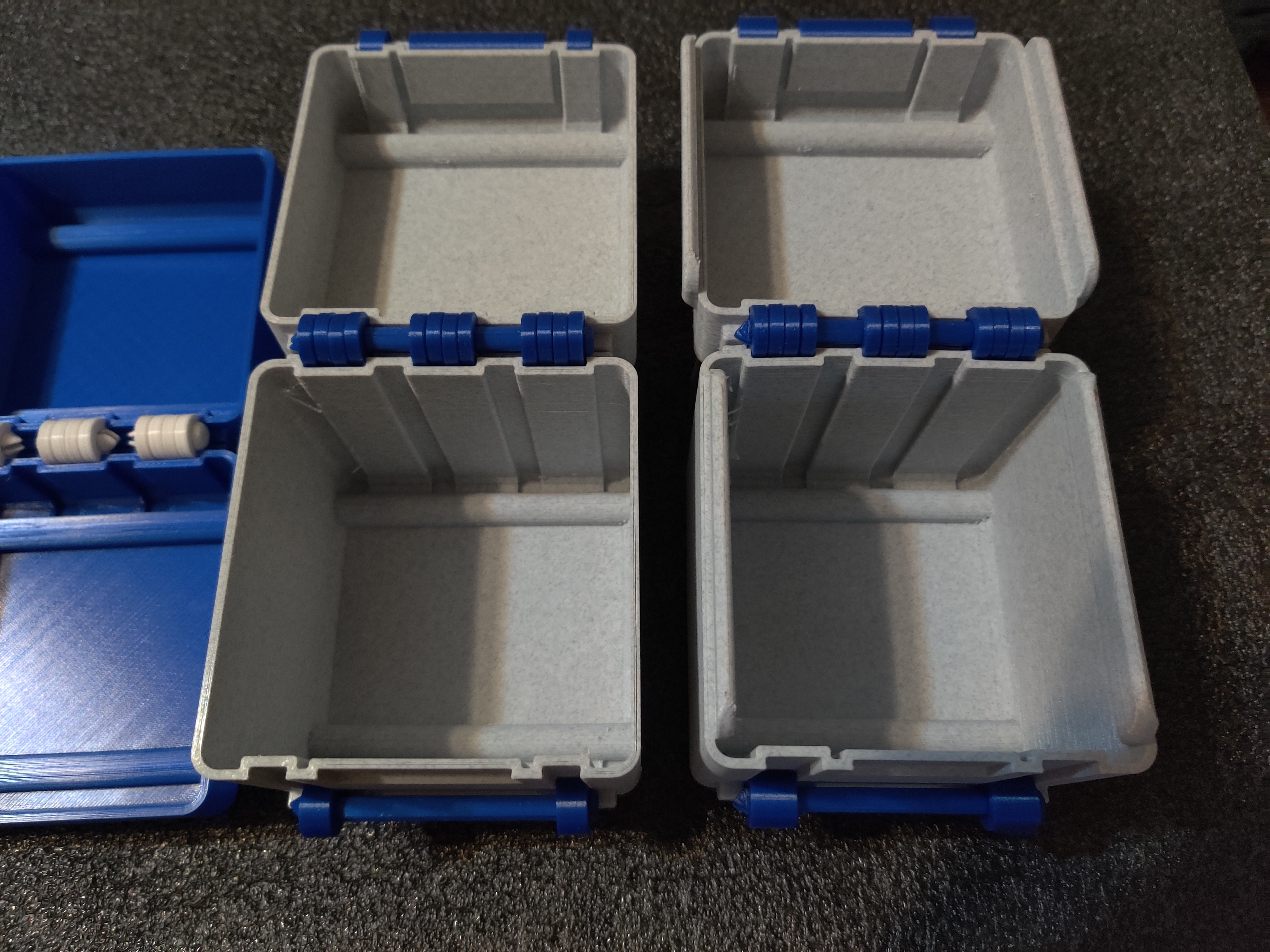

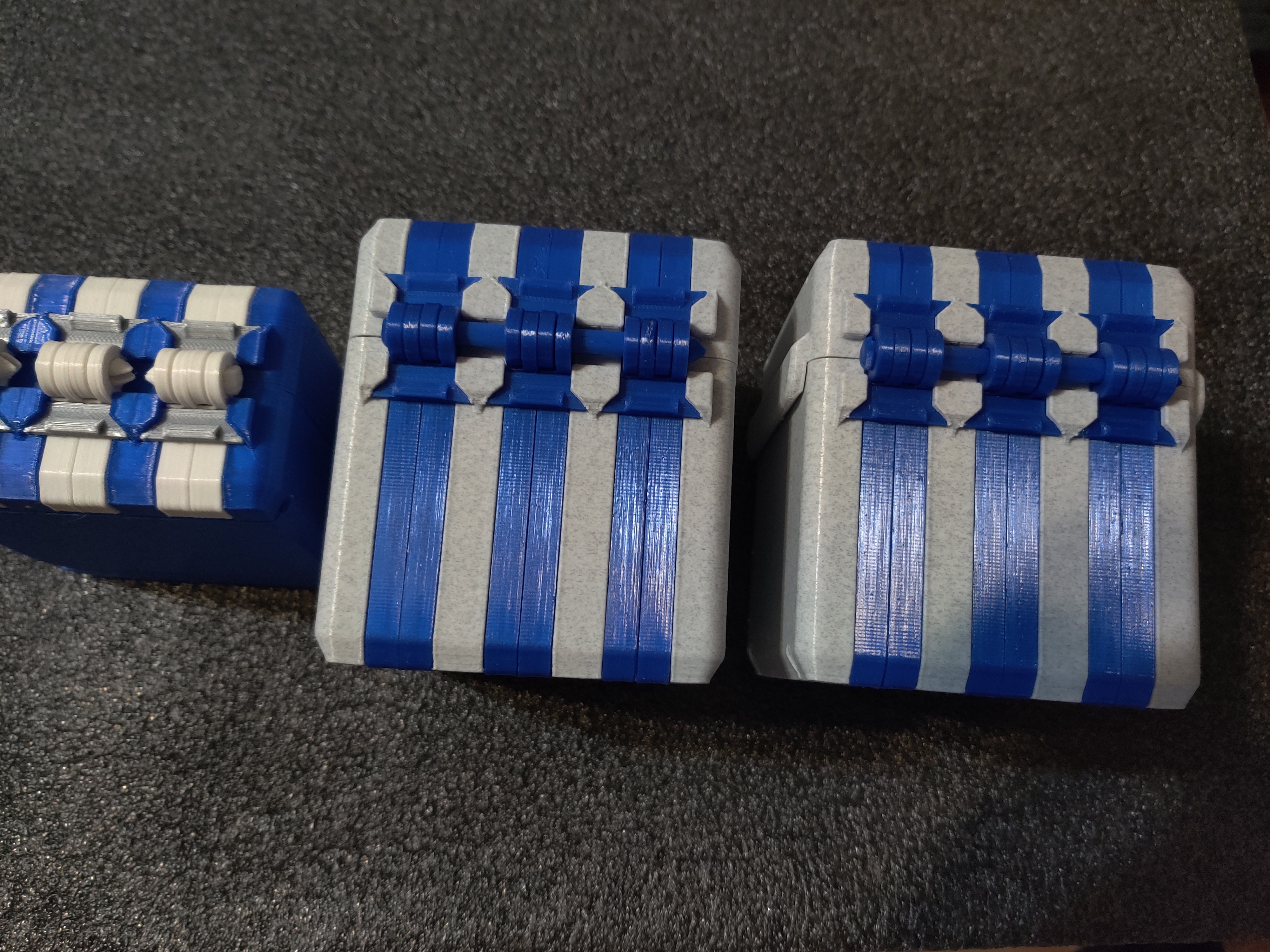

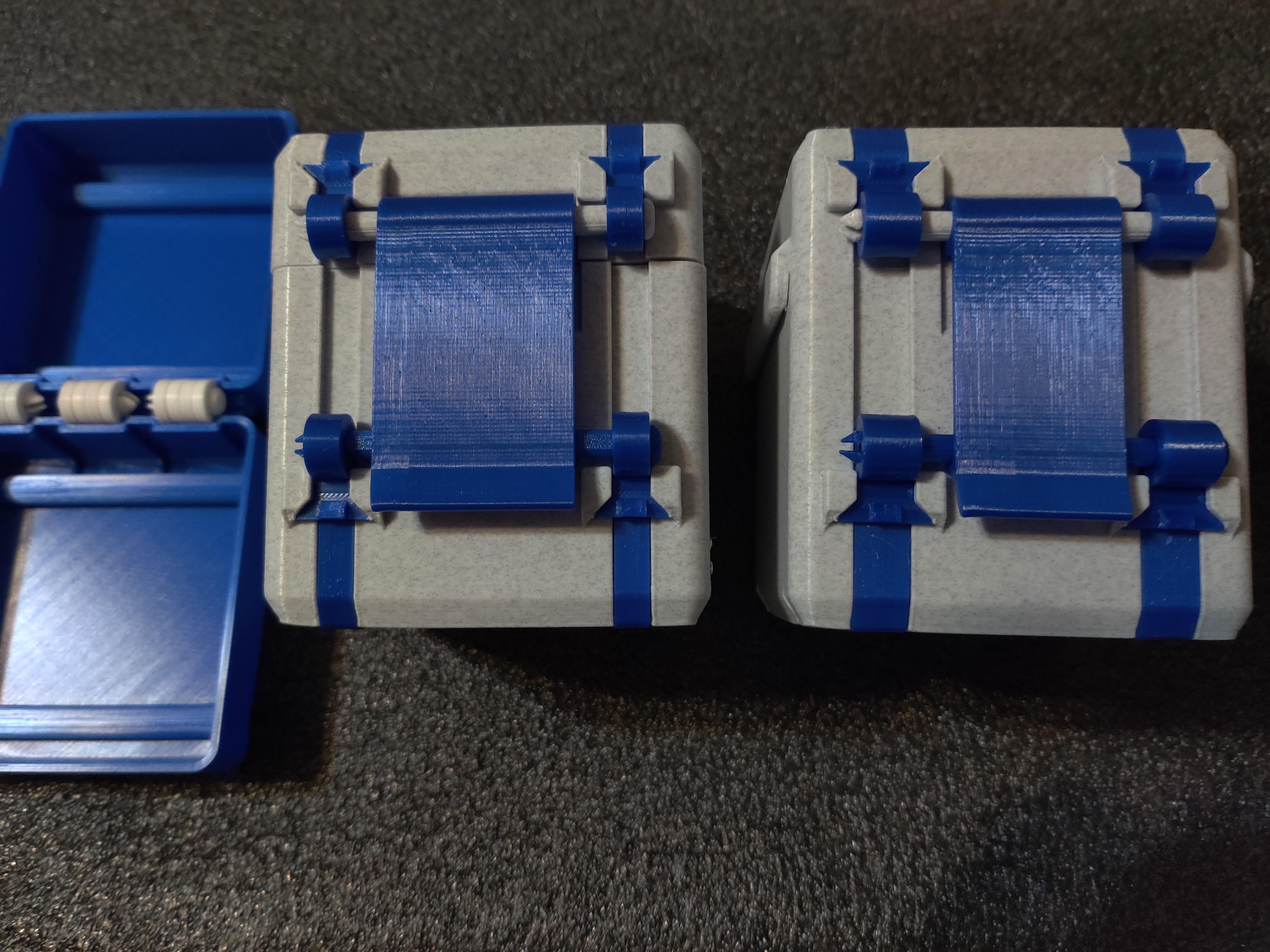

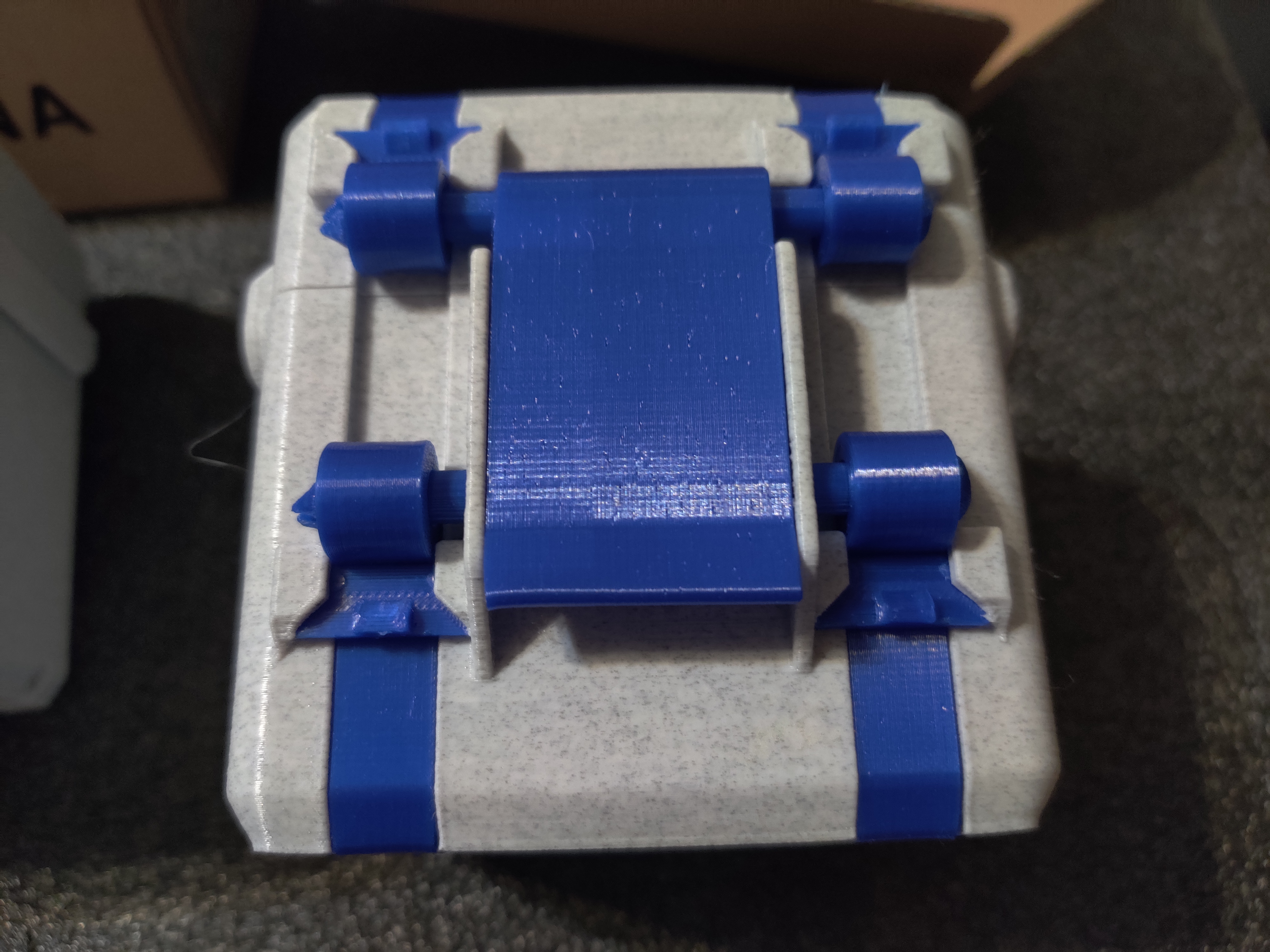

This box uses straps anchored to the bottom and top for hinges and latches to prevent layer separation under heavy load.  Larger boxes have a handled top option.  The Field Box-Bottom Shell InnerTabbed doesn't work with the Field Box-Top Shell Handled.

Please, make requests for specific sizes.

Related Boxes https://www.printables.com/@brass_ring/collections/3088349

Print counts:

• 1 X Bottom Shell

• 1 X Top Shell

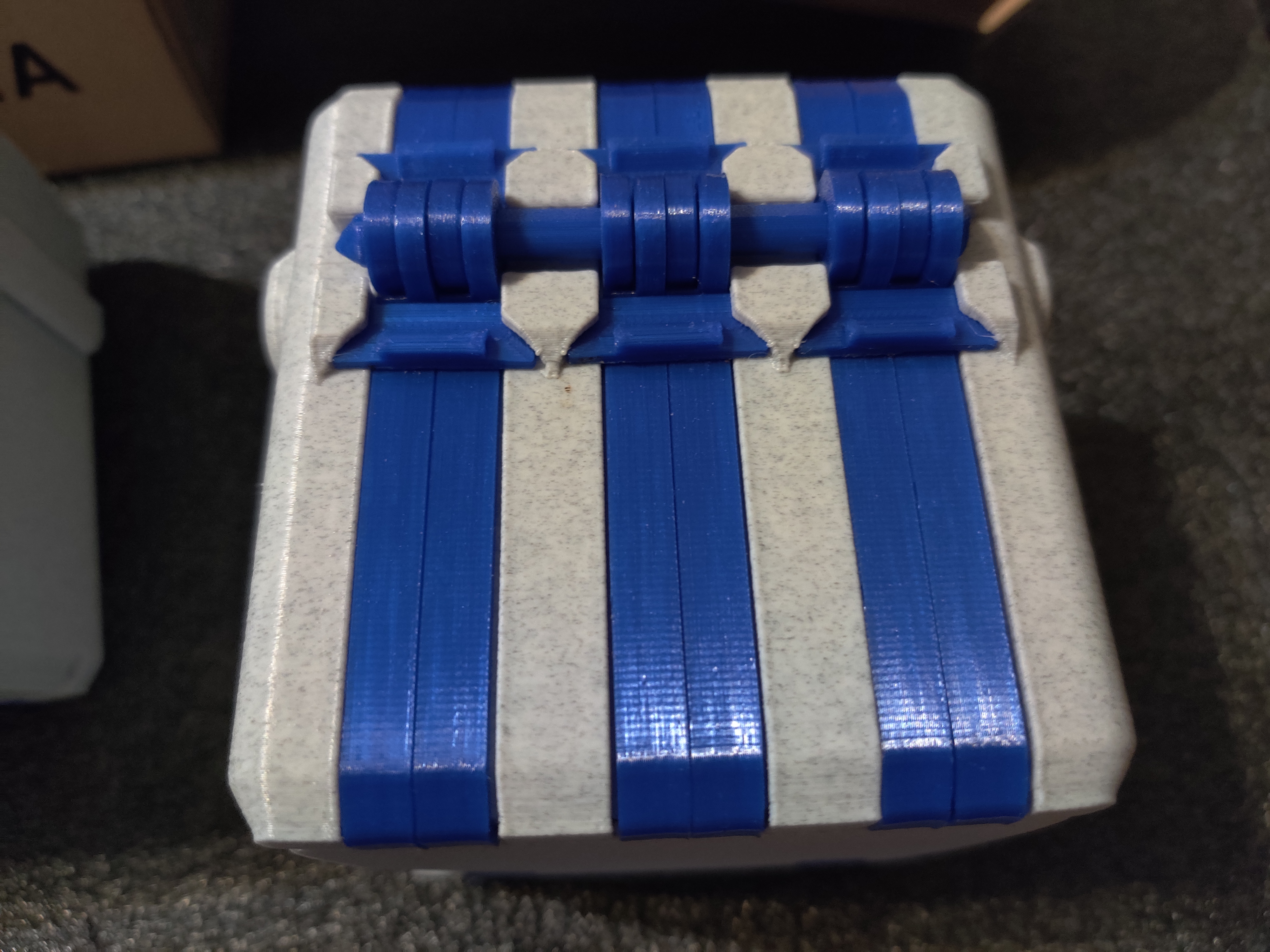

• 3 X Full Width Bottom Hinge Strap or 6 X Half Width Bottom Hinge Strap

• 3 X Full Width Top Hinge Strap or 6 X Half Width Top Hinge Strap

• 3 X Hinge Split Pin or 1 X Latch Split Pin

• 6 X HS Lock Plate

• 1 X Labelled Latch

• 2 X Bottom Latch Strap

• 2 X Top Latch Strap

• 2 X Latch Split Pin

• 4 X LS Lock Plate

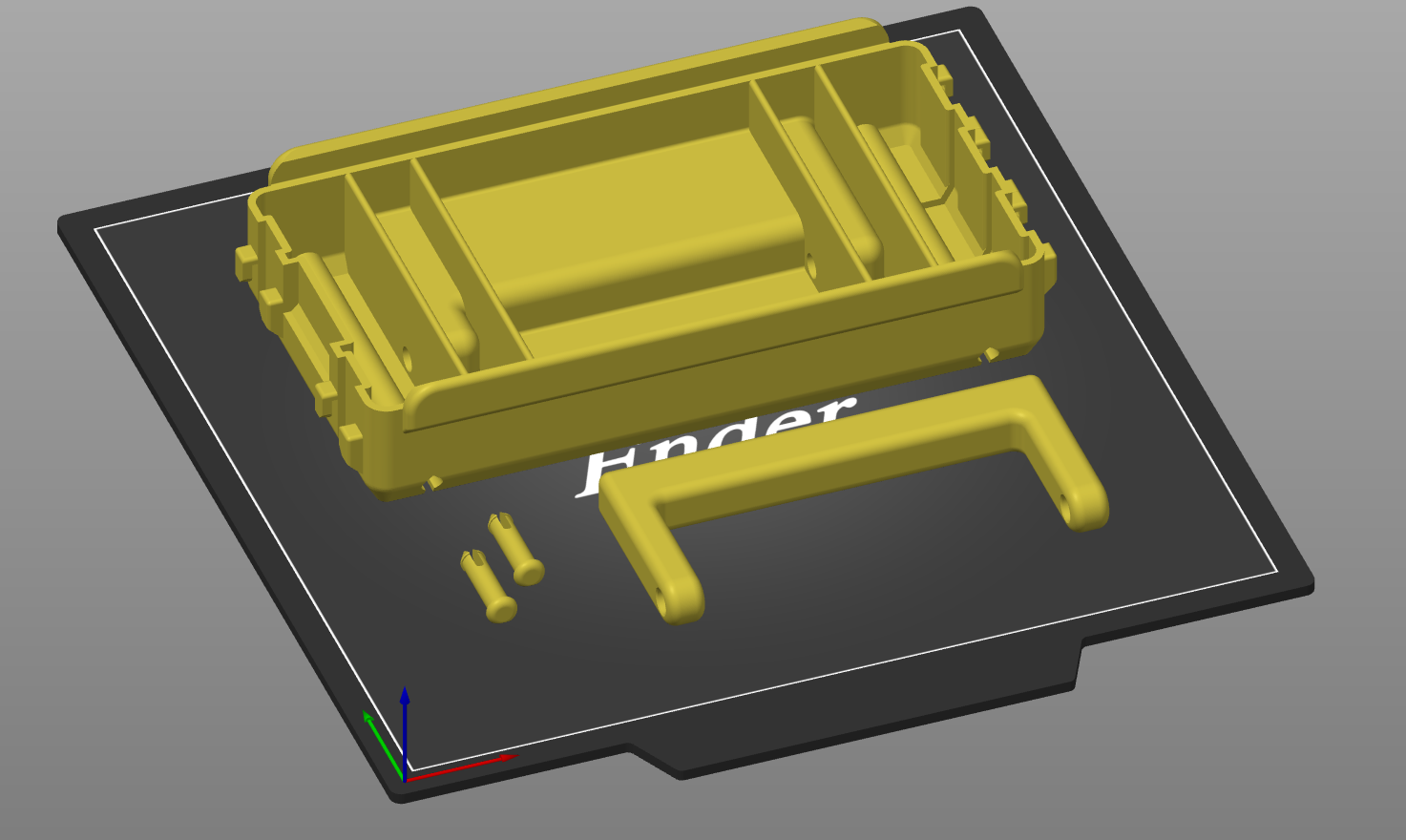

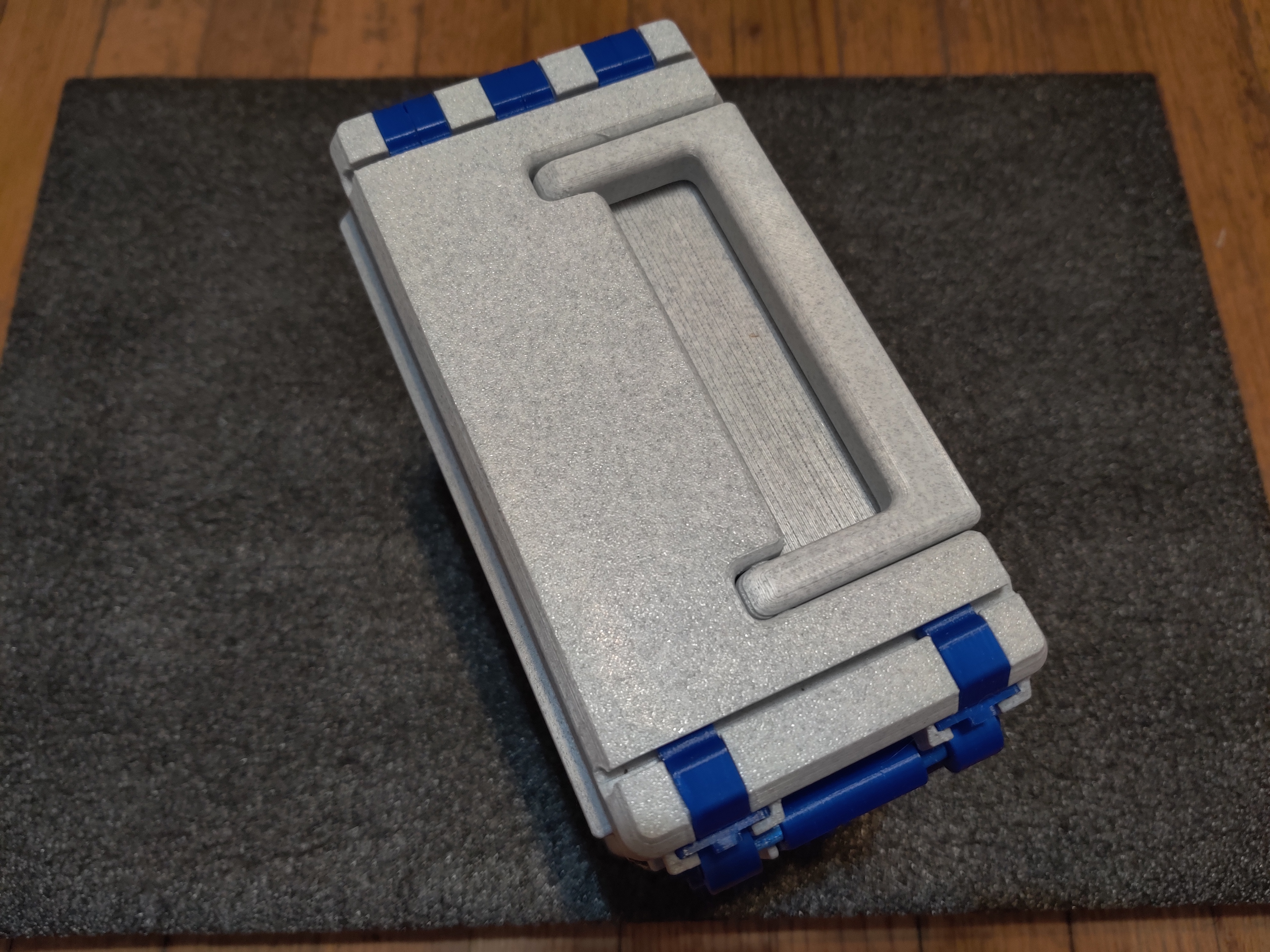

• 1 X Field Box-Top Shell Handled

• 1 X Field Box-Handle

• 2 X Field Box-Handle Split Pin

Printing Instructions:

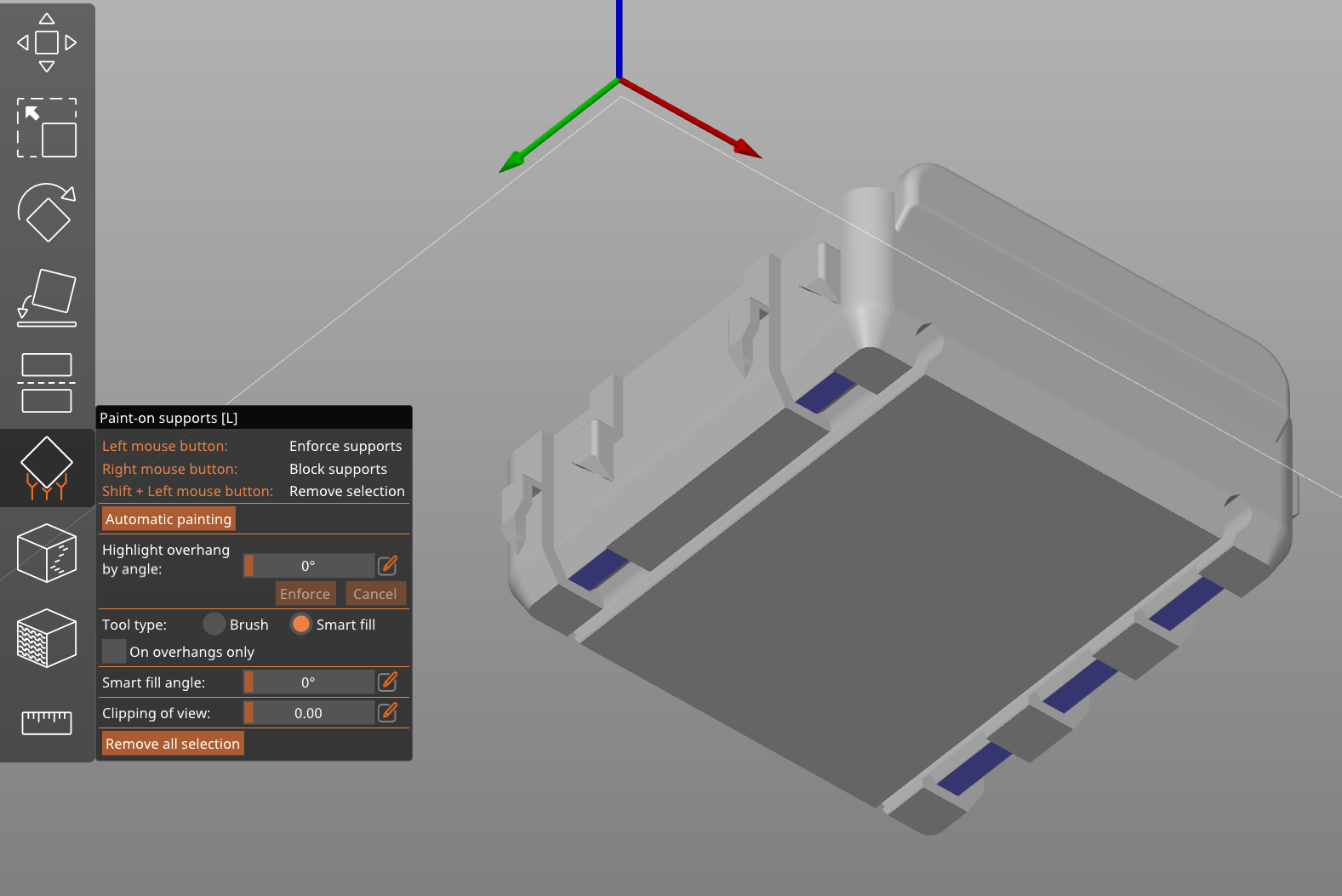

Snug paint on Snug supports are required in the horizontal sections under the shells.

Assembly Instructions:

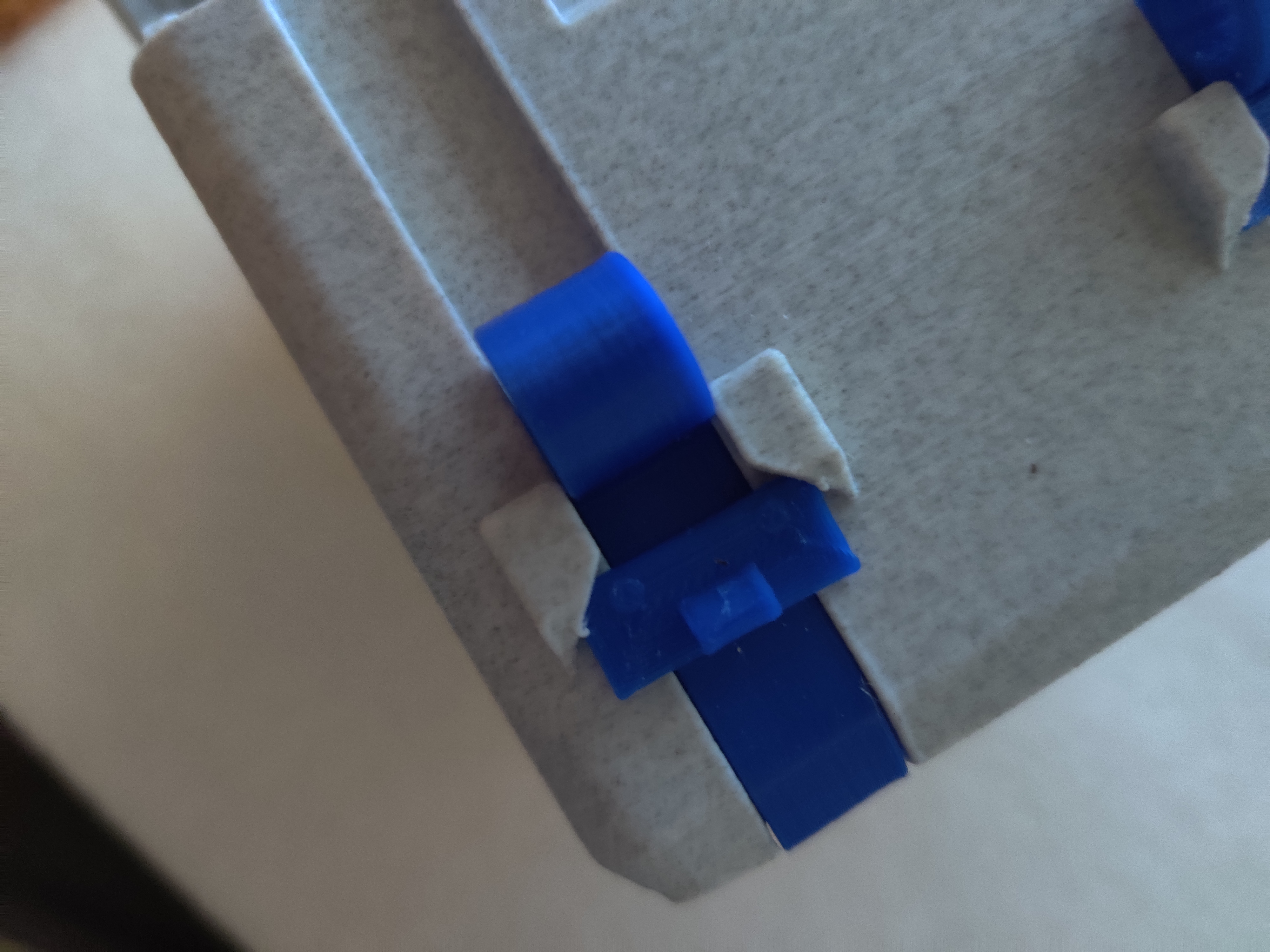

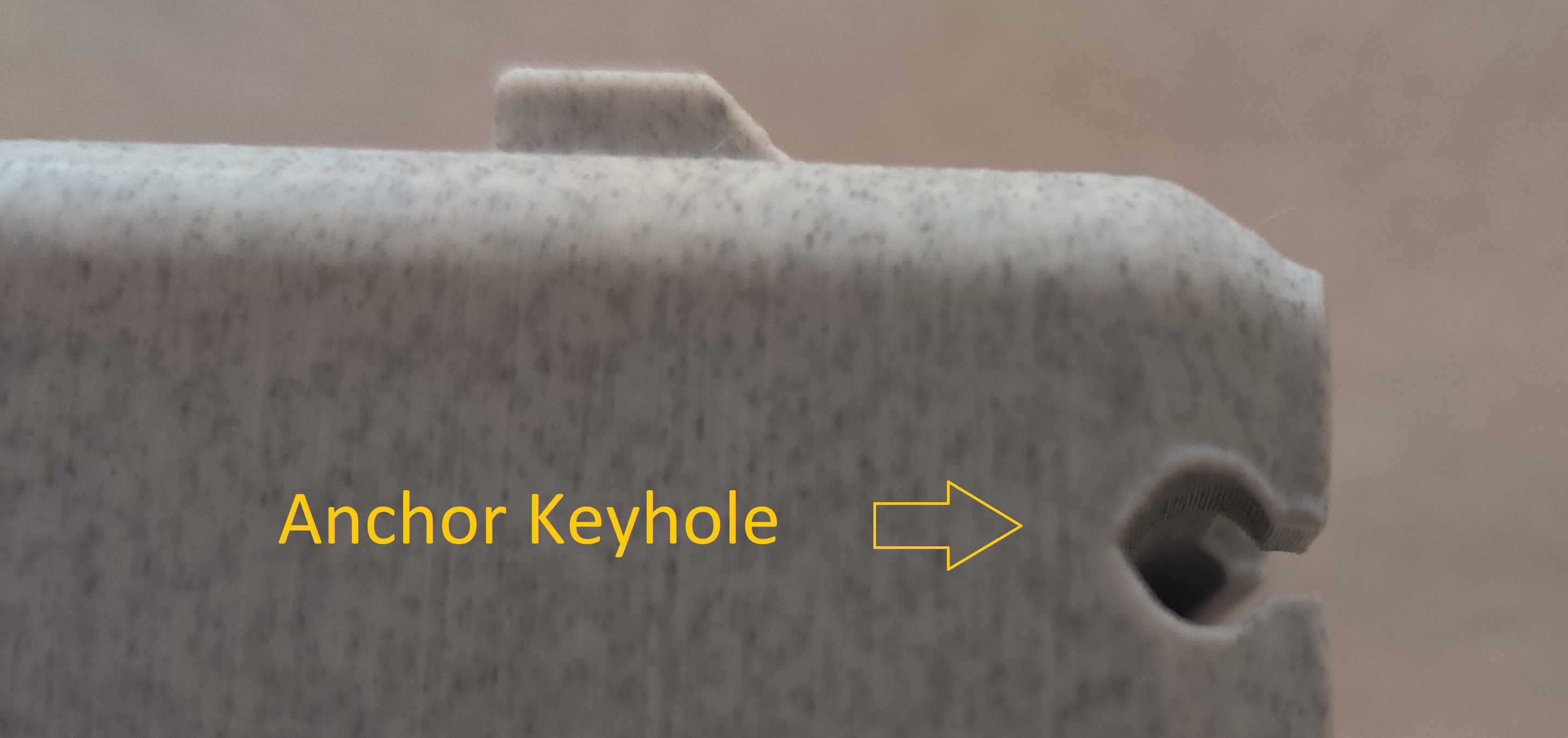

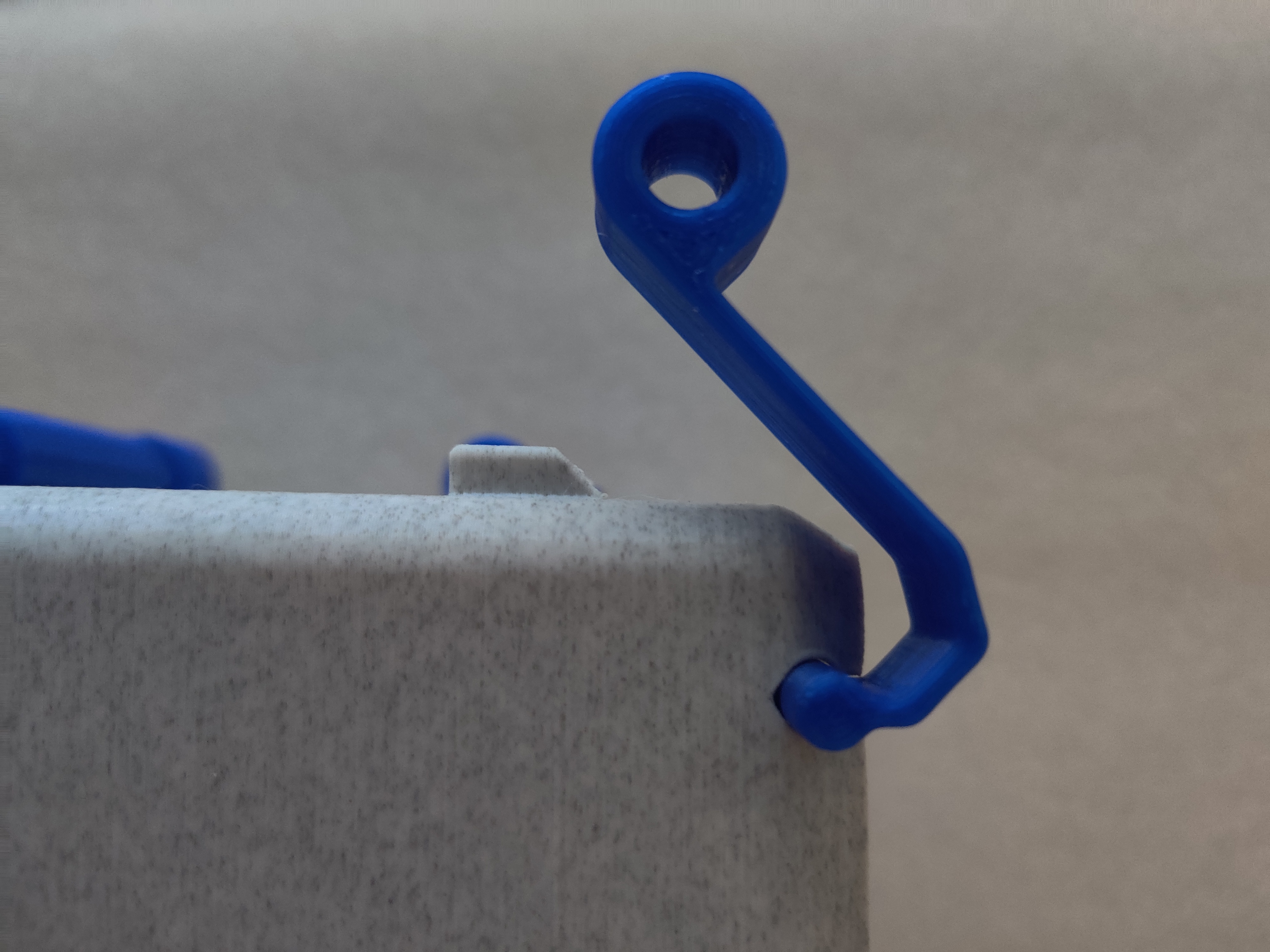

1) Slide the latches into the anchor keyholes at a 45 degree angle until they are at the proper groove, the rotate the strap into the side of the box.

2) If you are using the 3 Hinge Split Pins, insert the center pin into the center hinge straps now.

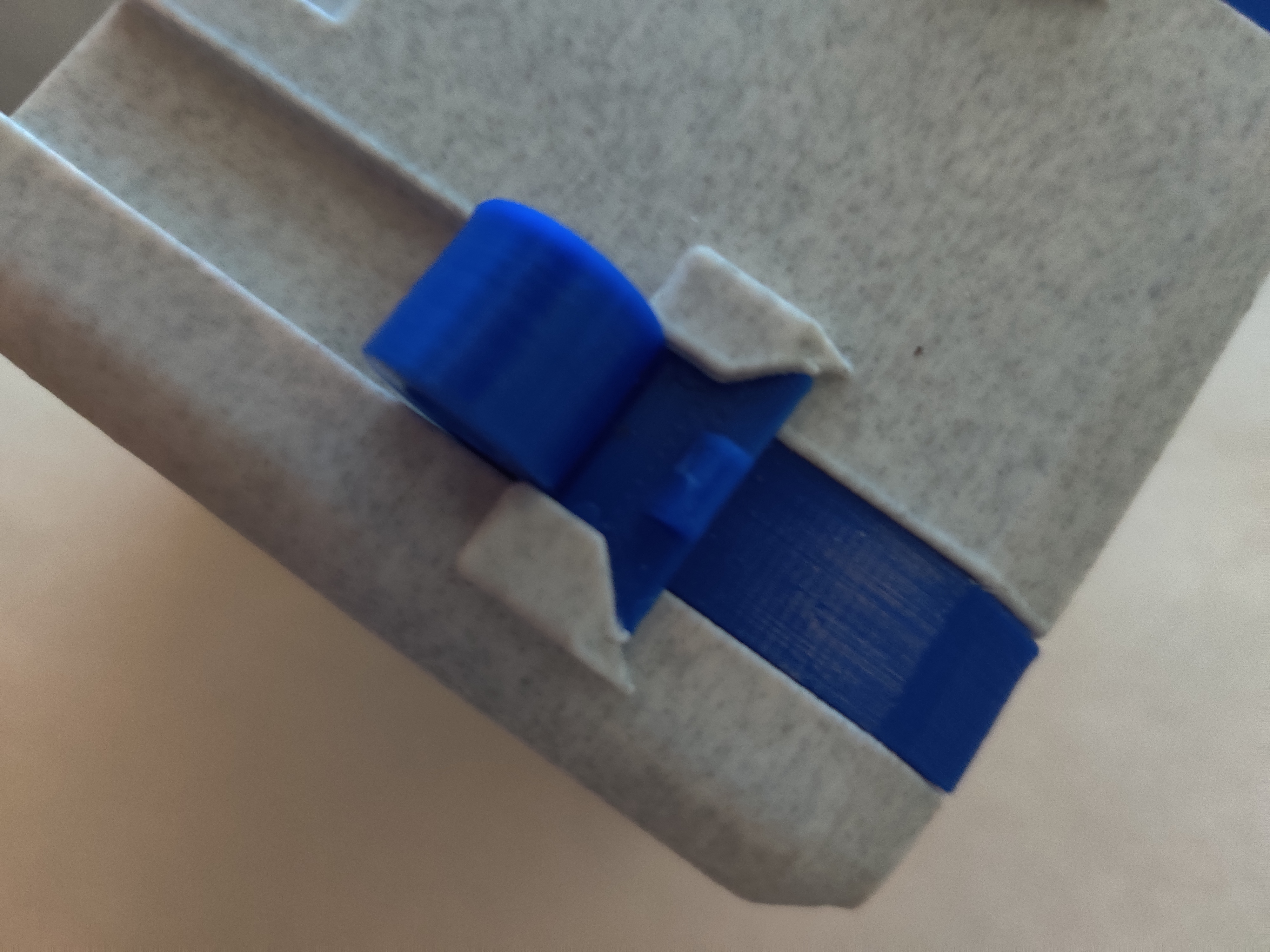

3) Install the retainer plates fully for all straps - they may need to be tapped in with a punch and hammer.

4) Insert the remaining two Hinge Split Pins or the extra Latch Split Pin into the hinge straps.

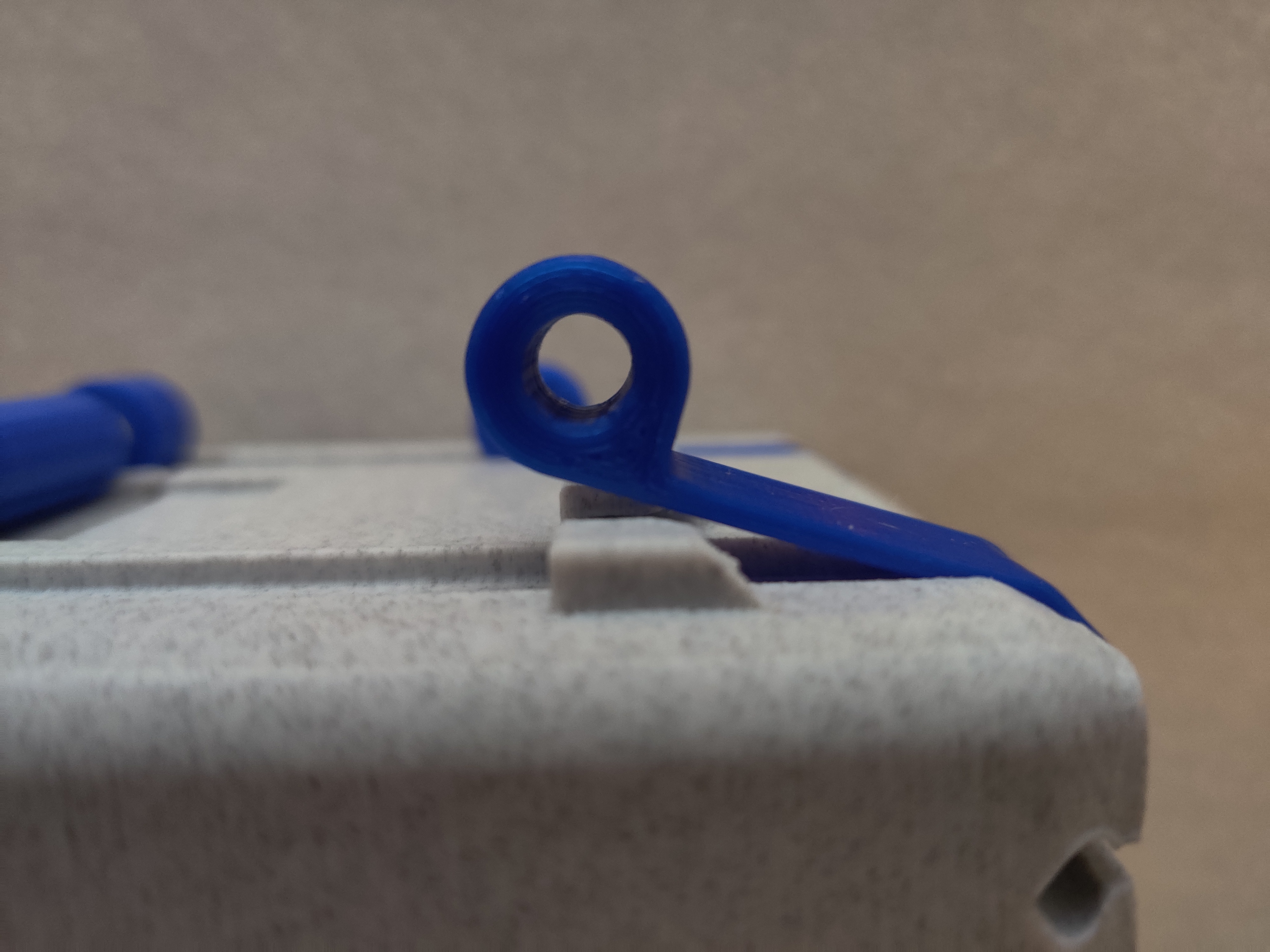

5)  Insert a Latch Split Pin into the  Bottom Latch Straps rotated so that the flat side is against the flat section of the hole through the latch protection tab that is close to box wall.

6) Insert a Latch Split Pin through one Top Latch Strap. align the Labelled Latch and pass the pin through its hole and through the other Top Latch Strap.
