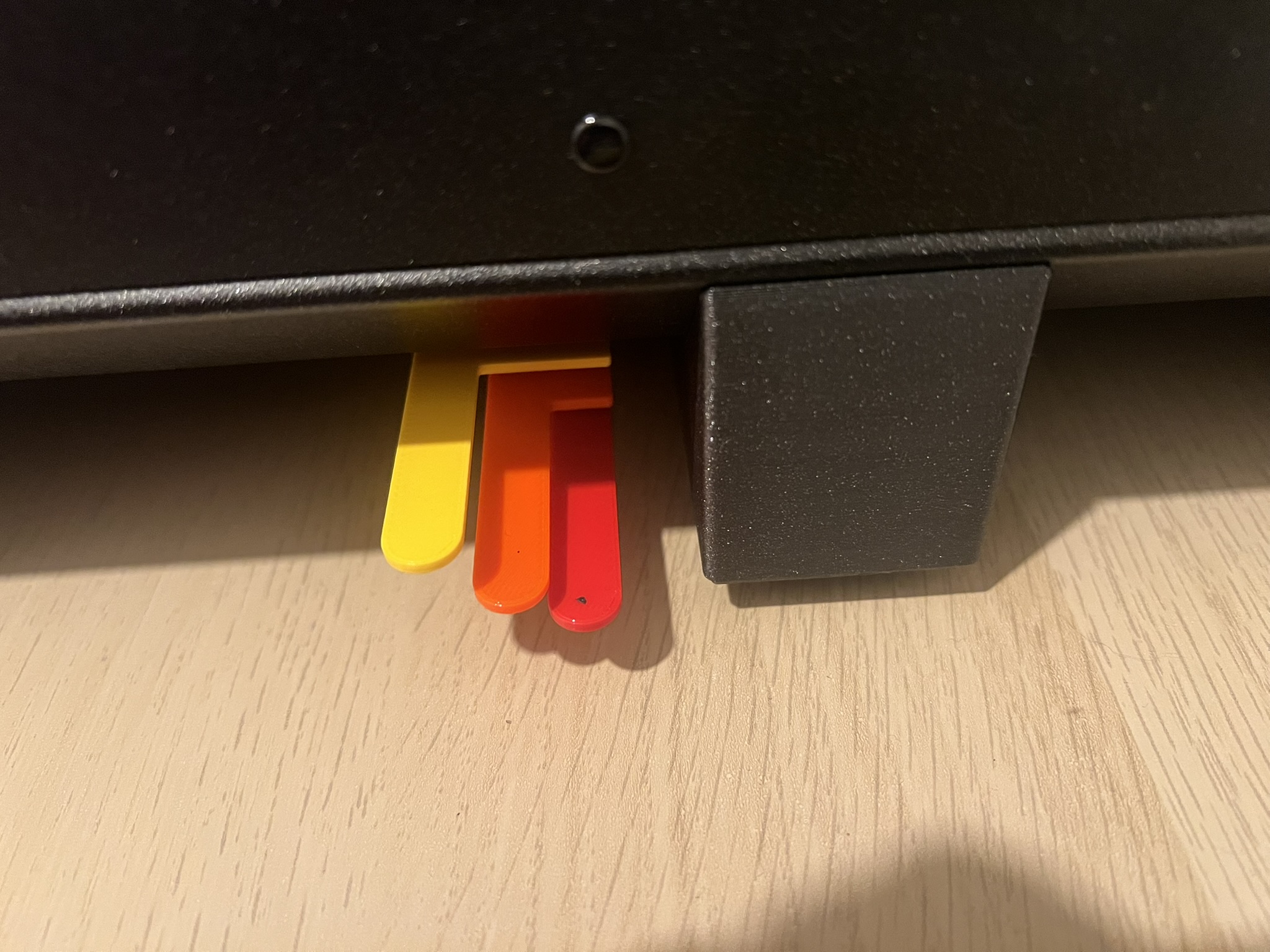

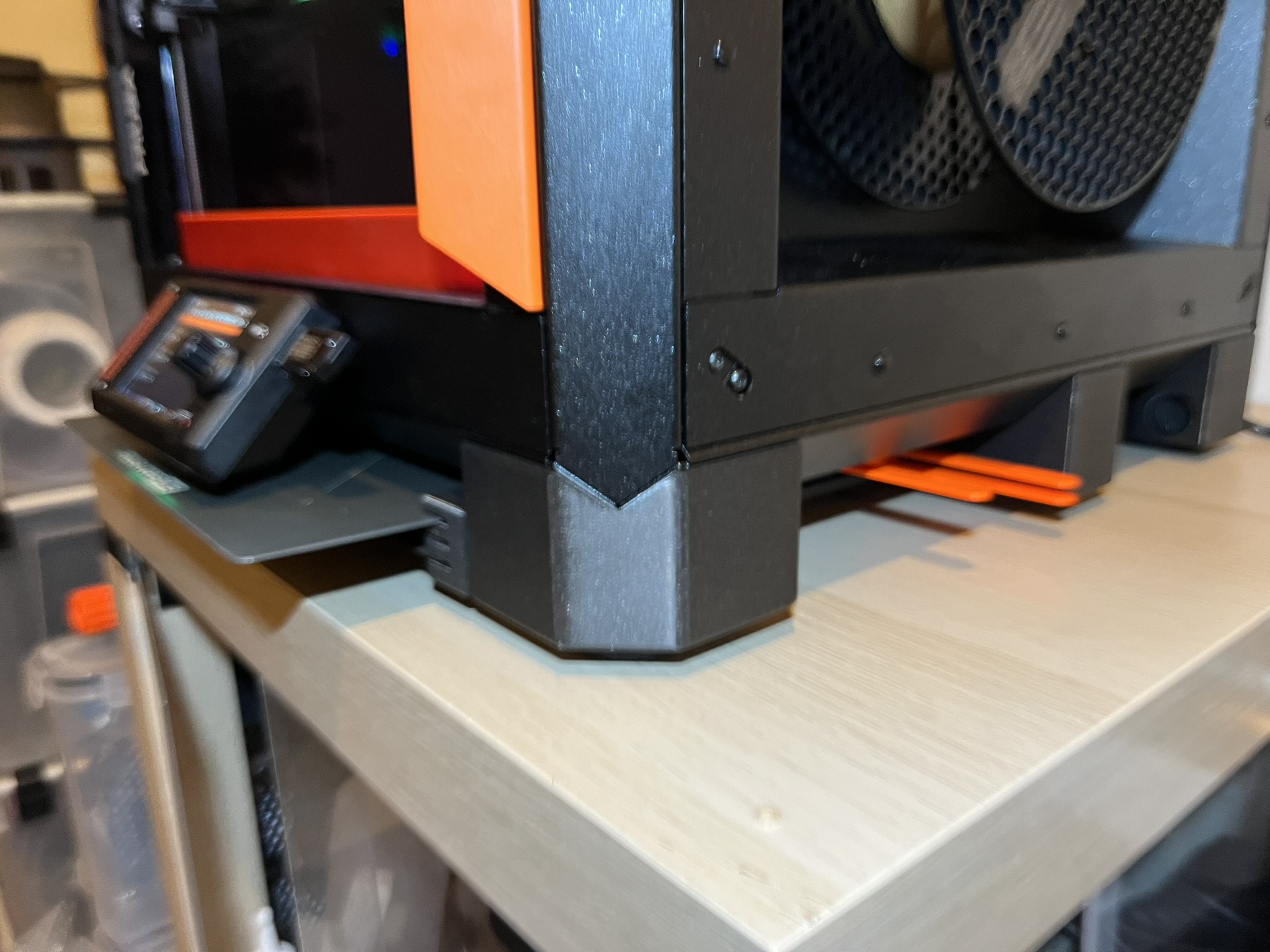

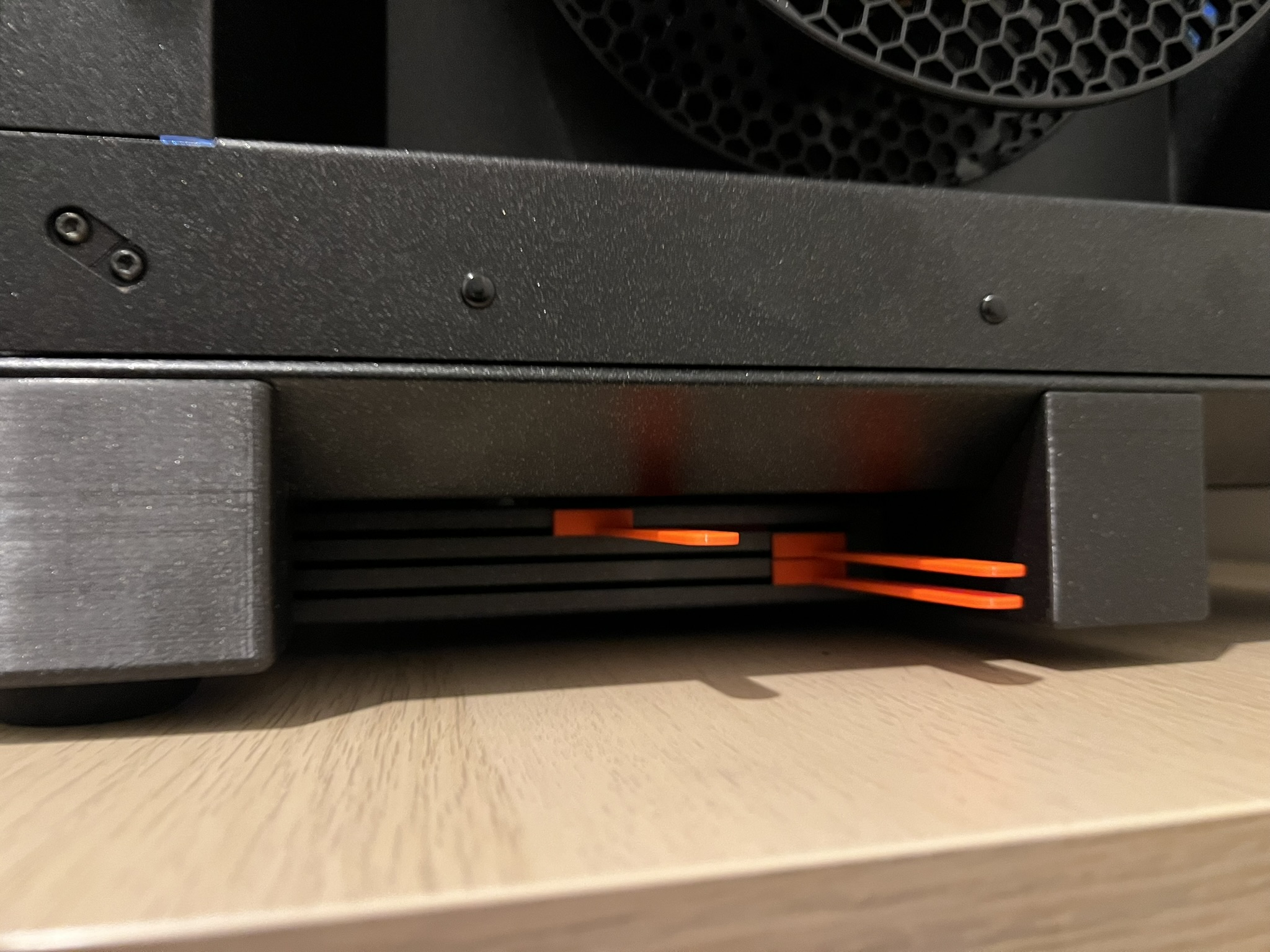

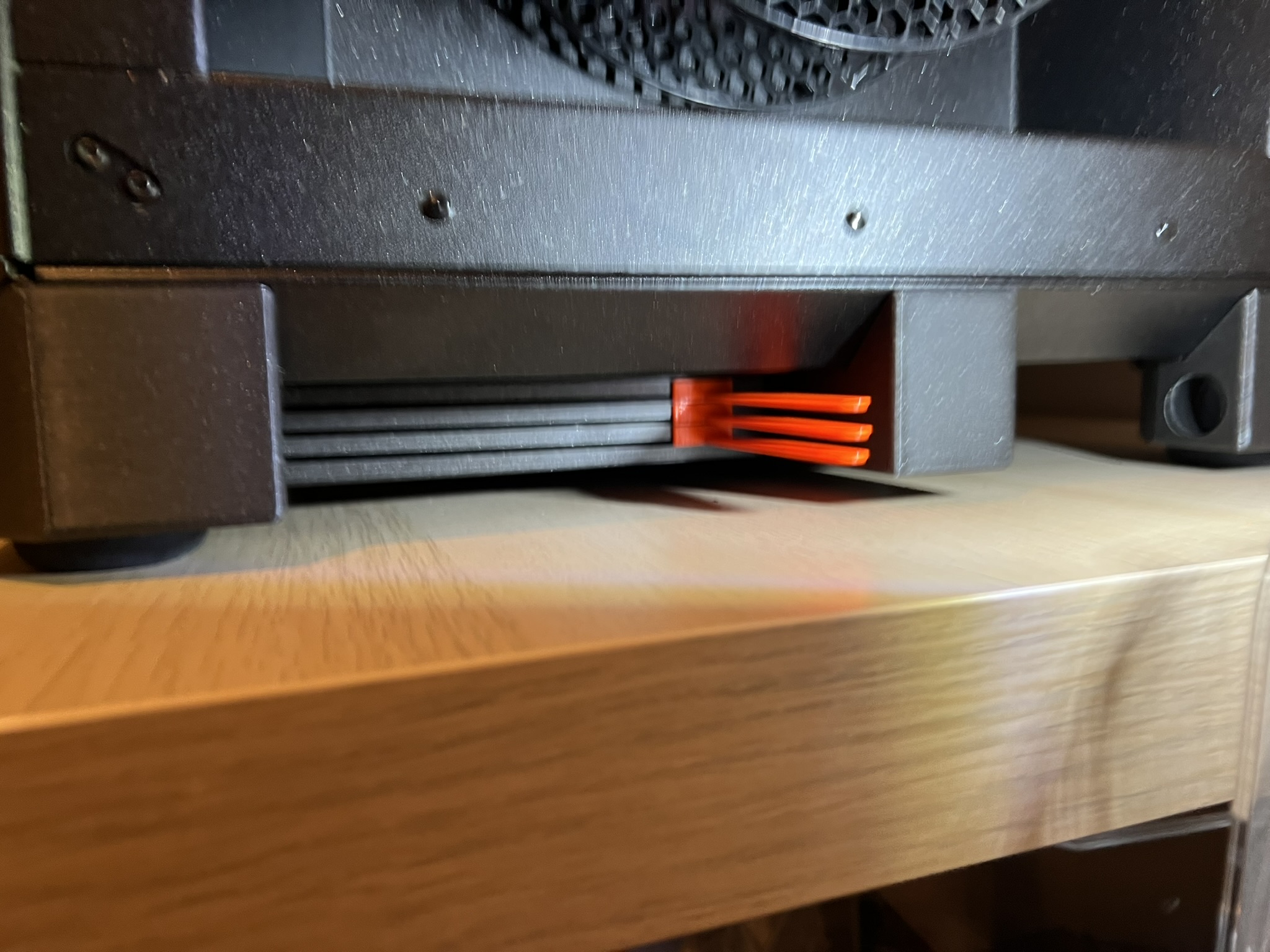

Until now, all my printers were on ball feet. I thought the best place for the printer plates is under the printer, if there is space under it.
I printed all the parts from PETG, 2 walls 15% mesh infill.

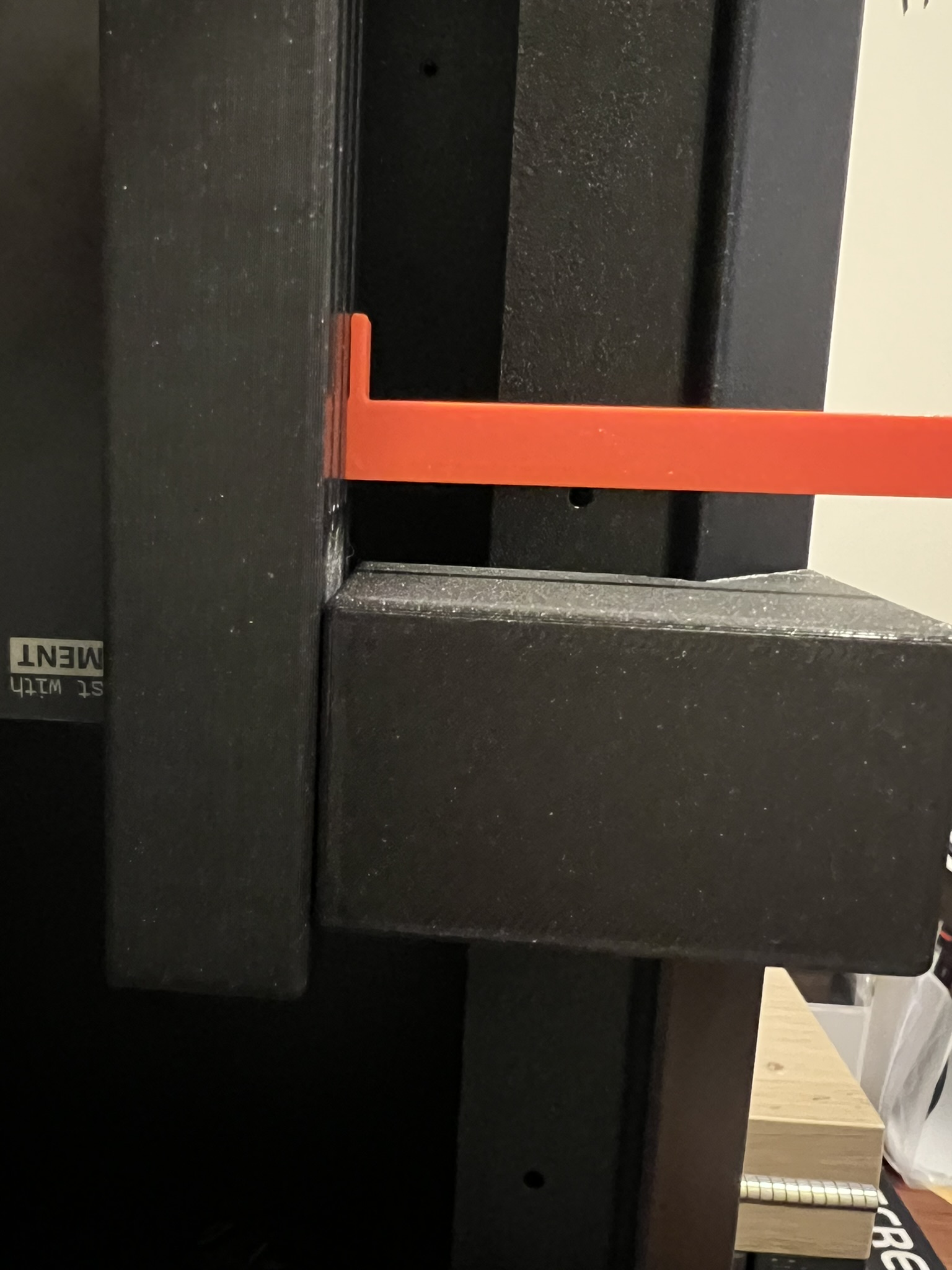

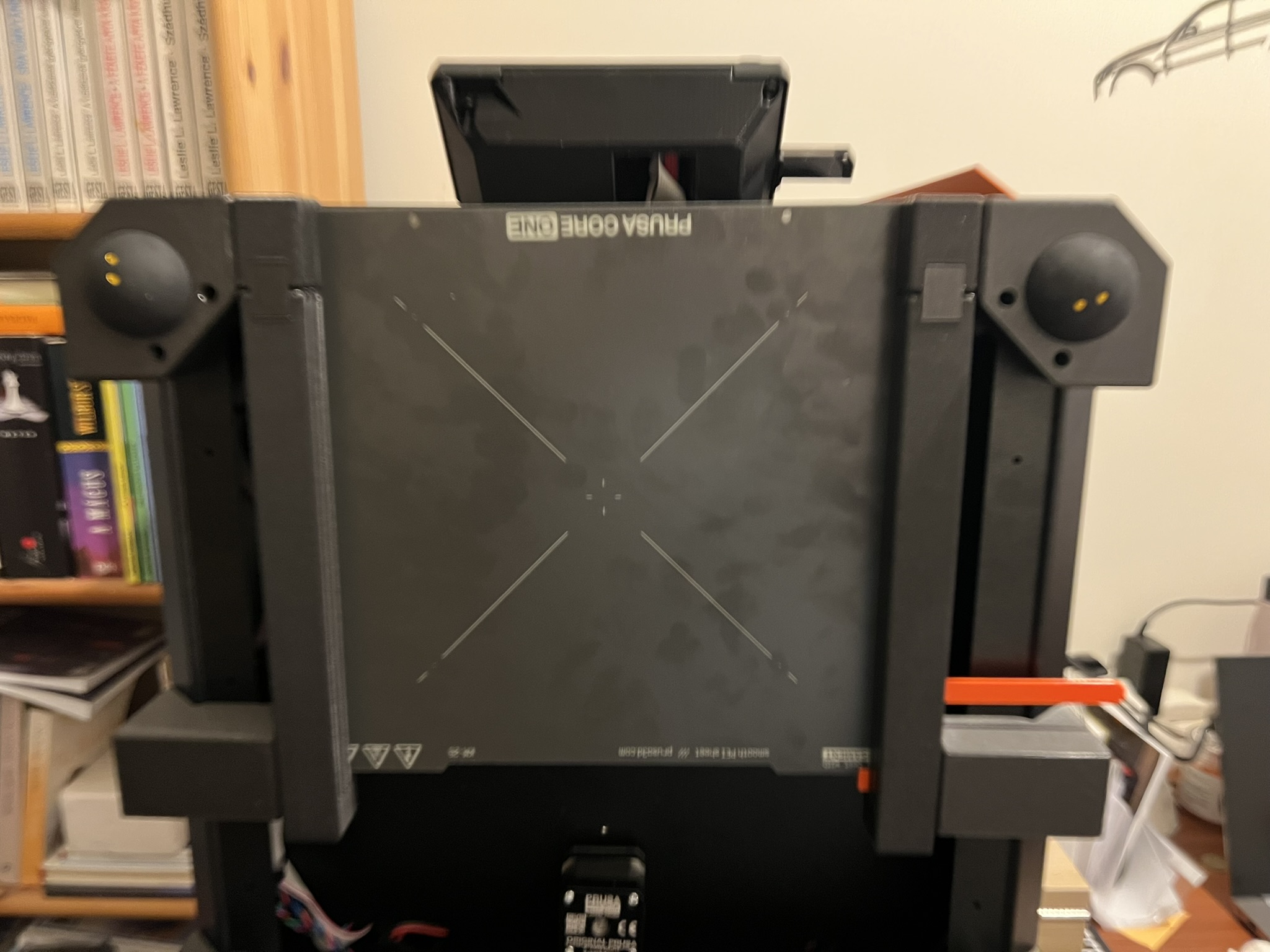

For the assembly I used 12pcs 6x3 magnets and a little instant glue. I recommend using the supports for the legs and the rails. ATTENTION! the plates in the rails are not horizontal, pointing backwards, so the right and left parts are not the same!
I screwed the legs onto the bottom of the printer, they are factory threaded.

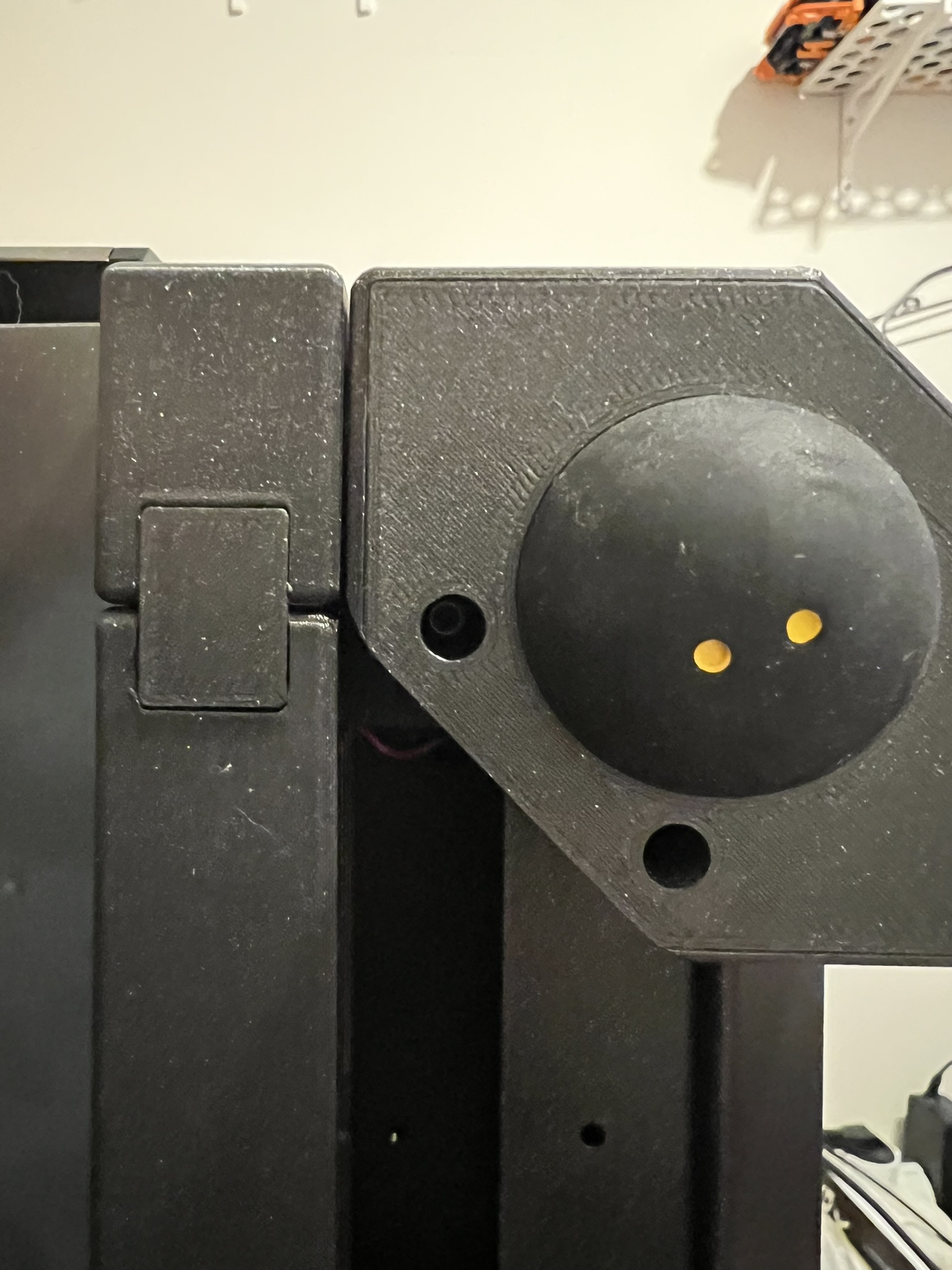

The legs also have space for magnets, they can be attached with 24 6x3 mm magnets. The rear rail holder can only be attached with magnets.
Update
I have redesigned the right rail so that the disc ejector arms are fixed in the rail, and I have designed new arms to make it easier to handle. If you choose the updated rail, you will also find the associated arms in the update folder.
