Playfold MegaBSB v1
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Virtual Reality
- Licencja
- Standard Digital File License

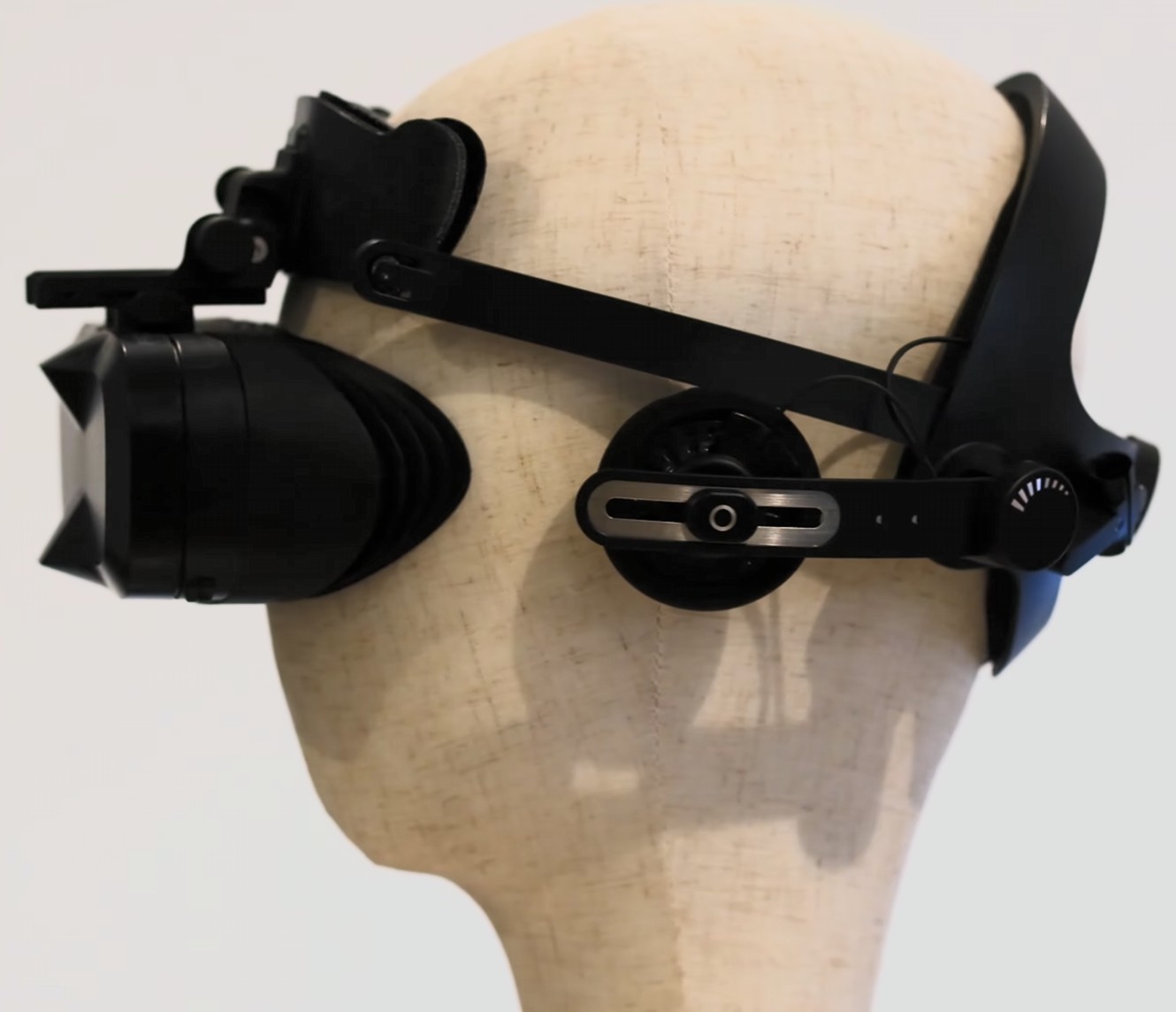

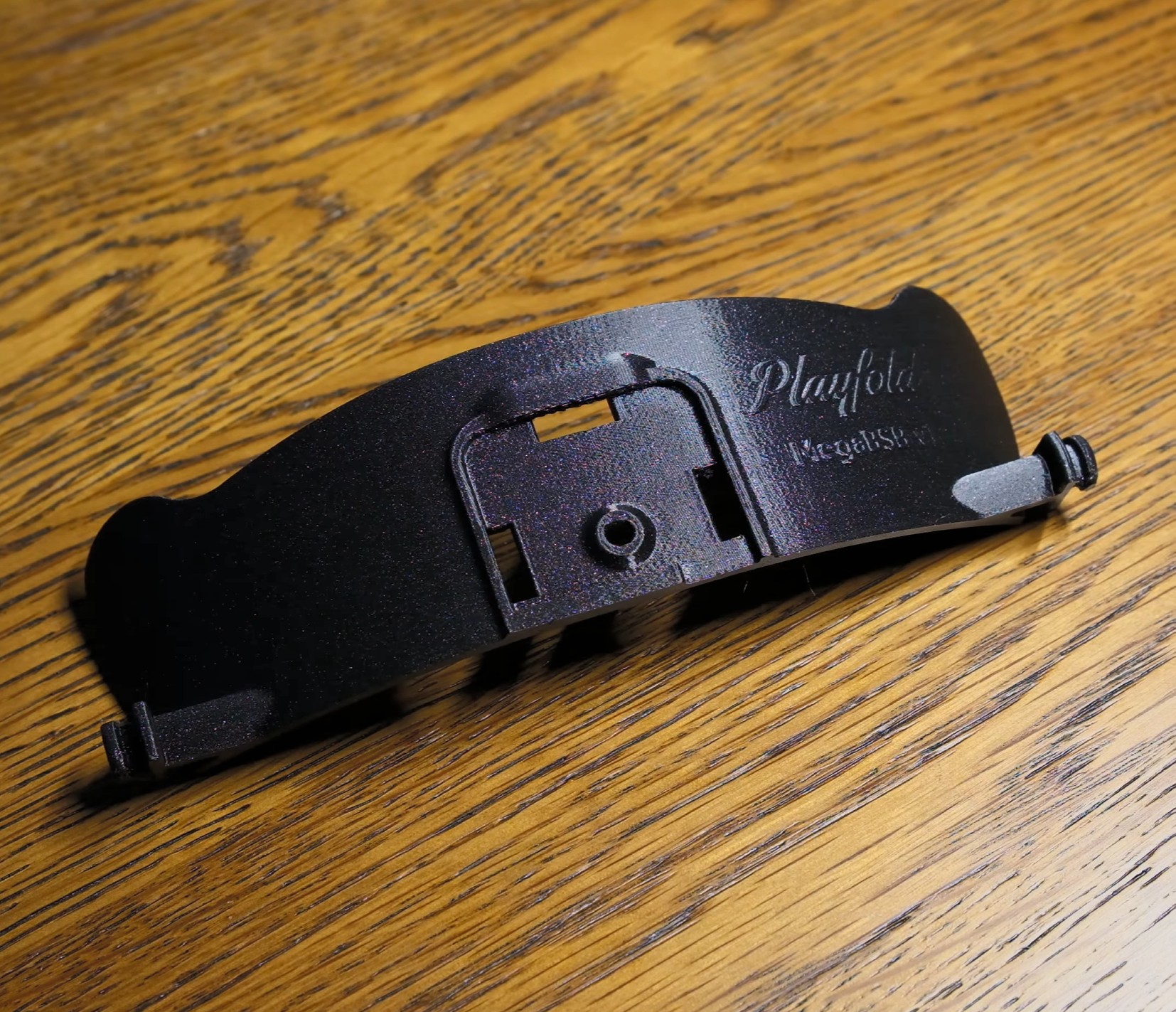

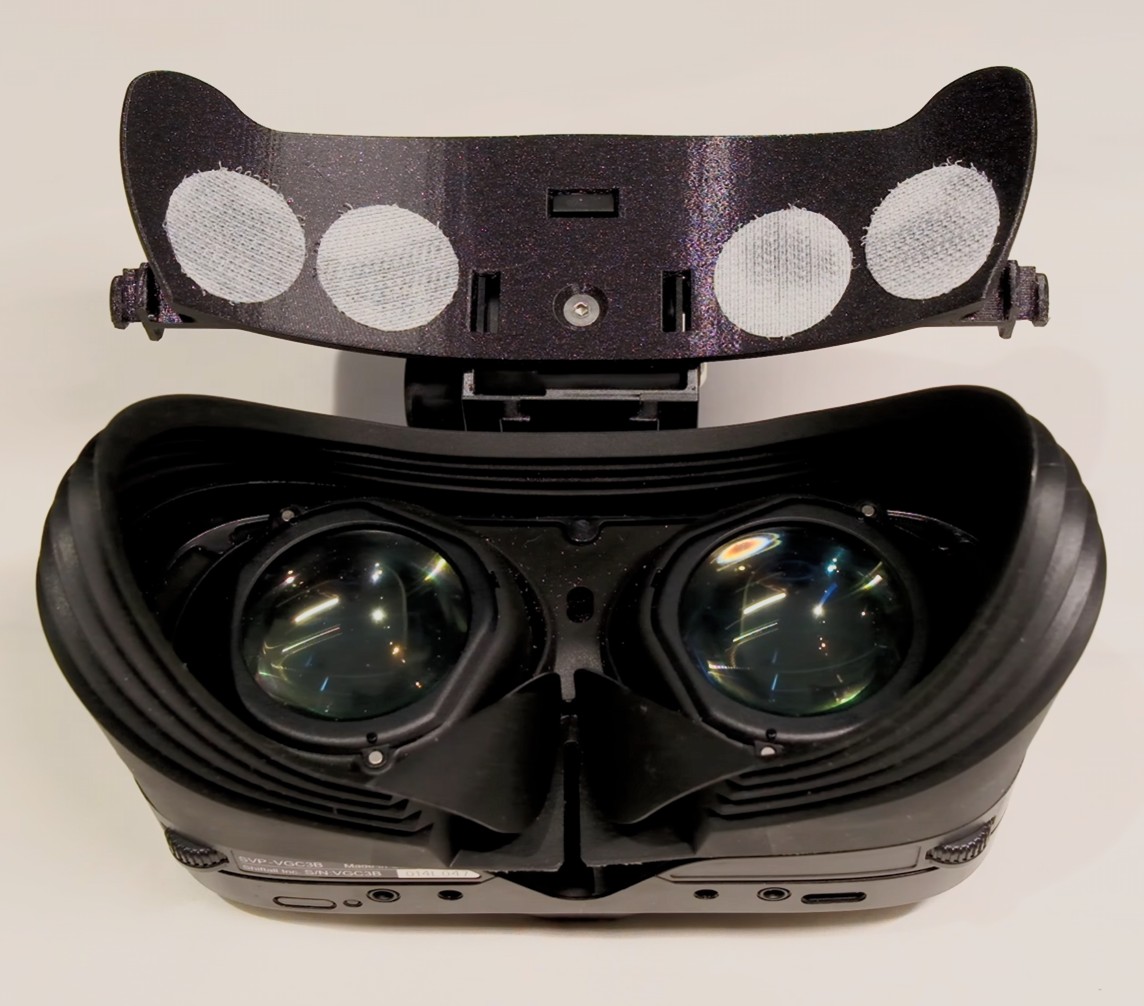

Introducing the Playfold MegaBSB - an adaptor which replaces the face plate of the Meganex Superlight 8k to allow it to attach to the Bigscreen Beyond Audio Strap, while retaining the flip up display and angular adjustment capabilities of the Meganex. Compatible with original Shiftall MeganeX Superlight 8k and Mark 2 (Mark 2 compatibility has been tested by Steve (VR Flight Sim Guy) here: https://youtu.be/vNBg6brZhtc?t=171

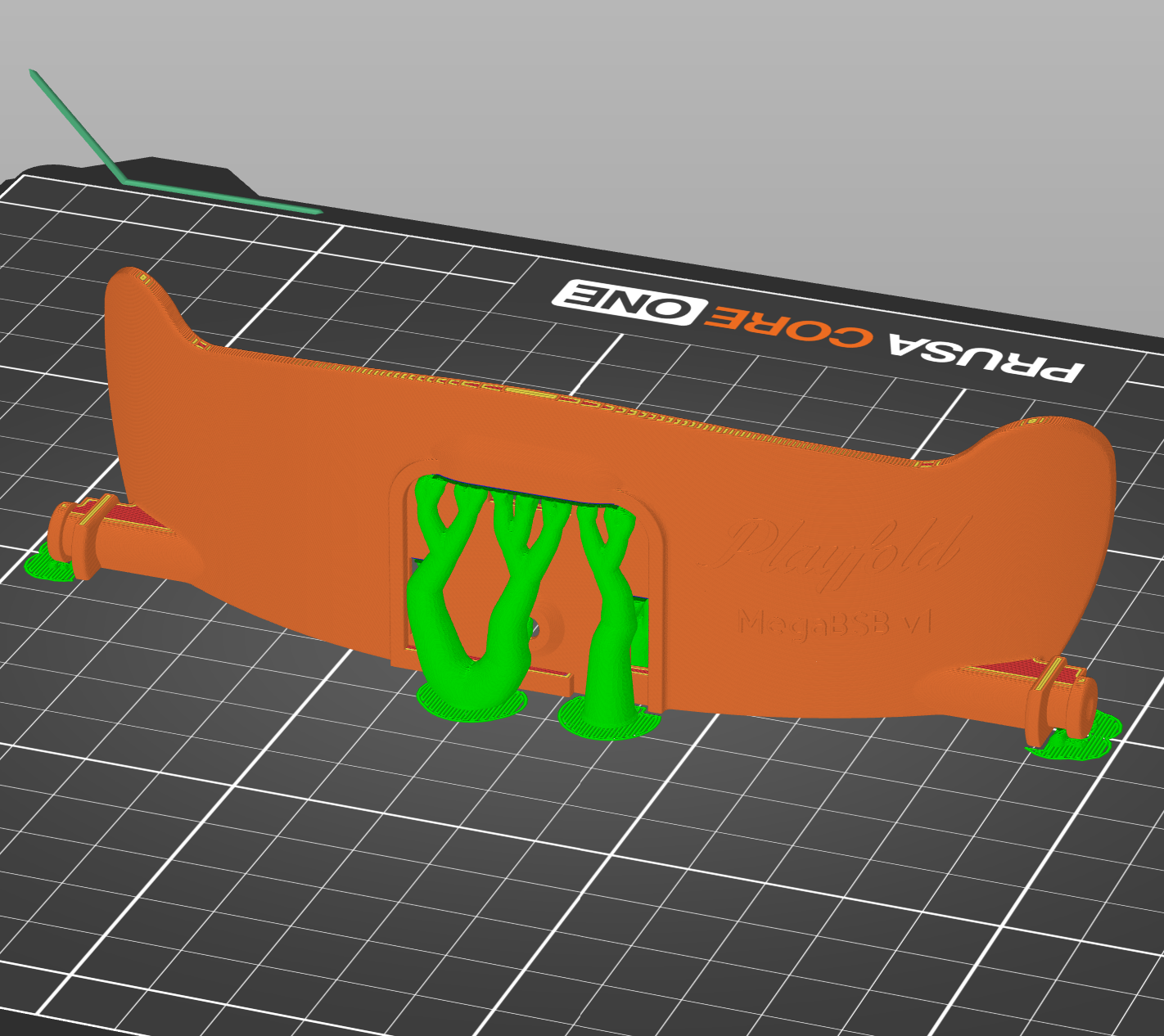

PRINT SETTINGS
0.1 mm layer height
100% infill
Organic supports (tree)
Supports everywhere
Material: PLA (Prusament PLA Galaxy Black shown in photo and video)
***As this is an interlocking part, special care must be taken to ensure that the part is free of printing defects and that 100% of the support material has been removed from the part after printing. Before fitting the printed part, check tolerances with the existing parts***
ASSEMBLY INSTRUCTIONS ONCE PRINTED
Please see the video below:
