This is a simple wine rack system for bottles with a diameter of up to 78mm.
Three base versions are available for 5, 10 or 15 bottles.
Each version comprises of an End and one or more shelf sections, i.e.,.
5 Bottles will need one End1 and one Shelf

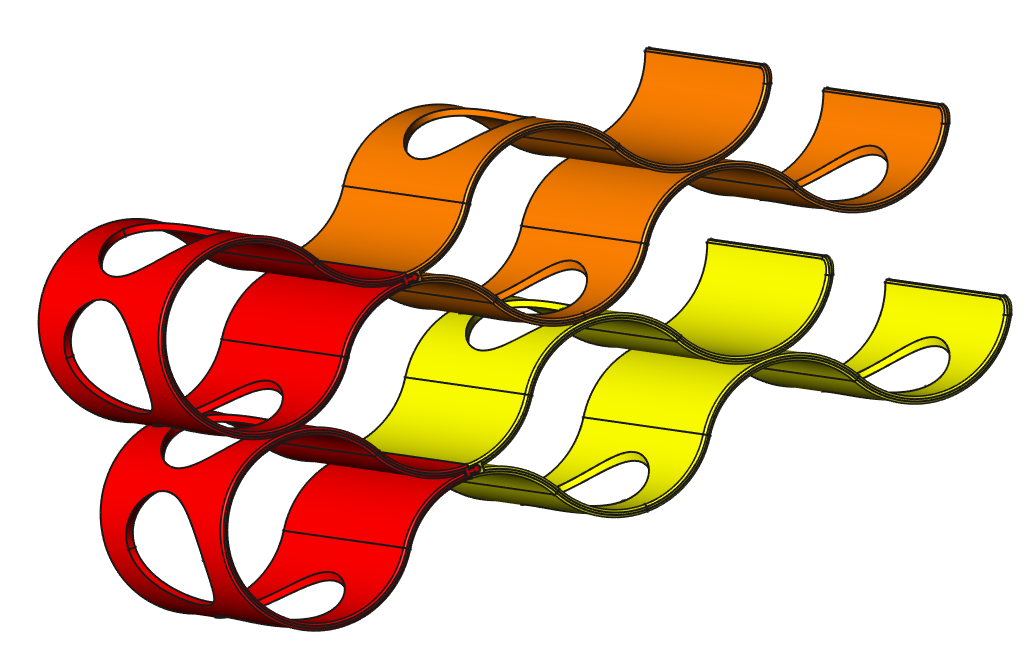

10 Bottles will need one End2 and two Shelves

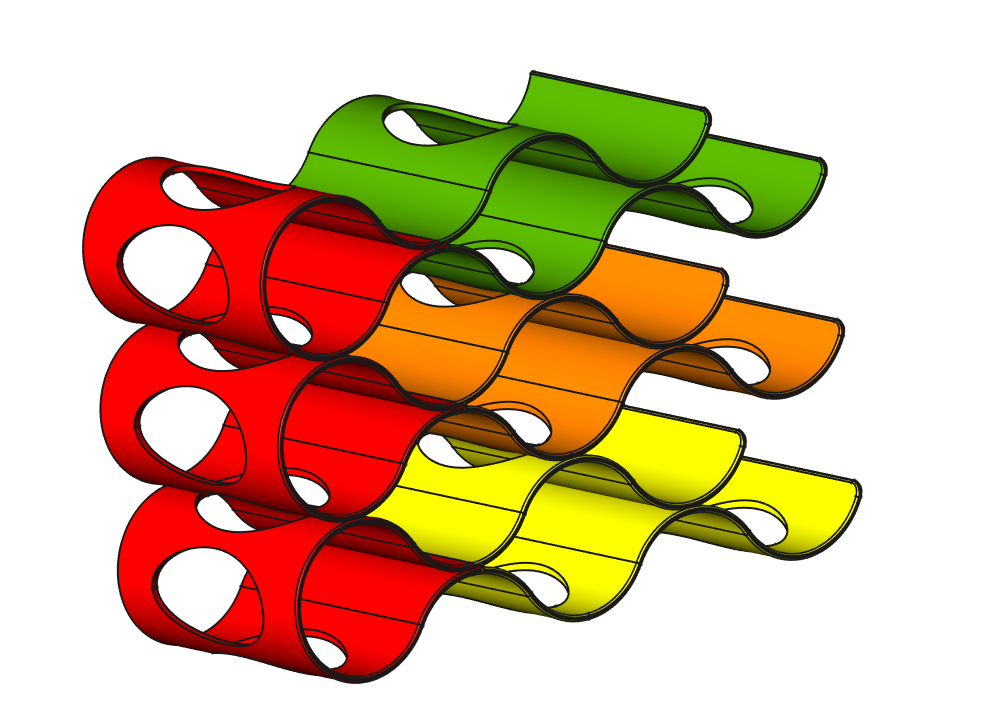

15 Bottles will need one End3 and three Shelves

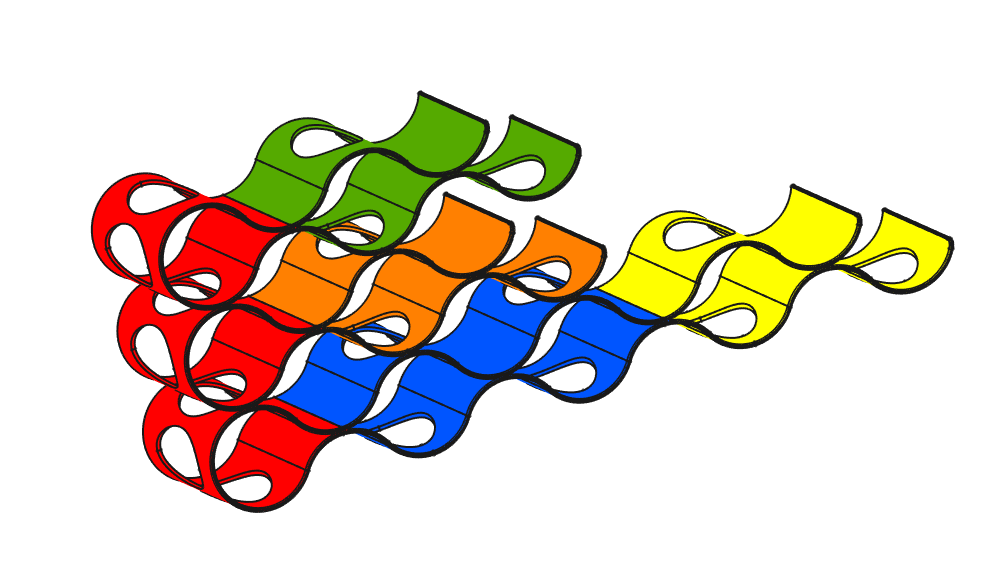

If you need to expand the wine rack 2 and 4 bottle shelf extension units can be added.
The parts will slide together. A bit of glue maybe needed along the joints and the tops of the shelves to provide more rigidity.
I've printed these in PLA with a layer height of 0.3mm using a 0.4mm nozzle. They are strong enough using 2 perimeters and a 5% gyroid infill. You may need supports for the oval shaped cut outs.
