Elegoo Centauri Carbon Vented Riser Lock.
Fits ECC Vented Riser from JesusFreak
I remixed this from Squeemeister

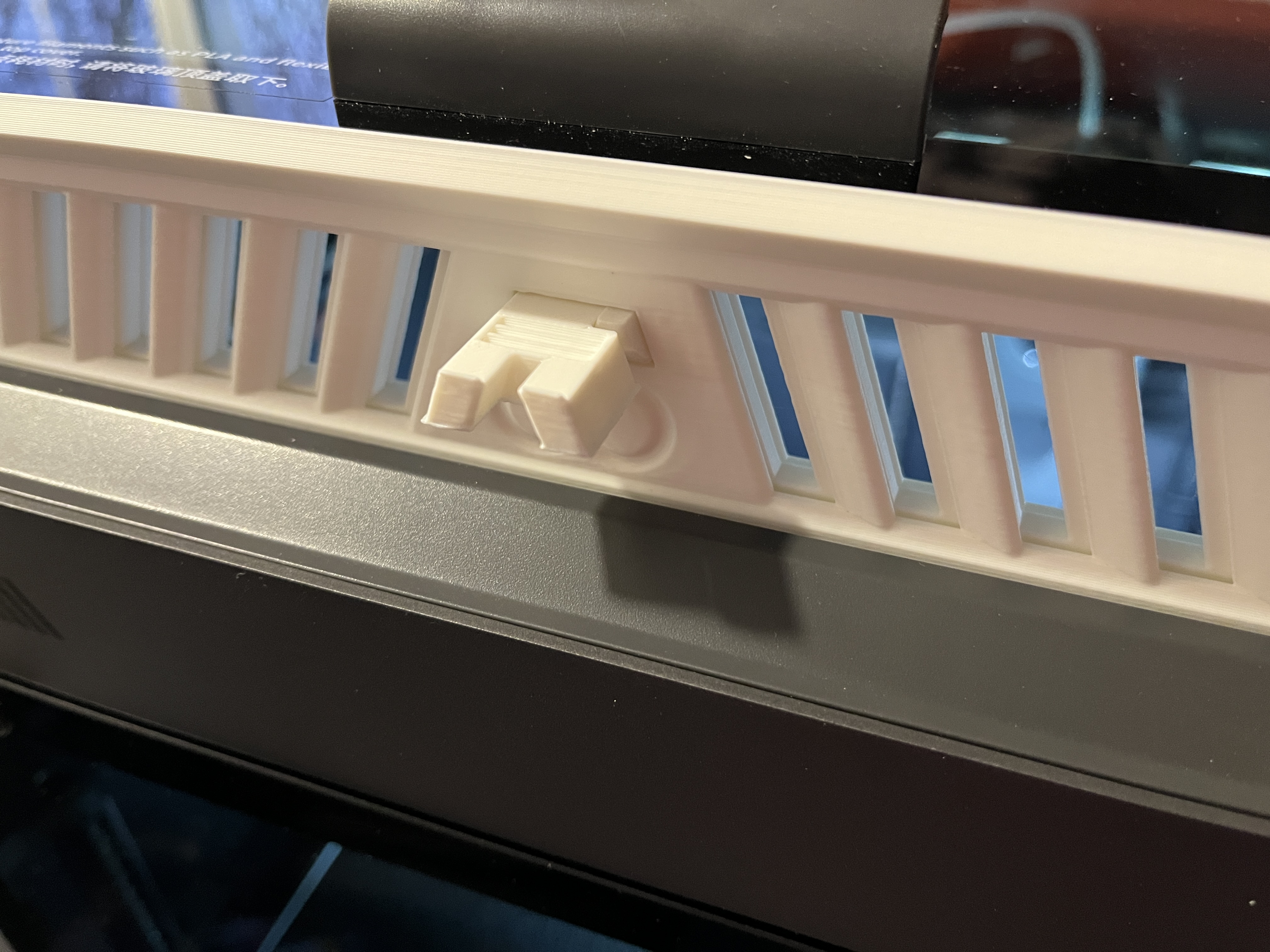

This lock holds the vent closed or open.
Uses raised wedges on the top of each end to mechanically hold itself in place.
Two versions:
Tapered Wedge - inserts/removes easily
Squared Wedge - fits tight, takes some wiggling to insert/remove
*If you prefer to slide the vent to the left, mirror the model before printing*

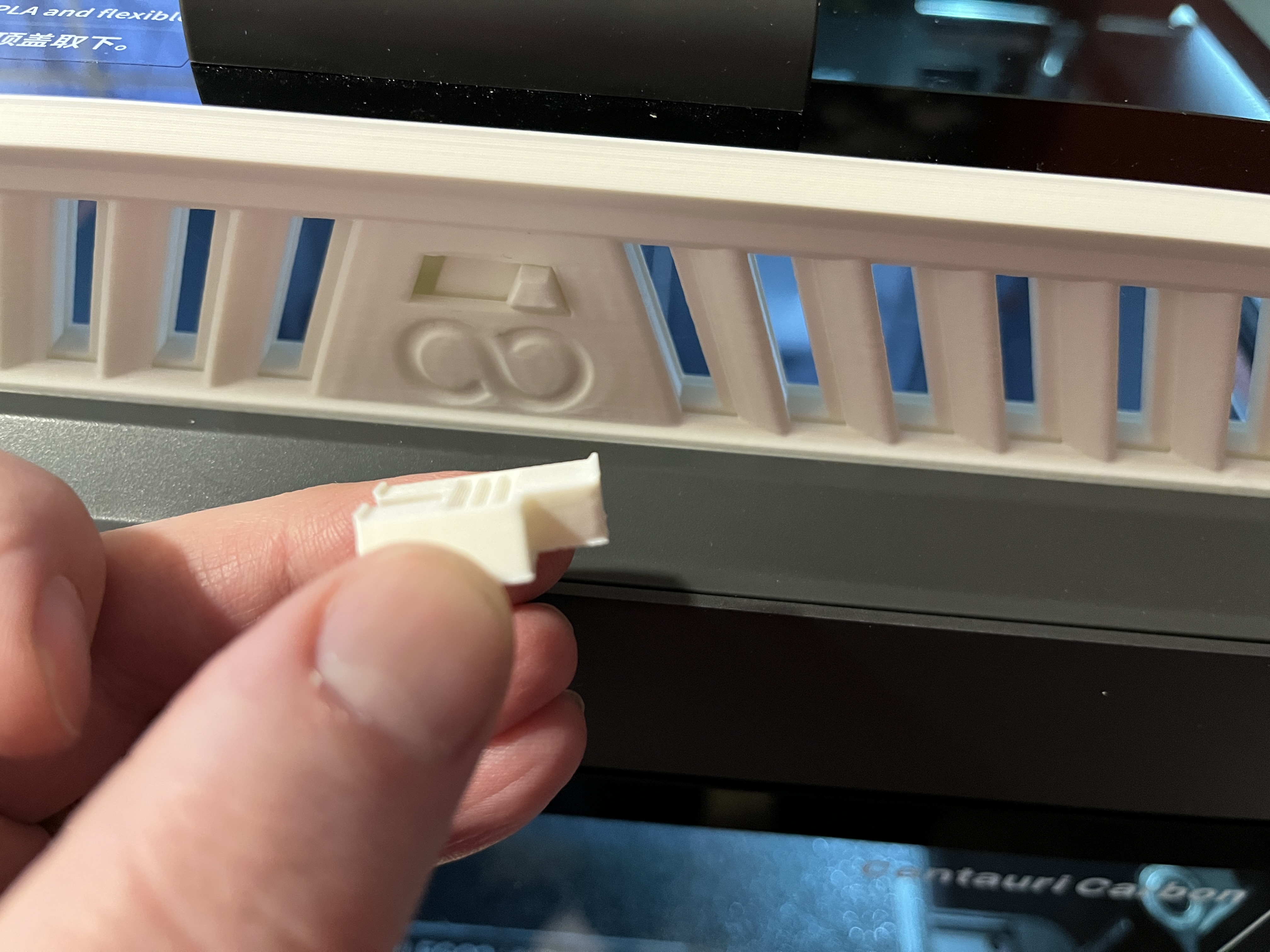

You slip the raised wedges into the top gap between the slider and the frame, then rotate the key into place.
Uses its own weight to hold itself in place.
'Should' not fall out during printer operation.
Let me know if it works well for you, or go ahead and improve it.

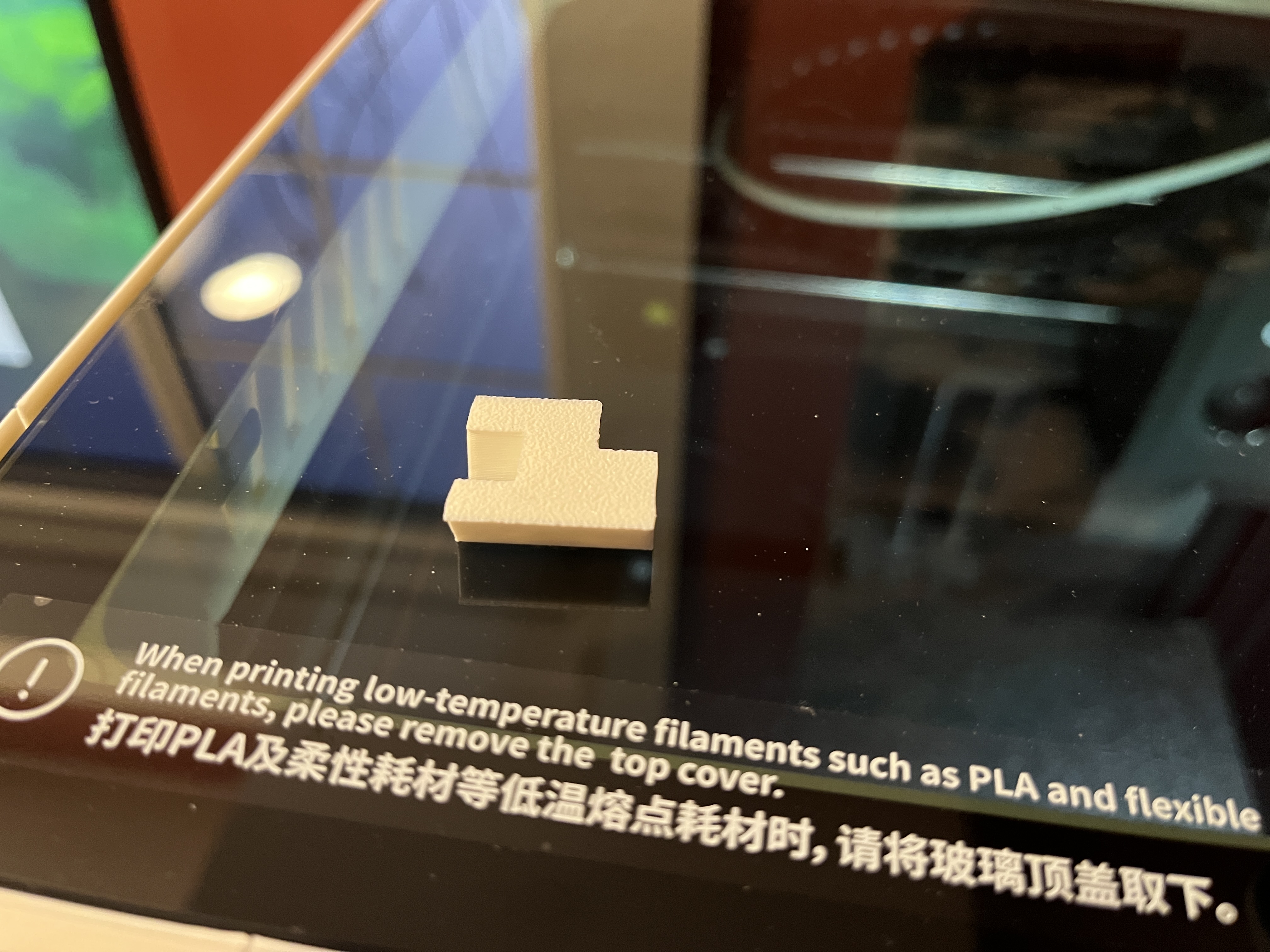

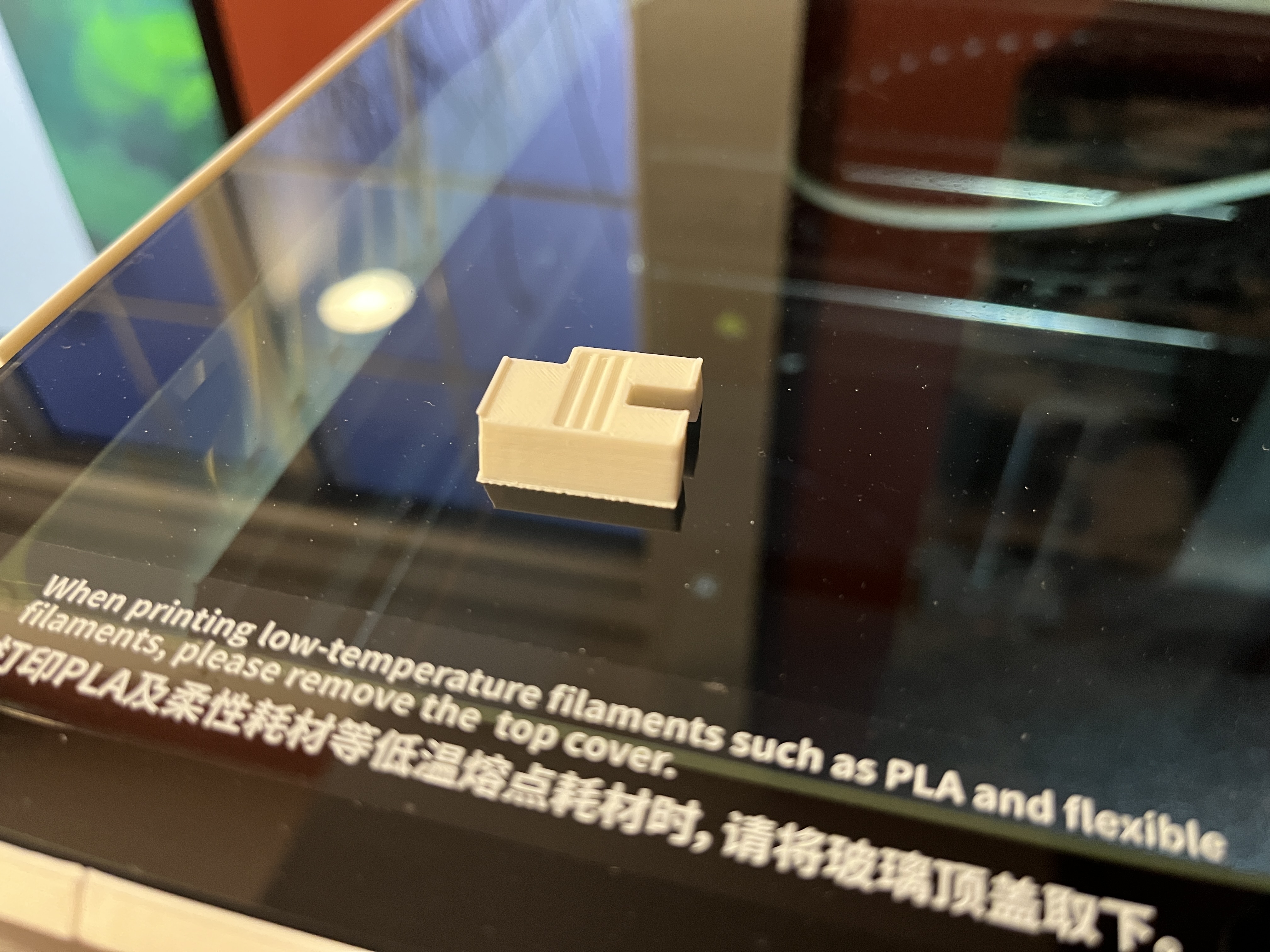

Used PLA+
Printed without brim.
May need minor trimming of excess if you find it doesn't fit at first.
