Quadriga - 4x Bitaxe cooling tower

Quadriga – Modular Cooling Tower for Bitaxe Devices

Quadriga is a compact, vertically oriented cooling tower designed to efficiently cool up to four Bitaxe devices mounted on its sides. The system is optimized for continuous operation and airflow efficiency, making it well suited for sustained mining workloads.

The design consists of two separate 3D-printed components that work together to create a controlled vertical airflow path from bottom to top.

Design and Airflow Concept

Quadriga uses an active bottom-to-top cooling principle:

• A 120 mm fan is mounted on the underside of the tower.

• Dedicated spacer geometry ensures sufficient clearance for unrestricted air intake.

• Cool ambient air is drawn in from below and guided upward through the tower.

• Each of the four mounted Bitaxe devices is cooled directly at the rear side, where most heat is dissipated.

• Warm air exits through a top exhaust opening, preventing heat accumulation.

This airflow path ensures uniform cooling across all mounted devices while minimizing recirculation of warm air.

Modular Two-Part Construction

Quadriga consists of two individual 3D models:

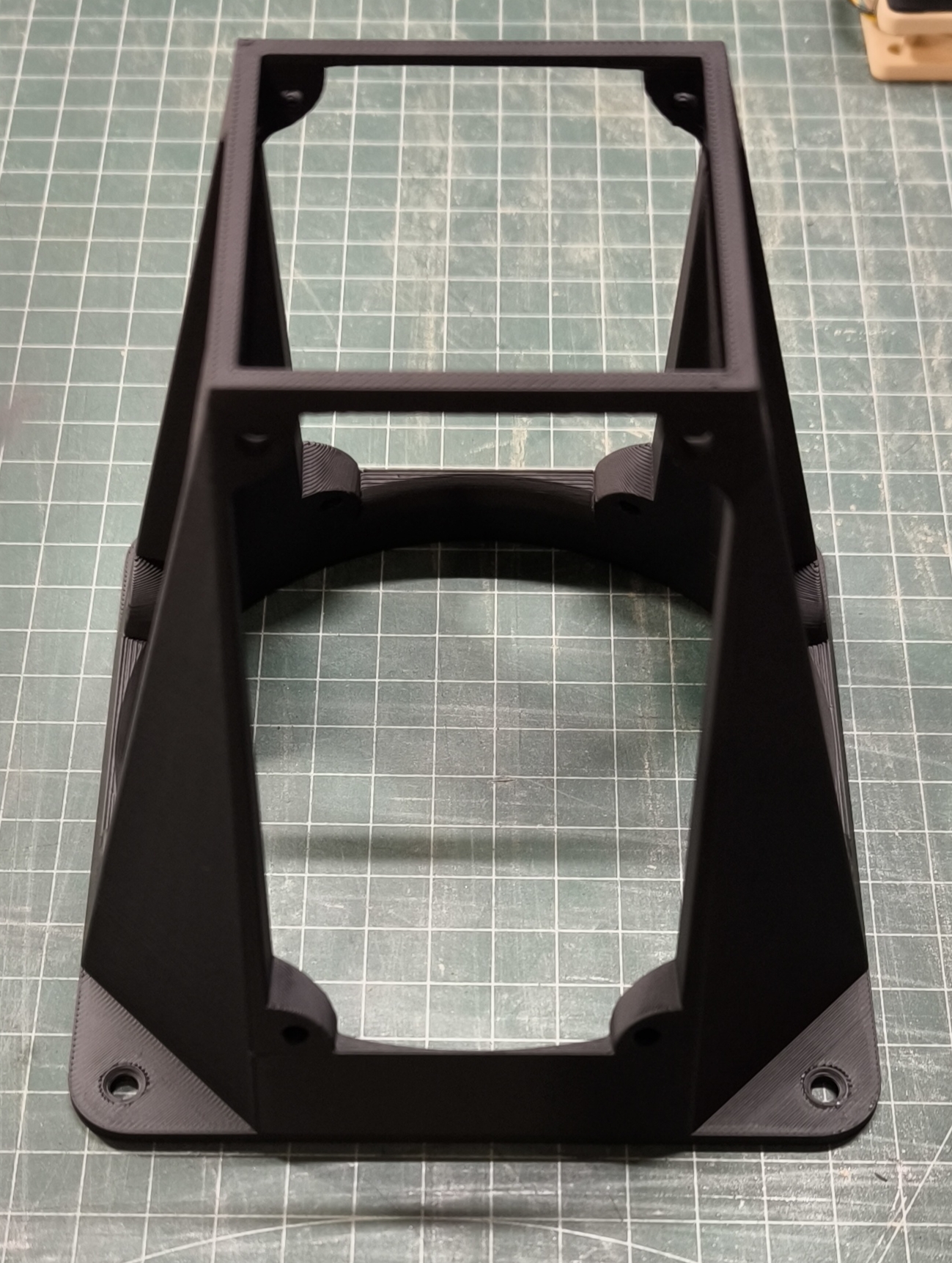

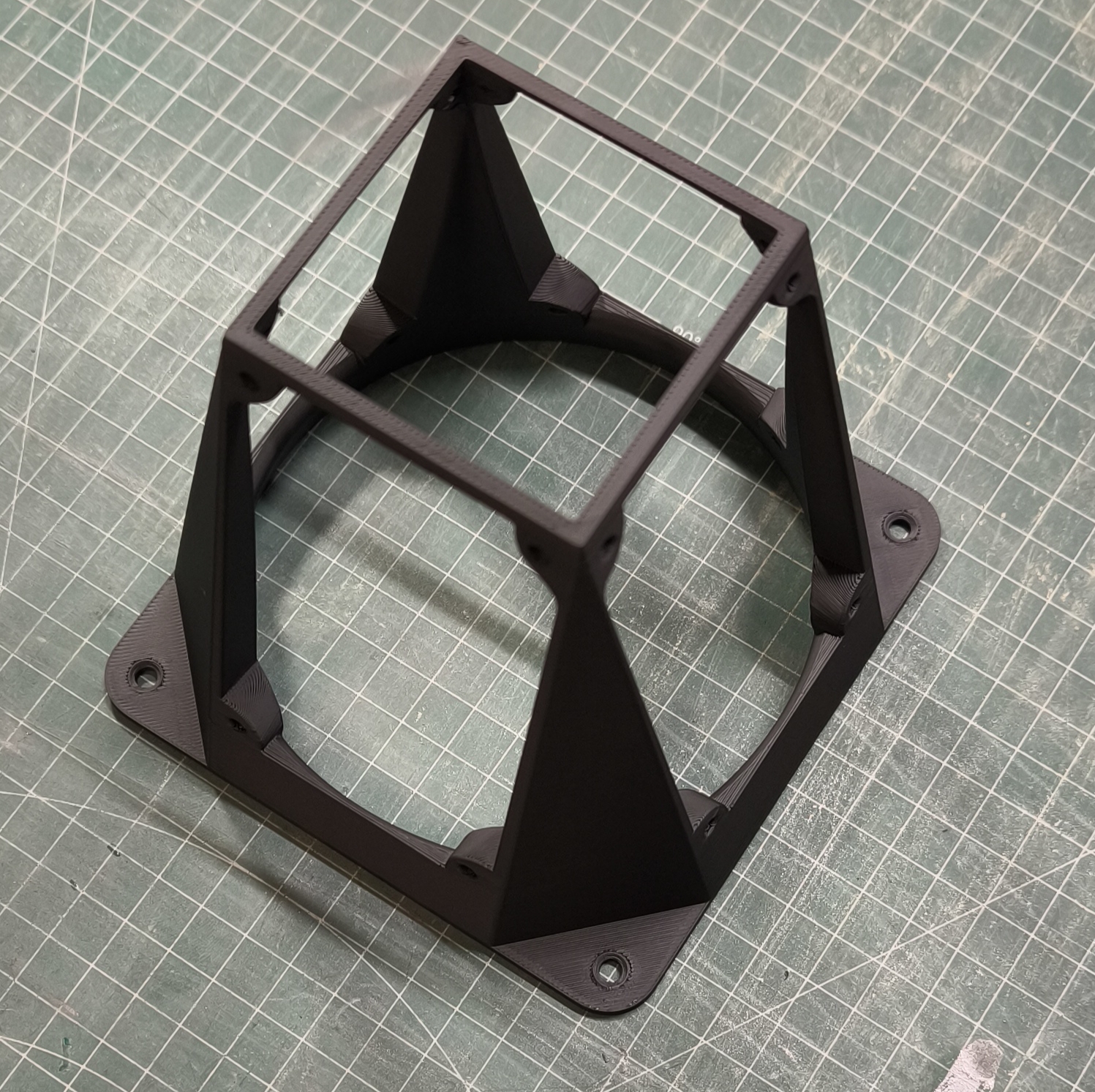

1. Main Tower Body

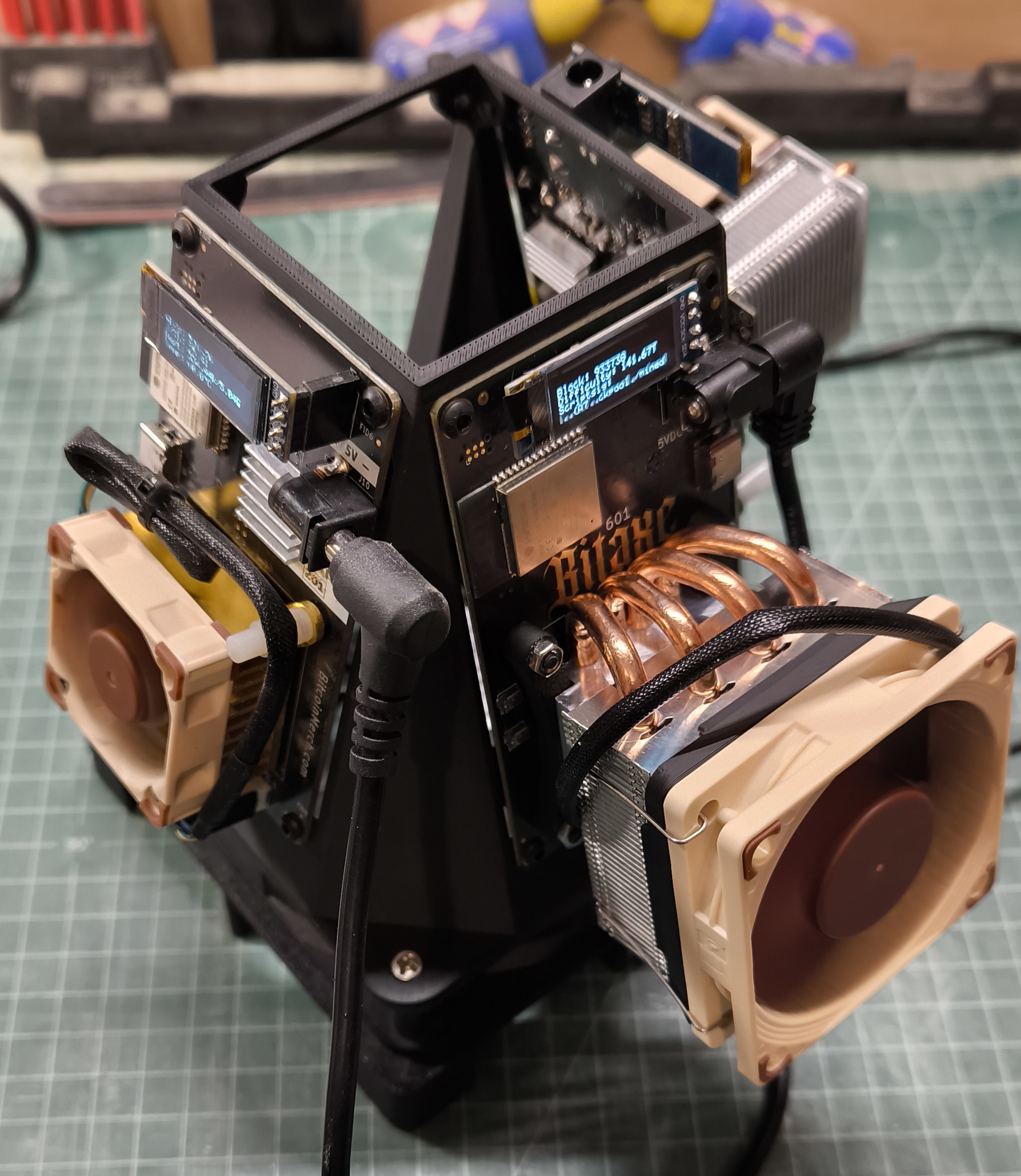

   • Holds up to four Bitaxe devices on its sides

   • Provides structural rigidity and defined airflow channels

   • Includes the top exhaust opening

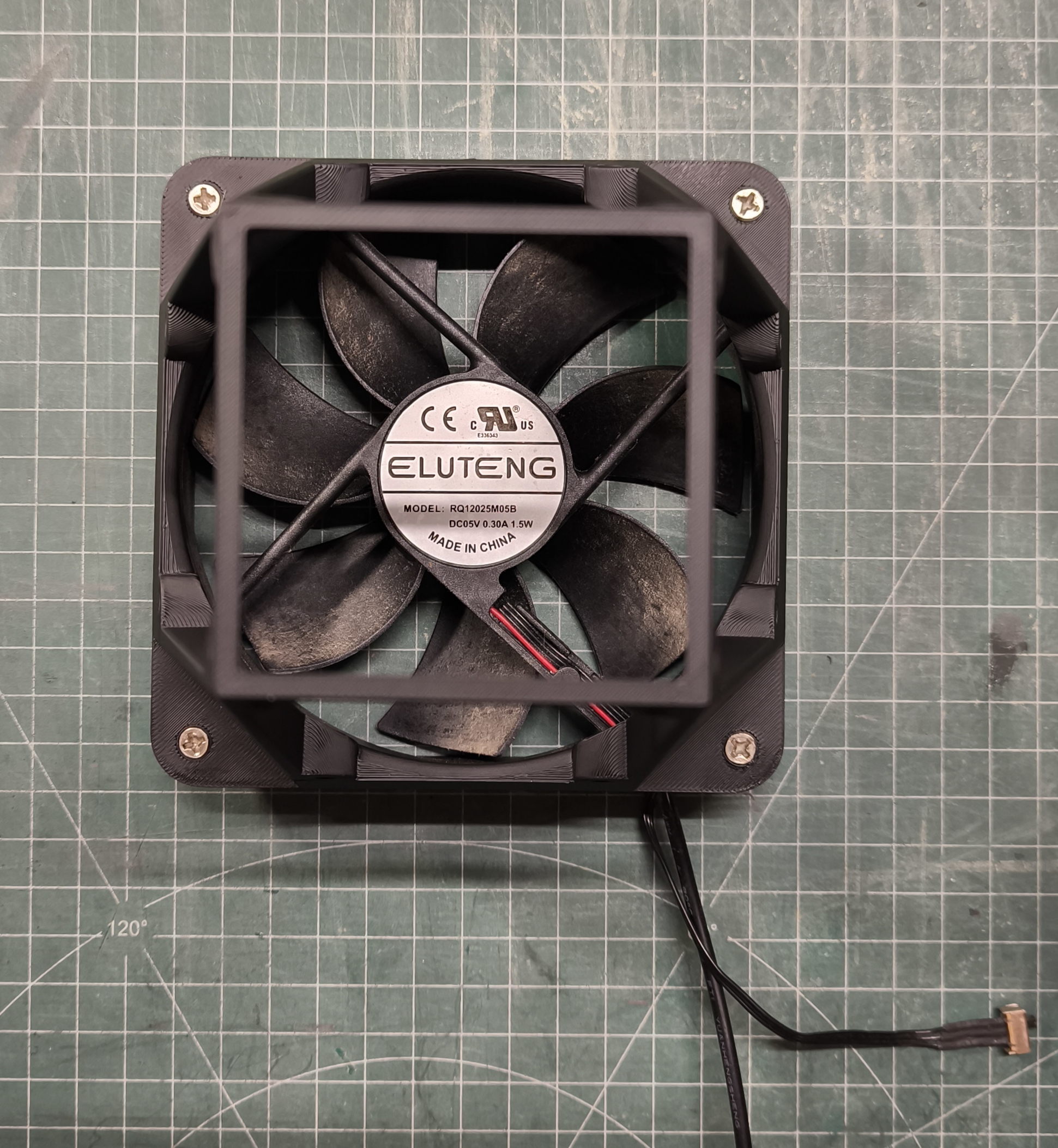

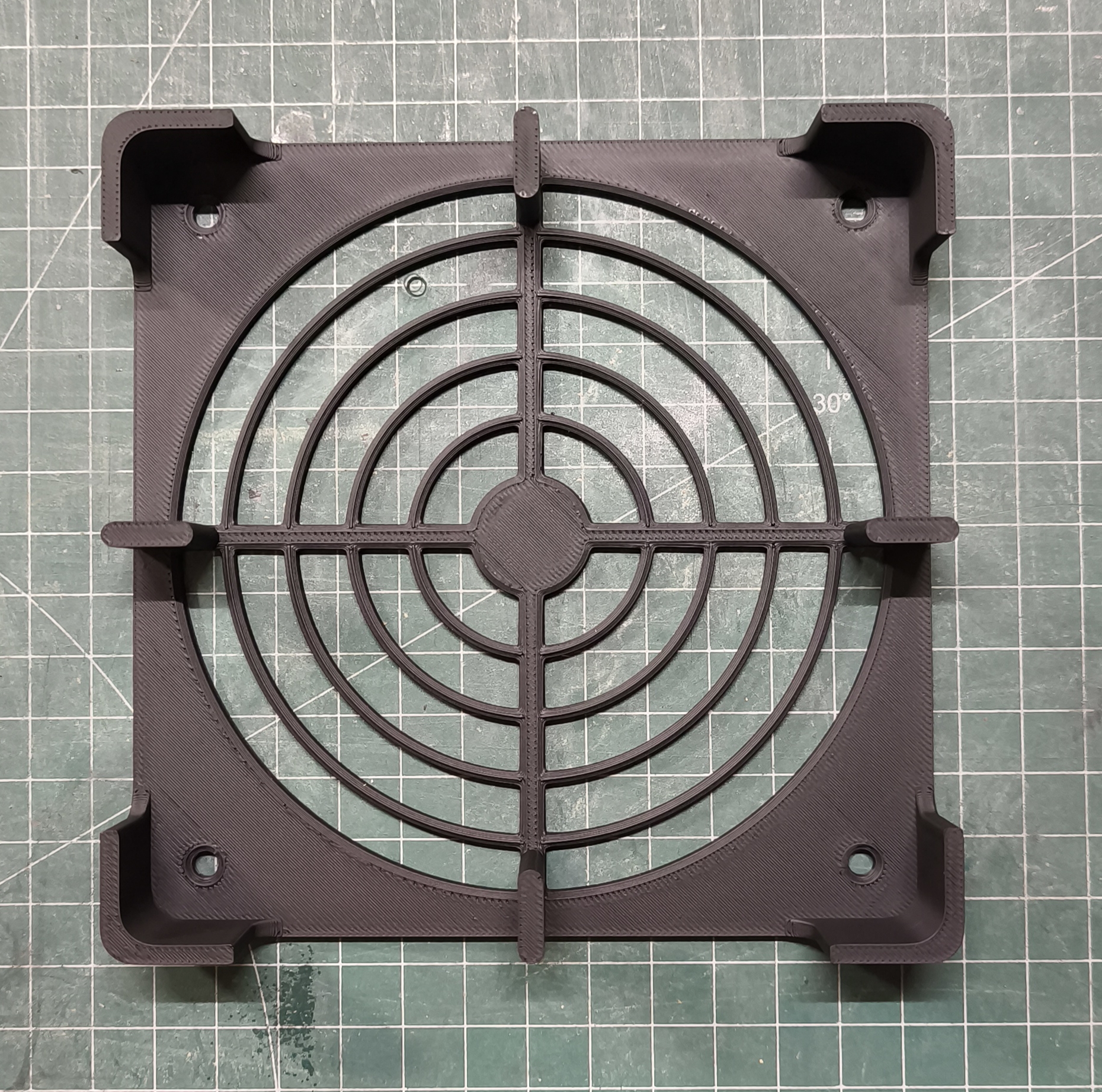

2. Bottom Spacer / Fan Mount

   • Designed for standard 120 mm fans

   • Creates the necessary ground clearance for optimal air intake

   • Mechanically decouples the fan from the main body if desired

This separation simplifies printing, allows material customization, and makes fan replacement or modification straightforward.

Key Features

• Supports up to four Bitaxe devices

• Optimized for rear-side cooling

• Bottom-mounted 120 mm fan

• Vertical chimney-style airflow

• Compact footprint with high cooling efficiency

• Fully 3D-printable, no proprietary components

• Designed based on exact Bitaxe PCB mounting geometry

Intended Use

Quadriga is intended for users who operate multiple Bitaxe devices and require a clean, scalable, and thermally efficient cooling solution. It is suitable for desk, shelf, or rack environments where controlled airflow and mechanical stability are important.

15.02.2026 Edit:

Added a blank cover to make it usable without having 4 Bitaxes.
